Elastic Response Spectrum
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're going to dive into the elastic response spectrum. Can anyone tell me what it represents?
Is it a graph that shows how a structure responds to earthquakes?
Exactly! It illustrates the maximum response—such as displacement, velocity, or acceleration—of a damped SDOF system as a function of its natural period. Can anyone explain why this is important?
It helps engineers to design buildings that can withstand earthquakes.
Right! Remember, we visualize this with a plot of spectral acceleration versus period. One key takeaway is the max response happens at specific periods, essential for effective design.
Can you remind us how these responses are measured?
Sure! The maximum response is assessed through seismic testing and analysis, ensuring we account for the dynamic behavior under different conditions.
To summarize, the elastic response spectrum is fundamental for understanding the performance of structures against seismic forces.
Damping Effect
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's discuss the impact of damping on the response spectrum. What happens to the spectral acceleration when we increase the damping?
I think higher damping leads to lower spectral acceleration?
Correct! Higher damping reduces the structural response during seismic events. We usually use a 5% damping ratio for many buildings. Why do you think we might adjust this in some cases?
Maybe because different structures have unique damping needs?
Exactly! Special structures may have higher damping ratios—sometimes exceeding 5%. Understanding this helps tailored design solutions. Remember, for visual learners, imagine damping like cushioning—more cushion means less bounce!
In summary, damping plays a crucial role in shaping the response spectrum, and understanding this relationship enhances our seismic design strategies.
Design Response Spectrum
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's shift our focus to the design response spectrum. Can anyone tell me what a design response spectrum is?
Is it a standard spectrum that builders use when designing structures?
Absolutely! It's codified, like in IS 1893 Part 1, representing average spectral acceleration for various hazards. This helps us build structures that are safely designed for expected earthquake risks.
How is it different from the elastic response spectrum?
Great question! While the elastic spectrum shows individual responses, the design response spectrum averages those responses over significant statistical analyses of potential seismic hazards. Thus, it's essential for practical engineering.
So, it’s like a guideline?
Exactly! It's a guideline for engineers to ensure buildings can withstand anticipated seismic forces. In summary, the design response spectrum is vital for effective seismic design, using code specifications to ensure safety.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses response spectra, primarily focusing on the elastic response spectrum, the effects of damping on spectral acceleration, and the design response spectrum as used in seismic design codes. It emphasizes how these spectra are critical for understanding structural behavior under seismic loading.
Detailed
Detailed Summary
In the context of earthquake engineering, the section on Response Spectra underscores the importance of understanding how structures react dynamically to seismic forces. The elastic response spectrum is a key tool that plots the maximum response—be it displacement, velocity, or acceleration—of a single degree of freedom (SDOF) system against its natural period or frequency during an earthquake. This graphical representation allows engineers to visualize how structures will behave under expected ground motion.
A crucial aspect of the response spectrum is its sensitivity to the system's damping ratio. Damping plays a critical role in determining both the shape and amplitude of the response spectrum, and while a damping ratio of 5% is common in building design, adjustments might be needed based on specific structural requirements. The design response spectrum, established by codes such as IS 1893 Part 1, is derived from probabilistic and deterministic seismic hazard analyses and is employed for seismic design, providing engineers with essential safety parameters necessary for effective structural resilience against earthquakes.

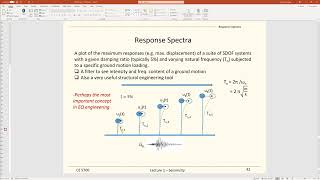

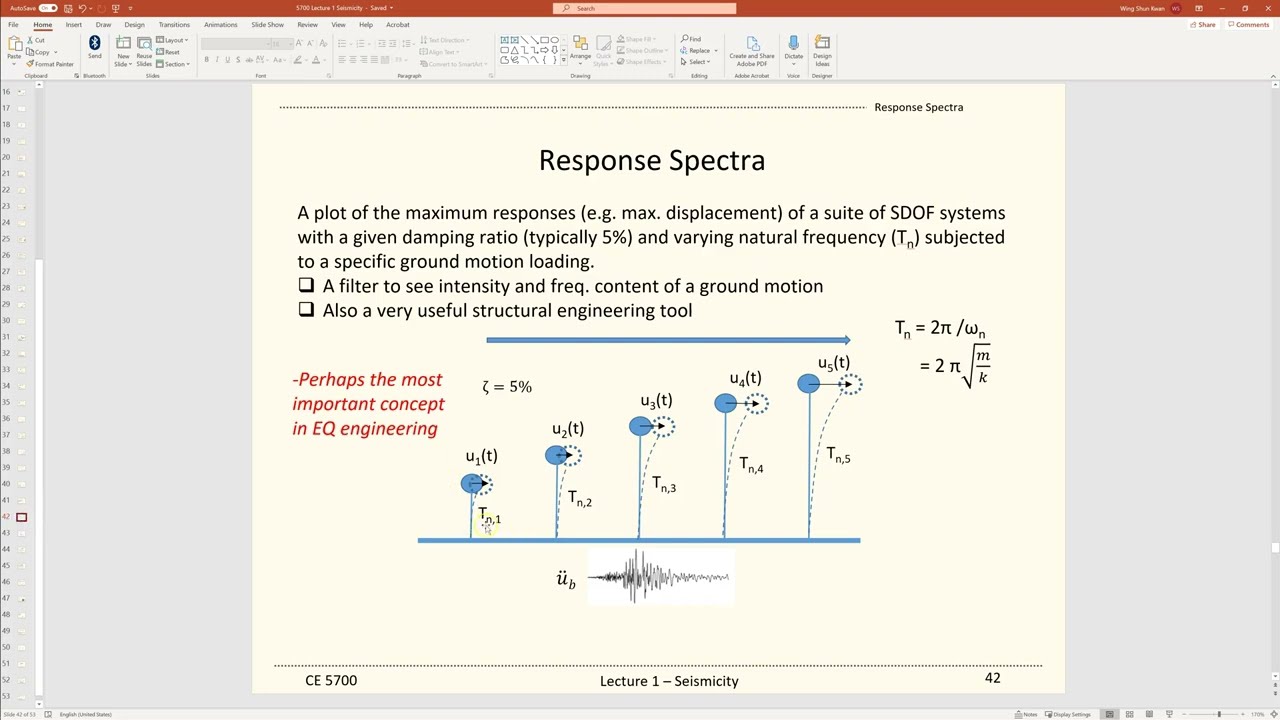

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Elastic Response Spectrum
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• A plot of maximum response (displacement, velocity, or acceleration) of SDOF systems versus period or frequency for a given ground motion.
• For acceleration spectra, this yields the Spectral Acceleration curve.
Detailed Explanation
The Elastic Response Spectrum illustrates how different single degree of freedom (SDOF) systems respond to a specific seismic event. It is created by plotting the maximum responses—such as displacement, velocity, or acceleration—against varying periods (or frequencies) of the systems under consideration. When focusing specifically on acceleration, this plot generates what we call the Spectral Acceleration curve. This curve helps engineers understand how structures will behave under earthquakes depending on their natural frequency, which is influenced by their mass and stiffness.
Examples & Analogies
Think of a musician tuning a guitar. Each string (like each SDOF system) has a different fundamental frequency, producing different pitches. Just as a musician adjusts tension on each string to achieve the right tone, engineers can use the Elastic Response Spectrum to find the maximum response of structures at different frequencies during seismic activity and adjust their designs accordingly.
Damping Effect
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• The damping ratio significantly affects the shape and amplitude of the response spectrum.
• Common practice: use 5% damping for building design, though variations may apply depending on the structure type.
Detailed Explanation
Damping refers to how a structure dissipates energy during deformation caused by forces like earthquakes. The damping ratio is a measure of how quickly this energy is dissipated. It significantly affects both the shape and the height of the response spectrum. In typical structural design, engineers often assume a 5% damping ratio for buildings. However, depending on the type of structure and its use, this damping ratio can vary, leading to differences in how the structure responds during seismic events. Higher damping reduces the peak responses shown in the response spectrum.
Examples & Analogies
Consider a swing in a playground. When you gently push it (like a small force), it moves further and takes longer to return to rest due to less damping (like less friction). But if you apply a strong push (like an earthquake) and then dampen it more quickly by holding the swing back, it stops sooner. This illustrates how different damping ratios can affect how swings—or structures—react to forces.
Design Response Spectrum
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Codified spectrum used for seismic design (e.g., IS 1893 Part 1).
• Represents average spectral acceleration based on probabilistic or deterministic seismic hazard.
Detailed Explanation
The Design Response Spectrum is a standardized curve used in seismic design codes, such as IS 1893 Part 1, to guide engineers in their structural designs. This spectrum reflects the average spectral acceleration expected during seismic events, calculated based on either probabilistic or deterministic assessments of seismic hazards. The purpose of this spectrum is to provide a reliable reference for designing buildings to withstand potential earthquakes, ensuring safety and stability across varying conditions.
Examples & Analogies
Imagine a weather forecast predicting the likelihood of rain. Engineers use the Design Response Spectrum much like a meteorologist use’s a forecast to guide decisions. By knowing the expected level of seismic activity (like predicting rainy weather), engineers can build structures that are stronger during potentially bad conditions, ensuring they don’t crumble when needed.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Elastic Response Spectrum: A graph showing how structures respond to seismic forces.
-
Damping Effect: An increase in damping leads to lower maximum spectral acceleration.
-
Design Response Spectrum: A standardized spectrum used in seismic design based on seismic hazard analysis.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An elastic response spectrum might indicate that a building with a natural period of 0.5 seconds could experience maximum accelerations of 1.2g under certain earthquake conditions.
-
A structural engineer might reference the design response spectrum to set parameters for a hospital designed to withstand major seismic events.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When the ground shakes and the buildings sway, remember damping keeps the forces at bay.
📖 Fascinating Stories
-
Imagine a tightrope walker, balancing on a thin line. With the right amount of damping, they sway but never fall, just like buildings during an earthquake.
🧠 Other Memory Gems
-
To remember the peaks of the response spectrum, think of 'PED': Peak, Elastic, Damping.
🎯 Super Acronyms
Sa for Spectral Acceleration and SD for Single Degree systems — let's keep our structures standing tall!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Spectral Acceleration (Sa)
Definition:
The maximum acceleration experienced by a damped single degree of freedom (SDOF) system under seismic excitation.
-
Term: Damping Ratio
Definition:
A measure of how oscillations in a system decay after a disturbance, represented as a percentage.
-
Term: Elastic Response Spectrum
Definition:
A plot representing the maximum displacement, velocity, or acceleration for SDOF systems versus their natural period for a specific ground motion.
-
Term: Design Response Spectrum
Definition:
A standardized spectrum used for seismic design, representing average spectral acceleration based on seismic hazard analyses.
