Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Spectral Acceleration
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we will dive into Spectral Acceleration, or Sa. It is crucial in understanding how buildings react to seismic forces. Can anyone tell me why knowing this is important in earthquake engineering?
I think it's because it helps us know how much our buildings can shake.
Exactly! Spectral Acceleration (Sa) helps us quantify the maximum acceleration a structure might experience during an earthquake. Remember, it reflects how buildings respond dynamically. Let's break this down further.
What is the difference between seismic acceleration and Spectral Acceleration?
Great question! Seismic acceleration refers to the ground movements during an earthquake, while Spectral Acceleration specifically assesses the response of structures to those movements. It's about how the building behaves under seismic loads.
Let's remember that understanding Sa means we'll better design structures for earthquakes. Think of 'Sa' as 'Safety Assessment'!
Calculating Spectral Acceleration (Sa)
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now that we understand what Sa is, let's talk about how to calculate it. It's derived from the equation of motion for SDOF systems. Who can remember what SDOF stands for?
Single Degree of Freedom!
Correct! We can calculate Sa by solving the equation of motion: mx¨(t)+cx˙(t)+kx(t)=-mu¨(t). Now, what variables do you think influence the spectral acceleration?
Natural period and damping ratio?
Exactly! The natural period 'T' and damping ratio 'ζ' are critical. Sa changes based on these values, so it's essential in design to select appropriate parameters. Remember: 'T' for Time, 'ζ' for Zero damping impact, that helps in computations!
Impacts of Site Conditions on Sa
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's discuss factors affecting Spectral Acceleration, particularly ground conditions. How do you think soil type influences building responses?
Spot on! Site classification affects the shape and amplitude of the spectral response. We have different soil types categorized in codes, such as IS 1893.
What would happen if we built a heavy structure on soft soil?
That could lead to excessive movement and potential failure. It's crucial to assess ground conditions before construction. Let's hold onto 'S' for Soil impact, and remember: good ground leads to good foundations!
Designing with Spectral Acceleration
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
We’ve seen how Sa is calculated and how site conditions affect it. Now, let’s explore its application in design. Who can tell me what design base shear is?
Isn't it the force due to seismic loads that a structure must resist?
That's right! The equation is V = (a * W) / R, where 'V' is design base shear and 'a' is spectral acceleration. We design against this to ensure structural safety. Think of it as 'V' for Value of stability for buildings!
How does Sa help decide how many floors a building can have?
Excellent observation! Higher Sa means higher forces. Designers must consider these forces for taller structures. Remember: 'V' leads to 'Vertical limits'!
Challenges and Limitations of Sa
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
As we conclude our discussions on Spectral Acceleration, it's crucial to understand its limitations. What would you say is the primary assumption of Sa?
That it assumes linear behavior of structures, right?
Exactly! Sa assumes linear elastic behavior which isn’t valid beyond yielding. We often need to modify our analyses for real-world applications. Recall that 'Sa' stands for 'Standard Assumptions'!
Shouldn't we also consider site-specific effects?
Absolutely! More critical structures often need site-specific spectra to ensure accuracy. It’s vital to adapt our approaches. As we wrap up, think of Sa as a guideline, but adaptable based on real conditions!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Spectral Acceleration (Sa) is critical for understanding how structures respond to seismic forces. This section discusses its definition, calculations, the influence of various factors, and its applications in seismic design and analysis, highlighting its importance in ensuring structural safety during earthquakes.
Detailed
Detailed Summary of Spectral Acceleration
Spectral Acceleration (Sa) is a key parameter in earthquake engineering representing the maximum acceleration experienced by a damped single degree of freedom (SDOF) system during seismic excitation. This section outlines its derivation and computational methods, including the effects of ground motion, structural response, and the calculation of Sa for various periods and damping ratios.
Key Components Covered:
- Ground Motion Representation: Earthquake ground motions are characterized by time histories of acceleration, peak ground acceleration (PGA), duration, frequency content, and energy distributions, forming the basis for spectral acceleration computations.
- Single Degree of Freedom (SDOF) Systems: Sa is modeled using SDOF systems represented by mass-spring-damper models, revealing how forces interact under seismic loads.
- Response Spectra: The section discusses the construction of response spectra, including elastic response spectra, effects of damping on spectral shapes, and the role of site conditions in modifying spectral outputs.
- Applications: Sa is used in design base shear calculations and to determine lateral forces in multi-storey structures. The section also emphasizes the necessity of using appropriate computational methods to accurately derive Sa values, especially for critical structures.
- Challenges and Limitations: It identifies the assumptions in spectral acceleration modeling, emphasizing the need for site-specific analyses to capture real-world dynamics accurately.
This comprehensive overview underscores the importance of spectral acceleration in structural engineering, guiding the design and analysis of structures to withstand seismic events.

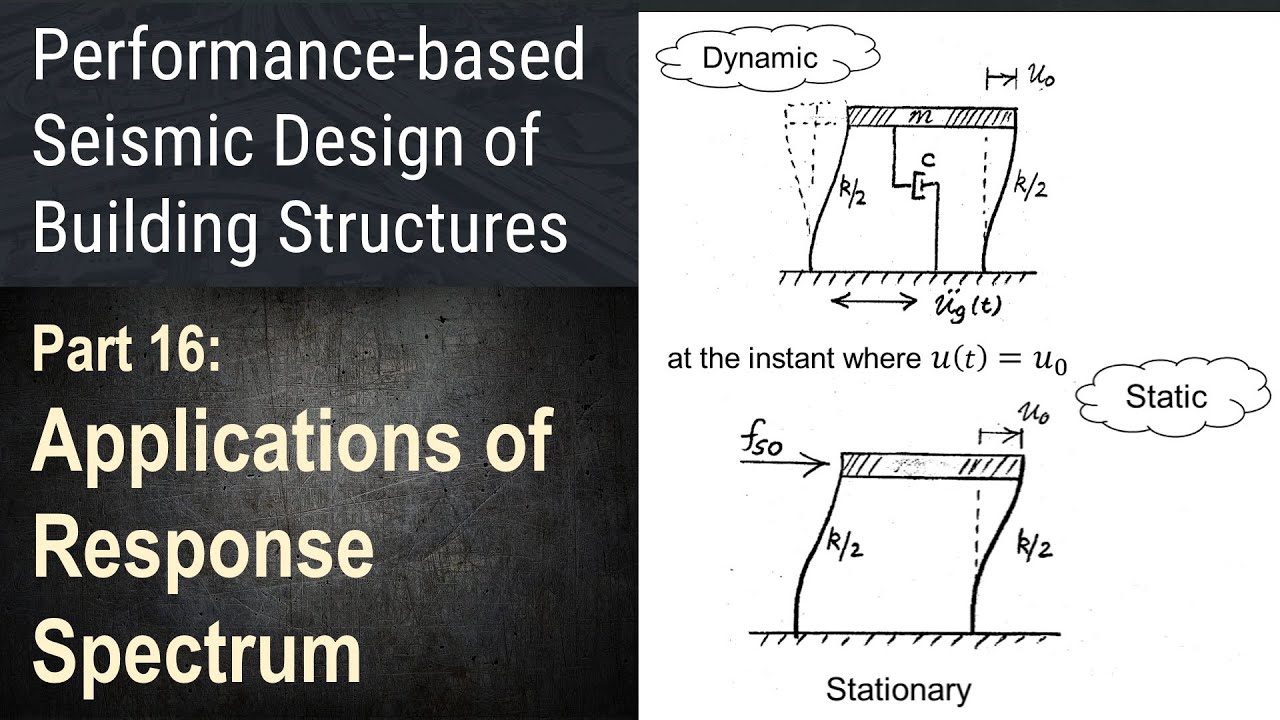

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Spectral Acceleration
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In earthquake engineering, understanding the dynamic response of structures to seismic forces is crucial. One of the most important parameters in this context is Spectral Acceleration (Sa). Spectral acceleration represents the maximum acceleration response of a damped single degree of freedom (SDOF) system to a specific ground motion, as a function of its natural frequency (or period) and damping ratio. This chapter explores spectral acceleration in depth, its derivation, applications, and significance in seismic design and analysis of structures.
Detailed Explanation
This passage introduces Spectral Acceleration (Sa) as a key factor in earthquake engineering. It emphasizes its importance in understanding how structures react during earthquakes. Sa specifically measures the maximum acceleration that a damped SDOF system can experience due to ground motion, which varies based on the system’s natural frequency (or period) and its damping characteristics. The chapter will cover various aspects of Sa, including how it is calculated, how it can be applied in engineering design, and why it is critical for analyzing structural safety during seismic events.
Examples & Analogies
Think of a swing at a playground. The way it swings back and forth at different speeds can be compared to the natural frequency of a structure. If you push the swing (analogous to ground motion from an earthquake), the speed at which it moves is similar to how the swing reacts to that push. Spectral Acceleration helps us understand the maximum push (acceleration) the swing will experience depending on its structure and how dampened the push is.
Ground Motion and Structural Response
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
30.1 Ground Motion and Structural Response
30.1.1 Ground Motion Representation
• Earthquake ground motion is recorded as a time-history of acceleration at the ground surface.
• These time-histories are characterized by peak ground acceleration (PGA), duration, frequency content, and energy.
Detailed Explanation
Ground motion during an earthquake can be represented as a time-history plot showing the acceleration over time. This plot is essential because it captures how the ground shakes during an earthquake, which can be analyzed to predict a structure's response. Key features of this ground motion include its Peak Ground Acceleration (PGA), which indicates the maximum acceleration experienced at the surface, the duration of shaking, the frequency of ground movement, and the total energy released during the quake. Each of these characteristics plays a vital role in assessing how structures will respond during seismic events.
Examples & Analogies
Imagine trying to balance a cup of water on a table when someone shakes the table. The shaking represents ground motion. The maximum tilt of the cup (PGA) is what you want to measure since it tells you how much stress the cup (or the building) experiences before spilling over. The longer the shaking lasts (duration), the more likely the cup is to spill, representing the ongoing danger to the structure.
Single Degree of Freedom (SDOF) Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
30.1.2 Single Degree of Freedom (SDOF) Systems
• A simplified model used to study the dynamic response of structures.
• SDOF systems are idealized with a mass-spring-damper model:
mx¨(t)+cx˙(t)+kx(t)=−mu¨ (t)
g
• Where:
– x¨(t): Relative acceleration
– x˙(t): Relative velocity
– x(t): Relative displacement
– u¨ (t): Ground acceleration
g
Detailed Explanation
Single Degree of Freedom (SDOF) systems are mathematical models used to represent and analyze the behavior of structures under dynamic loads, particularly during earthquakes. In this model, a structure is simplified to a system with one mass, one spring, and one damper. The equation presented represents how the mass (structure) reacts over time to ground accelerations. Here, x is the position of the structure, and u represents the ground motion. By using this model, engineers can predict how a building or structure will respond to seismic forces by analyzing how it moves, speeds up, and accelerates in response to ground motion.
Examples & Analogies
You can think of a SDOF system like a child on a swing. The swing being pulled back (potential energy) is comparable to the structure being 'stretched' by seismic forces. When the swing is released and moves back and forth, it represents the motion of a building being shaken during an earthquake. We can apply this simple model to predict how much the child (the structure) swings back and forth depending on how hard the swing is pushed (the ground motion).
Definition of Spectral Acceleration (Sa)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
30.2 Definition of Spectral Acceleration (Sa)
• Spectral Acceleration (Sa) is the maximum acceleration experienced by a damped SDOF system under seismic excitation.
• It is computed by solving the equation of motion for various periods and damping ratios.
1
• Units: m/s² or g (acceleration due to gravity).
Sa(T,ζ)=max|x¨(t)|
Where:
• T: Natural period of the structure
• ζ: Damping ratio (usually 5% for buildings)
• x¨(t): Acceleration response
Detailed Explanation
Spectral Acceleration (Sa) quantifies the maximum acceleration that a damped SDOF system can experience when subjected to seismic forces. It is determined by solving the equation of motion for different values of natural period (T) and damping ratio (ζ), which reflects how oscillations decay over time. The formula represents that Sa is the greatest absolute value of the acceleration response (x¨(t)) as the system shakes. The units of Sa can be expressed in meters per second squared (m/s²) or as a fraction of gravitational acceleration (g). This parameter is crucial in earthquake engineering as it helps to define how much a structure might accelerate in response to ground movements.
Examples & Analogies
Think of Sa like measuring the hardest bump a person feels when riding over a series of hills in a car. If you imagine a very bumpy road as representing seismic activity, then Sa is like measuring the highest point of that bumpiness. Different cars (structures) will handle the bumps differently based on their suspension systems (damping ratios), and the speed at which they go (natural period) can also affect how much they jump. Understanding Sa helps engineers determine the safest designs for buildings in earthquake-prone areas.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Spectral Acceleration (Sa): Represents building response to seismic forces.
-
Single Degree of Freedom (SDOF): A simplified model for structural analysis.
-
Damping Ratio: Affects how structures dissipate energy during oscillations.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A building in a high seismic zone may require a higher Spectral Acceleration value to ensure stability and safety compared to a low seismic zone.
-
Calculating Sa for a 5-story structure using a damping ratio of 5% may yield different results than for a 10-story structure due to the change in natural frequency.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For structures that sway and tilt, Sa guides the way, to build and to build without fear of decay.
📖 Fascinating Stories
-
Imagine a tall building rising in a seismic zone, its foundation strong and its damping high, designed with Sa in mind, ensuring safety and stability even when the earth shakes.
🧠 Other Memory Gems
-
To remember Sa, think of 'Safety Assessment for buildings'.
🎯 Super Acronyms
Sa
- Structural Acceleration response.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Spectral Acceleration
Definition:
The maximum acceleration response of a damped single degree of freedom system to seismic forces.
-
Term: Single Degree of Freedom (SDOF)
Definition:
A simplified model used to analyze the dynamic response of a structure to external forces.
-
Term: Damping Ratio
Definition:
A measure of how oscillations in a system decay after a disturbance.
-
Term: Elastic Response Spectrum
Definition:
A plot showing the maximum response of SDOF systems versus their natural periods for a specific ground motion.
-
Term: Peak Ground Acceleration (PGA)
Definition:
The maximum acceleration recorded at the ground's surface during an earthquake.
-
Term: Design Base Shear (V)
Definition:
The total lateral force that a structure must resist during an earthquake.
