30.7 - Spectral Acceleration vs. Other Parameters
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Spectral Acceleration (Sa)
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we’re diving into Spectral Acceleration, or Sa. Can anyone tell me what Sa represents in structural design?
Isn't it the maximum acceleration a structure experiences during an earthquake?
Exactly! Sa is a crucial measure of how a structure responds to seismic forces. It reflects the maximum acceleration on a damped single degree of freedom system. But why do you think it’s important?
Because it helps in designing structures to withstand earthquakes?
Correct! Understanding Sa helps engineers create effective design response spectra. Remember, whenever you're thinking about seismic responses, Sa is a critical parameter!
What about the role of damping in this?
Great question! The damping ratio directly influences Sa. Higher damping usually leads to lower spectral acceleration, helping to reduce the response of structures in earthquakes.
Let's summarize: Sa indicates maximum acceleration response and is pivotal for design decisions. Who can tell me why it differs from PGA?
PGA isn't specifically focused on structural response—it’s just the ground motion effect, right?
Exactly! So, in seismic design, Sa gives us a refined view of structural performance!
Comparing Key Seismic Parameters
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we understand Sa, let's compare it with other seismic parameters. Who can start with PGA?
PGA is the peak acceleration felt at the ground, which helps indicate the level of shaking.
Right again! So it's a fundamental measure, but its application is limited compared to Sa. What about Spectral Velocity (Sv)?
Sv measures the maximum velocity response, but it’s not commonly used for design, is it?
Correct! Sv provides relevant data but is secondary to Sa in terms of practical applications. Finally, what about Spectral Displacement (Sd)?
It represents the maximum displacement, often used for flexible structures.
Exactly! While Sa is critical for design response spectra, Sd provides guidance for the actual physical movements of structures during seismic events. Summarizing today, Sa, while crucial, is part of a broader spectrum of parameters. Each parameter plays a different role in understanding seismic responses.
The Importance of Sa in Structural Design
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s dive deeper into why Sa is critical in seismic design. Why do engineers predominantly use Sa over others?
Because it’s tailored for the structural response, right?
Exactly! Sa is necessary for establishing design response spectra, which ensures that structures can handle realistic seismic demands. What roles do PGA and other parameters play in this context?
They help provide a baseline for shaking intensity, but Sa refines that for specific structural analysis.
Well said! Without Sa, we would lack the accurate understanding needed to create effective seismic-resistant designs. Can someone summarize the criteria for choosing between these parameters?
PGA gives us an idea of ground shaking, while Sa gives insight into how a specific structure will respond.
Perfect! Remember, each parameter has its part, but Sa is central to the practical applications in designs to ensure structural integrity.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section outlines key parameters including Peak Ground Acceleration (PGA), Spectral Velocity (Sv), and Spectral Displacement (Sd), explaining their definitions and uses in seismic design. It emphasizes how Sa serves as a critical component in design response spectra, essential for understanding the dynamic response of structures to seismic forces.
Detailed
Spectral Acceleration vs. Other Parameters
In earthquake engineering, understanding how structures respond to seismic forces is vital, and one relevant measure is Spectral Acceleration (Sa). This section defines and compares Sa with other seismic parameters, namely Peak Ground Acceleration (PGA), Spectral Velocity (Sv), and Spectral Displacement (Sd).
Parameter Definitions and Uses
- Peak Ground Acceleration (PGA): This parameter indicates the maximum ground acceleration recorded during an earthquake. It serves as a basic indicator of seismic shaking, providing essential information on the intensity of ground motion impacting a structure.
- Spectral Acceleration (Sa): Sa represents the maximum acceleration experienced by a damped single degree of freedom (SDOF) system due to seismic excitation. It is crucial for creating design response spectra, utilized widely in seismic structural design as it accurately captures the impact of ground motion frequencies on structures.
- Spectral Velocity (Sv): This discusses the maximum velocity response of a structure and is less commonly used in design compared to Sa. It provides additional insights on how structures might behave dynamically but is not a primary design factor.
- Spectral Displacement (Sd): This describes the maximum displacement response of a structure and is especially important for flexible or tall structures, guiding their design considerations under seismic events.
Understanding these relationships and differences between these parameters allows engineers to make informed decisions in structural design to ensure safety and performance during earthquakes.
Youtube Videos

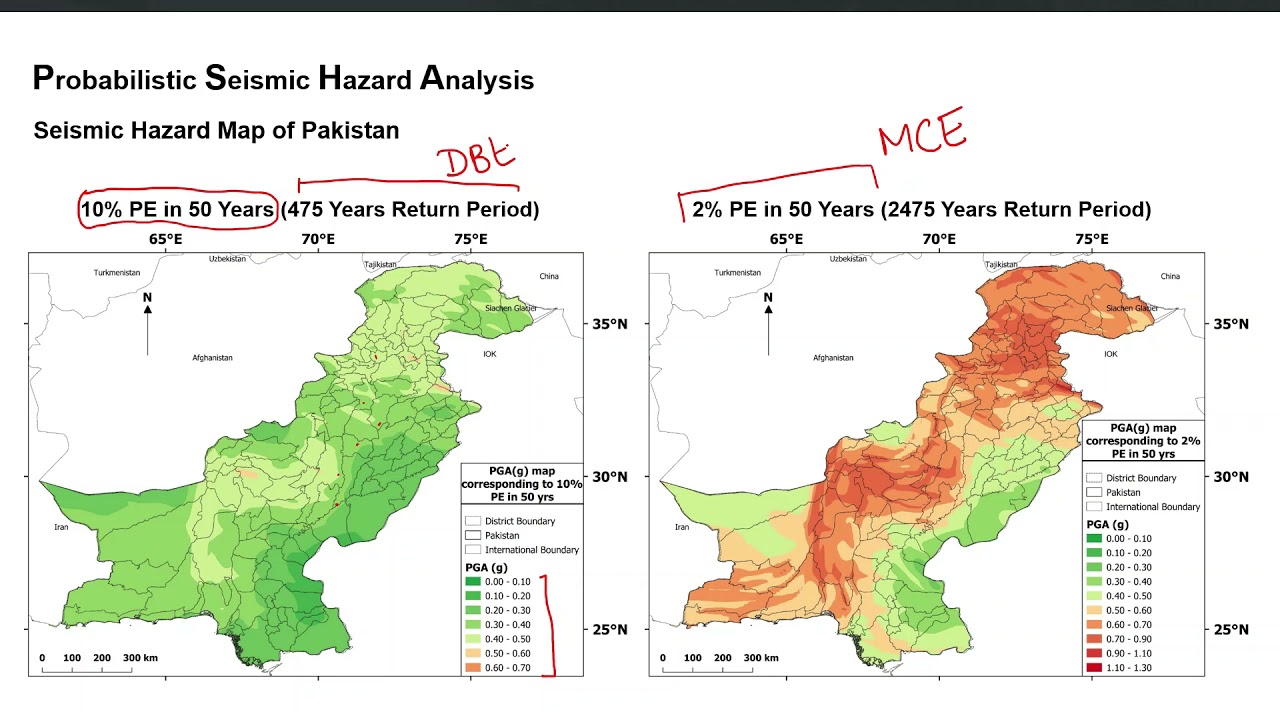

![12 - Concepts of Spectral Acceleration Hazard Parameters (Ss & S1) - SLE, DBE & MCE [Urdu Language]](https://img.youtube.com/vi/vl_9rS-OISI/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
PGA (Peak Ground Acceleration)
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Parameter Definition Use
PGA (Peak Ground Acceleration)
- Max ground acceleration
- Basic indicator of shaking
Detailed Explanation
Peak Ground Acceleration (PGA) measures the maximum acceleration experienced at the ground surface during an earthquake. It indicates how strongly the ground shakes, acting as a primary measure for assessing the intensity of seismic activity. When engineers assess seismic risks, they often start with PGA values to evaluate how much shaking a structure will need to withstand.
Examples & Analogies
Think of PGA like measuring the highest wave of a storm at sea. Just as the highest wave indicates how rough the sea can get, PGA indicates how severe the shaking can be during an earthquake. If a builder knows that the waves (or shaking) can reach a certain height, they can design a stronger boat (or building) to withstand it.
Sa (Spectral Acceleration)
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Sa (Spectral Acceleration)
- Max acceleration of damped SDOF system
- Used in design response spectra
Detailed Explanation
Spectral Acceleration (Sa) represents the maximum response acceleration of a single degree of freedom (SDOF) system that is damped. This parameter is crucial in design because it indicates how a structure will respond to different ground motions for varying natural periods and damping ratios. Engineers use Sa to create response spectra, which serve as a guideline for designing buildings to withstand seismic forces.
Examples & Analogies
Imagine a swing at a playground: how it moves depends on its length (natural period) and how much it is pushed (ground motion). If someone swings it gently (low damping), it moves broadly, reaching higher points (higher Sa). If they hold it back while pushing (high damping), the swing moves less. Engineers analyze Sa similarly, figuring out how far and fast a structure can 'swing' during an earthquake.
Sv (Spectral Velocity)
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Sv (Spectral Velocity)
- Max velocity response
- Less commonly used in design
Detailed Explanation
Spectral Velocity (Sv) measures the maximum velocity response of a damped SDOF system during seismic events. While it provides useful information about how quickly a system is moving, it is not as frequently used in design compared to Sa. This is partly because acceleration (Sa) is a more direct measure of forces affecting buildings during earthquakes.
Examples & Analogies
Think of a sports car accelerating quickly down the road. While the speed (velocity) is important, what matters most for safety during a race is how fast it can stop or change direction (acceleration). Just like the car design focuses more on stopping power, engineers prioritize measures that indicate how buildings can handle acceleration in earthquakes rather than just velocity.
Sd (Spectral Displacement)
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Sd (Spectral Displacement)
- Max displacement response
- Used for flexible or tall structures
Detailed Explanation
Spectral Displacement (Sd) is defined as the maximum horizontal displacement experienced by a damped SDOF system during an earthquake. It is particularly relevant for more flexible or taller structures because these types of buildings are more prone to significant lateral displacements during seismic activity. Understanding and calculating Sd helps engineers design buildings that can manage these movements without failing.
Examples & Analogies
Envision a tall tree swaying in the wind. The tree's bending is like spectral displacement; it can flex significantly without breaking. When engineers design skyscrapers, they ensure that the 'sway' or 'displacement' during strong winds or earthquakes is controlled and won't damage the building, much like how pruning helps a tree avoid damage during storms.
Key Concepts
-
Spectral Acceleration (Sa): A key parameter indicating the maximum acceleration response of structures to seismic forces.
-
Peak Ground Acceleration (PGA): Measures the maximum ground shaking during an earthquake, serving as a baseline for assessing seismic impacts.
-
Spectral Velocity (Sv): Indicates the maximum velocity response of structures but is less emphasized in design compared to Sa.
-
Spectral Displacement (Sd): Represents the maximum displacement of a structure, critical in designing flexible and tall structures.
Examples & Applications
Sa is crucial for defining design response spectra used in engineering codes for seismic design, ensuring that structures can withstand anticipated ground motions.
PGA provides a foundational measurement indicating the greatest ground motion, while Sa contextualizes this data for specific structural settings.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Sa is the peak that structures face, when seismic forces are in place.
Stories
Imagine a building swaying gently in an earthquake. Sa is its protective buddy, showing how much it can sway without falling!
Memory Tools
S-P-S: Sa for ‘Structural acceleration’, P for ‘Peak ground’, S for ‘Spectral displacement’.
Acronyms
P.S.S for 'Peak, Spectral, and Structural' to remember key parameters in seismic design.
Flash Cards
Glossary
- Peak Ground Acceleration (PGA)
The maximum ground acceleration recorded during an earthquake, serving as an indicator of seismic shaking.
- Spectral Acceleration (Sa)
Maximum acceleration experienced by a damped single degree of freedom system due to seismic excitation.
- Spectral Velocity (Sv)
The maximum velocity response of a structure to seismic forces.
- Spectral Displacement (Sd)
The maximum displacement response of a structure during seismic events, important for flexible or tall structures.
