44.2 - Architectural Considerations
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Building Configuration
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's start with building configuration. Why do you think regular shapes are preferred in seismic design?
Maybe because they can evenly distribute forces?
Exactly! Irregular configurations can lead to stress concentrations. We prefer symmetry in mass and stiffness to avoid this. Remember, the acronym 'SIMPLE' can help you think about the key aspects: Symmetrical configurations Improve Mass and load distribution for earthquake safety.
What about buildings that are not symmetrical? Can they still be safe?
Good question! While irregular buildings can be designed to be safe, they require more complex analysis and mitigation strategies. This includes careful understanding of torsional effects.
So should every building be considered symmetrical?
Not necessarily every building, but symmetry offers a simpler and often more effective way to manage forces during an earthquake. It's about reducing risk wherever possible.
To summarize today, a symmetrical configuration in buildings enhances safety by distributing load evenly and reducing stress concentrations.
Separation Joints
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let’s discuss separation joints. Why do you think we need them between structures?
To stop them from crashing into each other?
Exactly! Seismic joints are used to prevent pounding between adjacent structures during an earthquake. How do you think this benefits the overall stability?
It likely prevents a chain reaction of failures if one structure moves.
Absolutely! A well-designed joint can absorb movement without transferring too much force, maintaining stability. Remember: 'SPACE' — Separation Allows Protection Against Collapse and Energy transfer!
Are there any specific guidelines for determining where to place these joints?
Yes, designers consider predicted movements based on seismic activity and building habits. Planning is essential for effective joint placement.
To recap, separation joints are critical for ensuring adjacent structures can move safely without causing damage to one another.
Height and Mass Distribution
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s talk about height and mass distribution. Why is it important to have a uniform distribution across a building?
I think it helps in keeping the structure balanced?
Yes! A uniform distribution of mass and stiffness helps in maintaining balance during earthquakes, preventing soft storey formation. This is where a weak level can collapse under stress.
So, should we adjust column sizes or placements to achieve this uniform distribution?
Correct! Designers must ensure uniform column stiffness throughout the structure. You can use 'MASS' as a mnemonic: Maintaining All Structural Supports for stability.
What happens if we ignore this balance?
Neglecting mass and stiffness balance can lead to severe structural damage during an earthquake, sometimes causing complete failure.
In summary, uniform mass and height distribution is paramount in providing stability and preventing catastrophic failures.
Overhangs and Cantilevers
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s discuss overhangs and cantilevers. What do we know about their impact during seismic events?
They can create a lot of torsion, right?
Exactly! Heavy overhangs and cantilevers can introduce torsional movements that may destabilize a building during an earthquake. How can we mitigate these effects?
Maybe by limiting how heavy they are?
Yes, limiting their weight is one solution. Also, ensuring even weight distribution helps manage torsional effects. Use the acronym 'TORSION': Torsional Overhang Regulation Supports Integrity of the Overall Node!
What if designers want to include them? Can they do so safely?
They can! But they need to follow strict design guidelines to minimize risks and ensure stability.
To summarize, minimizing heavy cantilevers and ensuring even weight distribution can significantly improve building performance during seismic events.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, various architectural strategies are presented, including appropriate building configurations, the use of separation joints, and mass distribution to enhance earthquake resilience. These considerations play a crucial role in ensuring structural integrity amidst seismic activities.
Detailed
Architectural Considerations
In seismic design, architectural considerations are vital to reduce vulnerability to earthquakes. This section outlines essential architectural strategies:
- Building Configuration: Regular, symmetrical configurations in both plan and vertical layouts are preferred. Irregular shapes can lead to stress concentrations during seismic events, increasing the risk of failure.
- Separation Joints: Seismic joints between adjacent structures prevent pounding during movement. This separation is crucial to maintain integrity in multi-structure developments.
- Height and Mass Distribution: Uniform distribution of mass and stiffness is essential. Special attention should be given to avoiding soft storey formation, which can occur if there is inconsistency in column stiffness, potentially leading to collapse.
- Overhangs and Cantilevers: Heavy overhangs and cantilevers should be minimized as they can induce torsional effects during an earthquake, compromising structural stability. Maintaining a balanced distribution of weight and force resistance throughout the building is critical.
Through these design strategies, buildings can achieve improved performance during seismic events, ensuring safety and resilience.

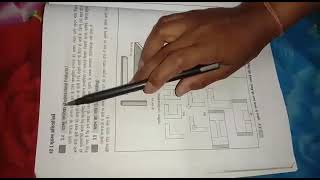

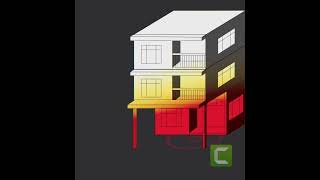

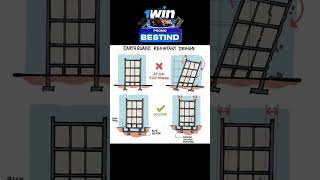

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Building Configuration
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Avoid irregular configurations (plan and vertical).
- Aim for symmetry in mass and stiffness.
Detailed Explanation
Building configuration refers to the overall shape and layout of a structure both in its floor plan (horizontal layout) and elevation (vertical layout). It is important to avoid irregular configurations, as these can create vulnerabilities during an earthquake. Irregularities can lead to uneven distribution of forces, causing parts of the structure to experience higher loads. Therefore, aiming for symmetry in terms of mass (the weight) and stiffness (the ability to resist deformation) helps ensure that the building can react uniformly to seismic forces, reducing the likelihood of damage.
Examples & Analogies
Think of a seesaw; if one side is heavier or positioned differently, the seesaw will tip more easily. Similarly, a building with uneven weight distribution is less stable and more likely to collapse during an earthquake.
Separation Joints
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Provide seismic joints between adjacent structures to prevent pounding.
Detailed Explanation
Separation joints are gaps or spaces intentionally designed between adjacent structures or sections of the same structure. These joints are crucial during an earthquake because they allow for independent movement between structures. Without these joints, two buildings that sway during an earthquake could collide, leading to severe damage known as 'pounding.' Therefore, incorporating seismic joints is a preventive measure to maintain the structural integrity of both buildings.
Examples & Analogies
Imagine two cars parked closely together during a minor earthquake. If the cars moved independently, they could avoid bumping into each other. Similarly, separation joints allow buildings to move without impacting adjacent structures.
Height and Mass Distribution
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Maintain uniform distribution of mass and stiffness.
- Avoid soft storey formation by ensuring consistent column stiffness throughout.
Detailed Explanation
Uniform distribution of mass and stiffness across a building helps ensure that it will react similarly to seismic forces. If mass and stiffness are concentrated in certain areas, it risks creating a weak point. 'Soft storey' refers to a level in a building that has insufficient stiffness compared to others, often because it has large openings (like parking garages) that reduce column strength. This can lead to failure during an earthquake. It's essential that each storey can adequately resist seismic forces, which requires consistent column design and placement.
Examples & Analogies
Think about a stack of books. If you have a few heavy books on the bottom and lighter ones above, the stack may tip over easily. But if all the books are evenly distributed by size and weight, it is stable. This is similar to how a building should distribute its weight and resistance to be secure.
Overhangs and Cantilevers
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Minimize heavy overhangs and cantilevers that can create torsional effects.
Detailed Explanation
Overhangs and cantilevers are parts of structures that extend beyond their support. While they can enhance aesthetic appeal and functionality, heavy overhangs can lead to torsional effects during an earthquake. Torsion occurs when one part of the structure reacts differently than another, causing twisting forces that can be damaging. It’s important to minimize these structural elements or design them carefully to ensure they do not create dangerous imbalances during seismic events.
Examples & Analogies
Consider a diving board; if a diver jumps on one end without proper support, the board can twist and wobble. Similarly, overhangs can create unbalanced forces if not designed with care, leading to instability during shaking.
Key Concepts
-
Building Configuration: The shape and layout of buildings that affect earthquake response.
-
Separation Joints: Gaps between structures that prevent damage from seismic activity.
-
Mass Distribution: Important for maintaining stability during seismic forces.
-
Soft Storey Formation: A critical concern to avoid weak levels in structures.
-
Torsion: Unexpected twisting during seismic movements that can lead to failure.
-
Cantilevers and Overhangs: Elements that need careful management to reduce earthquake effects.
Examples & Applications
A square building with evenly sized columns is less likely to experience torsional forces, while a building with an irregular shape may face higher stress concentrations.
Using separation joints effectively reduces the likelihood of damage between two adjacent high-rise buildings during an earthquake.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
For uniform strength, don't be a fool, keep it equal, that's the rule!
Stories
Imagine a tightrope walker who balances carefully. If he leans too much to one side, he’ll fall! That’s like a building; balance is crucial to avoid disaster.
Memory Tools
MASS: Maintaining All Structural Supports for stability.
Acronyms
SPACE
Separation Allows Protection Against Collapse and Energy transfer!
Flash Cards
Glossary
- Building Configuration
The layout and shape of a building that affects its resistance to seismic forces.
- Separation Joints
Gaps between adjacent structures designed to prevent pounding during seismic activity.
- Mass Distribution
The even allocation of weight throughout a structure to ensure balanced resistance to seismic forces.
- Soft Storey
A level in a building with insufficient stiffness or strength to resist seismic forces effectively.
- Torsion
Twisting forces that can occur in structures due to uneven mass distribution or dynamic loading.
- Cantilevers
Structures that project beyond their supporting walls or columns, requiring careful design to prevent torsion.
- Overhangs
Parts of a structure that extend out beyond their base or support.
