Basic Concepts of Structural Vibration Control
In this section, we explore significant concepts related to vibration control in structures, especially in the context of seismic loads. Vibration control is defined as the application of devices or systems designed to diminish, isolate, or redirect vibrations caused by external or internal forces.
The primary objective of vibration control is to minimize the amplitude of motion in structures, which can be critical during seismic events. The discussion outlines various types of control measures utilized in structural engineering:
- Passive Control Systems: These systems do not require external power and rely on the inherent properties of materials to absorb energy.
- Active Control Systems: These systems utilize external energy sources to counteract vibrations.
- Semi-Active Control Systems: Combining both passive and active methods, these systems need minimal external power to adjust their effectiveness dynamically.
- Hybrid Control Systems: These integrate components of both passive and active systems for optimal performance.
Furthermore, the section identifies key parameters affected by vibration control measures such as natural frequency, damping ratio, and mode shapes, which are crucial for understanding how structures respond under dynamic loads.
Youtube Videos

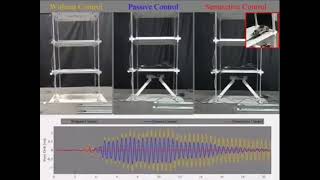

![[BCT2025 Webinar] Long Period Ground Motion in Earthquake – its Impacts, Measures and Effects 1](https://img.youtube.com/vi/0lGZlFHEbS4/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Vibration Control
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Definition: Vibration control refers to the implementation of devices or systems to reduce, isolate, or redirect vibrations from external or internal sources.
Detailed Explanation
Vibration control involves using specific technologies or methods to manage vibrations that occur within structures. This can be due to external forces like earthquakes or internal forces like machinery. The goal of vibration control is to minimize the impact of these vibrations, ensuring that structures remain safe and functional.
Examples & Analogies
Think of a car suspension system. Just as the suspension absorbs bumps and irregularities on the road to provide a smoother ride, vibration control systems in buildings or bridges work to minimize the effects of vibrations, making them more comfortable and safe for occupants.
Objective of Vibration Control
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Objective: To reduce the amplitude of motion in structures caused by earthquakes or other dynamic forces.
Detailed Explanation
The main objective of incorporating vibration control measures is to lessen how much a structure moves during events like earthquakes. This is crucial because excessive movement can lead to structural failure or damage. By controlling the motion amplitude, the integrity and safety of the structure can be maintained.
Examples & Analogies
Consider a tall building during an earthquake. If the building sways too much, it might sustains damage or even topple. However, by implementing vibration control systems, we can think of it like having training wheels on a bike, ensuring the ride remains stable even amidst chaotic movements.
Types of Control Measures
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Types of Control Measures:
– Passive Control Systems
– Active Control Systems
– Semi-Active Control Systems
– Hybrid Control Systems
Detailed Explanation
There are four main types of vibration control measures. Passive systems essentially use materials or structures that inherently resist vibrational forces without requiring additional power. Active systems rely on external energy to actively counteract vibrations using sensors and actuators. Semi-active systems combine both passive and active technologies, allowing some responsiveness without heavy energy reliance. Lastly, hybrid systems integrate elements from both active and passive systems to enhance overall performance.
Examples & Analogies
Imagine a basketball player trying to control a bouncing ball. A passive approach would be like using a sturdy wall to stop the ball without any effort, while an active approach would be using your hands to constantly redirect the ball. A semi-active approach would be like using a net that adjusts position based on where the ball is headed. A hybrid approach might involve all these methods working together, optimizing the player's ability to control the ball efficiently.
Parameters Affected by Vibration Control
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Parameters Affected:
– Natural frequency
– Damping ratio
– Mode shapes
Detailed Explanation

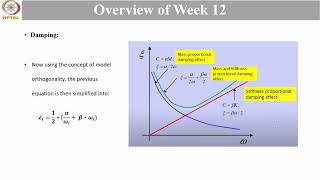

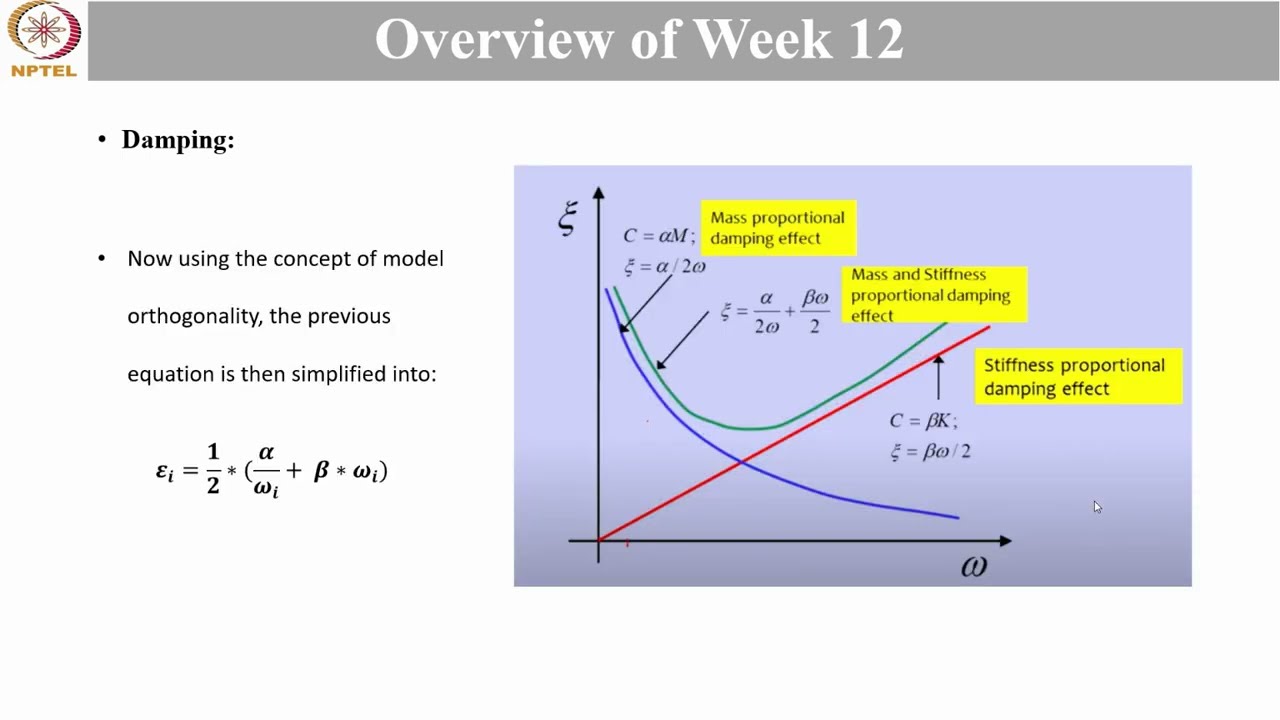

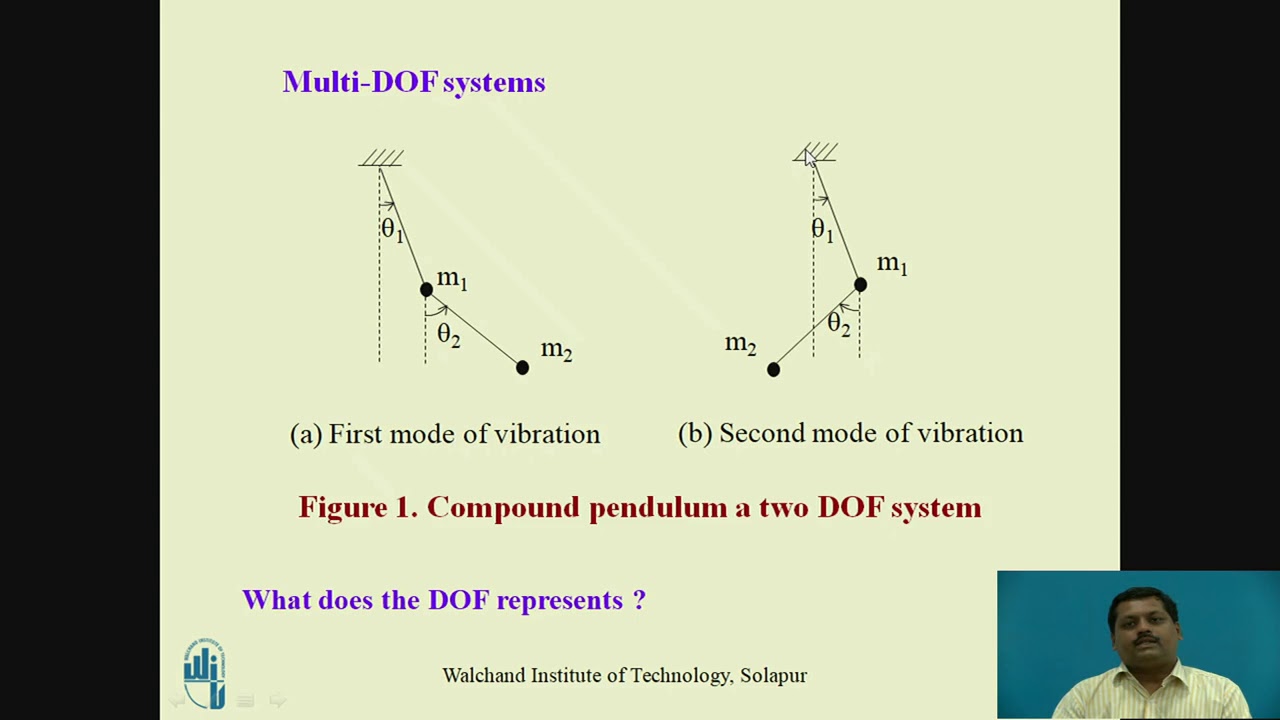

Vibration control affects several key parameters in structural dynamics. The natural frequency is the specific frequency at which a system tends to oscillate in the absence of any driving force. The damping ratio indicates how oscillations in a system decay after a disturbance, providing insight into how quickly a structure can return to rest. Mode shapes describe the various patterns of movement a structure can exhibit during vibration, helping engineers understand how and where the structure might move.
Examples & Analogies
Think of a swing at a playground. The natural frequency would be how quickly the swing moves back and forth without any push. The damping ratio can be likened to the slowing down of the swing due to the friction of the chains. Mode shapes could be visualized as the different ways the swing can move—back and forth, side to side, or twisting—depending on how you push it. Understanding these parameters helps in designing structures that behave predictably during vibrations.
Key Concepts
-
Vibration Control: The application of systems to manage vibrations.
-
Passive Control: Systems that do not need external energy.
-
Active Control: Systems utilizing external energy sources.
-
Semi-Active and Hybrid: Systems combining features for optimal control.
-
Parameters Affected: Natural frequency, damping ratio, and mode shapes.
Examples & Applications
Tuned Mass Dampers are examples of passive control systems used in skyscrapers to reduce oscillation.
Base isolation systems utilize friction pendulum bearings to decouple the building from ground motion during earthquakes.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
To control the shake, use a damper stake, keep the building safe, for all our sake.
Stories
Once a tall tower wanted to dance with the wind but feared earthquakes. It met a damper who promised to keep it grounded, reducing the trembling and keeping its residents safe.
Memory Tools
To remember the types of control systems: P.A.S.H. - Passive, Active, Semi-active, Hybrid.
Acronyms
N.D.M - Natural frequency, Damping ratio, Mode shapes are key parameters affected by vibration control.
Flash Cards
Glossary
- Vibration Control
Implementation of devices or systems to reduce, isolate, or redirect vibrations from external or internal sources.
- Passive Control Systems
Control systems that do not require external energy and utilize material properties to absorb vibrations.
- Active Control Systems
Systems that use external energy sources to counteract vibrations.
- SemiActive Control Systems
Systems that combine passive and active controls, requiring minimal external power.
- Hybrid Control Systems
Integration of both passive and active systems to optimize performance.
- Natural Frequency
The frequency at which a structure tends to oscillate due to its physical properties.
- Damping Ratio
Quantitative measure of how oscillations in a system decay after a disturbance.
- Mode Shapes
The various ways a structure can deform under dynamic loading conditions.
