Introduction to Passive Control Systems
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we delve into passive control systems. These systems help reduce vibrations without needing external power, essential in earthquake management.
Could you explain how these systems actually work?
Sure! They typically use a combination of mass and damping mechanisms to counteract movement. Think of it like a pendulum that helps stabilize a swaying structure.
What are some examples of these control systems?
Great question! We'll cover tuned mass dampers, base isolation systems, and energy dissipation devices in more detail soon.
Tuned Mass Dampers (TMDs)
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's talk about Tuned Mass Dampers. They work by matching their frequency with that of the structure.
So they need to be perfectly tuned to work effectively?
Exactly! However, if they're not tuned correctly, their effectiveness can diminish significantly.
Can you give an example of where TMDs are used?
They are often found in high-rise buildings and bridges to reduce sway caused by wind and seismic activity. For example, the Taipei 101 has a notable TMD.
Base Isolation Systems
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Base isolation systems are fascinating. They essentially decouple the building from ground motion.
How is that achieved?
Using isolators like lead rubber bearings or friction pendulum bearings, which absorb movements and energy during an earthquake.
What are the main advantages of base isolation?
Significantly reduced base shear and lower demands on structural ductility, ensuring buildings perform better under stress.
Energy Dissipation Devices
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s discuss energy dissipation devices. They come in several types — viscous, friction, metallic yield, and viscoelastic dampers.
Are they commonly used?
Viscous dampers resist motion through the viscosity of fluids. They're widely used in high-rise structures for retrofitting.
What about friction dampers? I heard they are simpler.
Correct! Friction dampers absorb energy via friction, making them maintenance-free and economical.
Advantages and Limitations of Passive Control Systems
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s summarize the advantages and limitations of passive control systems.
What are the main advantages?
They often require no external energy, reducing operational costs and making them simpler to implement.
And the limitations?
Well, they can be sensitive to tuning errors and are typically only effective within limited frequency ranges.
Thank you for clarifying!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section introduces passive control systems, which are essential for mitigating structural vibrations and seismic demands. Key components include tuned mass dampers, base isolation systems, and energy dissipation devices, each with unique characteristics and applications in earthquake-prone structures.
Detailed
Passive control systems are crucial components in the design of structures subject to dynamic loads, particularly in seismic events. These systems operate without external energy input, instead relying on mass, stiffness, and damping devices to modify the structural response. This section covers several types of passive control systems, including:
- Tuned Mass Dampers (TMDs): Systems that utilize a secondary mass tuned to the structure’s fundamental frequency to counteract vibrations, helping to stabilize tall buildings and bridges. However, their effectiveness is limited to narrow frequency ranges and can be compromised by tuning errors.
- Base Isolation Systems: A strategy that decouples the superstructure from ground motion through various kinds of isolators, such as lead rubber bearings and friction pendulum bearings. These systems significantly lower base shear forces and reduce the overall demand on structural ductility, making them vital for buildings in seismically active regions.
- Energy Dissipation Devices: These include various types of dampers like viscous, friction, metallic yield, and viscoelastic dampers. Each device functions uniquely to absorb and dissipate energy, minimizing vibrations during an earthquake and enhancing the durability of structures.
Together, these systems represent advanced techniques in earthquake engineering aimed at preserving the integrity of structures and ensuring safety.

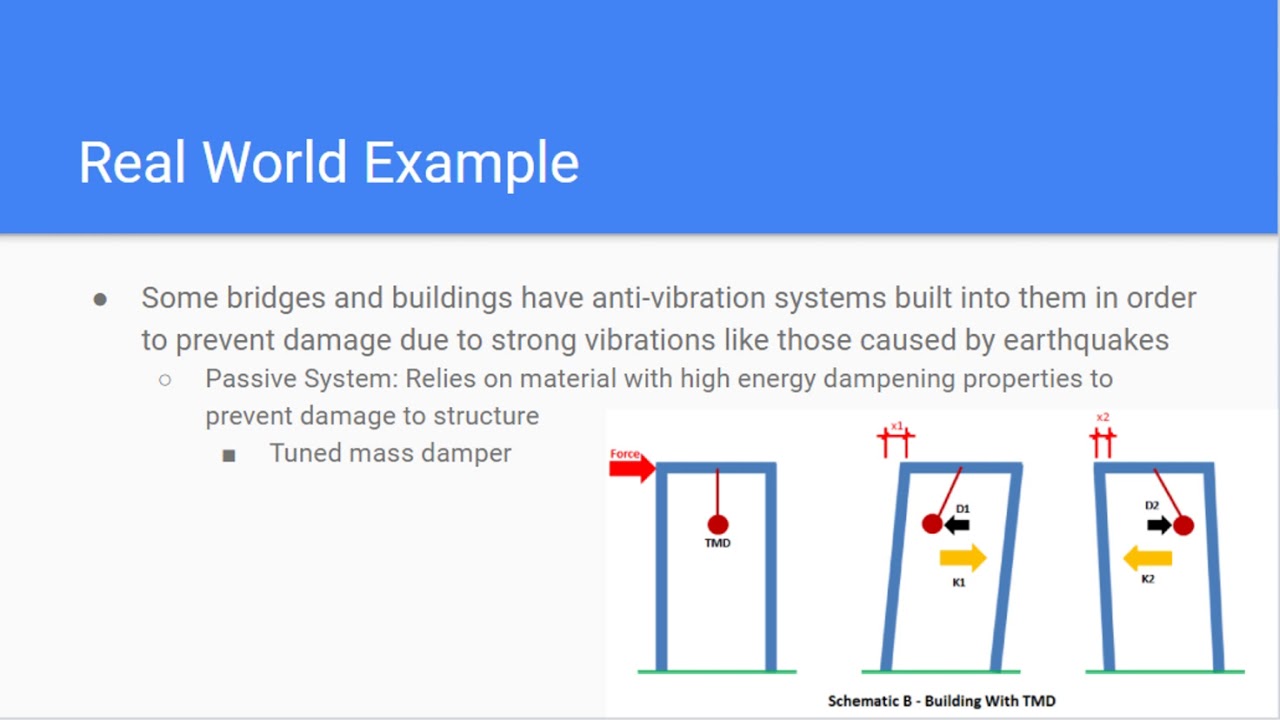

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Tuned Mass Dampers (TMDs)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Tuned Mass Dampers (TMDs)
- Working Principle: A secondary mass system tuned to the structure’s fundamental frequency to counteract motion.
- Components:
- Mass
- Spring
- Damper
- Applications:
- High-rise buildings
- Towers and bridges
- Limitations:
- Sensitivity to tuning errors
- Effective only for narrow frequency ranges
Detailed Explanation
Tuned Mass Dampers (TMDs) work by using a secondary mass to counteract the vibrations of a primary structure. The idea is to tune this mass so that it resonates at the same frequency as the unwanted vibrations. For TMDs to be effective, they must be designed with precise components: a mass that will shift in response to motion, a spring that allows it to bounce back, and a damper that dissipates energy. They are commonly used in tall structures like skyscrapers and bridges. However, their effectiveness can be limited by the need for accurate tuning; if the TMD's frequency is off, it can become less effective. Additionally, TMDs work best within a narrow frequency band, which may not cover all possible vibrational scenarios.
Examples & Analogies
Imagine a swing at a park. If you're trying to push someone on the swing at the same rhythm they are swinging, you're more likely to give them a good push without causing them to wobble. However, if you're out of sync, your pushes could do more harm than good. TMDs are like those pushes; they need to be just right to effectively help stabilize buildings against vibrations.
Base Isolation Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Base Isolation Systems
- Concept: Decoupling the superstructure from ground motion using isolating elements at the base.
- Types of Isolators:
- Elastomeric bearings (Lead Rubber Bearings)
- Friction pendulum bearings
- Advantages:
- Significant reduction in base shear
- Lower demand on structural ductility
- Design Considerations:
- Lateral displacement capacity
- Re-centering capability
- Temperature and aging effects
Detailed Explanation
Base Isolation Systems are designed to separate a building (the superstructure) from ground motion during an earthquake. By placing robust isolators at the base, these systems allow the foundation to move independently of the building above, mitigating the impact of ground shaking. There are different types of isolators, such as elastomeric bearings that use flexible materials to absorb shocks and friction pendulum bearings that utilize a sliding mechanism for added flexibility. The benefits of these systems include a substantial reduction in the forces transmitted to the building and decreased stress on structural components. When designing these systems, engineers also consider factors such as how much the structure can shift laterally and how well it can return to its original position after the shaking stops.
Examples & Analogies
Think of a boat anchored in the water. When waves come, the boat rocks back and forth, but the anchor keeps it from drifting away. In a similar way, base isolation acts like the anchor, helping the building stay rooted while allowing it to sway gently without taking on too much pressure from the shaking ground.
Energy Dissipation Devices (Dampers)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Energy Dissipation Devices (Dampers)
- Viscous Dampers:
- Resist motion through fluid viscosity
- Common in retrofitting and high-rise structures
- Friction Dampers:
- Dissipate energy by friction between surfaces
- Simple, economical, and maintenance-free
- Metallic Yield Dampers:
- Use yielding of steel or other metals for energy absorption
- Reusable after moderate events
- Viscoelastic Dampers:
- Use both viscous and elastic properties of materials
- Temperature-sensitive and frequency-dependent
Detailed Explanation
Energy Dissipation Devices, often referred to as dampers, function to absorb and dissipate the energy from vibrations caused by dynamic events, such as earthquakes. Viscous dampers use the resistance from a fluid to counteract motion, making them popular in structures requiring retrofitting. Friction dampers work by creating friction between surfaces to dissipate energy, and they are simple and low-maintenance. Metallic yield dampers leverage the yielding of materials to absorb energy, making them effective and reusable after minor events. Lastly, viscoelastic dampers combine the properties of both viscous and elastic materials, adjusting their effectiveness according to temperature and the frequency of the vibrations, thus providing a versatile solution for energy dissipation.
Examples & Analogies
Imagine a car shock absorber, which helps smooth out the ride over bumps on the road. Just as shock absorbers mitigate the impact of bumps for a smoother journey, energy dissipation devices help mitigate the effects of seismic vibrations on buildings, ensuring they remain stable and secure.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Tuned Mass Dampers: Counteract structural vibrations using a mass tuned to the building's frequency.
-
Base Isolation: Decouples a building from ground motion to reduce seismic effects.
-
Energy Dissipation: Absorbs energy from vibrations to protect structures.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The Taipei 101 uses tuned mass dampers to stabilize against lateral forces.
-
Base-isolated hospitals in California significantly reduce ground motion impacts during earthquakes.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Vibrations up, vibrations down, a TMD wears the damping crown!
📖 Fascinating Stories
-
Imagine a tall building in a storm; it's swaying. But with a TMD inside – a tiny mass on a spring, it sways less and keeps calm.
🧠 Other Memory Gems
-
TBD: Tuning, Base isolation, Dampers – remember for earthquake design measures.
🎯 Super Acronyms
DAMP
- Device for Absorbing Motion Problems.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Passive Control Systems
Definition:
Systems designed to reduce structural vibrations without an energy input, using devices like dampers and isolators.
-
Term: Tuned Mass Damper (TMD)
Definition:
A device that uses a secondary mass connected to a spring and damper to counteract vibrations in structures.
-
Term: Base Isolation
Definition:
A method of decoupling a structure from ground motion using isolators at the foundation level.
-
Term: Energy Dissipation Devices
Definition:
Devices designed to absorb and dissipate energy from vibrations, including various types of dampers.
