Memory Subsystem
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Memory Subsystem
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we are diving into the memory subsystem of embedded systems. Who can tell me why memory is critical for these systems?
Memory is needed to store instructions and data, right?
Exactly! Without memory, an embedded system couldn't perform any tasks. Let's discuss the two main types of memory: RAM and ROM.
What's the difference between RAM and ROM?
Good question! RAM is volatile, meaning it loses its data when power is off, while ROM retains its contents. Can anyone give me an example of what we might store in ROM?
Firmware? Like, the initial instructions for the device?
Exactly! Firmware is often stored in ROM because it needs to remain constant. Letβs wrap up with a memory aid: **RAM is for running, ROM is for remembering.**
Flash Memory and EEPROM
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that weβve covered RAM and ROM, letβs move on to Flash memory and EEPROM. Who can share what they know about these types?
Flash can be updated in the field, while EEPROM is for small, frequently changed data, right?
Exactly! Flash memory is versatile, ideal for firmware storage and updates, whereas EEPROM is more for settings adjustments. Why do you think weβd prefer EEPROM for some data?
Maybe because it can save settings even when the power is off?
Correct! A great mnemonic to remember these uses is: "Flash is for firmware, EEPROM for tweaks."
Memory Subsystem Summary
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
In summary, weβve learned about three key memory types in embedded systems: RAM, ROM, Flash, and EEPROM. Why are these important for system design?
They determine how the system stores data and runs efficiently!
Exactly! High efficiency and reliability in embedded systems are largely due to how well we choose and manage these memory types. Can someone summarize the main points about Flash memory?
Flash is non-volatile, allows for updates, and is used for firmware and program storage.
Well done! Remember, the correct memory selection can affect the performance and reliability of the entire system. Always keep in mind: "RAM is for running, ROM is for remembering, Flash is for firmware; EEPROM stores your tweaks!"
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The memory subsystem is fundamental to embedded systems, comprising various types of memory including RAM, ROM, Flash, and EEPROM. Each type serves specific purposes in program execution, data storage, and ensuring system reliability.
Detailed
Memory Subsystem
In the context of embedded systems, the memory subsystem is crucial for both program execution and data management. It includes several types of memory, each with distinct functionalities:
- RAM (Random Access Memory): This volatile memory is vital for storing temporary data such as the program stack and dynamic variables during runtime. Since its contents are lost when power is removed, it plays a crucial role in fast computing operations.
- ROM (Read-Only Memory): ROM is non-volatile memory used for storing permanent information like bootloaders and firmware. Unlike RAM, its content remains unchanged and accessible after the device is powered off.
- Flash Memory: Widely used in modern embedded systems, Flash memory combines the benefits of RAM and ROM. It allows for in-field updates and storage of both code and persistent data such as configuration settings. Its ability to be electrically erased and reprogrammed makes it a popular choice in user applications.
- EEPROM (Electrically Erasable Programmable Read-Only Memory): Though similar to Flash, EEPROM is designed for smaller amounts of data that require frequent updates. It is often used for settings that need to be saved even when the device is powered down.
The memory subsystem's design and selection critically impact the overall efficiency, performance, cost, and reliability of an embedded system.
Youtube Videos

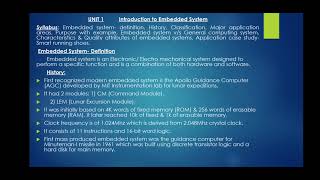

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Memory Components
Chapter 1 of 3
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Essential for storing both program instructions and data.
Detailed Explanation
The memory subsystem of an embedded system is crucial as it holds both the instructions that the system needs to execute (like a program) and the data it processes. This subsystem can be divided into several types of memory, each serving different purposes.
Examples & Analogies
Think of a computer as a kitchen. The instructions are like recipes hanging on a wall, guiding a cook. The ingredients and utensils are like the data stored in memory, helping the cook prepare food efficiently.
Types of Memory
Chapter 2 of 3
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- RAM (Random Access Memory): Volatile memory used for temporary data storage, program stack, and heap. Its contents are lost when power is removed. Examples: SRAM (faster, more expensive), DRAM (slower, denser, cheaper).
- ROM (Read-Only Memory): Non-volatile memory used for storing fixed program code (bootstrap loaders, basic firmware). Traditionally unchangeable once programmed.
- Flash Memory: The dominant non-volatile memory in modern embedded systems for storing firmware/program code. It can be electrically erased and reprogrammed, allowing for in-field updates. Also used for non-volatile data storage.
- EEPROM (Electrically Erasable Programmable Read-Only Memory): Similar to Flash but typically for smaller amounts of data that needs to be updated less frequently and byte-by-byte (e.g., configuration settings).
Detailed Explanation
Various types of memory serve different functions in embedded systems.
1. RAM is a type of memory used for temporary storage that gets wiped clean when the system is powered off. It's like a notepad that you write on but toss away and don't need after use.
2. ROM stores unchangeable information, similar to a cookbook where recipes are printed and can't be modified.
3. Flash Memory can be reprogrammed and updated, much like revising a digital recipe that you can update on your tablet anytime.
4. EEPROM is used for smaller configurations and settings, like saving special notes in the margins of your recipe book that you want to keep but donβt change often.
Examples & Analogies
Imagine you have a smart refrigerator. The RAM is like the fridge's processing area where it keeps track of how long things have been inside (temporary info), while the ROM holds essential instructions, like the default settings for temperature. Flash memory allows the fridge to update its software, and EEPROM stores your favorite temperature settings for specific items.
Importance of Memory Choices
Chapter 3 of 3
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Different memory types impact performance, cost, and flexibility. The choice of memory can affect system speed and efficiency.
Detailed Explanation
Selecting the right type of memory is critical because it influences how fast the embedded system can operate and how much it costs to produce. Faster memory types like SRAM provide quick access to data but are more expensive, while larger, slower types like DRAM may offer more storage at a lower cost. These choices must balance performance needs with budget constraints.
Examples & Analogies
Building a computer is similar to budgeting for your kitchen. If you want the best knives (faster memory), you may have to spend more. Conversely, if you buy more affordable and reliable tools that take longer to use, you might save money but at the cost of speed. Balance is key depending on your cooking frequency and style.
Key Concepts
-
Memory Subsystem: Essential for storing program instructions and data.
-
RAM: Temporary storage for active processes, volatile.
-
ROM: Permanent storage for firmware, non-volatile.
-
Flash Memory: Versatile, allows updates, non-volatile.
-
EEPROM: Stores small, frequently changed data.
Examples & Applications
A washing machine uses RAM to store temporary states like water level and cycle stage while executing its firmware stored in ROM.
Flash memory in smartphones allows for user data storage and app updates.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
RAM is where data runs, ROM's where it stays, Flash does the updates, with EEPROM for tweaks and plays.
Stories
In a small embedded kingdom, RAM was the fast runner who handled tasks in the moment, while ROM was the wise elder, storing all that's important forever. Flash was the magical powers that transformed all firmware, and EEPROM was the clever friend who remembered the small but important settings. Together, they made the kingdom run smoothly.
Memory Tools
Remember R-R-F-E: RAM for running, ROM for remembering, Flash for firmware, EEPROM stores tweaks.
Acronyms
M-R-F-E
Memory - RAM
ROM
Flash
EEPROM.
Flash Cards
Glossary
- RAM (Random Access Memory)
Volatile memory used for temporary data storage during program execution.
- ROM (ReadOnly Memory)
Non-volatile memory used for storing fixed program code that isn't meant to change.
- Flash Memory
Non-volatile memory that can be electrically erased and reprogrammed, commonly used for firmware storage.
- EEPROM (Electrically Erasable Programmable ReadOnly Memory)
Non-volatile memory for small amounts of data that can be updated less frequently than Flash.
