Advanced Inter-Task Communication (ITC) and Robust Synchronization Mechanisms
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Fundamental Need for ITC and Synchronization
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're going to explore why inter-task communication and synchronization are essential in systems using RTOS. Can anyone tell me why tasks cannot function in isolation?
I think it's because they need to share data and react to each other?
Exactly! Tasks often rely on data exchange, task coordination, and protecting shared resources when they operate concurrently. Letβs think of these tasks as parts of an orchestra; each needs to coordinate with the others to create harmony. What might happen if they don't coordinate?
They could produce a lot of noise or conflicting outputs!
Right! Thatβs where synchronization mechanisms come into play. They help prevent conflicts over shared resources and maintain the systemβs integrity. Can anyone name a risk if these mechanisms are not used?
I think it could result in data corruption or crashes.
Precisely! Wonderful insights. In our next session, we will dive deeper into specific ITC mechanisms.
Comprehensive ITC Mechanisms
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Letβs talk about the primary ITC mechanisms like message queues, event flags, pipes, and shared memory. First, can anyone describe how a message queue works?
A message queue allows tasks to send messages to each other, usually following a first-in, first-out order.
Correct! It acts like a mailbox. What are some advantages of using message queues?
They can manage data at different rates and help with asynchronous communication.
Exactly! Now, what about event flags? Can someone explain how they differ from message queues?
Event flags just signal tasks about events, but donβt transmit data.
That's right! Event flags are more about notifications rather than data transfer. In our next session, weβll explore resource synchronization mechanisms.
Comprehensive Resource Synchronization Mechanisms
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now letβs discuss synchronization mechanisms such as semaphores and mutexes. Who can explain what a semaphore is?
A semaphore is like a counter that manages access to a resource. If it's zero, tasks have to wait.
Nicely put! And what do we typically use mutexes for?
Mutual exclusion to ensure that only one task can access a resource at a time.
Exactly! Mutexes help prevent accidental corruption of shared resources. Now, can someone tell me what might go wrong if we ignore proper synchronization?
We might encounter race conditions or deadlocks!
Great point! In our next session, weβll delve into diagnosing and resolving these synchronization problems.
Diagnosing and Resolving Critical Synchronization Problems
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's move into how to identify and fix critical synchronization issues like priority inversion and deadlocks. What is priority inversion?
It happens when a low-priority task blocks a high-priority task from running.
Correct! And what approach can we use to mitigate priority inversion?
Implementing a priority inheritance protocol helps.
Exactly! Now, letβs discuss deadlocks. Can anyone give an example of how deadlocks can occur?
Two tasks each holding a resource while waiting to acquire the otherβs resource.
Well done! Always remember, diagnosing and effectively responding to these issues is crucial for system reliability. To wrap up, letβs summarize what we learned today.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In RTOS environments, multiple tasks often require sophisticated inter-task communication (ITC) mechanisms to exchange data safely and synchronize their execution. This section details ITC methods like message queues and event flags, and synchronization tools such as semaphores and mutexes, while also addressing common pitfalls and their solutions.
Detailed
Advanced Inter-Task Communication (ITC) and Robust Synchronization Mechanisms
In any embedded system utilizing an RTOS, effective inter-task communication and synchronization are crucial for the smooth operation and reliability of concurrent tasks. This section presents several key concepts:
1. Fundamental Need for ITC and Synchronization
Tasks are not isolated; their interactions support complex system functionality through:
- Data Exchange: Transfers of information between tasks, such as sensor readings and processing commands.
- Task Coordination: Synchronization of execution sequences, where one task may need to wait for another to finish.
- Shared Resource Protection: Ensures that multiple tasks can safely access resources without causing race conditions.
2. Comprehensive Inter-Task Communication (ITC) Mechanisms
- Message Queues: FIFO channels for sending and receiving discrete messages.
- Event Flags: Lightweight signaling mechanisms for tasks to indicate and wait for events.
- Pipes: Unidirectional byte stream interfaces for continuous data transmission.
- Shared Memory: Allows direct data access but requires robust synchronization to prevent data corruption.
3. Comprehensive Resource Synchronization Mechanisms
- Semaphores: Manage resource access and can signal multiple tasks.
- Mutexes: Special type of binary semaphore that enforces mutual exclusion with ownership rules.
4. Diagnosing and Resolving Critical Synchronization Problems
Challenges like priority inversion and deadlocks can arise in concurrent systems. Effective strategies are required to identify and resolve these issues smoothly.
Overall, mastering these mechanisms is essential for creating reliable and efficient embedded systems.

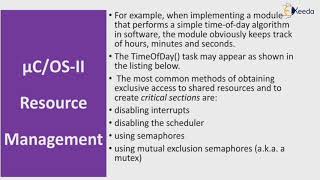

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Diagnosing and Resolving Critical Synchronization Problems
Chapter 1 of 1
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
These problems are insidious, difficult to debug, and can severely compromise the determinism and reliability of an RTOS-based system. Understanding them is paramount.
Priority Inversion:
- Problem Description: A severe and common issue in priority-based preemptive scheduling. Priority inversion occurs when a high-priority task (HPT) is blocked by a lower-priority task (LPT), which is then preempted by one or more medium-priority tasks (MPTs).
- Scenario Leading to Priority Inversion: The HPT becomes blocked on a resource held by the LPT, which is then preempted by an MPT.
- Solutions: Priority Inheritance Protocol (PIP) allows the RTOS to temporarily elevate the LPT's priority to the HPT's level, allowing it to complete and release the resource more quickly.
Deadlock:
- Problem Description: A catastrophic situation where two or more tasks become permanently blocked, each waiting indefinitely for a resource held by another.
- Classic Scenario: Task A holds Resource X while waiting for Resource Y held by Task B, which in turn waits for Resource X, creating a circular wait blockade.
- Prevention Strategies:Employing resource ordering, avoiding indefinite blocking calls, and implementing timeout mechanisms.
Detailed Explanation
Critical synchronization problems like priority inversion and deadlocks can significantly undermine the performance of an RTOS-based system and pose substantial debugging challenges.
- Priority Inversion occurs when a high-priority task (HPT) cannot proceed because it's waiting for a resource held by a lower-priority task (LPT). If an MPT preempts the LPT, the HPT remains blocked, leading to erratic scheduling behavior.
- The problem exemplifies the need for solutions like the Priority Inheritance Protocol (PIP), which temporarily raises the priority of the LPT to that of the HPT, allowing it to complete its task and release the needed resource without unnecessary delays.
- Deadlock is a more severe condition where tasks get into a state of permanent waiting: they cannot proceed because each one is holding a resource the other needs. The classic circular wait scenario exemplifies this.
- To prevent deadlocks, strategies like resource ordering (ensuring resources are always acquired in a predictable sequence) are crucial. Additionally, timeout mechanisms can help avoid indefinite waits, allowing tasks to recover gracefully if they can't acquire their resources in a reasonable timeframe.
Examples & Analogies
Think of priority inversion as a traffic jam caused by a slow-moving truck blocking a busy intersection. The speedy cars (high-priority tasks) are stuck, waiting for the truck to clear, but other vehicles (medium-priority tasks) keep arriving and blocking the intersection further as they try to navigate around it. Introducing priority inheritance is akin to having a traffic officer allowing the truck to move ahead temporarily to clear the jam. Deadlock maps to a game of tug-of-war where two players are pulling on opposite ends of a rope, neither willing to let go. They canβt win unless one of them releases their grip, but they refuse to do so as theyβre equally invested.
Key Concepts
-
Inter-Task Communication: Communication methods for tasks in RTOS.
-
Synchronization: Coordination methods for resource sharing.
-
Message Queues: FIFO structures for message passing.
-
Semaphores and Mutexes: Tools for managing task access to shared resources.
-
Deadlocks: Blocking state where tasks wait indefinitely.
-
Priority Inversion: The risks of task management in RTOS.
Examples & Applications
Using message queues to pass sensor data from a reading task to a processing task.
Implementing a semaphore to protect access to a shared printer resource.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In a queue, messages flow, like letters in a postal show.
Stories
Imagine a band where each musician waits for their cue to play, just like tasks in an RTOS, ensuring harmony and correct timing.
Memory Tools
Remember the 'S'MeP (Semaphore, Mutex, Event Flag, Message Queue) for task synchronization tools.
Acronyms
S.E.M.
Semaphore
Event flag
Mutex β essential tools in synchronization.
Flash Cards
Glossary
- InterTask Communication (ITC)
Mechanisms that enable tasks to exchange data and synchronize operations.
- Semaphore
A synchronization primitive used to manage access to shared resources.
- Mutex
A mutual exclusion object that prevents multiple tasks from accessing a resource simultaneously.
- Message Queue
A FIFO structure used for asynchronous communication between tasks.
- Event Flag
A lightweight signaling mechanism indicating occurrence or completion of an event.
- Shared Memory
Direct access to a common memory area by multiple tasks.
- Deadlock
A situation where tasks become permanently blocked, waiting for each other.
- Priority Inversion
A situation where a lower-priority task holds a resource needed by a higher-priority task.
