Introduction to Hele-Shaw Experiment
Unlock Audio Lesson
Today, we will explore the Hele-Shaw experiment, which allows us to visualize fluid flow patterns such as streamlines and pathlines. Can anyone tell me what a streamline is?
Isn't a streamline a line that represents the flow direction of the fluid at different points?
Exactly! Streamlines represent the direction of fluid flow at a specific instant. They help us understand how fluids move around objects in their path.
What is the difference between streamlines and pathlines?
Great question! While streamlines show the flow direction at a moment in time, pathlines represent the actual path followed by a single fluid particle over time. Remember, 'streamline' starts with 's' for 'still' pictures and 'pathline' starts with 'p' for 'path'!
Significance of Flow Visualizations
Unlock Audio Lesson
Let’s discuss why visualizing flow is important using the Hele-Shaw experiment. Why do you think understanding these patterns is critical?
It helps us predict how fluids will behave in different scenarios, like around objects or in pipes.
Exactly! Understanding these flow patterns plays a key role in engineering applications, like designing aircraft or understanding pollutant dispersion in rivers.
How do we relate this to the Reynolds number?
The Reynolds number helps us categorize flow as laminar or turbulent. In our experiments, changing the flow conditions will show different streamlines depending on the Reynolds number!
Lagrangian vs. Eulerian Frameworks
Unlock Audio Lesson
Now, let’s shift gears to talk about Lagrangian and Eulerian frameworks. Can anyone explain the difference?
The Lagrangian framework follows individual particles while they move, right?
Correct! And the Eulerian framework measures at fixed points, analyzing how different properties change over time. Remember, 'E' is for 'established points'!
So, how do virtual fluid balls fit into this?
Good point! Virtual fluid balls are a conceptual tool we use to visualize and analyze flow, bridging both frameworks. They allow us to track particles while still understanding field-level properties.
Applications and Computational Fluid Dynamics
Unlock Audio Lesson
Incorporating our learnings, how do we see CFD playing a role in the Hele-Shaw experiment findings?
CFD helps simulate the flow patterns we visualize in the experiments, right? It gives us more tools to predict behavior.
Exactly! It's a powerful tool for predicting complex fluid dynamics without always needing to set up physical experiments.
I see! So engineers can use it to enhance designs and troubleshoot issues!
Absolutely! CFD is essential for modern engineering and helps us push the boundaries of what's possible in fluid dynamics.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the Hele-Shaw experiment is introduced as a method to visualize fluid flow patterns. The significance of streamlines, streak lines, and pathlines is discussed, alongside its applications in understanding complex fluid dynamics. The connection to computational fluid dynamics (CFD) and the importance of the Lagrangian and Eulerian frameworks in fluid kinematics are emphasized.
Detailed
In the Hele-Shaw experiment, a setup is used to visualize fluid kinematics by injecting dyes into flow fields. This allows for the visualization of various flow lines, such as streamlines and pathlines. The section elaborates on the significance of these lines in understanding fluid motion under different Reynolds numbers and various flow conditions. The principles underpinning the Hele-Shaw experiment are linked to broader concepts in fluid dynamics, including the Lagrangian and Eulerian frameworks for describing fluid behavior. These frameworks differentiate between tracking individual fluid particles versus measuring properties at fixed locations over time, while highlighting virtual fluid balls as a conceptual tool bridging these two descriptions. The discussion also touches upon computational fluid dynamics (CFD) applications for simulating and analyzing fluid patterns, emphasizing its relevance in engineering and practical applications.

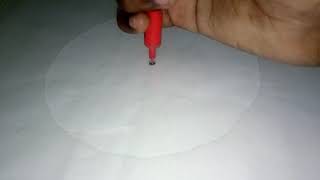

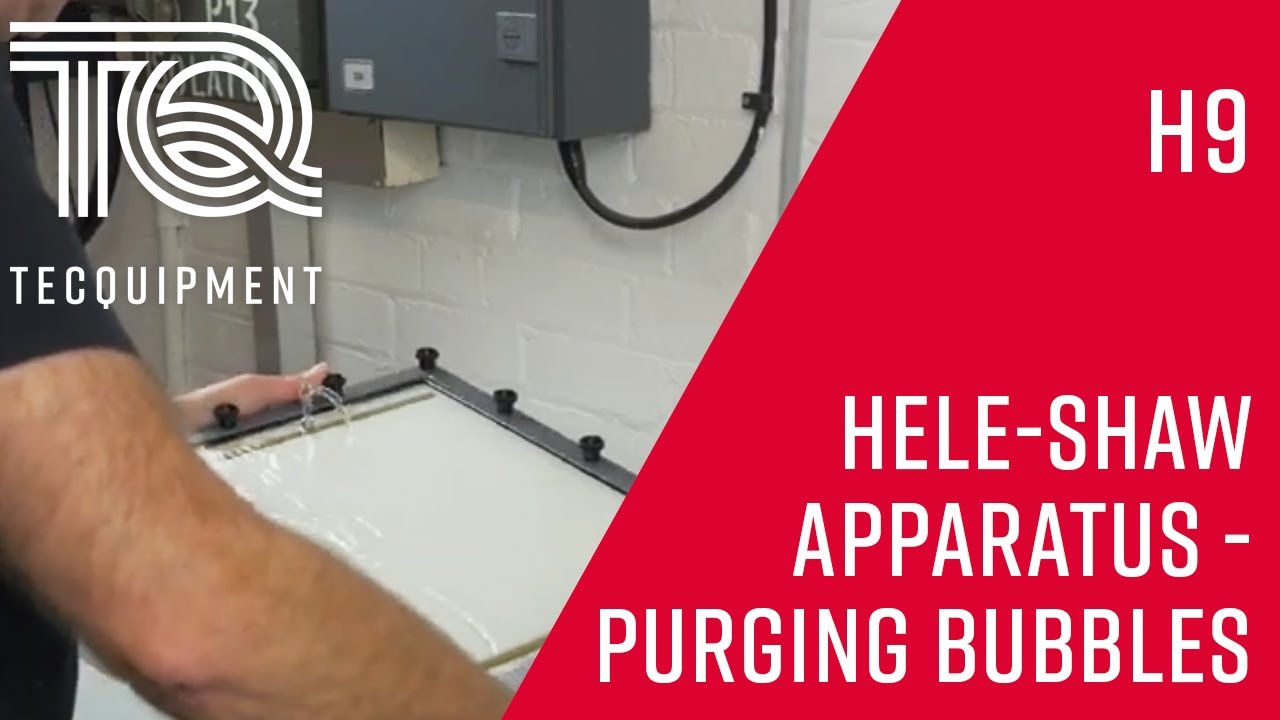

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.

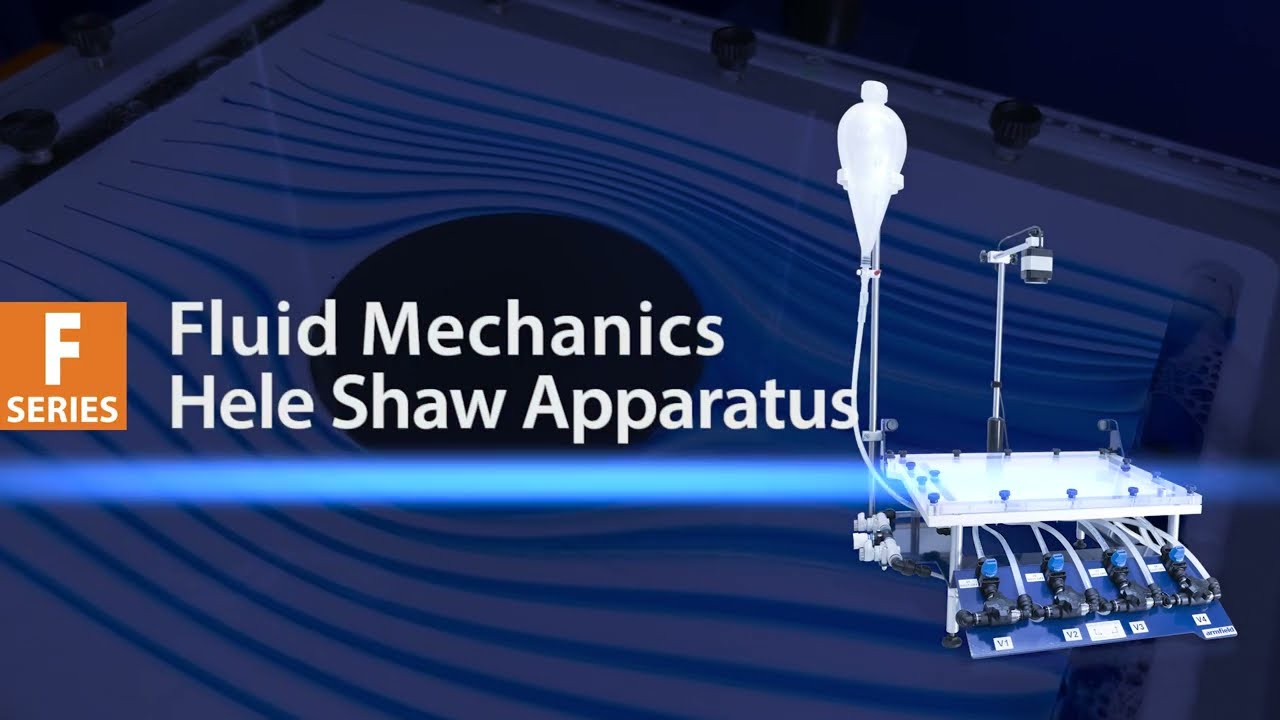

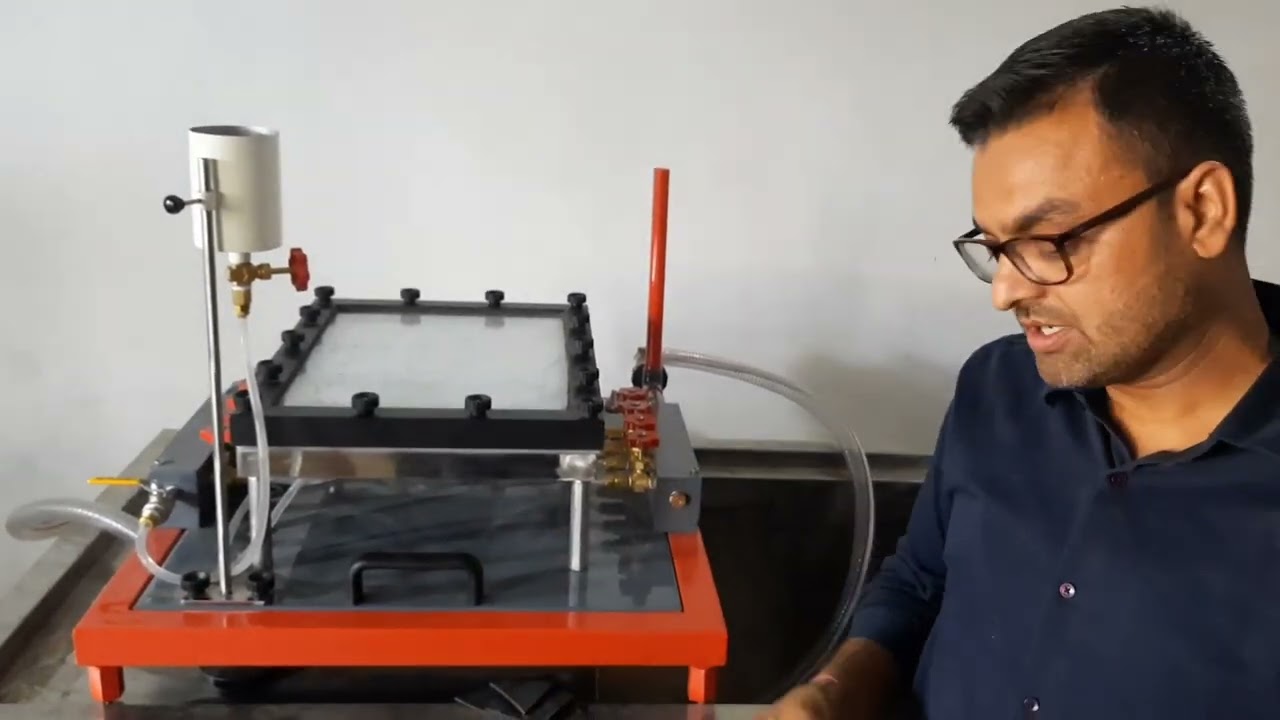

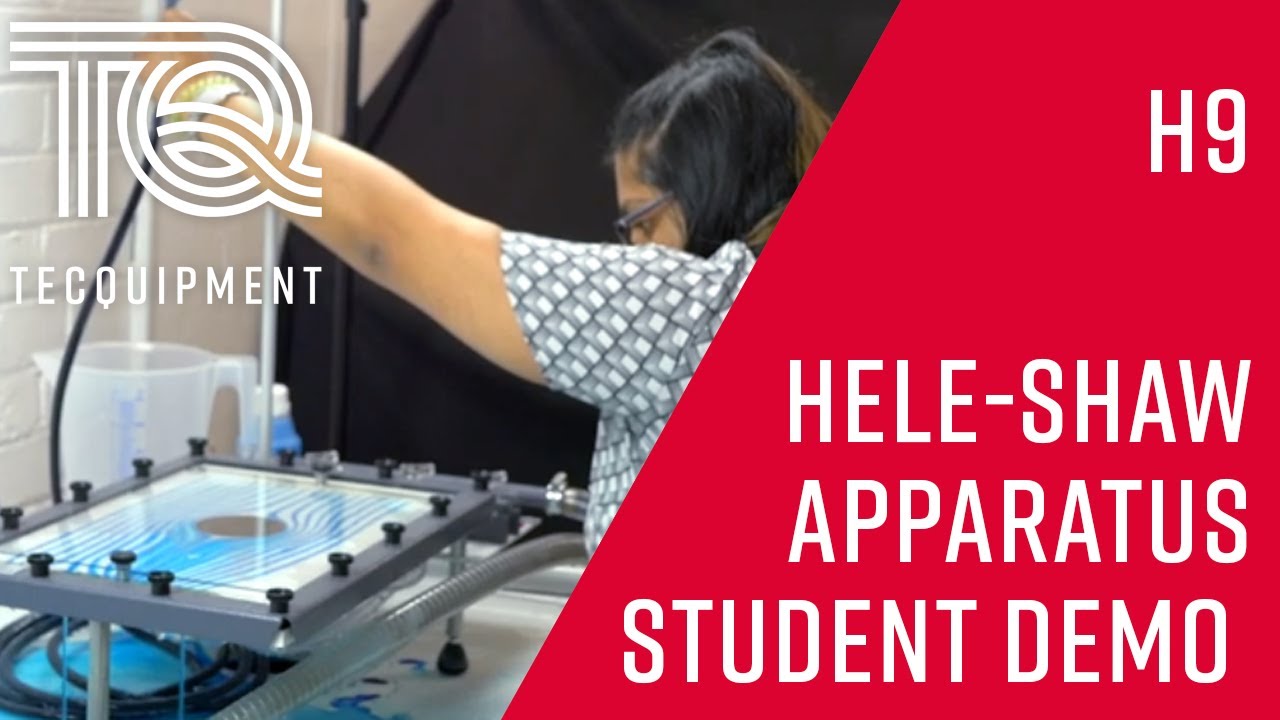

Overview of the Hele-Shaw Apparatus
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, let us start with the experimental setups which we call Hele-Shaw apparatus, okay where we can generate a constant flow and there are the patterns of the colour dye we can inject it, as we injected the colour dye from this; this colour dyes are follows the path lines or the streak lines, as we make the flow in steady, so the stream line and streaks line the when you look it, if I put the colour dye, so these what will be show me the streak lines or the path lines, if I tracing on that okay, path line or streak line.
Detailed Explanation
The Hele-Shaw experiment is set up using an apparatus that generates a constant flow of fluid. In this setup, colored dye is injected into the fluid to visualize the flow patterns. When the dye is injected, it follows the paths of fluid particles, creating streak lines or path lines, especially in steady flow conditions. Streamlines, which are the same as streak lines in steady flows, can also be observed, allowing for the mapping of how fluid moves around objects.
Examples & Analogies
Think of swimming in a pool and watching how the water moves around your hand when you push it through the water. The path that your hand creates in the water can be thought of as the path line. By adding a few drops of food coloring to that area, you would see the color following the water's motion, showing exactly how the fluid moves at various positions.

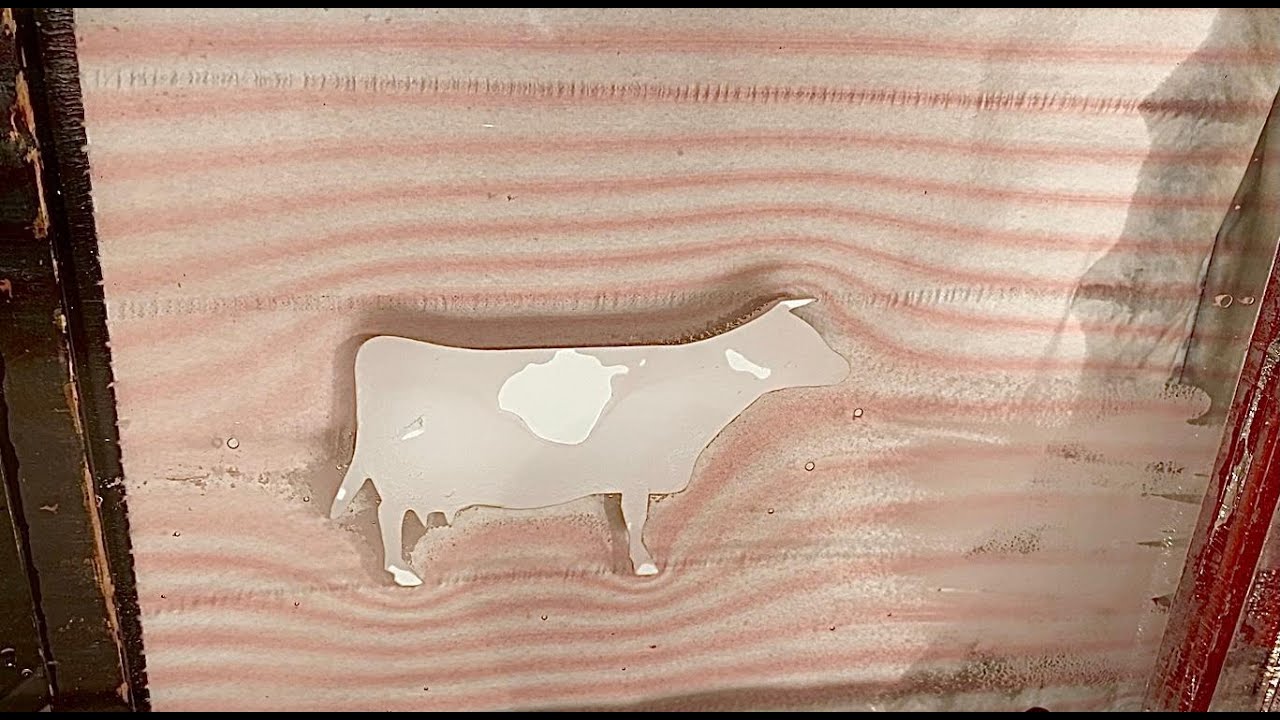

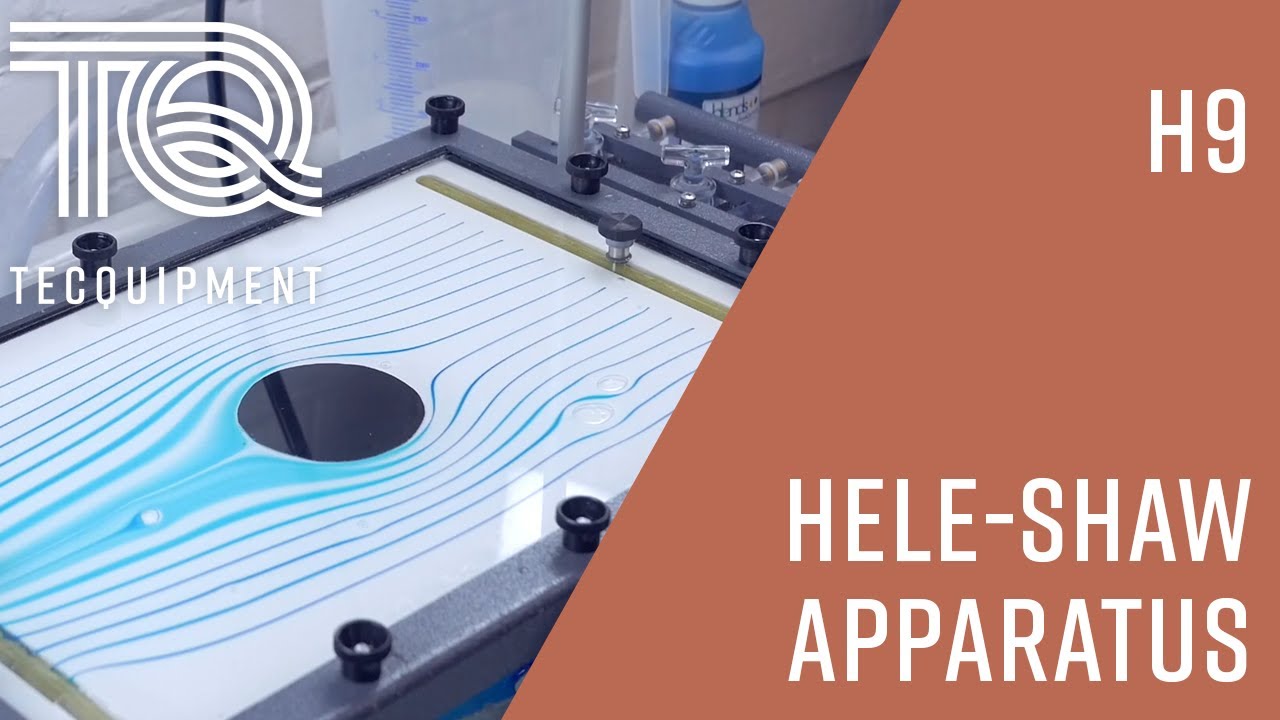

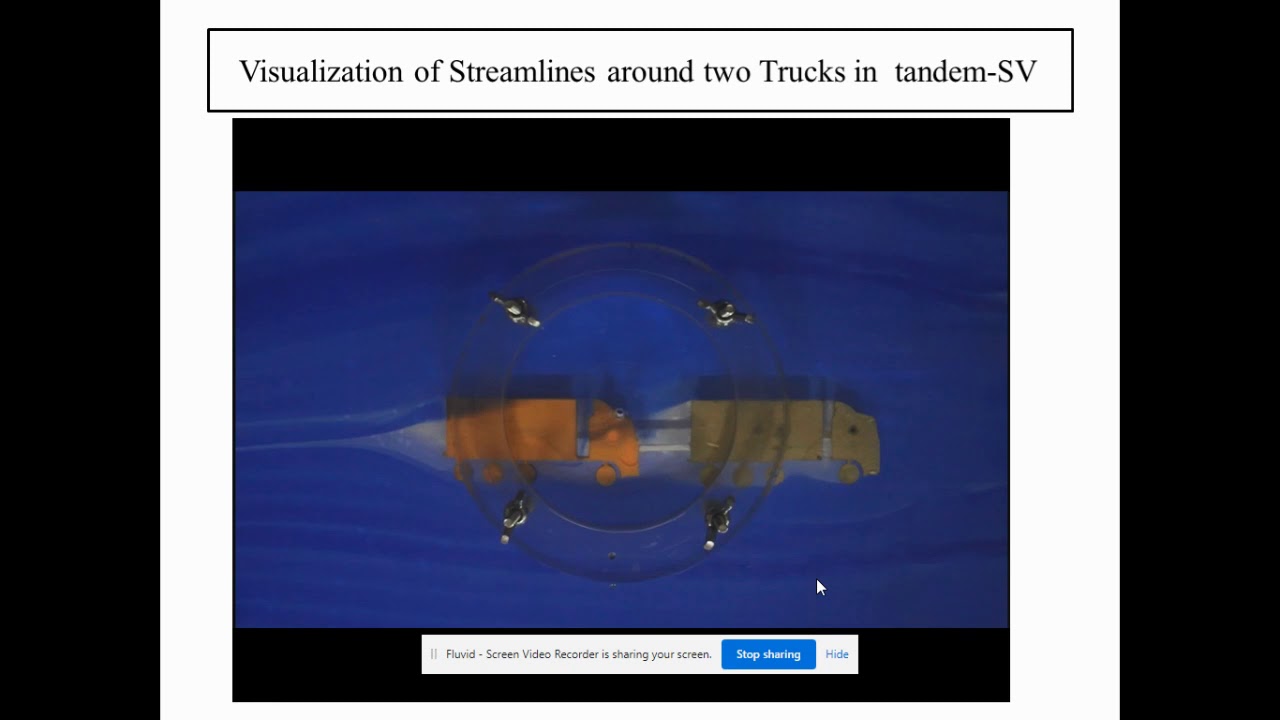

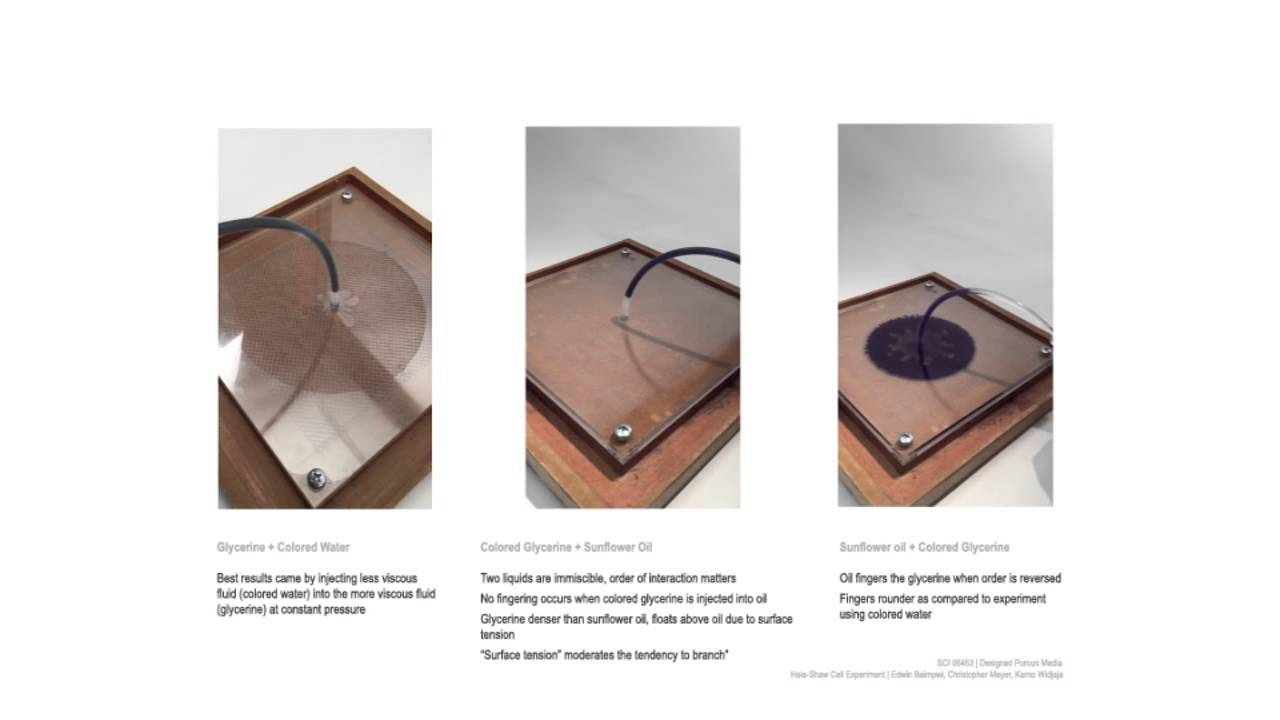

Dye Injection and Flow Visualization
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Or since it is a steady flow, I can tell it that it is streamlines, so many of the times we are very much familiarize with the streamlines but when you look it, so what are these lines; is that the streamlines, different colours flow passing over this object, so we can see that how the streamline patterns are happening it, as we change the flow Reynolds numbers this pattern changes it.
Detailed Explanation
In the Hele-Shaw experiment, the injection of dye into a continuously flowing fluid helps in visualizing the flow behavior. Steady flows mean that the fluid's characteristics remain constant over time, allowing us to observe the behavior of streamlines clearly. As different colored dyes are used, we can track various streamlines and how they interact with objects in the flow. The pattern of these streamlines is influenced by the flow conditions, such as the Reynolds number, which measures the flow's turbulence. A higher Reynolds number typically indicates a more turbulent flow.
Examples & Analogies
Imagine sprinkling multiple colors of glitter into a river. If the current of the river is calm (low Reynolds number), the glitter will move smoothly. However, if the river is rushing fast (high Reynolds number), the glitter swirls and mixes chaotically, illustrating how turbulence can affect the flow patterns.
Analyzing Flow Patterns
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
As we control the flow, we will have a different velocity, different the distance, you will have it the change of the flow patterns that what we do using Hele-Shaw apparatus setup which is there in IIT Guwahati.
Detailed Explanation
The Hele-Shaw apparatus allows researchers to manipulate different parameters of the fluid flow, such as velocity and the distance the fluid travels. By making adjustments to these factors, we can observe how the flow patterns evolve. The apparatus is particularly useful for studying laminar flow, where fluid moves in parallel layers, as compared to turbulent flow where mixing occurs. This experimentation helps in understanding how fluids behave under various conditions.
Examples & Analogies
Think about testing different kinds of juices in a blender. If you adjust the speed of the blender, you will notice how the juice blends differently depending on the speed. Similarly, in the Hele-Shaw experiment, modifying the flow speed gives insights into how the fluid reacts under different velocities.
Real-world Applications and Vortex Shedding
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now, if you look it is very interesting experiment numerically, it is done by professors Amaresh Dalal and the Ph.D. Scholar who develop the CFD solvers and they have very unique lab which called Anupravaha CFD lab, so I acknowledge there, these PPT to that okay, let us understand what is this PPT is, if you look in these colourful things. What it happens is that there is a triangular cylinders are there and there is a uniform flow and there just looking in to vorticity.
Detailed Explanation
The Hele-Shaw experiment also has computational aspects, where numerical simulations are used to complement the physical experiments. Researchers in the Anupravaha CFD lab study how flow interacts with triangular cylinders under uniform flow conditions. They observe the generation of vortices, which are swirling movements of fluid that form behind objects in the flow. This phenomenon, known as vortex shedding, highlights how fluid dynamics can produce complex flow patterns, which can lead to significant engineering challenges such as drag on vehicles and structures.
Examples & Analogies
Imagine riding a bicycle and feeling the wind shifting behind you as you pedal faster. The air creates swirls (vortices) around your bike, which can slow you down. Similarly, when fluids flow past shapes like triangular cylinders, they create vortex patterns that can significantly impact performance and efficiency.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Hele-Shaw Experiment: An experimental setup to visualize fluid flow patterns.
-
Streamlines: Lines representing fluid direction at any moment.
-
Pathlines: The actual paths traced by fluid particles over time.
-
Lagrangian Framework: Follows the motion of fluid particles.
-
Eulerian Framework: Focuses on the behavior of fluid at fixed locations.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In the Hele-Shaw experiment, dye is injected into a fluid to visualize how different flows interact with objects, illustrating real behaviors under various conditions.
-
When analyzing flow around a triangular cylinder using CFD, changes in vortex shedding patterns can identify conditions optimizing performance or stability.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Streamlines flow; like arrows they go, pathlines follow where the particles show.
📖 Fascinating Stories
-
Imagine a leaf floating downstream; it follows a path but at each moment, the currents guide its direction—illustrating pathlines vs. streamlines well.
🧠 Other Memory Gems
-
Remember: 'S' for Streamline, 'P' for Pathline—one is a snapshot, the other a journey!
🎯 Super Acronyms
Think of 'LEAP' for Lagrangian (L), Eulerian (E), Analyses (A), Pathlines (P) to recall flow descriptions.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: HeleShaw Experiment
Definition:
A visualization technique used to study fluid flow patterns, notably streamlines and pathlines, through the use of a narrow channel and dye.
-
Term: Streamline
Definition:
A line that represents the direction of fluid flow at a given instant in time.
-
Term: Pathline
Definition:
The actual path followed by a particular fluid particle over time.
-
Term: Streakline
Definition:
A line formed by the intersection of all fluid particles that have passed a particular point at a given time.
-
Term: Lagrangian Framework
Definition:
An approach in fluid mechanics that follows individual fluid particles as they move through the flow field.
-
Term: Eulerian Framework
Definition:
An approach in fluid mechanics that measures fluid properties at fixed points in space over time.
-
Term: Computational Fluid Dynamics (CFD)
Definition:
A numerical method for analyzing fluid flows that utilize algorithms and simulations to solve fluid dynamics problems.
