Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Control Volume and Its Importance
Unlock Audio Lesson
Good morning everyone! Today we are diving into the Control Volume Concept in fluid mechanics. Can anyone explain why control volumes are important in analyzing fluid flow?
I think it helps us understand how mass and energy are conserved in a flow?
Exactly! Control volumes allow us to apply mass, momentum, and energy conservation equations to fluid systems. Remember the acronym MME – Mass, Momentum, and Energy conservation!
What kinds of disturbances should we consider in an open channel flow?
Good question, Student_2! Disturbances such as objects entering the water create waves. This leads us to our new focus: the Froude number and wave propagation.
What does the Froude number actually tell us?
The Froude number helps us classify our flow. If it’s less than 1, we have subcritical flow; if it’s 1, then critical; and greater than 1, it becomes supercritical. Let's remember 'Sub – Less, Super – More!'
Can we have some real-life examples of these flows?
Certainly! One famous project is the Ganga Canal, constructed historically in India. It showcases how these principles were essential in developing efficient systems. In summary, control volume helps us frame fluid scenarios effectively.
Understanding Wave Propagation
Unlock Audio Lesson
Now that we understand the basics, let’s talk about what happens when a disturbance is created in a flow. How does it propagate?
Wouldn’t it depend on the type of flow, like subcritical or supercritical?
Exactly! In subcritical flow, disturbances travel upstream, but in supercritical flow, they only propagate downstream. Think about it like this: in subcritical, ‘Start Moving Backwards,’ and in supercritical, ‘Go Forward Fully!’
How do we calculate the speed of these waves?
Great question, Student_2! The wave speed can be expressed using the depth of the flow. Specifically, we derive the formula as C0 = √(g * y), where g is acceleration due to gravity and y is flow depth.
What happens if the wave speed is greater than the flow velocity?
We then have supercritical flow where flow conditions change drastically. Remember, ‘Flow Equals Wave, Watch Its Pace!’ Let’s summarize: wave behavior depends on flow regime, and we calculate wave speed using depth!
Applications in Engineering: Ganga Canal as a Case Study
Unlock Audio Lesson
Last but not least, how about discussing applications like the Ganga Canal? Why was understanding these principles critical for its design?
Because they needed to manage huge amounts of water correctly, right?
Exactly! The canal was designed using concepts of flow depth and energy losses. They understood the importance of maintaining the right energy gradient. Always remember: ‘Control What Flows!’
What about the significance of historical designs without computers?
That’s crucial! Engineers relied on these core concepts and observations of fluid behavior without advanced technology. This reflects our foundational knowledge in today’s practices.
So, do we still use these methods in modern engineering?
Yes! These principles continue to guide designs, emphasizing the role of history in shaping our understanding of fluid mechanics. In summary, applying these concepts helps in practical outcomes like canal construction.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section explores the Control Volume Concept utilized within fluid mechanics, particularly focusing on open channel flow. It discusses mass conservation, linear momentum equations, and energy conservation equations, emphasizing the effects of disturbance and propagation of surface waves, categorized using the Froude number.
Detailed
Control Volume Concept in Open Channel Flow
The Control Volume Concept is foundational in understanding the behavior of fluid flows within open channels, particularly applied to analyze mass conservation, linear momentum, and energy dynamics. These equations help us quantify how fluids behave under various forces and conditions.
In this section, we introduce the Froude number, a key dimensionless number that helps classify the flow into subcritical, critical, and supercritical regimes. The importance of understanding disturbances in open channel flows, such as waves created by objects dropped into the flow, is explained. The propagation speed of these disturbances is critical for determining flow behavior downstream or upstream.
We also examine how historical examples, like the construction of the Ganga Canal, show the practical application of these principles in real-world engineering projects. Understanding these concepts is vital for applications in designing canals and predicting their performance under various conditions. The section reiterates the interrelationship of velocity, depth, and wave speed, all encapsulated within the framework of conservation equations.
Youtube Videos

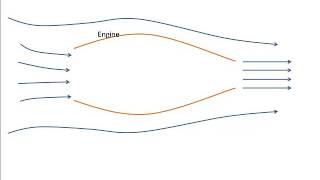

![System Approach and Control Volume Approach [Fluid Mechanics]](https://img.youtube.com/vi/quK9rvsZTPA/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Control Volume
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
No doubt we already discussed about these mass conservation equations, linear momentum equations, energy conservation equations. These equations will apply for a control volume. So it is a control volume concept what we discussed more with RTT, Reynolds transport theorems. So that the thing concepts are used for the open channel flow to solve the flow depth, energy losses, the discharge flow depth, energy losses, energy loss.
Detailed Explanation
In fluid mechanics, a control volume is a defined region in space through which fluid can flow in and out. It is crucial for applying conservation laws, such as mass, momentum, and energy. When we discuss control volume concepts, it often involves using the Reynolds Transport Theorem (RTT), which helps convert the changes in quantity within a control volume to flow across its boundaries. By applying these principles, we can analyze and predict various aspects of flow, such as the depth of the flow, the energy losses encountered, and how the discharge (the amount of fluid flowing per unit time) behaves within both natural and manmade channels.
Examples & Analogies
Imagine a water tank where water is being filled and drained at the same time. The tank's boundaries form a control volume. Using the concepts of mass and energy conservation, engineers can determine the water level at any time by considering how much water enters and exits the tank.
History of Canal Construction in India
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
One of the manmade channels we India is a country we are very much leader in constructing the canals if you look at the history of the Ganga canals you always can google or look in the wikipedia's what is a Ganga canals. The canal was constructed way back 1842 to 1854 so it is about 12 years the constructions what had happened the Ganga Canal.
Detailed Explanation
The Ganga canals are a prime example of early engineering in fluid mechanics and open channel flow management in India. Constructed between 1842 and 1854, these canals were designed to manage water flow efficiently for irrigation and navigation. Their successful operation for nearly 170 years demonstrates the timeless nature of the underlying principles of fluid mechanics used in their design.
Examples & Analogies
Think of a vital roadway or a railway system. Just like these transportation infrastructures are built to facilitate smooth travel for vehicles, the Ganga canals were designed to channel and direct water flow efficiently, ensuring agricultural lands and cities had enough water supply.
Understanding Flow Disturbances
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If you look at that, when you have let me have the river is flowing like this okay river is flowing and this is what you have the bed level or the canals this is the bed level. this is what you have the free surface. That is what you have the free surface okay having the flow depth of H. If you have these things and if you create any disturbance okay let me there is a one big stone is there. okay or just dump a stones here. It create a disturbance to these flow systems okay or you throw a stone to a river.
Detailed Explanation
When water flows over a surface, it maintains a certain pattern or depth, which we refer to as flow depth (H). If something disrupts this flow, such as throwing a stone into the river, it creates a disturbance that affects the flow patterns. This disturbance causes waves to form on the water's surface, which propagate upstream and downstream from the point of disturbance, illustrating how changes in flow conditions can travel through the water.
Examples & Analogies
Consider a calm pond where you toss a pebble. The ripples that radiate outwards represent the waves propagating from the point of disturbance. Just like those ripples, disturbances in a river flow can cause waves to travel in various directions, changing the characteristics of the flow.
Types of Flow Regimes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If you look at that the flow proud numbers what we define it as an inertia force by the gravity forces and when you do this inertia forces gravity forces we are getting the flow proud numbers is a functions of the speed of water okay.
Detailed Explanation
Flow regimes can be categorized based on the Froude number, which is a dimensionless number defined as the ratio of inertial forces to gravitational forces in a flow. If the Froude number is less than 1, the flow is considered subcritical, meaning gravity forces dominate inertia forces. If it is equal to 1, it’s critical flow, where both forces are balanced. If it is greater than 1, supercritical flow occurs, where inertia forces overpower gravity. Understanding these regimes is vital for predicting how water will behave under different conditions.
Examples & Analogies
Imagine a river flowing gently (subcritical flow) versus a river in flood (supercritical flow). In the former case, the water moves slowly, while in the latter, it rushes rapidly, and understanding these behaviors is crucial for effective river management and flood control.
Hydraulic Jumps
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Here you will have a supercritical flow. then you will have a subcritical flow. So if you look at that same thing is a subcritical flow supercritical channel. In between whenever a convergence of flow happens from the supercritical to subcritical flow there will be a formations of the eddies and there are a lot of energy dissipations will happen it their energy loss will happen it.
Detailed Explanation
A hydraulic jump occurs when there is a transition from supercritical to subcritical flow, often resulting in the formation of turbulent eddies and significant energy dissipation. This phenomenon typically occurs in channels where flow conditions change abruptly, like at the base of a dam. Hydraulic jumps are important because they can effectively dissipate energy, which helps to prevent erosion downstream.
Examples & Analogies
Think of a steep water slide at a theme park. As water rushes down the slide quickly (supercritical), it suddenly hits a flat pool (subcritical), creating splashes and ripples. This change in flow results in a mix of turbulent energy, similar to what happens during a hydraulic jump.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Control Volume: A region in fluid mechanics where conservation laws apply.
-
Froude Number: A measure to classify flow regimes in open channels.
-
Subcritical Flow: Flow dominated by gravitational forces.
-
Supercritical Flow: Flow dominated by inertial forces.
-
Wave Propagation: The behavior of disturbances in fluid flows.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The Ganga Canal serves as a historical example of implementing control volumes for managing water flow effectively.
-
Creating waves in a river by dropping rocks illustrates disturbance propagation in water systems.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a flow that moves and swirls, gravity's force makes ripples twirl.
📖 Fascinating Stories
-
Imagine a river where a pebble drops, the ripples spread downstream, but upstream, they stop. The flow tells the tale of forces at play!
🧠 Other Memory Gems
-
GREAT (Gravity, Resistance, Erosion, Another side, Turbulence) for remembering the forces at play in water dynamics.
🎯 Super Acronyms
MME (Mass, Momentum, Energy) to recall the conservation laws applied in control volumes.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Control Volume
Definition:
A defined space or region in which fluid flow analysis is performed, applying conservation laws of mass, momentum, and energy.
-
Term: Froude Number
Definition:
A dimensionless number that compares inertial forces to gravitational forces in a flow, used to categorize flow regimes.
-
Term: Subcritical Flow
Definition:
Flow where the Froude number is less than 1, indicating gravity forces dominate over inertial forces.
-
Term: Supercritical Flow
Definition:
Flow where the Froude number is greater than 1, indicating inertial forces dominate over gravity forces.
-
Term: Critical Flow
Definition:
Flow state where the Froude number is equal to 1, representing a balance between inertial and gravitational forces.
