Introduction to Hydraulic Jumps
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Good morning everyone! Today, we are diving into the concept of hydraulic jumps. Can anyone tell me what a hydraulic jump involves?
Isn’t it when water flows from a faster speed to a slower speed and creates turbulence?
Exactly, Student_1! This turbulence occurs during the transition from supercritical flow to subcritical flow. Remember, we use the Froude number to determine these flow regimes.
What does a supercritical flow mean?
Great question! Supercritical flow occurs when the Froude number is greater than 1, which implies inertia forces dominate over gravity forces. Keep this in mind: *Fr > 1 means supercritical*.
How about the critical and subcritical flows?
Good follow-up! Critical flow happens when Fr equals 1, while subcritical flow is when Fr is less than 1. Remember: *Fr < 1 is subcritical*. It highlights how these flows transition into one another.
In summary, hydraulic jumps are essential for understanding flow dynamics in engineering. They dissipate energy and mix fluids. Keep the Froude number in mind as it's central to these concepts!
Applications of Hydraulic Jumps
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, let’s talk about where hydraulic jumps are used in real life. Does anyone know any applications?
I think they are used in dams, right?
Absolutely, Student_4! At dams, hydraulic jumps help to dissipate energy to prevent erosion downstream. This energy management is crucial. Can anyone think of another application?
What about wastewater treatment?
Exactly! Hydraulic jumps provide aeration, promoting mixing in wastewater treatment processes. It’s fascinating how nature can be used for such engineering efficiencies!
Are hydraulic jumps also important in irrigation systems?
Yes, they are vital! In irrigation, managing water flow effectively maximizes crop yield. So remember the essential roles hydraulic jumps play: energy dissipation, aeration, and strategic water management.
In summary, hydraulic jumps are not just an interesting fluid mechanics phenomenon; they have significant engineering applications that impact how we manage water resources.
Understanding Hydraulic Jump Formation
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s dive deeper into how hydraulic jumps form. What triggers the transition from supercritical to subcritical flow?
I think it’s when there is an obstruction or change in channel geometry?
Excellent, Student_3! Any change that disrupts a fast-moving flow can initiate a hydraulic jump. Factors like channel width and roughness play a role in this transition. Can anyone elaborate?
So, if we throw a stone into a river, does it cause a jump?
Correct! Throwing a stone creates a disturbance that can trigger a wave, and this can lead to the formation of a hydraulic jump depending on the flow conditions.
What about energy losses in these jumps?
Great point! While hydraulic jumps dissipate energy, they also mix water and can aid in processes like aeration. Understanding the energy balance during these jumps is essential for engineers.
In summary, hydraulic jumps are the result of flow disruptions and can have pronounced effects on energy and fluid dynamics.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Hydraulic jumps are crucial phenomena in open channel flow where supercritical flow transitions to subcritical flow, resulting in turbulence and energy dissipation. This section explores the mechanisms behind hydraulic jumps, their formation conditions, and their applications, particularly in hydraulic engineering.
Detailed
Hydraulic Jump Applications
Hydraulic jumps occur in open channel flow when a fluid transitions from a supercritical state to a subcritical state. This transition is characterized by significant turbulence and an increase in flow depth. The section examines the underlying principles of hydraulic jumps, linking them to the broader topics of flow regimes—subcritical, critical, and supercritical flows—measured by the Froude number.
The Froude number (Fr) is defined as the ratio of inertial forces to gravitational forces, represented as \( Fr = \frac{v}{\sqrt{g h}} \), where \( v \) is the velocity, \( g \) is gravity, and \( h \) is the flow height. The section elaborates on how hydraulic jumps serve various engineering applications, including energy dissipation in dam outlets, aeration processes in wastewater treatment, and enhancing mixing in chemical applications. Understanding hydraulic jumps is vital for designing open channel systems such as canals and rivers, especially in regions heavily reliant on such infrastructures for irrigation, navigation, and urban water supply. Additionally, historical references, such as the Ganga canal, illustrate the longstanding significance of proper hydraulic designs in civil engineering.
Youtube Videos

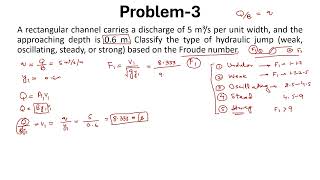

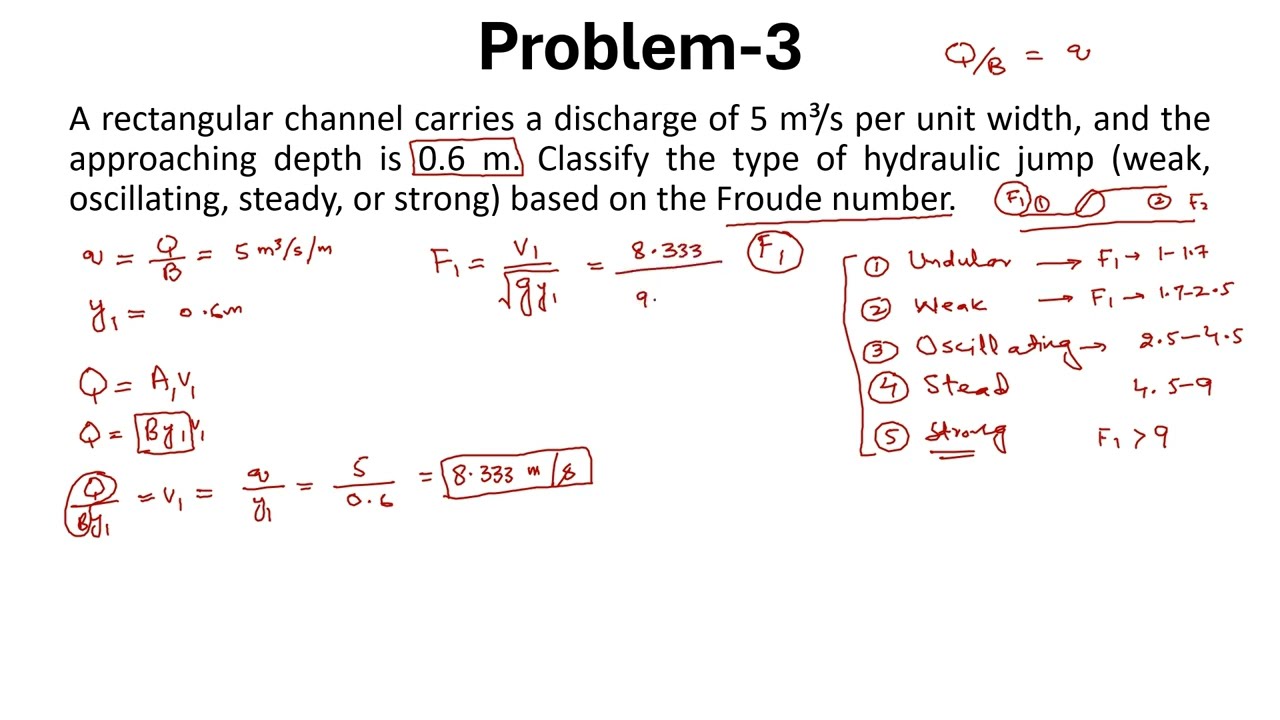

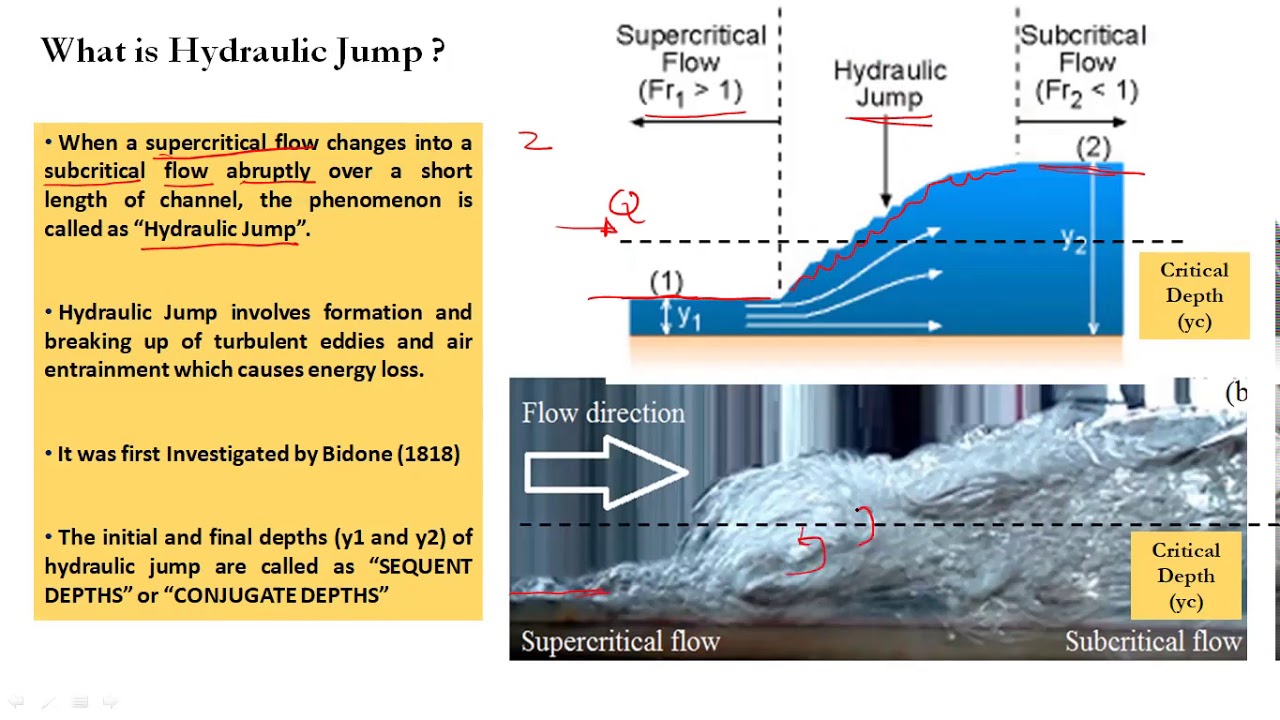

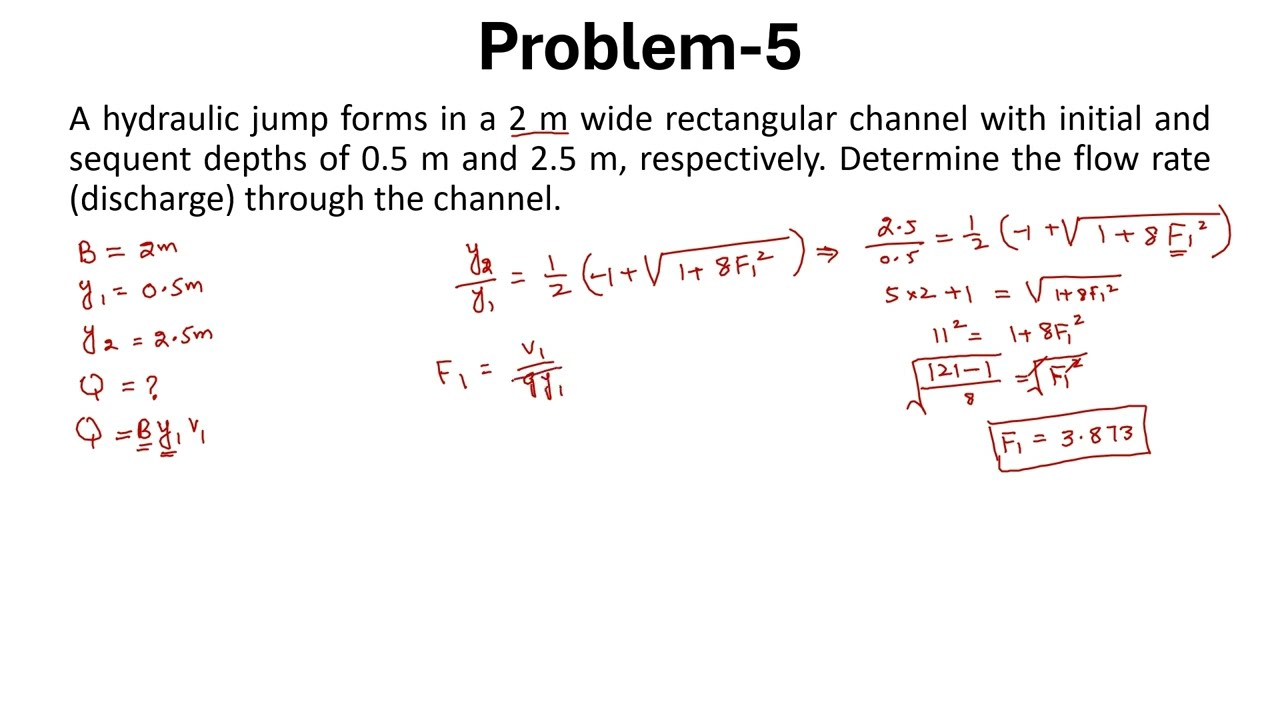

![Open Channel Flow - 34 [Rapidly varied flow - Hydraulic Jump concept examples and applications]](https://img.youtube.com/vi/t_XJcSv8m0k/mqdefault.jpg)
