Governing Equations in Steady 1D Conduction
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we will dive into the governing equations for steady-state one-dimensional conduction, starting with Cartesian coordinates. Can anyone tell me the governing equation for a plane wall with no heat generation?
I think it's the second derivative of temperature with respect to distance, right?
Exactly! It's $$\frac{d^2T}{dx^2} = 0$$. This implies that the temperature distribution is linear. Now, what would the general solution be?
Isn't that $$T(x) = Ax + B$$?
Correct! Here, A and B are constants. How about the heat transfer rate; who can recall how we express that?
It should be $$q = -kA \frac{dT}{dx}$$, right?
Yes! The negative sign indicates that heat flows from high to low temperature. Let's keep this in mind as we discuss cylindrical and spherical coordinates.
So, how does it change for a hollow cylinder?
Great question! For a hollow cylinder, the heat conduction equation is $$q = \frac{2\pi k L (T_1 - T_2)}{\ln(r_2 / r_1)}$$. Remember, as we increase the radius, our approach to heat conduction changes!
To summarize, we've discussed the general governing equation for steady 1D conduction, tactile results for plane walls, and introduced the cylindrical coordinate scenario. Keep practicing!
Thermal Resistances
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, letβs transition to understanding thermal resistances. They can be analogous to electrical resistances. Can anyone remind me what conduction resistance is?
I think it's defined as $$R_{cond} = \frac{\Delta x}{kA}$$.
Exactly! It's all about the material's properties and geometry. Now, who can explain convection resistance?
Isn't it $$R_{conv} = \frac{1}{hA}$$ where h is the convective heat transfer coefficient?
Correct! The thermal resistance just illustrates the impediments to heat flow. Does anyone remember how we apply this in thermal circuits?
We can use them in series and parallel just like electrical resistances, right?
Very well! Now, letβs summarize what we discussed. We highlighted conduction and convection resistances, their equations, and their analogy to electric resistances.
Critical Thickness of Insulation
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Next, we will discuss the critical thickness of insulation. Who can explain what occurs when we add insulation to a cylinder?
I believe if the insulation is too thin, it may increase heat loss due to a rise in surface area, but thereβs a critical radius where it starts to reduce heat loss.
Exactly! The critical radius for a cylinder is defined as $$r_{crit} = \frac{k}{h}$$. If the radius is less than this critical value, adding insulation increases heat loss.
What kind of applications does this concept apply to?
Excellent question! It applies especially in thermal insulation for pipes and electric wires. It's crucial to balance insulation properties. Let's recap: adding insulation can be beneficial, but only up to a critical thickness.
Lumped System Approximations
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Lastly, let's address lumped system approximations. When do we apply them?
Itβs applicable when internal resistance is negligible compared to surface resistance, right?
Exactly! This is validated by the Biot Number, defined as $$Bi = \frac{hL_c}{k}$$. When $$Bi < 0.1$$, we consider our system to be a lumped system.
So, we can assume the temperature inside is almost uniform?
Yes! It simplifies our calculations greatly. Remember that this approximation works well for small objects. To sum up, weβve explored how lumped systems allow for simpler calculations when heat transfer conditions warrant it.
Heat Transfer Through Pin Fins
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, letβs wrap up with heat transfer through pin fins. What do we understand by extended surfaces?
Theyβre used to enhance the heat transfer area for efficient heat dissipation, aren't they?
Absolutely! The governing equation for steady-state for pin fins is $$\frac{d^2T}{dx^2} - \frac{hP}{kA}(T - T_{\infty}) = 0$$. Who can tell me about the efficiency factor?
The fin efficiency is $$\eta = \frac{\text{Actual heat transfer}}{\text{Maximum possible heat transfer}}$$.
Correct! Understanding these boundaries and conditions is crucial for effective heat exchanger design. Letβs recap: we discussed how to enhance heat transfer using pin fins, their governing equations, and efficiency.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section elaborates on the equations and principles governing steady one-dimensional heat conduction in various geometrical configurations, such as Cartesian, cylindrical, and spherical coordinates, alongside discussing thermal resistances and the concept of critical thickness of insulation for enhanced heat transfer.
Detailed
Steady 1D Conduction
In this section, we explore the principles governing steady-state one-dimensional conduction of heat. The governing equations differ based on the coordinate system utilized for analysis:
- Cartesian Coordinates: In a plane wall with no heat generation, the governing equation is represented as $$\frac{d^2T}{dx^2} = 0$$. The general solution takes the form $$T(x) = Ax + B$$, while the heat transfer rate can be expressed as $$q = -kA \frac{dT}{dx}$$.
-
Cylindrical Coordinates: When dealing with hollow cylinders, the heat conduction formula adapts to $$q = \frac{2\pi k L (T_1 - T_2)}{\ln(r_2 / r_1)}$$,
addressing the variances in radius. - Spherical Coordinates: For hollow spheres, heat conduction is represented as $$q = \frac{4\pi k r_1 r_2 (T_1 - T_2)}{r_2 - r_1}$$, illustrating the dimensional transformations in thermal analysis.
Further, we delve into concepts of thermal resistances, defining conduction resistance $$R_{cond} = \frac{\Delta x}{kA}$$ and convection resistance $$R_{conv} = \frac{1}{hA}$$.
The idea of critical thickness of insulation is introduced, particularly relevant in cylindrical and spherical scenarios, indicating that an increase in insulation thickness can sometimes lead to greater heat loss until a critical thickness is achieved.
Additionally, we discuss the concept of lumped system approximations, where internal resistance is negligible compared to surface resistance, validated by the Biot Number ($$Bi < 0.1$$). Finally, the construction of pin fins to enhance heat transfer area is presented, concluding with the governing equations and efficiency factors for these extended surfaces.

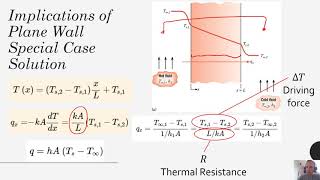

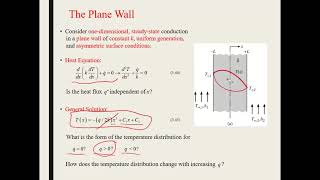

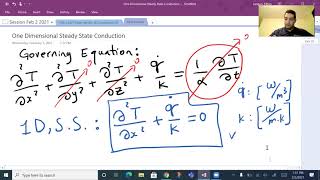

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Governing Equation in 1D Conduction
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
β Governing equation:
\[ \frac{d^2T}{dx^2} = 0 \quad \text{(steady, no heat generation)} \]
Detailed Explanation
This equation represents the steady state condition of temperature in one-dimensional conduction without any heat generation. The second derivative of temperature T with respect to distance x is equal to zero. This means that the temperature gradient is constant throughout the material, indicating that heat is being conducted uniformly along the length of the object.
Examples & Analogies
Imagine a long metal rod that is gradually heated at one end and held at a constant temperature at the other. If there is no heat being generated along the length of the rod (no energy added or removed), the temperature will stabilize into a linear gradient, creating a uniform heat distribution.
General Solution for Temperature Distribution
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
β General solution:
\[ T(x) = Ax + B \]
Detailed Explanation
This equation describes the general solution for the temperature distribution along a one-dimensional conductor. Here, A and B are constants that can be determined from boundary conditions. A represents the slope of the temperature profile, while B is the temperature at a known point. Essentially, it tells us how temperature changes linearly along the length of the conductor.
Examples & Analogies
Think of the temperature profile in a heated metallic rod. In a simple case, if you measure temperatures at two ends, the temperature values will be proportional to their distances from the heat source, creating a straight line graph of temperature versus distance.
Heat Transfer Rate in 1D Conduction
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
β Heat transfer rate:
\[ q = -kA \frac{dT}{dx} \]
Detailed Explanation
This equation calculates the heat transfer rate (q) through a material in one-dimensional conduction. The term k represents the thermal conductivity of the material, A is the cross-sectional area, and \( \frac{dT}{dx} \) is the temperature gradient. The negative sign indicates that heat flows from higher to lower temperature regions.
Examples & Analogies
Imagine holding one end of a metal spoon in a hot soup. Heat from the soup transfers through the spoon towards your hand. The rate of heat transfer can be calculated using this formula, considering the spoon's material (thermal conductivity), its size (cross-sectional area), and how quickly the temperature changes along its length.
Heat Conduction in Cylindrical Coordinates
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
b. Cylindrical Coordinates (e.g., pipe walls)
β Heat conduction through a hollow cylinder:
\[ q = \frac{2\pi k L (T_1 - T_2)}{\ln(r_2 / r_1)} \]
Detailed Explanation
This equation is used for calculating heat transfer through hollow cylinders, such as pipes. Here, T1 and T2 are the temperatures at the inner (r1) and outer (r2) surfaces of the cylinder, k is the thermal conductivity, and L is the length of the cylinder. The natural logarithm accounts for the geometry of the cylinder, which affects how heat is distributed and transferred.
Examples & Analogies
Consider a hot water pipe insulated on the outside. As heat moves from the hot water (inner surface) to the ambient air (outer surface), this formula helps determine how much heat is lost based on the temperatures and dimensions of the pipe. The larger the difference in temperature and the better the thermal conductivity, the more heat will transfer.
Heat Conduction in Spherical Coordinates
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
c. Spherical Coordinates
β Heat conduction through a hollow sphere:
\[ q = \frac{4\pi k r_1 r_2 (T_1 - T_2)}{r_2 - r_1} \]
Detailed Explanation
This equation is used for heat conduction through hollow spheres, where T1 and T2 are the temperatures at the inner and outer surfaces, respectively, and r1 and r2 are the corresponding radii. The formula includes the geometric factors required for spherical shapes, emphasizing the relationship between temperature change and the spherical surface area.
Examples & Analogies
Think about a hot ball of lava encased in a cooling crust. Heat will transfer from the interior to the exterior surface based on the difference in temperature and distance from the center. This equation helps quantify the amount of heat escaping from the lava sphere through its surface.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Steady-State Conduction: The state where temperature distribution is constant over time.
-
Governing Equations: Mathematical formulations that describe heat conduction principles.
-
Thermal Resistance: The opposition to the flow of heat, analogous to electrical resistance.
-
Critical Thickness of Insulation: The thickness at which adding insulation begins to increase heat loss.
-
Lumped System Approximation: A simplification where internal temperatures are assumed uniform.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If a plane wall is given temperatures T1 and T2 at respective heights, the heat transfer can be calculated using $$q = -kA \frac{dT}{dx}$$.
-
For a hollow cylinder, if the outer radius is doubled when insulating, the heat flow changes drastically as given by the formula for cylindrical heat conduction.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
In conduction heat does play, steady-state is the key way. For thickness, critical find, or heat loss is not kind.
π Fascinating Stories
-
Imagine a cylinder wrapped too tight with insulation; heat starts to leak out everywhere until the magic critical thickness is just right!
π§ Other Memory Gems
-
C.B.L.T - Conditions where we remember: Critical thickness, Biot number, Lumped systems, and Thermal resistance apply.
π― Super Acronyms
STC - Steady state, Thermal resistance, Critical radius, helps to remember the core principles.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: SteadyState
Definition:
A condition where the temperature and heat transfer rate remain constant over time.
-
Term: Conduction Resistance
Definition:
The resistance to heat flow through a material due to its thermal conductivity.
-
Term: Convection Resistance
Definition:
The resistance to heat flow by convection at a surface.
-
Term: Critical Thickness of Insulation
Definition:
The thickness at which additional insulation starts to increase heat loss instead of reducing it.
-
Term: Biot Number
Definition:
A dimensionless number that quantifies the ratio of thermal resistance within an object to thermal resistance at its surface.
-
Term: Heat Transfer Rate
Definition:
The amount of heat energy transferred per unit time.
-
Term: Pin Fin
Definition:
An extended surface to enhance the heat transfer area for heat dissipation.
