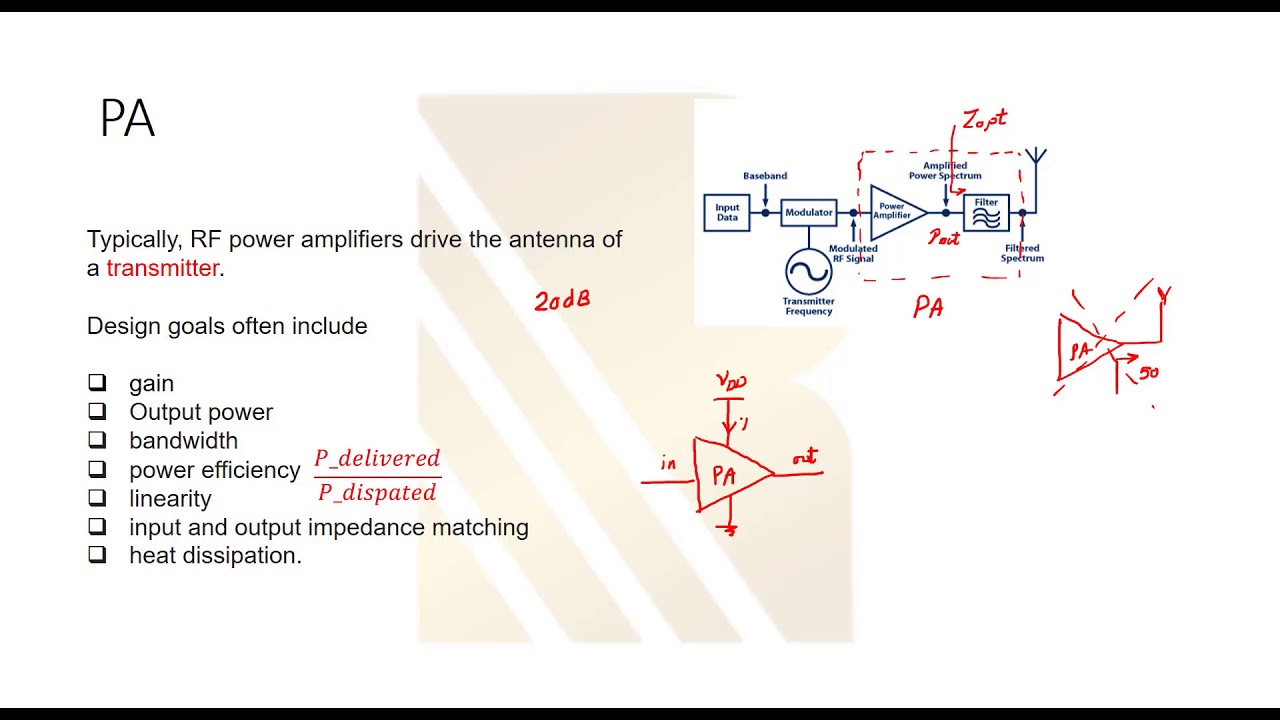

7.2.1. Types of Power Amplifiers

Class A amplifiers are characterized by their continuous operation throughout the input signal cycle. While they produce high-quality output with minimal distortion, they are inefficient because they draw continuous current even when there is no input signal, leading to higher heat generation.

Class A amplifiers operate at all times during the input signal cycle, meaning they are always 'on'. This leads to very clear and high-quality output sound, which is why they are often used in high-fidelity audio applications. However, because they never completely turn off, they consume power continuously, even when no sound is being amplified. This results in unnecessary energy wastage and creates a lot of heat, which necessitates additional cooling measures to prevent damage.

Think of a Class A amplifier like a car engine that is always running even when you are not driving. While this allows the car to respond quickly when you want to accelerate (ensuring high performance), it also consumes fuel constantly and heats up, which can be inefficient.

In Class B amplifiers, the output devices conduct for half of the signal cycle, improving efficiency over Class A designs. However, Class B amplifiers can introduce distortion at the crossover point where the devices switch from one to the other.

Class B amplifiers are designed to conduct current only during half of the input signal cycle, which improves efficiency because they do not waste power when there is no signal. However, this design leads to a problem known as 'crossover distortion'. This distortion occurs at the point where one transistor turns off and another one turns on, which can cause a small amount of distortion in the output signal during transitions. This makes Class B amplifiers less ideal for high-fidelity audio applications.

Imagine a switch that only turns on lights during the day (Class B). It saves electricity at night but when the sun sets, there might be a flicker as one light goes out and another turns on. This flickering represents the crossover distortion between devices in the amplifier.

Class AB amplifiers combine elements of both Class A and Class B designs. They operate in Class A for small signals and switch to Class B for larger signals, offering a balance between efficiency and distortion.

Class AB amplifiers aim to provide a good compromise between the high sound quality of Class A and the improved efficiency of Class B. They work in Class A mode when the input signal is small, which allows them to avoid distortion. As the signal increases, they transition to Class B to keep energy use efficient. This design helps maintain good sound quality without excessive heat generation, making Class AB amplifiers popular in many audio applications.

Think of a Class AB amplifier like a hybrid car that uses electric power for low speeds (quietly and efficiently) but switches to gasoline power for higher speeds (to maintain performance without wasting fuel). The car’s ability to switch modes helps it maintain performance without excessive energy consumption.

Class D amplifiers, also known as switching amplifiers, operate by rapidly switching the output transistors on and off. This allows them to achieve very high efficiency, making them ideal for high-power audio amplification and RF applications. However, they require careful filtering to reduce high-frequency noise and distortion.

Class D amplifiers use a very different approach compared to Class A, B, and AB amplifiers. These amplifiers rapidly switch the output devices on and off thousands of times per second, which allows them to handle high power efficiently without generating much heat. Because of this rapid switching, Class D amplifiers can be extremely compact and lightweight, which is a significant advantage in portable applications. However, this switching can create high-frequency noise, so additional filtering is needed to ensure the output is clear and distortion-free.

Think of a Class D amplifier like a smart light dimmer that turns lights on and off very quickly to create a softer light. While this method can effectively control the brightness and save energy, it may also cause flickers (similar to distortion) if not properly managed.

--
