1. Turbulent Pipe Flow

Learn content

Interactive Audio Lesson

Session 1: Deriving Velocity Relationships

Unlock the classroom podcast

The transcript is free to read. A free account plays the conversation back.

Create a free account

SarahInstructor

Today, we're diving into turbulent flow in pipes. Let's start by discussing the relationship between the average velocity and local velocity. Can someone tell me why this relationship is important?

Noah

It's important for calculating how fluids behave under different conditions, right?

SarahInstructor

Exactly! In turbulent pipe flow, we use the equation: $u - V_{average} = 5.75 \log_{10}\frac{y}{R} + 3.75$ where $u$ is the local velocity, $V_{average}$ is the average velocity, $y$ is the distance from the wall, and $R$ is the radius of the pipe. Remember this formula; you can derive it using basic logarithmic profiles. Any thoughts on what this means?

Isabella

So, it means that at varying distances from the pipe wall, we can find the local velocity?

SarahInstructor

Right! And it's significant that you'll observe the same relationship for both smooth and rough pipes. Let's remember this with the acronym VARY: V- velocity at any point, A- average velocity, R- radius, and Y- distance from the wall.

Akash

That's a cool way to remember it!

SarahInstructor

Glad you think so! For our summary: we derive that $u - V_{average}$ can help predict the flow characteristics in turbulent conditions. Let's move on to rough pipes in our next session.

Session 2: Exploring Rough Pipes

Unlock the classroom podcast

The transcript is free to read. A free account plays the conversation back.

Create a free account

RobertInstructor

Moving on to rough pipes, the equation we previously discussed can be modified. Can anyone tell me what that might involve?

Noah

Maybe something about how the surface roughness affects flow?

RobertInstructor

Exactly! It's essentially similar in format: $u - V_{average} = 5.75 \log_{10} \frac{y}{R} + 3.75$ still holds, showing that the local-to-average velocity relationship remains consistent across different pipe types. Isn't that fascinating?

Ananya

That's surprising! I thought roughness would change it significantly.

RobertInstructor

That's a common misconception! It mainly affects the total resistance but not the relationship we derived. We often see this as a principle of turbulence. A mnemonic for this could be SAME: S- smooth, A- average, M- multiple types, E- equation remains.

Akash

I see! That makes it easier to recall!

RobertInstructor

Great! Let's summarize: the differences in velocities for smooth and rough pipes yield similar fundamental equations, a key insight in turbulent flow dynamics.

Session 3: Power Law Velocity Profile

Unlock the classroom podcast

The transcript is free to read. A free account plays the conversation back.

Create a free account

SarahInstructor

Next, we discuss the power law velocity profile. Someone take a guess on what that might represent?

Isabella

Is it how we can express the velocity at different heights?

SarahInstructor

Correct! It is given by $\frac{u}{u_{max}} = \left(\frac{y}{R}\right)^{\frac{1}{n}}$ , where $u_{max}$ is the maximum velocity. The power value $n$ depends on the Reynolds number. For $n=7$ , we get a famous one-seventh power law profile. Why do we use $n$ ?

Noah

To describe the flow behavior based on turbulence level?

SarahInstructor

Exactly! It's crucial for evaluating how velocity changes within the pipe. As a memory aid, think of PULSE: P- Power, U- Useful in flows, L- Level of turbulence, S- Slopes for calculations, E- Expressing ratios.

Ananya

That makes sense! I can relate it to turbulent flows now.

SarahInstructor

To summarize: the power law model is applicable in varying turbulence, aiding analytical predictions but has limitations with wall shear stress due to infinite gradients. It's an essential concept in fluid mechanics.

Session 4: Solving Average Velocity Problems

Unlock the classroom podcast

The transcript is free to read. A free account plays the conversation back.

Create a free account

RobertInstructor

Let's apply what we've learned by calculating average velocity using a specific turbulent profile provided: $u(r) = u_{max}(1 - \frac{r}{R})^{\frac{1}{7}}$ . How should we approach this?

Akash

We might need to integrate!

RobertInstructor

Yes! The integral will be over the entire area of the pipe. Can someone help set up that integral?

Isabella

Shouldn’t we use $\frac{1}{A} \int u(r) \, dA$ for the average velocity?

RobertInstructor

Correct. Remember the representation: average velocity $V_{bar} = \frac{1}{\pi R^2} \int_0^R u_{max} \left(1 - \frac{r}{R}\right)^{\frac{1}{7}} 2\pi r \, dr$ . What values will cancel out in our calculations?

Ananya

The $\pi$ from the area because of $2\pi r$ !

RobertInstructor

Yes! Great job! After simplifications, we can find that $V_{bar} = 0.816 u_{max}$ . Keep this as a reference for calculating average velocity in other turbulent flows.

Noah

This is starting to make sense! I can follow through!

RobertInstructor

Excellent! So to recap: we set up integration for velocity profiles demonstrating how to derive average flow velocity. This method will be vital in real-world applications!

Overview

Short Summary

This section discusses turbulent flow in pipes, focusing on the relationship between average velocity and frictional velocity, and derives equations for both smooth and rough pipes.

Medium Summary

In this section, we explore the equations governing turbulent flow in pipes, comparing the velocity profiles of smooth and rough pipes. Key equations are presented, including a derivation showing the relationship between average velocity and point velocity, and the significance of the power law velocity profile is discussed in detail.

Detailed Summary

Turbulent Pipe Flow

Turbulent flow in pipes is characterized by chaotic and irregular fluid motion, which has significant implications for fluid dynamics and engineering applications. In this section, we delve into the relationship between the average velocity and the frictional velocity in turbulent pipe flow. We begin by discussing the derivation of key equations for smooth and rough pipes, ultimately arriving at conclusions regarding velocity profiles.

Key Derivations:

Equation Derivation for Smooth Pipes: Using the logarithmic velocity profile, we can express the difference between point velocity and average velocity, leading to the relationship:

$u - V_{average} = 5.75 imes ext{log}_{10} \frac{y}{R} + 3.75$ where $u$ is the local velocity, $V_{average}$ is the mean velocity, $y$ is the distance from the wall, and $R$ is the radius of the pipe.
Observations Across Different Pipe Types: Interestingly, this relationship holds true for both smooth and rough pipes, highlighting that the difference in velocity profiles remains constant across these types of pipes despite variations in surface roughness.
Power Law Velocity Profile: The section introduces the power law velocity profile, expressed as: $\frac{u}{u_{max}} = \left(\frac{y}{R}\right)^{\frac{1}{n}}$ with $n$ values dependent on the Reynolds number, indicating different ranges of application. A specific case where $n=7$ yields a well-known one-seventh power law velocity profile.
Application of the Power Law: The power law velocity profile cannot yield a zero slope at the center, marking significant limitations, notably regarding wall shear stress calculations, as it leads to infinite gradients at the boundary.

Throughout this section, we also address problem-solving techniques for calculating average velocity profiles, utilizing integrative methods for practical applications.

Overall, understanding these dynamics is crucial for engineers and scientists working with fluid systems.

The provided velocity profile allows us to calculate the average velocity of the fluid in the pipe. By integrating the velocity function across the pipe's cross-section and normalizing by the area, we can derive an expression for average velocity. The variables involved include the maximum velocity (u max) and the pipe radius (R), showcasing how the fluid flows throughout the defined area.

Examples & Analogies

Imagine you're measuring how much lemonade is flowing through a straw. Some areas of liquid might flow faster (near the center of the straw) and others slower (near the walls). By averaging out these different speeds, we can determine how fast lemonade is flowing overall, akin to calculating the average velocity in the pipe.

1. Turbulent Pipe Flow

Interactive Audio Lesson

Overview

Short Summary

Medium Summary

Detailed Summary

Turbulent Pipe Flow

Key Derivations:

Reference YouTube Videos

Physics 34.1 Bernoulli's Equation & Flow in Pipes (6 of 38) The Moody Diagram

Understanding Laminar and Turbulent Flow

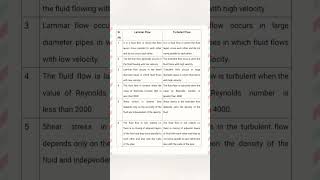

Difference between Laminar Flow & Turbulent Flow #youtubeshorts #shorts #civil

Lecture 38: Pipe flow

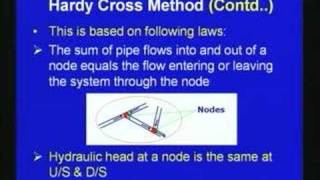

Lec-41 Pipe Flow Systems
