Introduction to Non-Recording Rain Gauges
Unlock Audio Lesson
Today, we will discuss non-recording rain gauges. Can anyone tell me what purpose these devices serve?
They measure rainfall!
Correct! They help us understand how much rain has fallen over a period but don’t tell us when or how intense the rain was. Let's remember this with the phrase 'Total, but not temporal!'
So, what is the main type of non-recording rain gauge we talk about?
Good question! The main type is the Symons rain gauge. It's adopted widely by the Indian Meteorological Department. Let's move on to its components!
Components of the Symons Rain Gauge
Unlock Audio Lesson
The Symons rain gauge consists of several components. Can anyone name them?
Isn't there a funnel that collects the rain?
Exactly! There's also a cylindrical collector and a measuring jar that allows us to read the rainfall amount. A great acronym to remember these is 'CFJ' for Collector, Funnel, Jar.
How do we install it properly?
Great inquiry! The gauge should be mounted on a concrete base at 30 cm above ground level and placed in an open space, away from obstacles like buildings or trees.
Measuring Rainfall with Symons Rain Gauge
Unlock Audio Lesson
Now that we know how to set up the Symons rain gauge, how do we measure the rain collected?
Do we just look at it?
Close! We collect the rainwater in the measuring jar daily at 8:30 AM using a graduated cylinder. Who can recall why timing is important?
To have consistent readings every day?
That's spot on! Daily measurements help track rainfall patterns. Let’s remember 'Timing for totality!' Typically, we may miss hourly changes, but we at least get daily totals.
Limitations of Non-Recording Rain Gauges
Unlock Audio Lesson
Let's discuss the limitations of non-recording rain gauges. What do you think the main issues are?
They can’t show rainfall intensity?
Absolutely! They cannot capture intensity or how rainfall varies over time. Also, manual observations lead to potential human error. We can say they fall short in automated practices. How can we remember this?
Maybe 'Manual means flawed'?
Great mnemonic! 'Manual means flawed' captures the essence of human error in observations. Very well put!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section introduces non-recording rain gauges, particularly the Symons rain gauge, detailing its components, installation, and measurement procedures. Key limitations include lack of intensity recording and manual observation requirements.
Detailed
Non-Recording Rain Gauges
Non-recording rain gauges are simple instruments designed to measure the total rainfall over a specified period. They collect rainwater without providing details about the intensity or time distribution of the precipitation. This section focuses on the most common type of non-recording gauge, the Symons rain gauge, utilized extensively by meteorological departments for accurate rainfall measurements. The section outlines the components of the Symons gauge, including its cylindrical collector, funnel, and measuring jar, as well as the procedure for installation and daily measurements. However, there are significant limitations associated with non-recording gauges, such as the inability to capture intensity or variations of rainfall over time, reliance on manual observations which can lead to human error, and unsuitability for remote monitoring. Understanding these gauges is crucial for basic hydrological assessments and data collection, particularly in areas where advanced gauges may not be feasible.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Non-Recording Rain Gauges
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Non-recording rain gauges are simple devices that collect rainfall over a specific period. They do not provide information on the time distribution or intensity of rainfall.
Detailed Explanation
Non-recording rain gauges are basic instruments used to measure how much it has rained over a certain time frame. Unlike recording gauges, they don't track the exact moment rain falls or how heavy it is; they simply collect rainwater. This makes them easier to use but less informative regarding rainfall intensity and duration.
Examples & Analogies
Think of non-recording rain gauges as a cup that you leave outside when it's raining. You can measure how much rain your cup collects, but you won't know when the rain started or how hard it was falling at any moment.

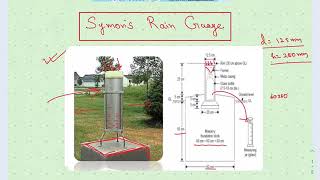

The Symons Rain Gauge
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The Symons rain gauge is the standard non-recording gauge adopted by the Indian Meteorological Department (IMD).

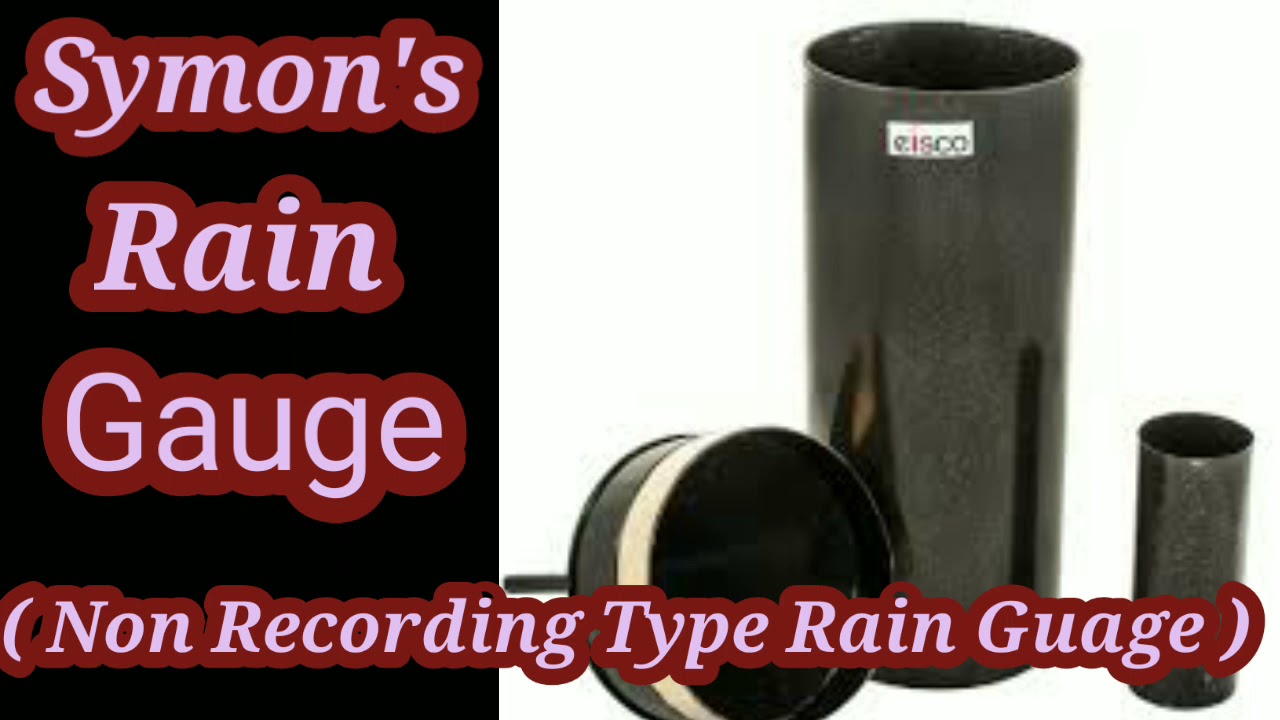

Components:
- Cylindrical collector (outer metallic container)
- Receiver (funnel and collecting bottle)
- Measuring jar (graduated in mm)
Detailed Explanation
The Symons rain gauge is a specific type of non-recording gauge recognized for its reliability, especially in India. It has three main parts: a cylindrical outer container that collects rain, a funnel that directs the rain into a collecting bottle, and a measuring jar marked in millimeters for easy reading of the collected water level.
Examples & Analogies
Imagine a funnel that directs water into a bottle. This is similar to how the Symons rain gauge works. The funnel catches rainwater and channels it into a measuring bottle, which shows you how much rain has been captured.
Installation Requirements
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The gauge is mounted on a concrete base with the rim at 30 cm above ground level.
It must be placed in an open space, away from buildings or trees.
Detailed Explanation
For accurate readings, the Symons rain gauge needs to be installed correctly. It should be set on a solid concrete base at a height of about 30 centimeters from the ground to avoid interference from surface water. Additionally, it should be located in an open area free from obstructions like trees or buildings that could block rain.
Examples & Analogies
Consider how you might choose an area to set up a tent. You'd want a flat, open space free from overhead branches that could drip rain onto your tent. The same principle applies to placing a rain gauge to ensure it accurately collects water without interference.
Operation of the Symons Rain Gauge
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Procedure:
- Rainwater is collected in the bottle.
- The collected water is measured daily at 8:30 AM using the graduated measuring cylinder.
Detailed Explanation
The operation of the Symons rain gauge involves collecting rainwater in its bottle. Each day at 8:30 AM, the water is measured using a graduated measuring cylinder, which shows how much rainfall occurred since the last measurement. This daily check helps keep track of precipitation levels.
Examples & Analogies
Think of this process like checking the water level in a fish tank every morning. Just as you use a measuring cup to see how much water you need to add, you measure the rainwater collected in the rain gauge to know how much rain has fallen.
Limitations of Non-Recording Gauges
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Cannot record the intensity or time variation of rainfall.
• Manual observation required; prone to human error.
• Not suitable for remote or automated monitoring systems.
Detailed Explanation
While non-recording rain gauges like the Symons gauge are useful for collecting data over time, they have specific limitations. They cannot provide details about how hard it rained or when the rain started and stopped, which limits their usefulness in understanding rainfall patterns. Additionally, since results are recorded manually, there's a chance of mistakes, and they are not ideal for areas that require automatic measurements.
Examples & Analogies
Imagine a person trying to keep track of their daily steps by writing them down each evening. If they forget, or if they're not precise about their counting, the record will be flawed. Similarly, non-recording rain gauges rely on human observation, which can lead to errors.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Non-Recording Rain Gauges: Basic tools for measuring total rainfall without temporal data.
-
Symons Rain Gauge: Standard model used by IMD, consisting of specific components.
-
Manual Observation: A method that can lead to potential errors in data collection.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A classroom sets up a Symons rain gauge in their schoolyard to collect data on after-school rainfall for a month.
-
A local farmer uses the measurements from a Symons rain gauge to assess the total rainfall for planning irrigation.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Rain falls down, day by day, gauges measure, come what may!
📖 Fascinating Stories
-
Imagine a gardener who checks his Symons gauge each day to track how much rain his plants receive. He learns that total rain helps him plan better watering schedules.
🧠 Other Memory Gems
-
Remember 'SFC': Symons, Funnel, Collector - the parts of the gauge!
🎯 Super Acronyms
Remember 'MMR'
- Manual means reliable
- if human is careful!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: NonRecording Rain Gauge
Definition:
A device that collects rainfall over a certain period without providing information on the time distribution or intensity of rainfall.
-
Term: Symons Rain Gauge
Definition:
The standard non-recording rain gauge adopted by the Indian Meteorological Department, consisting of a cylindrical collector, funnel, and graduated measuring jar.
-
Term: Manual Observation
Definition:
The process of visually inspecting and recording measurements by hand, which can lead to errors.
