42. Root Zone Soil Water

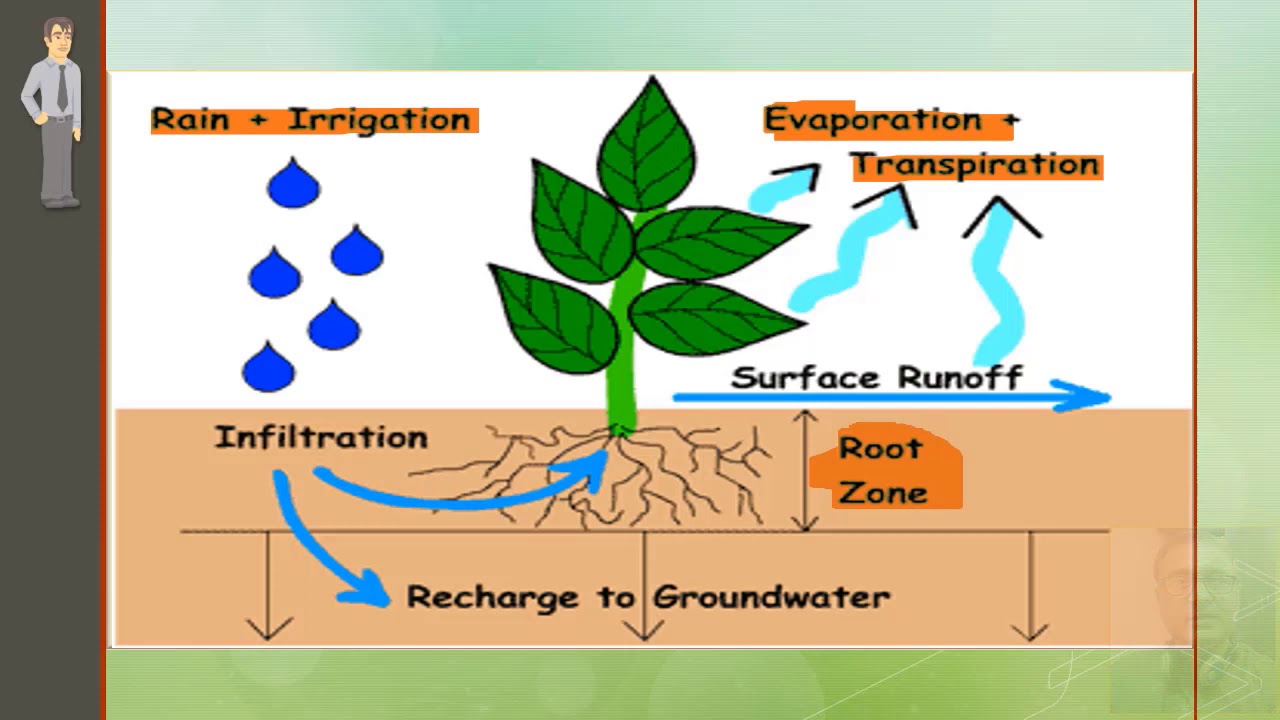

The root zone refers to the portion of the soil that contains the roots of plants and is the primary zone for water absorption by vegetation. Root zone soil water plays a pivotal role in hydrology and water resources engineering, as it links atmospheric processes (like precipitation and evapotranspiration) to surface and subsurface hydrological phenomena. Efficient understanding and management of root zone moisture is essential for irrigation planning, drought prediction, watershed management, and sustainable agriculture. This chapter delves into the nature, movement, availability, and importance of water in the root zone, alongside methods for its estimation and practical applications in water resources engineering.

The root zone is the crucial part of the soil where plants' roots grow and absorb water. Water in this zone is not just necessary for the plants but influences broader environmental processes. For instance, when it rains, this water moves from the atmosphere to the ground, where plants use it for growth. Proper management of this water is vital for activities like farming, especially in dry areas where drought can occur. Understanding how water moves and is stored in the root zone helps farmers plan irrigation and protect their crops.

Think of the root zone as the plant's pantry. Just like a pantry holds food that you need to cook and eat, the root zone holds water that plants need to grow. If the pantry is full, the plants thrive, but if it’s empty, they struggle. Therefore, just as a good cook knows when to restock their pantry, a farmer must understand how to manage water in the root zone effectively.

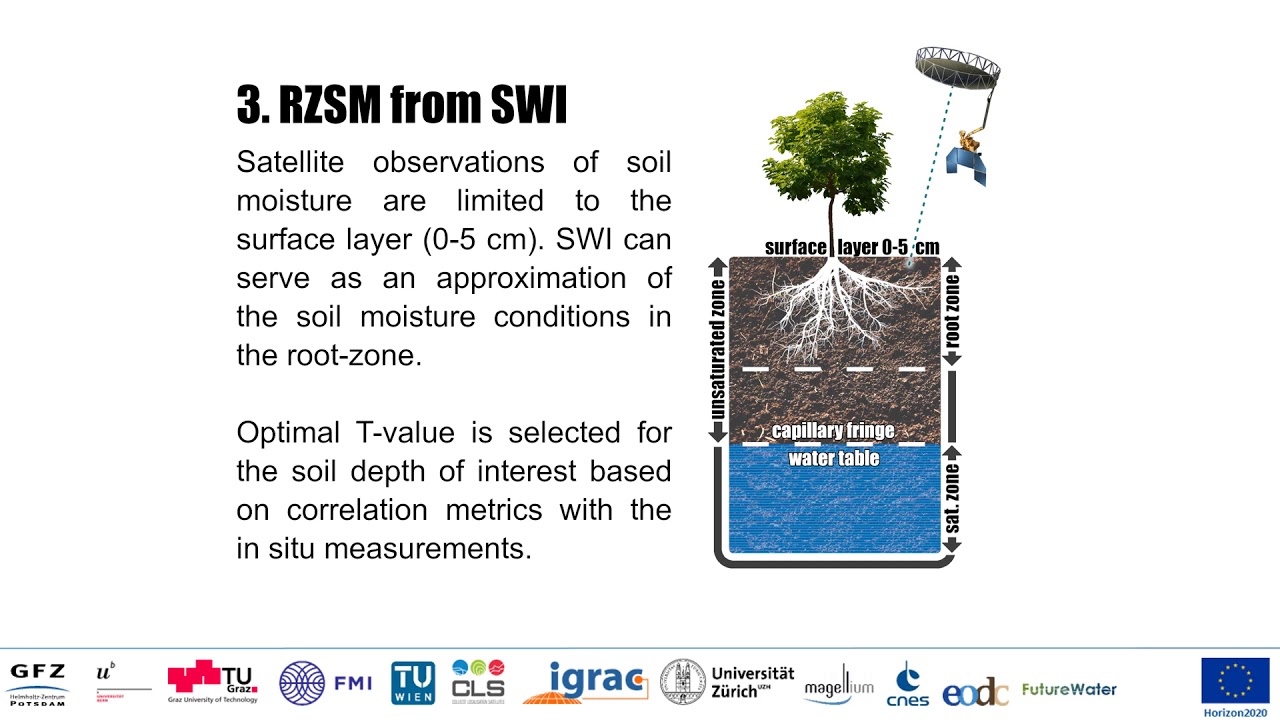

The unsaturated zone, also known as the vadose zone, lies above the water table and includes the root zone. It contains water held by capillary forces and air in the pore spaces. Soil water is broadly classified into three types based on its availability to plants: • Gravitational Water: Drains through the soil under the influence of gravity and is usually unavailable to plants. • Capillary Water: Held in micropores and is the main source of water absorbed by plant roots. • Hygroscopic Water: Thin film of moisture tightly bound to soil particles and not available to plants.

The unsaturated zone is the area above the water table where soil is not fully soaked but has some moisture. This section plays an essential role in how plants access water. There are three primary types of soil water: 'Gravitational Water' which quickly drains away and isn't useful for plants, 'Capillary Water' which is held in small spaces and is available for plants to absorb, and 'Hygroscopic Water' which tightly clings to soil particles and cannot be used by plants. Understanding these types helps in effective watering strategies for agriculture.

Think of the soil as a sponge. When you pour water on it, some of that water just runs off (gravitational water), some is soaked in (capillary water), and some would cling to the sponge itself even when you tried to squeeze it dry (hygroscopic water). Only the soaked water can be used by plants, similar to how you can only eat what's in the sponge after it's absorbed.

These two critical soil moisture constants define the available water range for plants: • Field Capacity (FC): The amount of soil moisture remaining after excess water has drained away, typically 1–3 days after irrigation or rainfall. – Units: % by volume or weight. – Significance: Marks the upper limit of available water. • Permanent Wilting Point (PWP): The soil moisture level at which plants can no longer extract water, leading to permanent wilting. – At this stage, only hygroscopic water remains. – Varies by plant species and soil texture. • Available Water (AW): AW = FC − PWP. It is the water stored in the soil profile between field capacity and wilting point, usable by plants.

Field capacity is the ideal state of the soil after it's rained or been watered, where the maximum amount of water that can be held has balanced out, leaving enough for plants to use without waterlogging. In contrast, the permanent wilting point is when the water is so low that plants can’t extract any moisture at all, causing them to wilt. Therefore, the available water (AW) is simply the difference between these two points, representing the water that plants can actually use for growth.

Consider making a cake: when you mix all the ingredients, some is left in the bowl after pouring. That leftover mix is like the water above field capacity. The cake itself uses what’s absorbed (field capacity), whereas if you leave the cake in the oven too long without moisture, it will dry out and become hard (permanent wilting point). Plants, like cakes, need the right amount of water to thrive.

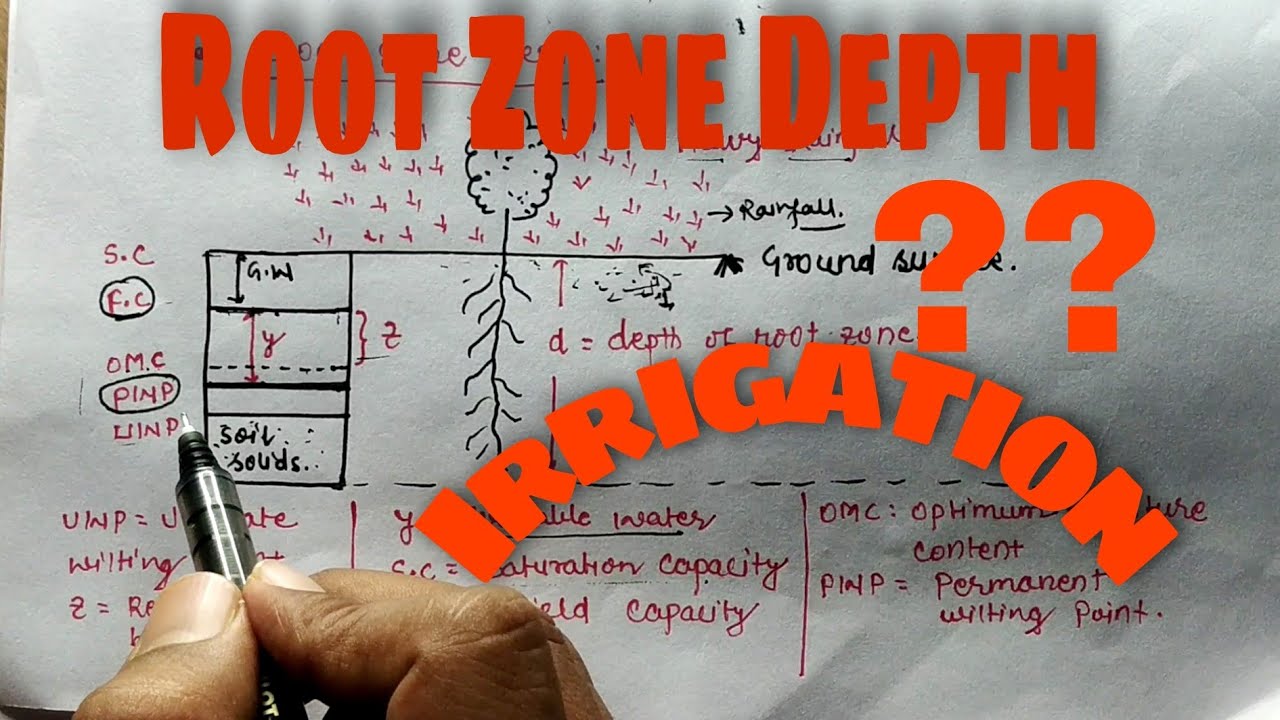

Rooting Depth refers to the depth to which the majority of a plant’s roots extend and actively absorb water. Typical root depths vary with crop type: • Shallow-rooted (e.g., grasses): ~30–60 cm • Deep-rooted (e.g., trees): >1 m Root Zone Storage Capacity (RZSC) is the total volume of water that can be stored and held between FC and PWP within the root zone: RZSC = AW × RD Where: • AW = available water content (mm/m) • RD = rooting depth (m)

Rooting depth is vital because it determines how deep into the soil plants can find water. Different plants have varying rooting depths; for example, grasses might reach only 0.3 to 0.6 meters, while trees can go deeper than a meter. The root zone storage capacity calculates how much water the soil can hold for the plants to use. This is especially important for farmers, as they need to know how much water can be stored based on the depth of the roots and available water.

Imagine digging a well. The deeper you dig, the more water you can potentially access, just like how different plants reach into the soil to grab moisture. A shallow plant like grass might only get the water sitting close to the surface, while a deep tree can reach down much further. Knowing how much water you can store between two points in your well streamlines how much you can rely on that source for your garden.

Also known as the moisture retention curve, it describes the relationship between soil moisture content and matric potential (suction pressure). This curve is critical for: • Modeling water movement • Estimating plant-available water • Determining irrigation schedules The curve varies with soil texture: • Sandy soils: steep slope, less water retention • Clayey soils: flatter curve, more retention but slower movement.

The soil-water characteristic curve illustrates how well different soil types can hold and release water. Sandy soils can drain quickly but hold less water, while clayey soils retain more water but release it slowly. Understanding this relationship helps in modeling water movement, predicting how much water plants can access, and planning irrigation efficiently. The curve is a crucial tool for farmers and engineers for water management.

Consider a sponge and a brick—both can get wet but handle water differently. A sponge (like sandy soil) allows water to flow quickly through it and drains fast, while a brick (like clayey soil) absorbs water but takes longer to dry out. Just like how you’d use the sponge for quick cleanup and the brick for storage, soil type determines how you manage water for plants.

--
