3.2.2.2. Electron Domain Geometry vs. Molecular Geometry

An electron domain refers to any region of high electron density. This can be a single bond, a double bond, a triple bond, or a lone pair of electrons. Each of these counts as one electron domain.

An electron domain is simply a space around the central atom where electrons are concentrated. This might come from bonds between atoms, which can be single, double, or triple. In addition, lone pairs of electrons, which are not involved in bonding, also count as an electron domain. For example, if you have a molecule with two single bonds and one lone pair, you have three electron domains.

Think of an electron domain as a room in a house. Each bond or lone pair is like a person occupying that room. Whether there are two people sitting in the same room (like a double bond) or just one person in their own room (like a lone pair), the total number of rooms occupied helps us understand the arrangement of the house (or the molecule).

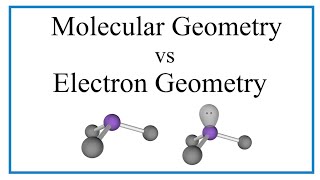

Electron domain geometry describes the arrangement of all electron domains (bonding pairs and lone pairs) around the central atom. Molecular geometry describes the arrangement of only the atoms (bonding pairs) around the central atom. Lone pairs influence molecular geometry but are not part of its description.

The main difference between electron domain geometry and molecular geometry lies in how they account for the presence of lone pairs. Electron domain geometry uses all types of electron domains—bonds and lone pairs—to determine the shape of the molecule. In contrast, molecular geometry focuses solely on how the actual atoms are arranged, ignoring the lone pairs that are there affecting the angles and distances. For example, in water (H2O), the electron domain geometry may be tetrahedral because there are four electron domains (two bonds and two lone pairs), but the molecular geometry is bent because we only consider the positions of the atoms.

Imagine you are arranging chairs for a dinner party. The room's layout (electron domain geometry) considers all the chairs, including those empty (lone pairs). However, when counting how many guests will be seated at the table (molecular geometry), only the chairs with guests (bonding atoms) matter. Hence, the overall layout looks different depending on whether you're considering all chairs or just the occupied ones.

Common Electron Domain Geometries (and corresponding Molecular Geometries when no lone pairs are present):

• 2 Electron Domains: The electron domains arrange linearly, resulting in a linear molecular geometry (e.g., carbon dioxide, CO2; beryllium chloride, BeCl2). Bond angle is 180°.
• 3 Electron Domains: The electron domains arrange in a trigonal planar fashion, leading to a trigonal planar molecular geometry (e.g., boron trifluoride, BF3; sulfur trioxide, SO3). Bond angle is 120°.
• 4 Electron Domains: The electron domains arrange tetrahedrally, giving a tetrahedral molecular geometry (e.g., methane, CH4; silicon tetrachloride, SiCl4). Ideal bond angle is 109.5°.
• 5 Electron Domains: The electron domains arrange in a trigonal bipyramidal pattern, resulting in a trigonal bipyramidal molecular geometry (e.g., phosphorus pentachloride, PCl5). This geometry has two distinct positions: axial and equatorial, with bond angles of 90° and 120°.
• 6 Electron Domains: The electron domains arrange octahedrally, leading to an octahedral molecular geometry (e.g., sulfur hexafluoride, SF6). Bond angles are 90°.

Different numbers of electron domains lead to specific geometric arrangements for both electron and molecular geometries. For instance:

• With two electron domains, molecules arrange in a linear shape, like carbon dioxide (CO2).
• When there are three, they form a trigonal planar shape, as seen in boron trifluoride (BF3).
• Four domains create a tetrahedral shape, like in methane (CH4).
• Five domains lead to a trigonal bipyramidal arrangement, noticeable in phosphorus pentachloride (PCl5), while six domains adopt an octahedral shape seen in sulfur hexafluoride (SF6). Each specific arrangement results in characteristic bond angles that help determine the 3D shape of the molecule.

Consider organizing a group of friends for a photoshoot. If only two friends show up, they can stand side by side (linear). With three friends, they could easily form a triangle for the photo (trigonal planar), while four can create a pyramid shape (tetrahedral). As you add more friends to the photo, their arrangement needs to change to fit everyone in nicely. Just as the group forms different shapes, molecules arrange themselves in distinct geometries based on the number of electron domains.

Predicting Molecular Geometry with Lone Pairs: Lone pairs of electrons occupy more space around the central atom than bonding pairs because their electron density is concentrated closer to the nucleus of the central atom and is not shared between two nuclei. Consequently, lone pairs exert stronger repulsive forces on other electron domains. This increased repulsion distorts the ideal bond angles predicted by the electron domain geometry, leading to distinct molecular geometries.

Lone pairs are different from bonding pairs in terms of how much space they take up around a central atom. Since lone pairs are located only on one atom and have a strong attraction to that atom's nucleus, they exert more repulsive forces on adjacent electron domains. This means that when predicting molecular geometry, we cannot simply apply the ideal angles from electron domain geometry because the presence of lone pairs can bend those angles, resulting in shapes like trigonal pyramidal (in ammonia, NH3) or a bent shape (in water, H2O), instead of a perfect tetrahedral.

Think about how you might arrange furniture in a room. If you place a large sofa (lone pair) in a corner, it takes up more space and restricts how you can arrange chairs (bonding pairs) around it, forcing them closer together than you might like. This 'sofa' changes how your other pieces are positioned, just as lone pairs push the bonding pairs closer due to their stronger repulsion.

--
