1 - Boolean Algebra
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Basic Boolean Operators
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will learn about the basic Boolean operators: AND, OR, and NOT. These are crucial for understanding how we can combine logical statements. Let's begin with the AND operation, which is often noted as A∙B. What do you think the output will be when both inputs are true?
I think it's true, so 1, because both A and B have to be true for A AND B to be true.
Exactly! The truth table for A ∙ B shows that it only outputs 1 when both A and B are 1. Now, can anyone tell me how the OR operation works?
The OR operation gives a true output if at least one input is true, right?
That's correct! In fact, the truth table for A + B illustrates that the output is 1 for all combinations except when both A and B are 0. Alright, let's finish with the NOT operation. How does it behave?
The NOT operation flips the input; if A is 1, NOT A is 0, and vice versa.
Excellent! It’s essentially the inverse of the input. To remember these operations, think of the acronym 'AON' for AND, OR, and NOT. Let's summarize: AND requires all true inputs, OR needs just one true input, and NOT highlights the opposite of the input.
Laws of Boolean Algebra
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let’s discuss the laws of Boolean Algebra! These laws help us simplify expressions. We'll start with identity laws. What do you think they state?
I think it says that A + 0 = A and A ⋅ 1 = A? That means if you add zero or multiply by one, you just get A back.
Correct! The identity laws confirm that adding zero or multiplying by one does not change the value. Next, we have the null laws. Who can tell me what those are?
The null laws say A + 1 = 1 and A ⋅ 0 = 0, right? Which means if you add one, you get one, and multiplying by zero gives you zero.
Great job! The null laws essentially demonstrate dominance in their respective operations. Remember those with 'Idempotent adds more but can’t take A away—just like zero and one in play!'
That’s catchy! How about commutative and associative laws?
The commutative laws tell us that the order of addition and multiplication doesn't matter, while associative laws show that grouping doesn't change the result. So if we have A + B = B + A and (A + B) + C = A + (B + C). Who remembers these?
I think I can remember it using 'AB and BA must play to stay!' for commutative!
Perfect! Now let's recap: we covered identity, null, idempotent, commutative, and associative laws. These will help you simplify expressions efficiently.
De Morgan's Theorems
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, we’ll explore De Morgan's Theorems! These are crucial for simplification, especially when dealing with NOT operations. Can anyone state the theorems?
One theorem is that (A ∙ B)' = A' + B'.
Exactly! This theorem states that the negation of an AND operation is the OR of the negated variables. What about the second theorem?
It's (A + B)' = A' ∙ B'!
Right again! Understanding these theorems allows for the transformation of expressions to facilitate simplification. To remember them, one could think, 'Flip it AND it becomes OR, negate and use that score!' At the end of the day, you can convert complex circuits into simpler forms.
That makes sense! It's like flipping the behavior of the operations.
Precisely! In summary, De Morgan's Theorems are powerful tools in Boolean logic, helping to make complex operations manageable.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview

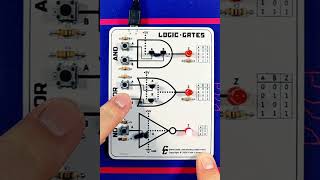

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
What is Boolean Algebra?
Chapter 1 of 1
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Boolean Algebra is a mathematical structure that deals with only two values:
• 1 (True/High)
• 0 (False/Low)
It is used to represent and simplify the logic of digital circuits and programming conditions.
Detailed Explanation
Boolean Algebra is a system that works with binary values, meaning it only uses two states: true (1) and false (0). This mathematical framework helps in designing and simplifying logical structures in digital circuits and programming. In essence, Boolean Algebra allows us to manipulate these binary values to form logical expressions that can represent complex conditions in computing.
Examples & Analogies
Think of Boolean Algebra like a light switch. The light can either be on (1) or off (0). Just as you can use a combination of switches to control a series of lights, you can use Boolean expressions to manage complex logical scenarios in programming and digital electronics.
Key Concepts
-
Binary Values: Boolean works with 1 (True) and 0 (False).
-
Basic Operators: The main Boolean operations are AND, OR, and NOT.
-
Truth Tables: Used to represent outputs of logical operations for every combination of inputs.
-
Laws of Boolean Algebra: Principles that help simplify expressions, such as identity and null laws.
-
De Morgan's Theorems: Rules for transforming expressions involving negations.
Examples & Applications
For AND operation, A ∙ B = 1 only when both A = 1 and B = 1.
For OR operation, A + B = 1 if either A = 1 or B = 1.
For NOT operation, if A = 1, then NOT A = 0.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
AND needs both, OR needs one, NOT flips the truth, and that is fun!
Stories
Once there were three gates in a world of logic. The AND gate said, 'I will only open if both friends are here; otherwise, I stay closed. OR said, 'As long as one of you is with me, the party goes on!' and NOT innocently added, 'I'll change the truth; for me, it's simply my way of play!'
Memory Tools
AON for remembering AND, OR, NOT operations.
Acronyms
I need both; I need one; I flip the state = ABC for AND, OR, NOT!
Flash Cards
Glossary
- Boolean Algebra
A branch of algebra that operates on binary variables and logical operations.
- AND Operator
A basic Boolean operator that outputs true only when both inputs are true.
- OR Operator
A basic Boolean operator that outputs true if at least one of the inputs is true.
- NOT Operator
A basic Boolean operator that inverses the value of its input.
- Truth Table
A table that shows all possible values of inputs and their corresponding outputs for a logical function.
- Identity Laws
Laws that state A + 0 = A and A ⋅ 1 = A.
- De Morgan's Theorems
Theorems describing the relationship between conjunctions and disjunctions under negation.
- Canonical Forms
Standard ways of expressing Boolean expressions, such as Sum of Products (SOP) and Product of Sums (POS).
