Domain Techniques
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Digital Domain Techniques
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're diving into digital domain techniques for power management. Who can tell me why minimizing power in digital circuits is essential?
It helps improve battery life and reduces heat generation, right?
Exactly! Techniques like Dynamic Voltage and Frequency Scaling, or DVFS, help us adjust the power based on workload. Can anyone explain how DVFS works?
It changes the voltage and frequency during runtime, adapting to what the circuit needs at that moment.
Great! We also have techniques like clock gating that disable the clock to idle blocks. Can someone give me an example of where this might be used?
In processors when certain cores are not in use!
Exactly! Remember the memory aid 'DVFS and Clock Gating Save Power' to recall these crucial techniques. Let’s summarize what we discussed today: DVFS adjusts power on-demand, and clock gating keeps unused blocks from wasting energy.
Memory Domain Techniques
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let’s focus on memory domain techniques. What factors contribute to power consumption in memory systems?
Things like cell sizing and the management of bitlines, right?
Correct! SRAM cell sizing is crucial and affects both area and power. What about bitline segmentation? Why is that important?
It helps limit power during read and write processes by reducing the load on the bitline!
Nice job! Also, sense amplifier shutdown can significantly improve power efficiency. Can anyone suggest a scenario where we might implement this?
In low-power modes when the memory isn’t actively being used?
Perfect! Always remember the acronym 'SBS - Sizing, Bitline, Shutdown' to recall these techniques. In summary, optimal SRAM cell sizing, bitline management, and sense amp shutdown are key for power-efficient memory.
Analog Domain Techniques
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, we're moving into the analog domain techniques for low power design. Why do you think power management is particularly challenging in analog circuits?
Signal integrity issues! They can’t just lower the voltage like digital circuits.
Exactly! Techniques like current reuse can help overcome this. Can someone elaborate on what current reuse involves?
It allows multiple blocks to share the same current, increasing efficiency.
Right! And low-bias techniques also help, such as using adaptive biasing. Why do you think this is useful?
It adjusts based on the signal level, saving power when the signal is low!
Nicely said! Remember the story of 'The Wise Amplifier' who balances currents to stay low power. In summary, current reuse and adaptive biasing are vital strategies for low-power analog design.
System Level Techniques
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s discuss system level techniques and their importance. Why is it crucial to look at the entire system for power management?
Each component affects the others, so we need an overall strategy to manage power.
Exactly! Techniques like adaptive voltage scaling can help. Can anyone explain how adaptive voltage scaling operates?
It adjusts voltage based on workload predictions!
Spot on! Workload prediction is essential. What about thermal throttling? Why is that relevant?
It prevents overheating by reducing performance when temperatures are high.
Great job! Use the mnemonic 'AVW-T ' for Adaptive Voltage, Workload prediction, and Thermal management. To summarize, a holistic approach combining voltage scaling, workload predictions, and temperature regulation is essential for effective system power management.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Domain Techniques outlines multi-faceted strategies for reducing power consumption in digital, memory, analog, system, and fabric domains of integrated circuits. These techniques are essential as power consumption becomes a crucial constraint in modern SoC designs, affecting performance and efficiency.
Detailed
Domain Techniques
This section highlights the various domain-specific strategies essential for effective system-on-chip (SoC) level power management. It emphasizes the need for tailored techniques in different domains, such as digital circuits, memory systems, analog circuits, and the overall system environment, to address the urgent challenge of escalating power consumption in integrated circuits.
The section details how each domain can contribute uniquely:
- Digital: Techniques like Dynamic Voltage and Frequency Scaling (DVFS), clock gating, operand isolation, and multi-Vt design focus on minimizing dynamic power drains.
- Memory: SRAM cell sizing, bitline segmentation, and sense amp shutdown are critical for controlling power usage in memory components.
- Analog: Strategies such as current reuse, low-bias techniques, and dynamic biasing optimize power in analog circuits.
- System: Adaptive voltage scaling, workload prediction, and thermal throttling play significant roles in maintaining power efficiency at the system level.
- Fabric: Utilizing FinFET libraries, physical-aware synthesis, and RTL power modeling streamline the integration of power-efficient designs.
By employing these combined strategies, designers can more effectively navigate the complexities of power management in increasingly intricate SoCs, catering to diverse application domains while transforming challenges into opportunities for innovation.

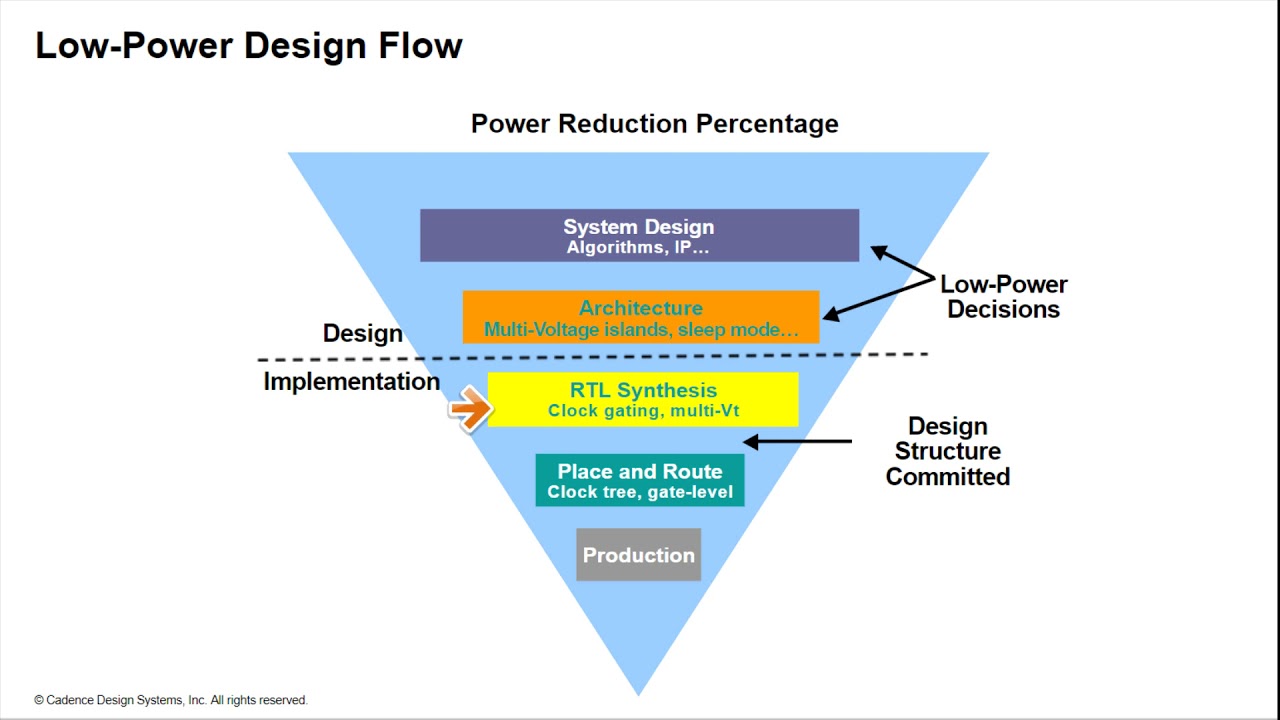

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Digital Domain Techniques
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Digital DVFS, clock gating, operand isolation, multi-Vt cells
Detailed Explanation
Digital domain techniques focus on optimizing power consumption for digital circuits. Each technique plays a critical role:
- DVFS (Dynamic Voltage and Frequency Scaling) allows systems to adjust voltage and frequency based on workload, helping to save power during low activity periods.
- Clock Gating involves turning off the clock signal to sections of the circuit that are not in use, significantly reducing dynamic power consumption.
- Operand Isolation prevents unnecessary activation of circuit paths, minimizing power waste.
- Multi-Vt Cells utilize transistors with different threshold voltages, optimizing the circuit for both performance and leakage control by combining fast, leaky transistors with slower, low-leakage transistors in a single design.
Examples & Analogies
Think of a car that switches gears automatically based on speed. Just as the car conserves fuel by using lower power when it's slow, digital circuits like processors adjust their voltage and frequency to save energy when the workload is low, just like the gear shift helps in better fuel efficiency.
Memory Domain Techniques
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Memory SRAM cell sizing, bitline segmentation, sense amp shutdown
Detailed Explanation
Memory domain techniques target how power is consumed in memory circuits, particularly SRAM:
- SRAM Cell Sizing optimizes the size of memory cells to balance performance with power efficiency. Smaller cells can reduce power but may also impact speed and stability.
- Bitline Segmentation divides bitlines into smaller segments which can be activated independently, minimizing power used when accessing memory.
- Sense Amp Shutdown turns off the sense amplifier when not in use to avoid unnecessary power draw, as these components can consume significant power even when idle.
Examples & Analogies
Consider a library where only certain sections are opened based on demand. If a few sections are closed, fewer lights are on, which saves energy. Similarly, memory techniques ensure that parts of the memory architecture are inactive when they're not needed, conserving power just like the library saves electricity by not lighting unused areas.
Analog Domain Techniques
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Current reuse, low-bias techniques, dynamic biasing
Detailed Explanation
Analog domain techniques focus on improving power efficiency in analog circuits:
- Current Reuse allows for the same current to be used across multiple circuit blocks, thereby reducing the overall power requirement while maintaining performance.
- Low-Bias Techniques involve using lower power biasing for operational amplifiers and other components to save energy.
- Dynamic Biasing adjusts the biasing current based on the signal level, ensuring that power is used only when necessary, enhancing efficiency.
Examples & Analogies
Think of a household light. If you have adjustable brightness that lowers when there’s enough sunlight, you're saving energy. Similarly, dynamic biasing ensures that components use just the right amount of power, adapting based on current needs rather than running at full power all the time.
System-Level Techniques
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Adaptive voltage scaling, workload prediction, thermal throttling
Detailed Explanation
System-level techniques manage power across the entire system, ensuring optimal performance without excessive energy consumption:
- Adaptive Voltage Scaling varies the voltage supply based on processor load, which reduces power when demand is low.
- Workload Prediction anticipates the processing needs and adjusts system operations accordingly, preventing unnecessary power use.
- Thermal Throttling protects components from overheating by temporarily reducing performance to maintain safe temperature levels, thereby sacrificing speed for the sake of long-term functionality and reduced power.
Examples & Analogies
Consider a smart thermostat that adjusts the heating based on real-time temperature and usage patterns. Just like the thermostat conserves energy by predicting needs, system-level techniques ensure that circuits are only using the power they need at the moment, optimizing energy consumption.
Fabric Domain Techniques
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
FinFET libraries, physical-aware synthesis, RTL power modeling
Detailed Explanation
Fabric domain techniques involve optimizing the physical design of semiconductor devices:
- FinFET Libraries contain specially designed components that take advantage of FinFET technology to enhance performance while minimizing leakage and power dissipation.
- Physical-Aware Synthesis considers the physical characteristics during the design process, ensuring that the layout of components reduces delays and power draw.
- RTL Power Modeling allows designers to estimate power usage early in the design process based on Register Transfer Level (RTL) descriptions of the circuit, facilitating better design decisions regarding power consumption.
Examples & Analogies
Imagine planning a city where roads are designed to minimize traffic jams. Physical-aware synthesis is akin to urban design, ensuring that the layout avoids bottlenecks and promotes smooth traffic flow, similar to how optimizing circuit layout enhances performance and reduces energy consumption.
Key Concepts
-
Domain Techniques: Integrated strategies for power management across digital, memory, analog, and system levels.
-
Dynamic Voltage and Frequency Scaling: A technique adjusting power dynamically based on workload.
-
Clock Gating: Disabling non-active components to save power.
-
Current Reuse: Sharing current among circuit blocks to save energy.
-
Adaptive Voltage Scaling: Dynamically adjusting voltage to optimize performance and power.
Examples & Applications
In a smartphone, DVFS is utilized to extend battery life by adjusting power depending on the workload.
Advanced memory systems use bitline segmentation to reduce power consumption during read/write cycles.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
If you want to save some power, turn off the clock, every hour.
Stories
Once there was a circuit that learned to predict its workload. It became wise and adjusted its power whenever it sensed a calm workload, keeping everything efficient.
Memory Tools
Remember 'PADS' for Power management: Predict workload, Adjust voltage, Disable clocks, Save energy.
Acronyms
Use 'SBCD' for System Level strategies
Sizing (for memory)
Bias optimization (in analog)
Current reuse
and DVFS.
Flash Cards
Glossary
- Dynamic Voltage and Frequency Scaling (DVFS)
A technique that adjusts voltage and frequency at runtime based on workload.
- Clock Gating
Disabling the clock to idle functional blocks to reduce dynamic power.
- Operand Isolation
Techniques that prevent unnecessary switching in data paths.
- Current Reuse
The practice of reusing current across multiple blocks to increase efficiency.
- Adaptive Voltage Scaling
A method of adjusting voltage levels dynamically according to the workload.
- Thermal Throttling
A process that reduces a system's performance in response to high temperatures.
