Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Velocity Obstacles
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're discussing Velocity Obstacles, or VO. This technique helps robots figure out their velocities to avoid future collisions with moving obstacles. Can anyone give me an example of a dynamic obstacle?
How about a pedestrian walking in front of a robot?
Or a vehicle that suddenly changes lanes!
Exactly! The VO calculates which velocities will lead to a collision with such moving obstacles. The formula is something to remember: VO_A|B = {v_A | βt > 0: p_A + v_A t = p_B + v_B t}. Who can tell me what this means in words?
It means that for some time t, the robotβs position plus velocity will equal the position of the obstacle's movement?
Great explanation! This allows the robot to select safe velocities to dodge the obstacle. Remember the phrase 'velocity sets me free from collision' to retain this concept!
Dynamic Window Approach (DWA)
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let's dive into the Dynamic Window Approach or DWA. Unlike VO, DWA evaluates which velocities allow the robot to avoid obstacles while progressing toward its goal. Can someone outline its key considerations?
It must avoid obstacles and still reach the goal while considering speed limits?
Correct! It samples various velocities to find the best option that meets those criteria. This directly impacts how adaptive the robot is in real-time scenarios.
So, DWA can make quick decisions, right?
That's right! Think of it like a racecar driver choosing the best speed and direction to pass other cars safely. Remember: βDynamic Window means dodging with speed.β
Artificial Potential Fields (APF)
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
We will now examine Artificial Potential Fields, or APF. Can anyone describe how APFs function?
It creates attractive forces that pull a robot toward a goal and repulsive forces that push it away from obstacles.
Exactly! While it's an intuitive method, what might be a limitation of using APFs?
They could get stuck in local minima, which may prevent a robot from finding the path?
Spot on! A mnemonic to remember this is 'Avoiding the Pitfalls of APFs!' which reminds us to be cautious of local minima when designing our navigation systems.
Integration of Techniques
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
We've covered several approaches today. How might we integrate these methods for more effective dynamic obstacle avoidance?
Maybe we can use APFs to calculate a general path but switch to DWA for finer adjustments?
Thatβs a solid application! Combining techniques allows for a smoother navigation experience while adapting to various challenges in real environments. Remember the phrase βIntegrating Paths for Obstacle Smartsβ to help us recall this strategy.
This makes me think about how cars navigate cities with many moving objects!
Great connection! Autonomous vehicles utilize these principles in their navigation systems every day.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Dynamic obstacle avoidance is crucial for autonomous robots operating in real-world scenarios where they encounter moving obstacles like humans and vehicles. This section covers methods such as Velocity Obstacles, Dynamic Window Approach, and Artificial Potential Fields to ensure safe navigation and effective obstacle avoidance.
Detailed
Dynamic Obstacle Avoidance
Dynamic obstacle avoidance entails equipping robots to navigate through environments with moving entities such as humans, vehicles, and other robots. As robotic applications expand in real-world contexts, it is vital to adopt adaptive techniques that allow robots to respond dynamically to changes in their surroundings.
Techniques for Dynamic Obstacle Avoidance
- Velocity Obstacle (VO):
- The VO method calculates all possible robot velocities that would lead to a collision with a moving obstacle. It is represented mathematically as:
$$
VO_{A|B} = \{v_A \mid \exists t > 0 : p_A + v_A t = p_B + v_B t\}
$$
- This approach is particularly useful in swarm robotics and shared mobile environments.
- Dynamic Window Approach (DWA):
- Unlike other techniques, DWA does not search through the entire configuration space. It samples velocities considering:
- Obstacle avoidance
- Progress toward the goal
- Respecting dynamic limits
- This allows for real-time obstacle navigation while progressing towards objectives.
- Artificial Potential Fields (APF):
- In this approach, attractive forces are directed toward the goal while repulsive forces act against obstacles. While it is intuitive, APFs tend to get stuck in local minima, which can diminish their effectiveness in complex environments unless integrated with global navigation planners.
In conclusion, mastering these techniques enhances robotic capability in dynamic contexts, making them crucial for developing responsive and safe autonomous systems.

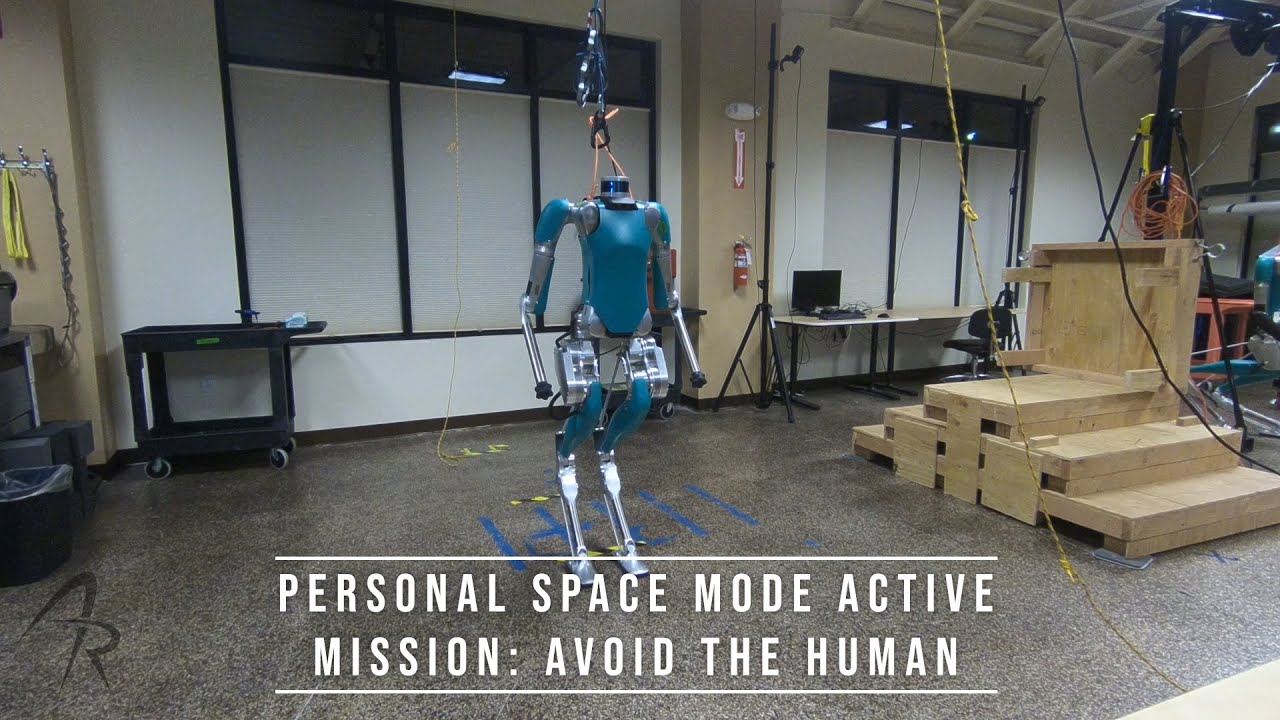

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Dynamic Obstacle Avoidance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Robots in real environments must handle moving obstacles β humans, vehicles, animals, or other robots β in non-deterministic ways.
Detailed Explanation
Dynamic obstacle avoidance is crucial for robots operating in real-world scenarios. Unlike static environments where obstacles are fixed, dynamic environments feature obstacles that move unpredictably. This requires robots to be equipped with algorithms that can predict and react to the presence of such obstacles effectively and safely. The strategy focuses on real-time decision-making to avoid collisions while continuing with the intended task.
Examples & Analogies
Imagine a self-driving car navigating through busy city streets. The car has to constantly monitor not just the road conditions but also the movements of pedestrians crossing the street or other vehicles changing lanes. It has to adjust its path instantly to avoid accidents, much like how a dancer adjusts their movements to prevent bumping into others on a crowded dance floor.
Velocity Obstacle (VO)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Velocity Obstacle (VO)
Calculates the set of robot velocities that will result in a future collision and avoids them.
Mathematically, the VO is:
VOAβ£B={vAβ£βt>0:pA+vAt=pB+vBt}VO_{A|B} = \{v_A \mid \exists t > 0 : p_A + v_A t = p_B + v_B t\}
Detailed Explanation
The Velocity Obstacle (VO) is a mathematical framework used by robots to predict potential collisions based on their current position and velocity. The VO determines which velocities would lead to a collision with another object (like another robot or a person), allowing the robot to avoid those velocities while selecting a safe path. It is defined as a set of velocities that would result in an intersection at a future time 't' if kept unchanged. This predictive capability allows for smoother avoidance strategies in dynamic environments.
Examples & Analogies
Think of a robot like a soccer player who needs to avoid other players. Before making a move, the player assesses the position and speed of other players on the field. If a player is running towards them, they might change their direction or speed to avoid a collision, just like the robot uses the VO to determine safe velocities.
Dynamic Window Approach (DWA)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Dynamic Window Approach (DWA)
Instead of searching in configuration space, DWA samples velocities and chooses the one that:
β Avoids obstacles
β Progresses toward the goal
β Respects dynamic limits
Detailed Explanation
The Dynamic Window Approach (DWA) works differently from traditional methods. Instead of planning paths only within a pre-defined configuration space, DWA evaluates possible velocities that a robot can achieve in a given timeframe. It finds the velocity that not only avoids obstacles but also makes forward progress towards its goal while respecting the robotβs physical movement limits, such as acceleration and deceleration capabilities. This real-time approach allows robots to make quick adjustments based on their immediate environment.
Examples & Analogies
Consider a car trying to navigate through a parking lot. Instead of plotting a perfect trajectory on a map, the driver reacts to the presence of other parked cars and moving pedestrians. They quickly assess how fast they can drive forward without hitting anything and adjust their speed accordingly, similar to how DWA allows a robot to select its velocity based on immediate conditions.
Artificial Potential Fields (APF)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Artificial Potential Fields (APF)
β Goal: Attractive force
β Obstacles: Repulsive force
While intuitive, APFs can suffer from local minima, making them unsuitable for complex maps unless combined with global planners.
Detailed Explanation
Artificial Potential Fields use a concept similar to physical forces to guide robots. The goal generates an attractive force pulling the robot towards it, while obstacles create repulsive forces that push the robot away. This creates a gradient of forces directing the robot's movement. However, if the robot gets stuck in a 'local minimum,' where it cannot progress toward the goal, the system may not be effective. Therefore, APFs are often combined with other planning methods to enhance effectiveness in complex environments.
Examples & Analogies
Think of a ball on a hilly surface. The ball will roll towards the lowest point (which represents the goal) but can get stuck in smaller indentations (local minima) if they are deeper than the surrounding area. To help the ball reach the best route down the hill, a guiding force (a human hand or another tool) can help push the ball if it gets stuck, similar to how combining APFs with global planners prevents robots from losing their direction.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Velocity Obstacles: A method for avoiding collisions by calculating safe velocities.
-
Dynamic Window Approach: A strategy sampling velocities for real-time obstacle avoidance.
-
Artificial Potential Fields: A navigation method using attractive and repulsive forces.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A robotic vacuum cleaner avoiding a pet moving through the room using Velocity Obstacles.
-
An autonomous car navigating through traffic, utilizing DWA to adjust speeds based on the surrounding vehicles.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
When dodging a threat, don't forget, the VO will help protect!
π Fascinating Stories
-
Imagine a robot trying to cross a busy street, using DWA to adjust its speed, avoiding sudden stops due to pedestrians.
π§ Other Memory Gems
-
Remember the acronym EVA: 'Evaluate velocities, for Avoidance!' This represents the essence of dynamic avoidance strategies.
π― Super Acronyms
APF - Attractive Pull, Fearsome Push
- spells out how it guides robots to their goals.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Velocity Obstacle (VO)
Definition:
A technique that identifies possible robot velocities that would lead to a collision with a moving obstacle.
-
Term: Dynamic Window Approach (DWA)
Definition:
A method that samples robot velocities to avoid obstacles while progressing towards a goal.
-
Term: Artificial Potential Fields (APF)
Definition:
A method that uses attractive forces toward a goal and repulsive forces from obstacles for navigation.
