6 - Control Systems for Robotics

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to PID Control

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're exploring PID control, a fundamental method for regulating system outputs in robotics. Remember the acronym P-I-D: Proportional, Integral, Derivative. Can anyone tell me what each component does?

Student 1
Student 1

The Proportional part reacts to the current error!

Teacher
Teacher

Exactly! Proportional control responds directly to the error at the moment. And what about the Integral part?

Student 2
Student 2

I think the Integral part helps to eliminate the steady-state error by accumulating past errors.

Teacher
Teacher

Great! The Integral corrects biases from past errors. Finally, what does the Derivative part do?

Student 3
Student 3

The Derivative predicts future errors and helps to dampen the response!

Teacher
Teacher

Correct! It predicts future behavior based on the rate of error change. So, PID control can adjust outputs dynamically. Are you all with me so far?

Student 4
Student 4

Yes, it makes sense! But how does it perform in real-world conditions?

Teacher
Teacher

Good question! In real life, systems face uncertainties like friction and delays. Therefore, enhancements to PID, like gain scheduling and disturbance observers, become important.

Student 1
Student 1

So it's about adapting the PID control to handle those uncertainties?

Teacher
Teacher

Exactly! By adapting parameters according to system conditions, we can significantly improve performance. Let’s recap: Proportional responds to current errors, Integral helps correct past errors, and Derivative predicts future issues.

Adaptive Control Techniques

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now that we have a grasp of PID control, let's discuss Adaptive Control, which dynamically adjusts controller parameters to respond to changing conditions. Who can give me an example?

Student 2
Student 2

I know! Adaptive control is used in exoskeletons where the dynamics change based on the user’s movements.

Teacher
Teacher

Exactly! We have two main types here: Model Reference Adaptive Control and Self-Tuning Regulators. Can someone explain how MRAC works?

Student 3
Student 3

Doesn’t MRAC adjust its gains based on a desired model response?

Teacher
Teacher

That's correct! It adapts using stability criteria. And how about Self-Tuning Regulators?

Student 1
Student 1

They estimate system parameters in real-time and re-design the control law as needed!

Teacher
Teacher

Great explanation! Adaptive control enhances performance, especially in unpredictable environments. Let’s remember that adaptive and stable systems lead to efficiency. To wrap up, why is Adaptive Control significant?

Student 4
Student 4

It makes robotics more versatile and responsive!

Robust Control Strategies

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let's transition to Robust Control. Can anyone explain what makes robust controllers special?

Student 3
Student 3

They maintain stability and performance despite uncertainties or disturbances!

Teacher
Teacher

Excellent! One example is H-infinity control. How does it work?

Student 2
Student 2

It minimizes the worst-case amplification of disturbances in a system.

Teacher
Teacher

Spot on! It’s vital in applications where precision is paramount, like aerospace. Why do we need robust controllers in robots?

Student 1
Student 1

To ensure they perform reliably in real-world conditions, even if things go wrong!

Teacher
Teacher

That’s right! Remember, robust control safeguards performance under uncertainty. Let’s recap: Robust controllers ensure stability and employ strategies like H-infinity control.

Optimal Control Techniques

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Next, we explore Optimal Control, which seeks to minimize a cost function while adhering to system dynamics. Who remembers an optimal strategy?

Student 4
Student 4

Linear Quadratic Regulator, LQR, right?

Teacher
Teacher

Exactly! LQR balances state performance and control effort. Can someone explain its cost function?

Student 2
Student 2

Sure! It minimizes the integrated cost of state and control input over time.

Teacher
Teacher

Fantastic! Extensions like LQG and Model Predictive Control help with real-time constraints. In what scenarios would we use LQR?

Student 3
Student 3

In balancing robots or quadrotors, where precision and stability are crucial!

Teacher
Teacher

Exactly! Optimal control guides robots toward efficiency. Let's remember: LQR minimizes cost while enhancing functionality.

Nonlinear Control Techniques

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Finally, let’s examine Nonlinear Control. Can someone explain why many robotic systems are nonlinear?

Student 1
Student 1

Because of factors like joint kinematics and friction, right?

Teacher
Teacher

Exactly! Classical controllers like LQR might struggle in these situations. What is Feedback Linearization?

Student 4
Student 4

It transforms nonlinear systems to behave linearly for easier control!

Teacher
Teacher

Spot on! And what about Sliding Mode Control?

Student 2
Student 2

It forces the system to slide along a defined surface for robust control.

Teacher
Teacher

Great job! Nonlinear methods like Feedback Linearization and SMC are crucial for effective manipulator and locomotion control. Let’s summarize: Nonlinear control addresses challenging dynamics where classical methods fail.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section discusses various advanced control systems in robotics, emphasizing strategies like PID control, adaptive control, robust techniques, optimal control, nonlinear methods, and approaches for underactuated and nonholonomic systems.

Standard

This section delves into the critical aspect of control systems in robotics, exploring advanced concepts beyond classical PID control. It covers adaptive control techniques, robust and optimal control strategies, nonlinear methods including feedback linearization, and specific approaches suitable for underactuated and nonholonomic systems, highlighting their importance in achieving precise motion and stability in complex environments.

Detailed

Control Systems for Robotics

In robotics, control systems serve as the essential connection between the intended motion of a robot and its actual physical movements. They play a paramount role in ensuring that a robot performs as desired, even amid varying uncertainties, disturbances, or complex dynamics. This section outlines several advanced control techniques that enhance the capabilities of robots, particularly in high-performance and mobile applications.

6.1 Advanced PID and Adaptive Control

PID (Proportional-Integral-Derivative) control is foundational for regulating system outputs. The controller aims to minimize the error by adjusting the system according to three components: P for reacting to the current error, I for addressing past errors, and D for predicting future errors. However, classical PID control can struggle under non-ideal conditions; thus, enhancements such as gain scheduling, feedforward control, and disturbance observers are necessary.

Adaptive control takes this a step further by dynamically adjusting parameters in real-time to cope with changing system dynamics, particularly suitable for robots interacting with uncertain environments. Techniques like Model Reference Adaptive Control (MRAC) and Self-Tuning Regulators (STR) exemplify adaptive methodologies that greatly enhance performance in practical applications like exoskeletons.

6.2 Robust and Optimal Control Strategies

Robust control strategies ensure system performance despite external disturbances or uncertainties. H-infinity control exemplifies a method for minimizing the worst case scenario amplification of disturbances. In contrast, optimal control focuses on minimizing a cost function while adhering to system dynamics, with the Linear Quadratic Regulator (LQR) as a prominent technique to balance state performance against control effort. This section also introduces extensions such as LQG and Model Predictive Control (MPC).

6.3 Nonlinear Control and Feedback Linearization

Many robots exhibit nonlinear behaviors due to various factors. Feedback linearization facilitates the transformation of these nonlinear systems into linear representations, allowing the use of linear control techniques in a nondistorted format, which is especially useful for applications in manipulation and locomotion.

6.4 Force and Impedance Control

The section highlights that traditional position or velocity control isn’t enough for tasks (like grasping) where interaction forces are critical. Techniques such as Hybrid Position/Force Control and impedance models become vital for robots working in close collaboration with humans or in variable environments.

6.5 Control in Underactuated and Nonholonomic Systems

Underactuated systems have fewer control inputs than degrees of freedom, while nonholonomic systems face constraints like those seen in wheeled robots. Specific controller designs must be applied to exploit the dynamics of these systems effectively, employing strategies like energy-based control and specialized planning techniques.

Conclusion

The exploration of advanced control systems enhances robotic capabilities, making them more adaptable and efficient in various operative conditions, thus reflecting the ongoing growth in the field of robotics.

Youtube Videos

ROBOT CONTROL SYTEMS AEE ROBOTICS PART 7
ROBOT CONTROL SYTEMS AEE ROBOTICS PART 7

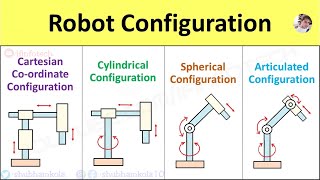

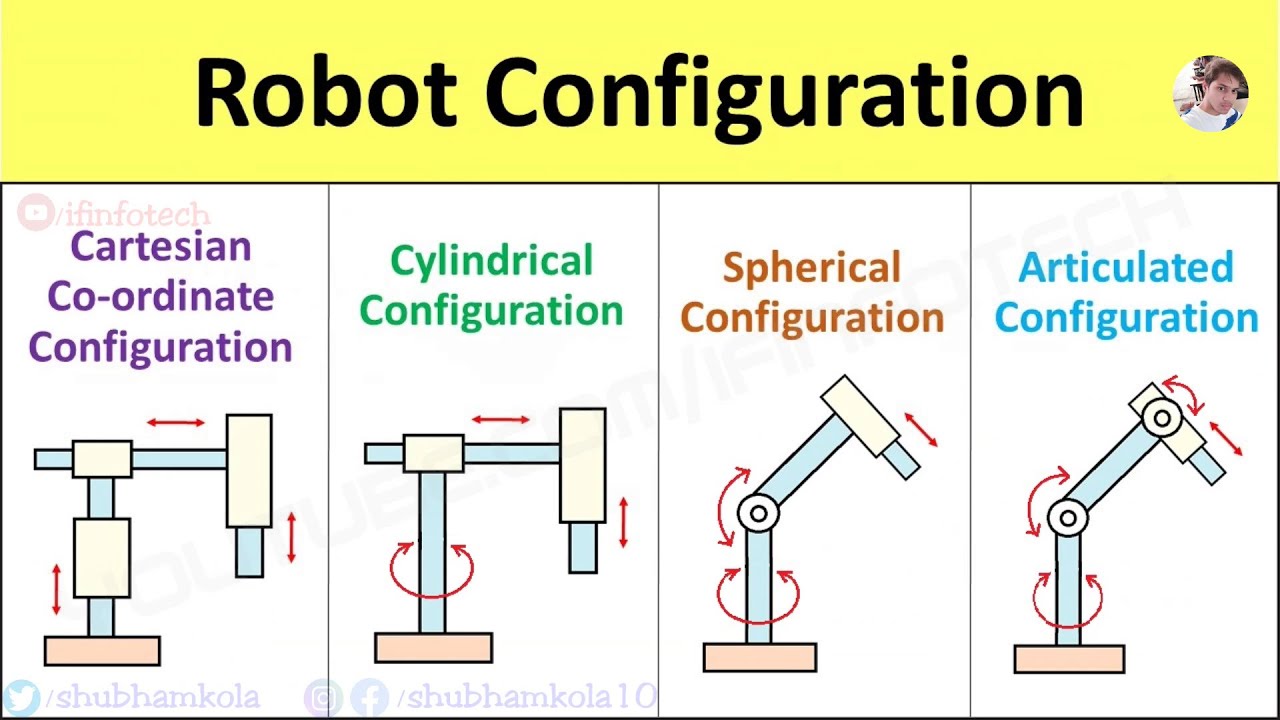

Types of Robot Configuration: Cartesian Coordinate, Cylindrical, Articulated, Spherical, SCARA
Types of Robot Configuration: Cartesian Coordinate, Cylindrical, Articulated, Spherical, SCARA

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Chapter Overview

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In robotics, control systems are the bridge between desired motion and physical action. They ensure that a robot behaves as intended, even in the presence of uncertainty, disturbances, or complex dynamics. This chapter explores advanced control strategies beyond classical feedback control, focusing on nonlinearities, adaptation, and underactuated systems commonly found in high-performance and mobile robots.

Detailed Explanation

Control systems in robotics serve the crucial function of translating the desired movement (like moving an arm or turning a wheel) into physical actions. They help ensure that the robot can perform tasks accurately, even when facing unpredictable changes in its environment or inherent complexities in its movements. This section introduces readers to advanced strategies in control systems, which go beyond the basic techniques and delve into challenges faced in real world applications, especially in complex robots that move in unpredictable ways.

Examples & Analogies

Imagine trying to drive a car on a winding road in bad weather. The car's steering, brakes, and engine must work together seamlessly. If the road is slick and the car skids or turns unpredictably, sophisticated control systems (like anti-lock brakes and traction control) must manage the car's movements effectively to keep it on the road safely. This is akin to how robots use control systems to navigate and perform tasks even amid uncertainty.

Advanced PID and Adaptive Control

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

PID Control Review

PID (Proportional–Integral–Derivative) control is a fundamental method for regulating system output by minimizing error:
u(t)=Kpe(t)+Ki∫0te(τ)dτ+Kdde(t)dtu(t) = K_p e(t) + K_i \int_0^t e(\tau) d\tau + K_d \frac{de(t)}{dt}
- Proportional (P): Reacts to current error
- Integral (I): Accumulates past errors to eliminate steady-state bias
- Derivative (D): Predicts future error, adding damping
PID is widely used in joint-level control of manipulators and basic mobile platforms.

Advanced PID Enhancements

Real-world robotic systems often face non-ideal conditions (e.g., friction, delay, noise), where classical PID underperforms. Enhancements include:
- Gain Scheduling: PID parameters change based on system state
- Feedforward Control: Combines PID with model-based predictions
- Disturbance Observers: Compensate for unknown external forces

Detailed Explanation

PID (Proportional–Integral–Derivative) control is a widely used method in robotics to regulate systems effectively by minimizing errors. Each component of PID (P, I, and D) plays a pivotal role: P adjusts the output based on current errors, I looks at past errors to find a long-term solution, and D anticipates future issues based on current trends. Sometimes this basic method needs enhancement due to challenges encountered in real-world applications, which can include unpredictable factors like friction or delays. Enhanced techniques such as Gain Scheduling adapt the PID parameters to different operating conditions, Feedforward Control anticipates system responses by using a model, and Disturbance Observers predict external forces that could affect performance and counteract them.

Examples & Analogies

Think of PID control like a car's cruise control system. The Proportional control is like the driver responding to the current speed, the Integral control is like remembering to speed up gradually if the car has been consistently under the set speed, and the Derivative control helps predict when to tap the brake to prevent overshooting curves. Enhancements in cruise control would be like adjusting how the system responds when encountering inclines (gain scheduling) or knowing when to accelerate proactively before reaching hills (feedforward control).

Adaptive Control

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Adaptive control dynamically adjusts controller parameters in real-time to compensate for changing system dynamics, especially useful in robots interacting with uncertain or variable environments.

Model Reference Adaptive Control (MRAC)

A desired model response is defined, and the controller modifies gains to match it. It uses adaptation laws based on Lyapunov stability criteria.

Self-Tuning Regulators (STR)

Estimates system parameters online (e.g., via recursive least squares) and redesigns the control law accordingly.

Application: Adaptive control is used in exoskeletons and prosthetics, where dynamics change with user behavior.

Detailed Explanation

Adaptive control is an advanced form of control that allows robots to automatically adjust their behavior based on changing circumstances. This is particularly important in environments where the conditions can vary unexpectedly, such as in exoskeletons that need to adapt to how a user walks. Two main types of adaptive control are introduced: Model Reference Adaptive Control (MRAC), which involves the system adjusting its parameters to match a desired model, and Self-Tuning Regulators (STR), which continuously reassess the system's parameters in real-time. Both techniques significantly improve performance, especially in complex applications like assistive technologies where user dynamics frequently change.

Examples & Analogies

Imagine a home heating system that learns your preferences over time. On especially cold days, it might boost the heating output automatically to keep up with the increased energy needed, similar to adaptive control systems that tweak their settings based on real-time feedback about their environment.

Robust and Optimal Control Strategies

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Robust Control

Robust controllers maintain stability and performance in the presence of uncertainty or disturbance.
- H-infinity Control: An advanced method that minimizes the worst-case amplification of disturbances.
- Tzw(s): Transfer function from disturbance to output.
- Max gain over all frequencies.
Common in aerospace and surgical robotics, where precision and safety are critical.

Optimal Control

Optimal control seeks to minimize a cost function while satisfying system dynamics.
- Linear Quadratic Regulator (LQR): Minimizes the quadratic cost: J=∫0∞(xTQx+uTRu)dt, where x is the state vector and u is the control input. LQR balances state performance vs control effort. It is commonly used in balancing robots, quadrotors, and autonomous cars.

Detailed Explanation

Robust control aims to ensure that the system remains stable and performs well, even under conditions of uncertainty or disturbances. H-infinity Control is one method used to minimize the impact of the worst-case disturbances, making it essential in fields where precision and safety are needed, such as aerospace. On the other hand, optimal control focuses on achieving the best performance while minimizing operational costs or energy usage. The Linear Quadratic Regulator (LQR) is a widely used technique that seeks to optimize performance by balancing between how well the system performs and the energy or effort needed to ensure that performance, making it suitable for various applications in robotics.

Examples & Analogies

Picture a high-quality camera where the autofocus feature adjusts based on lighting conditions and distance to create the clearest image. The camera's algorithms utilize principles from robust control to maintain focus under varying light, while optimal control modeling helps it determine the best settings to reduce blur. Similarly, robust and optimal control strategies in robotics ensure systems adapt to external conditions while efficiently achieving their goals.

Nonlinear Control and Feedback Linearization

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Many robotic systems are inherently nonlinear due to trigonometric joint kinematics, friction and saturation effects, and coupling between axes. Classical linear controllers (like LQR) may fail in such settings.

Feedback Linearization

Transforms a nonlinear system into an equivalent linear system via coordinate transformation and input redefinition.

Detailed Explanation

Robotic systems can exhibit nonlinear characteristics due to various factors such as joint movements and external influences like friction. In such cases, traditional linear controllers may not perform effectively. Feedback linearization is a technique that transforms a nonlinear system into one that behaves linearly, making it easier to control. This involves changing how inputs are defined and restructuring the system parameters so that linear control techniques can be effectively applied.

Examples & Analogies

Think of it like calibrating a complicated game controller to ensure it operates seamlessly. If one button impacts the system differently at varied levels of pressure, you would remap those inputs to make the controller feel uniform across all pressures. Similarly, feedback linearization alters complex input characteristics to allow for straightforward control as if the system were linear.

Force and Impedance Control

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Traditional control focuses on position or velocity. However, in tasks like grasping, polishing, or human-robot interaction, force control becomes essential.

Force Control

Directly regulates interaction forces between the robot and the environment.

Hybrid Position/Force Control

Separates control into:
- Position control along unconstrained directions
- Force control along constrained directions
Requires knowledge of contact geometry.

Detailed Explanation

While traditional control methods focus on managing a robot's position or velocity, certain tasks, such as manipulating objects delicately or interacting with humans, require effective control of forces. Force control allows robots to manage the forces they apply and interact with their surroundings. In a hybrid control system, position control can operate independently in open directions while force control allows precise management of restricted movements, making it essential in tasks requiring careful handling.

Examples & Analogies

Think of a skilled chef using a knife. When chopping vegetables, the chef needs to apply just the right amount of pressure. Too much force could damage the food, while too little would not cut it properly. Similarly, hybrid control in robots allows them to balance positioning and force, offering a more intuitive interaction with delicate tasks.

Control in Underactuated and Nonholonomic Systems

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Underactuated Systems

Underactuated robots have fewer control inputs than degrees of freedom. Examples:
- Acrobot (robotic gymnast)
- Passive dynamic walkers
- Drones with fixed-pitch rotors
Control is achieved by exploiting natural dynamics, using:
- Energy-based methods
- Partial feedback linearization
- Optimal control for reachable subspaces.

Nonholonomic Systems

These are systems with non-integrable velocity constraints, common in wheeled robots. Nonholonomic control is vital for differential drive robots, autonomous cars, and parallel parking scenarios.

Detailed Explanation

Underactuated systems, such as an acrobot or certain drones, do not have enough control inputs compared to their degrees of freedom, which complicates their control. These systems can leverage their natural dynamics with various methods including energy-based strategies and feedback mechanisms to achieve the desired movement. Nonholonomic systems, common in wheeled robots, face unique challenges with movement constraints, which requires specialized control strategies to navigate successfully.

Examples & Analogies

Think of riding a bicycle. You can control the bike primarily through steering and pedaling; if you try to move sideways, you just can’t due to the way the bike is built (nonholonomic constraint). Yet, you can use your body balance to maneuver it effectively without needing direct lateral inputs (underactuated systems). Similarly, engineers design robots to take advantage of their built-in dynamics while adhering to the inherent movement limitations they have.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • PID Control: A mechanism to manage system output through Proportional, Integral, and Derivative terms.

  • Adaptive Control: Dynamically adjusting control parameters to account for uncertainty and variations.

  • Robust Control: Techniques designed to maintain performance despite external disturbances.

  • Optimal Control: Minimization of a cost function while ensuring adherence to system dynamics.

  • Nonlinear Control: Approaches tailored for systems that behave nonlinearly under certain conditions.

  • Feedback Linearization: A method to convert nonlinear control to a linear control problem by redefining inputs and states.

  • Sliding Mode Control: A control strategy that ensures system robustness by enforcing sliding dynamics.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • In a robotic arm, PID control is used to precisely position the arm by balancing the error in its current position with desired coordinates.

  • Adaptive control is implemented in robotic exoskeletons, which adjust their dynamics based on the user's movement and force exerted.

  • Robust control techniques are essential in drones where external wind disturbances must be mitigated without losing stability.

  • LQR is commonly used in autonomous vehicles to ensure balanced speed and minimize fuel consumption while adhering to traffic rules.

  • In legged robots, feedback linearization allows for effective control over complex terrain by treating nonlinear dynamics as linear, manageable systems.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • In PID's mix, we find the fix: Proportional for now, Integral for past, Derivative’s future, all together they last.

📖 Fascinating Stories

  • Imagine a robot dancing, it adjusts its moves based on previous steps, current sound and predicts future beats—that’s PID in action!

🧠 Other Memory Gems

  • Use 'P-I-D' for remembering Proportional's current, Integral's past, Derivative's future!

🎯 Super Acronyms

Remember 'A-R-O-N' for Adaptive, Robust, Optimal, Nonlinear strategies in control systems!

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: PID Control

    Definition:

    A control loop mechanism employing three control terms: Proportional, Integral, and Derivative, each serving specific purposes in error correction.

  • Term: Adaptive Control

    Definition:

    Control strategies that adjust parameters in real-time to cope with changing system dynamics, especially under uncertainty.

  • Term: Robust Control

    Definition:

    Control methods ensuring stability and performance in the presence of system disturbances and uncertainties.

  • Term: Optimal Control

    Definition:

    Control strategies aimed at minimizing a cost function while satisfying system dynamics.

  • Term: Nonlinear Control

    Definition:

    Control methods designed for systems exhibiting nonlinear behaviors due to various factors.

  • Term: Feedback Linearization

    Definition:

    A technique that transforms a nonlinear system into an equivalent linear one via coordinate transformation.

  • Term: Sliding Mode Control

    Definition:

    A control method that ensures the system slides along a predefined surface, exhibiting robustness against disturbances.

  • Term: LQR (Linear Quadratic Regulator)

    Definition:

    An optimal control strategy that minimizes the quadratic cost associated with state and control input.

  • Term: Hinfinity Control

    Definition:

    A robust control technique that minimizes the worst-case amplification of disturbances.

  • Term: Model Predictive Control (MPC)

    Definition:

    An advanced control approach that optimizes control input based on future predictions and constraints.
