6.2 - Robust and Optimal Control Strategies

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Robust Control

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we will talk about robust control. What do you think makes a controller robust?

Student 1
Student 1

I think it should work well even if the system has some uncertainties or noise?

Teacher
Teacher

Exactly! Robust control maintains system stability and performance despite uncertainties and disturbances. One method we use for this is H-infinity control. Can anyone tell me what it aims to minimize?

Student 2
Student 2

Doesn't it minimize the worst-case amplification of disturbances?

Teacher
Teacher

Correct! This is crucial in applications like aerospace where precision is vital. Remember, robust control ensures reliability.

Understanding Optimal Control

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now let's shift to optimal control. What do we try to achieve with optimal control strategies?

Student 3
Student 3

To minimize something, like a cost function?

Teacher
Teacher

Exactly! An example is the Linear Quadratic Regulator (LQR). What does LQR minimize specifically?

Student 4
Student 4

It minimizes the quadratic cost function based on the state and control effort!

Teacher
Teacher

Right again! LQR helps in balancing performance and effort, making it useful in vehicles and balancing robots.

Applications of Robust and Optimal Control

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let’s discuss where robust and optimal control strategies are used in robotics. Can anyone give examples?

Student 1
Student 1

I think they are used in autonomous vehicles, right?

Teacher
Teacher

Yes! That’s a great example of where LQR and robust strategies ensure safe navigation. What about in medical robotics?

Student 2
Student 2

Surgical robots! They need precise control to operate safely.

Teacher
Teacher

Exactly! Precision in these applications is critical, and using robust strategies helps achieve this reliability.

Comparing Robust and Optimal Control

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

How would you compare robust control strategies with optimal control strategies?

Student 3
Student 3

Robust control is about staying stable in uncertainty, while optimal control is about minimizing costs?

Teacher
Teacher

Great summary! Can you think of a situation where one might be preferred over the other?

Student 4
Student 4

In unpredictable environments, robust control might be better, and in situations where we can model well, optimal control could be used.

Teacher
Teacher

Exactly right! Understanding the context and requirements helps determine which control strategy to apply.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section introduces robust and optimal control strategies crucial for maintaining performance in robotics despite uncertainties and disturbances.

Standard

Robust control strategies aim to maintain performance even under uncertainties, as seen in methods like H-infinity control, while optimal control strategies, particularly Linear Quadratic Regulators (LQR), focus on minimizing a cost function to balance performance with effort. Both approaches are essential in applications requiring precision and reliability.

Detailed

Youtube Videos

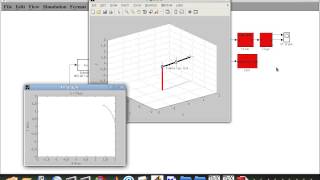

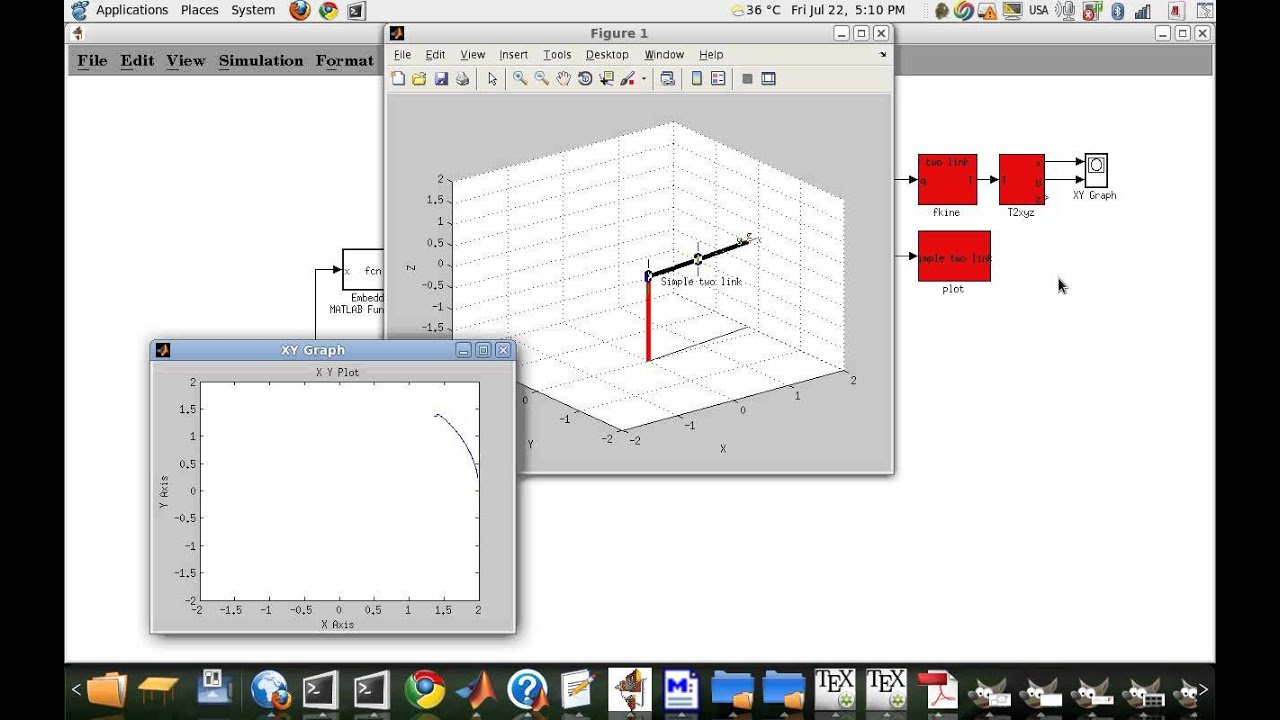

An optimal control approach to robust control of robot manipulators.
An optimal control approach to robust control of robot manipulators.

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Robust Control

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Robust controllers maintain stability and performance in the presence of uncertainty or disturbance.

Detailed Explanation

Robust control refers to control strategies designed to deal with uncertainties or disturbances in a system. Unlike conventional control methods, which may fail if there's a change in system dynamics or external disturbances, robust control ensures that a robotic system remains stable and performs effectively regardless of these external factors. This capability is crucial in applications like aerospace and surgical robotics, where precision is vital.

Examples & Analogies

Imagine a ship navigating through rough seas. A robust control system acts like a skilled captain who can maintain the ship's course and speed, even when waves and winds push against it. Just as the captain uses experience and knowledge to adapt to changing conditions, a robust controller adjusts to varying uncertainties to keep the robot on track.

H-infinity Control

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

H-infinity Control is an advanced method that minimizes the worst-case amplification of disturbances: min K∥Tzw(s)∥∞

● Tzw(s): Transfer function from disturbance www to output zzz
● ∥.∥∞: Max gain over all frequencies

Common in aerospace and surgical robotics, where precision and safety are critical.

Detailed Explanation

H-infinity control is a specific technique within robust control that focuses on minimizing the maximum possible effect of disturbances on the system's output. It does this by determining the worst-case scenario (the worst amplification) of disturbances across all frequencies. The transfer function Tzw represents how disturbances affect the system's output, and the goal is to select control parameters (K) that minimize this effect. This control method is especially important in fields where precision is crucial, such as in airplanes or surgical robots, where any disturbance can affect safety and performance.

Examples & Analogies

Think of H-infinity control like a safety net designed for high-wire walkers. Just as the net ensures that even if the performer stumbles or gets distracted, they will not fall and be harmed, H-infinity control ensures that a robot can manage disturbances and maintain its performance without 'falling' out of its designated parameters, keeping operations safe and reliable.

Optimal Control

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Optimal control seeks to minimize a cost function while satisfying system dynamics.

Detailed Explanation

Optimal control involves designing a control strategy that minimizes a predefined cost function, which quantifies the trade-offs between various aspects of the system's performance, like energy consumption and accuracy of response. The system dynamics must also be respected, meaning the controller must operate within the physical limitations of the robot. Typically, this is achieved using algorithms that determine the best values for controlling inputs, resulting in efficient and effective robotic actions.

Examples & Analogies

You can think of optimal control as planning a road trip to achieve the best fuel efficiency while sticking to speed limits. Just as you might choose a route that avoids excessive stops and detours to save gas while still reaching your destination safely, an optimal controller calculates the best way to use energy and resources while maintaining the robot's required performance.

Linear Quadratic Regulator (LQR)

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Linear Quadratic Regulator (LQR) minimizes the quadratic cost:

J=∫0∞(xTQx+uTRu)dt

Where:
● x: State vector
● u: Control input
● Q, R: Weighting matrices

LQR balances state performance vs control effort. It is commonly used in balancing robots, quadrotors, and autonomous cars.

Detailed Explanation

The Linear Quadratic Regulator (LQR) is a method for designing a control system that aims to minimize a specific cost function. This cost function is represented by J, which integrates over time the squared errors of the state's performance (x) weighted by Q, and the squared control efforts (u) weighted by R. By balancing these components, LQR helps ensure that the robot performs well while using minimal energy, making it suitable for applications in robotics like balancing robots or quadrotors.

Examples & Analogies

LQR is similar to a school teacher who balances academic excellence with effort. Just as a teacher might assign homework that is challenging but achievable, ensuring that students learn effectively without becoming overwhelmed, LQR seeks to balance the robot's performance (staying upright or reaching a target) with the effort (energy) it expends, optimizing the robot's operation.

Extensions of LQR

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Extensions:
● LQG (with Kalman filtering for noisy observations)
● MPC (Model Predictive Control for constrained optimization in real-time)

Detailed Explanation

LQR has several important extensions to enhance its functionality. The Linear Quadratic Gaussian (LQG) adds Kalman filtering to deal with system noise in observations, allowing the controller to make better estimations of the system's states. Model Predictive Control (MPC) expands upon LQR by incorporating optimization techniques that consider future control actions, accommodating constraints in real time. These methods are widely used in complex environments where there are uncertainties and require precise control.

Examples & Analogies

Consider LQG like a skilled detective who not only gathers evidence but also learns to interpret it despite distractions or misleading clues (the noise). Meanwhile, MPC can be likened to a strategic game plan in sports, where players make real-time decisions based on the current game situation while anticipating future moves of the opponent, ensuring they remain effective under changing conditions.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Robust Control: Techniques ensuring stability and performance amidst uncertainties.

  • Optimal Control: Strategies focused on minimizing costs while achieving desired performance.

  • H-infinity Control: A specific method within robust control aiming for worst-case minimization.

  • LQR: An optimal control method that balances performance against control input effort.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • H-infinity control is used in aerospace engineering to handle flight system disturbances.

  • LQR is applied in autonomous vehicles for efficient route optimization and navigation.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When control is robust, free from despair, uncertainties come, but it doesn’t scare.

📖 Fascinating Stories

  • Imagine a car navigating through foggy weather. It's equipped with a robust controller that keeps it on the road despite the poor visibility, ensuring safety. This captures the essence of robust control in action.

🧠 Other Memory Gems

  • For LQR, remember 'L' is for 'Linear', 'Q' is for 'Quantity' of performance, and 'R' for 'Responsive' control efforts.

🎯 Super Acronyms

H-infinity

  • H: – Harmonic (referring to frequency); ∞ – Infinity (indicating worst-case over all frequencies).

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Robust Control

    Definition:

    Control methods that ensure system stability and performance despite uncertainties and disturbances.

  • Term: Hinfinity Control

    Definition:

    A method that minimizes the worst-case amplification of disturbances in a control system.

  • Term: Optimal Control

    Definition:

    A control strategy focused on minimizing a cost function while adhering to system dynamics.

  • Term: Linear Quadratic Regulator (LQR)

    Definition:

    An optimal control method that minimizes a quadratic cost associated with state performance and control effort.
