6.3 - Nonlinear Control and Feedback Linearization

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Nonlinear Control

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we'll delve into nonlinear control, which is crucial for many robotic systems. Can anyone name some sources of nonlinearity that might affect a robot's control system?

Student 1
Student 1

One source could be trigonometric joint kinematics, right?

Teacher
Teacher

Exactly! Trigonometric functions can lead to nonlinear relationships in joint movements. What are some other factors?

Student 2
Student 2

Friction and saturation effects might also cause nonlinearity.

Teacher
Teacher

Good point! Friction can disrupt smooth operation, and saturation limits can restrict movement. All of these can complicate control strategies. Now, let's explore how we can manage these nonlinearities through feedback linearization.

Feedback Linearization Explained

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Feedback linearization transforms nonlinear systems into linear ones. If we have a system defined as \( \dot{x} = f(x) + g(x)u \), how can we redefine 'u' to simplify this?

Student 3
Student 3

We can choose a control input in the form of \( u = \alpha(x) + \beta(x)v \) to simplify it.

Teacher
Teacher

Correct! This means we can manipulate the input so that the new output behaves like a linear system. What does that look like?

Student 4
Student 4

It transforms to \( \dot{z} = v \), making it easier to apply linear control techniques.

Teacher
Teacher

Exactly! And by doing this, we can utilize techniques like PID or LQR for more effective control. Great understanding of feedback linearization!

Applications of Feedback Linearization

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

So, how can we apply feedback linearization in real-world scenarios?

Student 1
Student 1

It's useful for manipulator control because they often deal with nonlinear dynamics?

Teacher
Teacher

Spot on! Manipulator control is a prime example. Can anyone mention another application?

Student 2
Student 2

Aerial robotics! They also experience nonlinear behaviors.

Teacher
Teacher

Very true! Aerial robotics requires precise adjustments due to nonlinearities like wind and turbulence. Now let’s briefly touch on the next important concept: Sliding Mode Control.

Introduction to Sliding Mode Control

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Sliding Mode Control or SMC is another technique for handling nonlinear systems. Can anyone explain the basic idea behind SMC?

Student 3
Student 3

I think it forces the system to slide along a surface defined by a specific condition.

Teacher
Teacher

Yes! It essentially maintains robust performance amidst disturbances by controlling the system along the surface \(s(x) = 0\). What might be a drawback of SMC?

Student 4
Student 4

Chattering! The control signal can oscillate rapidly due to its discontinuous nature.

Teacher
Teacher

Exactly! Understanding chattering is crucial for implementing SMC effectively. It's important to balance performance with stability.

Summarizing Key Concepts

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we discussed various aspects of nonlinear control and its methods. Can anyone summarize what we've learned?

Student 1
Student 1

We started with understanding nonlinearities caused by kinematics and friction.

Student 2
Student 2

Then we learned how feedback linearization redefines system inputs to achieve linearity in control.

Student 3
Student 3

And we explored Sliding Mode Control, which ensures robustness but can lead to chattering.

Teacher
Teacher

Great summary! Understanding these concepts equips us to handle complex robotic dynamics effectively.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section focuses on nonlinear control strategies, particularly feedback linearization, which is essential for managing the complexities of robotic systems that exhibit nonlinear behavior.

Standard

In robotic systems, nonlinearities arise due to factors like kinematics and friction. Feedback linearization is a method that redefines system inputs to transform a nonlinear system into an equivalent linear one, facilitating the application of linear control techniques. This allows for improved control in various robotic applications.

Detailed

Detailed Summary

In control systems for robotics, many applications face challenges due to inherent nonlinearities. These nonlinearities may stem from various sources, including trigonometric joint kinematics, friction, saturation effects, and coupling between axes. Classical control methods, such as Linear Quadratic Regulator (LQR), may not adequately handle these nonlinear systems, prompting the need for advanced strategies like feedback linearization.

Feedback Linearization

Feedback linearization is a technique that aims to convert a nonlinear system into a linear one through a coordinate transformation and input redefinition. The process involves representing the nonlinear dynamics of a system, typically defined by the equation:

\[ \dot{x} = f(x) + g(x)u \]

A control input is chosen in the form:

\[ u = \alpha(x) + \beta(x)v \]

This transformation helps in reconfiguring the system dynamics such that the new output behaves like a linear system:

\[ \dot{z} = v \]

Here, 'v' can then be designed using established linear techniques like PID or LQR. Feedback linearization proves beneficial for various applications, including manipulator control, aerial robotics, and legged locomotion, allowing for more predictable and stable performance under typical robotic operations.

Sliding Mode Control

Another important concept presented in this section is Sliding Mode Control (SMC). This approach entails forcing the system to slide along a predefined surface, denoted as \(s(x) = 0\), ensuring that the system exhibits robust performance even in the presence of disturbances. The control law is defined as:

\[ u = -K \cdot \text{sign}(s(x)) \]

Despite its robustness, SMC can lead to 'chattering,' which refers to rapid oscillations caused by the control input's discontinuities. An understanding of both feedback linearization and SMC enables engineers and researchers to design more effective controllers for complex robotic systems that experience nonlinear behaviors.

Youtube Videos

Nonlinear Controls - Altitude Dynamics and Control of a Drone using Feedback Linearization
Nonlinear Controls - Altitude Dynamics and Control of a Drone using Feedback Linearization

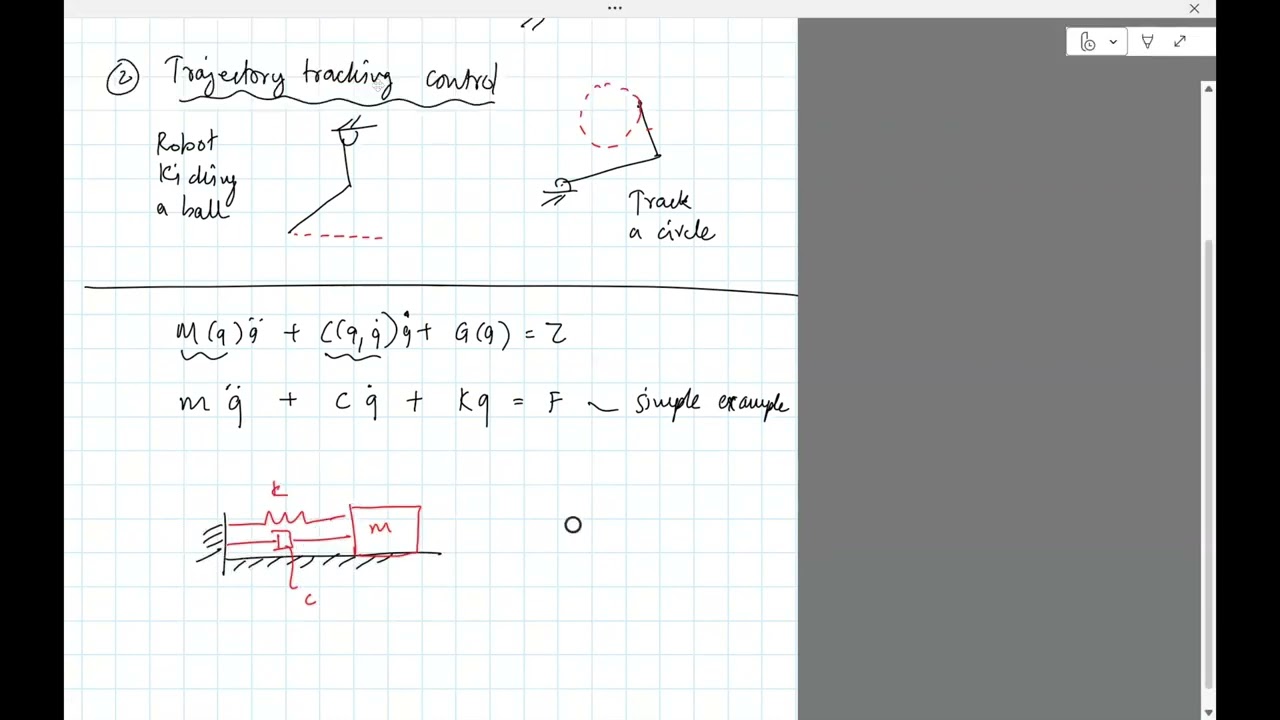

Robotics Lec13a: Feedback Linearization, Motivation (Fall 2023)
Robotics Lec13a: Feedback Linearization, Motivation (Fall 2023)

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Nonlinear Control

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Many robotic systems are inherently nonlinear due to:
- Trigonometric joint kinematics
- Friction and saturation effects
- Coupling between axes
Classical linear controllers (like LQR) may fail in such settings.

Detailed Explanation

Robotic systems often exhibit nonlinear behavior due to several factors. Nonlinear behavior means that the relationship between input and output is not straightforward, making it challenging to control. Specifically, robots have joints that can move in circular paths (trigonometric kinematics), operate under the influence of friction, and may experience saturation where maximum input can't produce proportionate output. Additionally, different joints can affect each other's movement, leading to complex interactions. Because of these factors, linear control methods, which assume a simpler relationship, often struggle to perform effectively in these settings.

Examples & Analogies

Imagine trying to balance a broom on your hand while walking: the broom behaves unpredictably because of its length and balance point. If you try to make small adjustments based on previous experience (like a linear controller), you may not react properly when the wind (friction or coupling with other movements) affects your control. Instead, you need to understand the unique properties of the broom to maintain balance, much like a robot needs nonlinear control methods to navigate complex movements.

Feedback Linearization Overview

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Feedback Linearization transforms a nonlinear system into an equivalent linear system via coordinate transformation and input redefinition.
For system:
\[ \dot{x} = f(x) + g(x)u \]
Choose control input:
\[ u = \alpha(x) + \beta(x)v \]
Such that the system becomes:
\[ \dot{z} = v \]
Then design v using linear techniques (e.g., PID or LQR). Works well for manipulator control, legged locomotion, and aerial robotics.

Detailed Explanation

Feedback linearization is a powerful technique where we simplify a nonlinear system into a linear one by reinterpreting its inputs and outputs. This is achieved by redefining the control input in a way that aligns with the nonlinear dynamics of the system. The state of the system is expressed in linear terms, allowing traditional linear control techniques to be applied. When we reformulate the input as \( u = \alpha(x) + \beta(x)v \), we can then manipulate \( v \) using conventional methods like Proportional-Integral-Derivative (PID) control or Linear Quadratic Regulator (LQR), which are much simpler to manage. This technique is particularly beneficial in scenarios involving robotic arms or legged robots where maintaining balance and smooth motion is essential.

Examples & Analogies

Consider how a tightrope walker leans to maintain balance: instead of walking straight, they adjust their position based on the tension in the rope, similar to how feedback linearization adjusts control inputs to manage balance in robotics. By 'transforming' their approach to walking into a different kind of walking on a taut rope (like reinterpreting nonlinear into linear), they can use basic balancing techniques to succeed.

Sliding Mode Control (SMC)

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

SMC enforces the system to "slide" along a surface \( s(x) = 0 \) with robust performance under disturbances.
\[ u = -K \cdot \text{sign}(s(x)) \]
- Strong against modeling errors
- Risk of chattering (rapid oscillations)

Detailed Explanation

Sliding Mode Control (SMC) is a control strategy that ensures the system maintains a specific behavior despite disturbances. It does this by enforcing the system to adhere to a condition represented by the surface \( s(x) = 0 \). The control input is then applied according to the sign of the function \( s(x) \), which helps the system converge toward the desired state and remain stable. While SMC is incredibly robust against modeling errors, which means it can tolerate uncertainty in the model of the system, one downside is that it can lead to chattering, a phenomenon characterized by rapid oscillations or fluctuations in control output.

Examples & Analogies

Picture a seasoned driver navigating a bumpy road: even if the road is unpredictable (like modeling errors), they steer to stay centered, adapting their response as needed (akin to sliding mode control maintaining stability). However, if the driver overcorrects or is too aggressive in making adjustments, the car can 'chatter' by swerving side to side, much like the rapid oscillations seen in SMC.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Nonlinearities: Sources of complexity in robotic control, including kinematics and external factors.

  • Feedback Linearization: A method to transform a nonlinear system into a linear one for easier control.

  • Sliding Mode Control: A robust control strategy that can manage disturbances but may introduce chattering.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • In manipulator control, feedback linearization allows robotic arms to achieve desired positions accurately despite nonlinear dynamics.

  • Sliding Mode Control can be used in automotive systems to ensure stability during sudden disturbances like sharp turns.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • When control goes nonlinear and complex to understand, feedback linearization takes the command.

📖 Fascinating Stories

  • Imagine a robot arm trying to reach for an apple. The apple's position changes due to wind, making control tough. Feedback linearization allows the arm to adjust its reach dynamically, just like a dancer gracefully adapting to music.

🧠 Other Memory Gems

  • For feedback linearization, think 'Linearize First, Control Next.' It's the sequence to remember!

🎯 Super Acronyms

SMC = Sliding Motion Control; slide through disturbances with style.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Nonlinear Control

    Definition:

    Control methodologies applied to systems exhibiting nonlinear behaviors, managing complexities that arise from non-ideal system dynamics.

  • Term: Feedback Linearization

    Definition:

    A technique to transform nonlinear dynamics into linear dynamics via input redefinition, allowing linear control strategies to be applied.

  • Term: Sliding Mode Control (SMC)

    Definition:

    A robust control technique that constrains system dynamics to slide along a predetermined surface despite disturbances.

  • Term: Chattering

    Definition:

    Rapid oscillations in the control input that can occur in sliding mode control due to its discontinuous nature.
