2.12.2 - Types of Control Systems
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
PID Control
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're diving into one of the most essential control techniques used in robotics: PID control. Can anyone tell me what PID stands for?
Is it Proportional, Integral, and Derivative?
Exactly! PID control uses these three components to fine-tune a robot's response to achieve precise motion. Let's break it down: the proportional part deals with the current error, the integral sums past errors, and the derivative predicts future errors. Does anyone see how they might interact?
So the proportional part reacts immediately to how far off the target position is?
Yes, that's right! That's very important for real-time adjustments. Why do you think the integral part would be necessary?
Maybe to eliminate any remaining steady-state error over time?
Spot on! It helps in achieving the desired position accurately. To summarize, PID control is essential in fine-tuning movements; it makes our robots more responsive and accurate.
Fuzzy Logic Control
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's explore fuzzy logic control. Unlike traditional systems, fuzzy logic helps handle uncertainty. Could someone summarize what makes fuzzy logic different from regular binary logic?
Binary logic only considers yes or no, while fuzzy logic deals with a range of values!
Exactly! This allows robots to make decisions in complex environments. For instance, in terrain navigation, how might fuzzy logic be more beneficial?
It can handle varying terrains without having predefined parameters!
Right again! Instead of fixed conditions, robots can adapt based on the situation. Remember, fuzzy logic provides flexibility, which is crucial in uncertain scenarios.
Neural Network and AI-Based Control
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Lastly, we have neural network-based control. This is especially relevant to autonomous robots. Can anyone explain how it helps in robot decision-making?
Does it allow robots to learn from their mistakes?
Exactly! Neural networks enable robots to learn and adapt through experience over time. In unpredictable environments, this learning is invaluable. What’s one example where this might be critical?
In search and rescue missions, robots may need to adjust paths based on rubble or obstacles!
Perfect example! The capability to learn and adjust on the go is what sets these modern robots apart. To conclude, neural network control enhances adaptability and responsiveness critical in many applications.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section provides an overview of the three main types of control systems in robotics: PID control for precise motion, fuzzy logic control for managing uncertainty, and neural network-based control that leverages AI for autonomous decision-making. The significance of these controls in enabling modern robotic functions is emphasized.
Detailed
Detailed Summary
In the study of robotics, control systems are crucial for managing the movements and decisions of robots. This section introduces three primary types of control systems:
- PID Control (Proportional–Integral–Derivative Control): This is one of the most commonly used control techniques in modern robotic arms. It focuses on maintaining the desired output by adjusting the control inputs based on how far off the system is from that desired state. The three elements—proportional, integral, and derivative—each contribute to shaping the control signal to improve system efficiency.
- Fuzzy Logic Control: Unlike traditional binary logic systems that require precise inputs, fuzzy logic control can manage imprecise inputs and uncertainties, making it especially useful in complex environments such as terrain navigation. It allows robots to make decisions based on a range of input values rather than fixed parameters.
- Neural Network and AI-Based Control: This type utilizes learning algorithms that enable robots to improve performance by learning from experience. It is particularly beneficial in autonomous robots that need to adapt to changing environments or unexpected obstacles, allowing them to learn and refine their tasks over time.
Understanding these control systems is integral to developing effective robots capable of performing complex tasks while adapting to dynamic conditions.

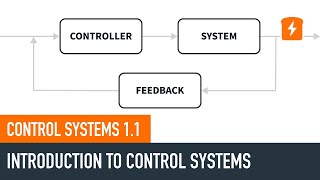

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
PID Control
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• PID (Proportional–Integral–Derivative) Control: Widely used in modern robotic arms for motion control.
Detailed Explanation
PID control is a widely used control loop feedback mechanism commonly used in industrial control systems and robotics. The term 'PID' stands for three basic coefficients: Proportional, Integral, and Derivative. Each of these components plays a separate role:
1. Proportional (P) - Measures the current error (the difference between the desired position and the actual position) and applies a correction proportionate to that error. The more significant the error, the larger the output correction.
2. Integral (I) - Sums the past errors over time and adds them to the correction. This helps eliminate the residual steady-state error that occurs during constant desired input conditions.
3. Derivative (D) - Predicts future errors based on the rate of change of the error. This component helps to dampen the system response and reduce overshoot or oscillation.
In robotics, PID controllers are used to ensure that robotic arms move smoothly and accurately to the intended positions by continuously adjusting their movements based on feedback.
Examples & Analogies
Think of PID control like a car's cruise control system. If you set the cruise control to 60 mph and your speed drops to 55 mph (current error), the system will respond by accelerating (proportional correction). If you tend to drive at different speeds due to hills (past errors), the system remembers and adjusts how much it needs to accelerate (integral correction). If you start going downhill and your speed increases too quickly, it will reduce the acceleration preemptively based on how fast the speed is increasing (derivative correction). This combination helps maintain a steady speed without much fluctuation.
Fuzzy Logic Control
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Fuzzy Logic Control: Handles uncertainty and imprecision, especially useful in terrain navigation.
Detailed Explanation
Fuzzy Logic Control is a form of control that deals with reasoning that is approximate rather than fixed and exact. In many real-world situations, especially in navigation and robotics, data is often imprecise or uncertain. Fuzzy logic allows computers to reason about this uncertain information in a way that resembles human reasoning. Instead of having rigid criteria (like true/false), fuzzy logic assigns degrees of truth. For example, when a robot encounters rough terrain, instead of deciding 'navigate' or 'stop,' it can evaluate a range of conditions and decide on the best course of action based on multiple inputs, like speed, angle, and obstacle presence. This allows for smoother navigation and adaptability to unpredictable environments.
Examples & Analogies
Imagine you're driving on a wet, slippery road. Rather than just thinking whether the road is 'safe' or 'dangerous,' you consider the extent of slipperiness, how fast you're going, and the type of vehicle you are driving. Your decisions on steering and braking become nuanced and adaptive based on these factors. Similarly, fuzzy logic control emulates that kind of decision-making process for robots as they navigate uncertain conditions.
Neural Network and AI-Based Control
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
• Neural Network and AI-Based Control: Enables learning from experience, useful in autonomous robots.
Detailed Explanation
Neural network and AI-based control systems use machine learning algorithms to enable robots to learn from their experiences. Unlike traditional control systems, which rely on pre-defined rules and parameters, neural networks mimic the way human brains work, processing information through interconnected nodes (similar to neurons). This allows robots to analyze vast amounts of data, recognize patterns, and make decisions based on past actions and outcomes. For instance, an autonomous robot can improve its navigation by learning from previous mistakes, such as avoiding obstacles it previously collided with. This adaptability makes them incredibly powerful in dynamic environments.
Examples & Analogies
Think of a young child learning to ride a bike. At first, the child may fall often while trying to balance, but after enough practice, they start learning what balance feels like and the correct way to steer. They internalize these lessons and become better at riding over time. Similarly, neural networks in robots allow them to learn from their actions and improve performance through trial and error, enhancing their abilities over time.
Key Concepts
-
PID Control: A control technique that adjusts outputs based on proportional, integral, and derivative calculations for precise control.
-
Fuzzy Logic Control: A logic that allows for reasoning with uncertain and imprecise inputs, enabling better decision-making in robotics.
-
Neural Network Control: A system that enables robots to learn and adapt based on experience, facilitating autonomous functions.
Examples & Applications
A robotic arm uses PID control to refine its positioning when assembling parts in a manufacturing line.
A drone uses fuzzy logic control to navigate through varying weather conditions and obstacles.
An autonomous vehicle implements neural network control to adjust its path based on real-time data from its surroundings.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
For PID control precision is key, Proportional, Integral, Derivative you see.
Stories
Imagine a robot navigating through foggy terrain; using fuzzy logic, it makes quick decisions without clear paths, just like navigating life's uncertainties.
Memory Tools
To remember PID, think: 'Proactively Integrate Data' for smooth robot operations.
Acronyms
Fuzzy logic - 'Handle U's with Flexibility in Decisions' (U for Uncertain situations).
Flash Cards
Glossary
- PID Control
A control loop feedback mechanism that uses proportional, integral, and derivative to control a process.
- Fuzzy Logic Control
A form of logic that deals with reasoning that is approximate rather than fixed and exact, allowing for improved decision-making in uncertain conditions.
- Neural Network
A computational model based on the structure and functions of biological neural networks that helps in pattern recognition and learning.
