17.5 - Data Processing Techniques in SHM
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Signal Processing Techniques
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's begin by understanding signal processing. What do you think signal processing involves in SHM?
I believe it has something to do with handling the data we get from sensors!
Exactly! Signal processing involves methods to enhance and interpret data. For instance, the Fast Fourier Transform or FFT is used to convert time-domain signals into the frequency domain. Why might this be important?
It helps us identify different frequencies, which can indicate issues with the structure, right?
Correct! Now, can anyone tell me what the Wavelet Transform does?
It allows us to analyze signals at different resolutions.
That's right! This capability is crucial when looking for localized events, like cracks. Remember the acronym FFT for frequency analysis and Wavelet for multi-level examination.
Got it! FFT for frequency and Wavelet for detail.
Great! Let's wrap up this session: signal processing is vital for enhancing signal quality and revealing hidden patterns.
Feature Extraction
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, moving on to feature extraction: how do you think we can use this to our advantage in SHM?
I think it's about picking out important data points that show how the structure is performing.
Exactly! We extract features like modal parameters. Can anyone explain what modal parameters are?
They are properties like natural frequency and damping ratio, which help assess the dynamic behavior of the structure.
Well done! Remember, these parameters can signal changes that may indicate damage. We also consider signal energy and entropy. Why do you think those might be relevant?
They give insights into how much energy is dissipated in the structure over time?
Correct! Monitoring trends in strain and displacement can also indicate whether a structure is undergoing changes. It's essential we keep these concepts in mind—think of the acronym MESS: Modal parameters, Energy, Strain, and trends.
MESS is a great way to remember those it is all about performance indicators!
Great job, everyone! Let's conclude that feature extraction plays a vital role in determining the health of a structure.
Damage Detection Algorithms
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let's discuss damage detection algorithms. Why do you think these are crucial in SHM?
They help in figuring out if a structure has been damaged, right?
Absolutely! Modal analysis is one way to detect damage by looking for changes in dynamic properties. Can someone give me an example of an algorithm?
What about neural networks? They can learn patterns from previous data.
Exactly! Neural networks can classify damage based on historical data effectively. We also have statistical pattern recognition methods. What might the benefit of these be?
They probably provide a more robust way to understand normal versus abnormal behavior in structures?
Correct! Remember the acronym MDN: Modal analysis, Detection with neural networks, and statistical patterns to help you remember the key algorithms.
MDN helps to remember the methods for detection!
Great work! In this session, we’ve learned that damage detection algorithms are critical for the timely maintenance and safety of our structures.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section highlights key data processing techniques including signal processing methods like the Fast Fourier Transform (FFT) and Wavelet Transform, feature extraction techniques for deriving modal parameters, and damage detection algorithms such as modal analysis and neural networks, critical for ensuring the safety and longevity of structures.
Detailed
In Structural Health Monitoring (SHM), data processing is crucial for interpreting the information gathered from various sensors deployed on civil structures. This section outlines significant data processing techniques fundamental to SHM systems:
1. Signal Processing
- Fast Fourier Transform (FFT) helps convert time-domain data into frequency-domain information, revealing underlying patterns.
- Wavelet Transform offers a multi-resolution analysis, allowing for localized signal analysis, vital in identifying transient signals in structural monitoring.
- Filtering Techniques are employed to reduce noise and enhance signal quality for accurate analysis.
2. Feature Extraction
Extracting relevant features from the signal is essential for effective data interpretation:
- Modal Parameters: This includes natural frequency and damping ratio, significant in assessing structural dynamics.
- Signal Energy and Entropy: These features provide insights into energy dissipation and complexity of the structural response.
- Strain and Displacement Trends: Monitoring trends over time can indicate structural health.
3. Damage Detection Algorithms
Advanced algorithms are crucial for identifying damage.
- Modal Analysis allows for evaluating changes in dynamic properties that indicate potential damage.
- Neural Networks can be trained to classify damage patterns based on historical data.
- Statistical Pattern Recognition techniques utilize statistical methods to discern normal from abnormal structural behaviors.
By implementing these techniques, SHM systems can enhance safety, extend the lifespan of civil structures, and minimize maintenance costs.

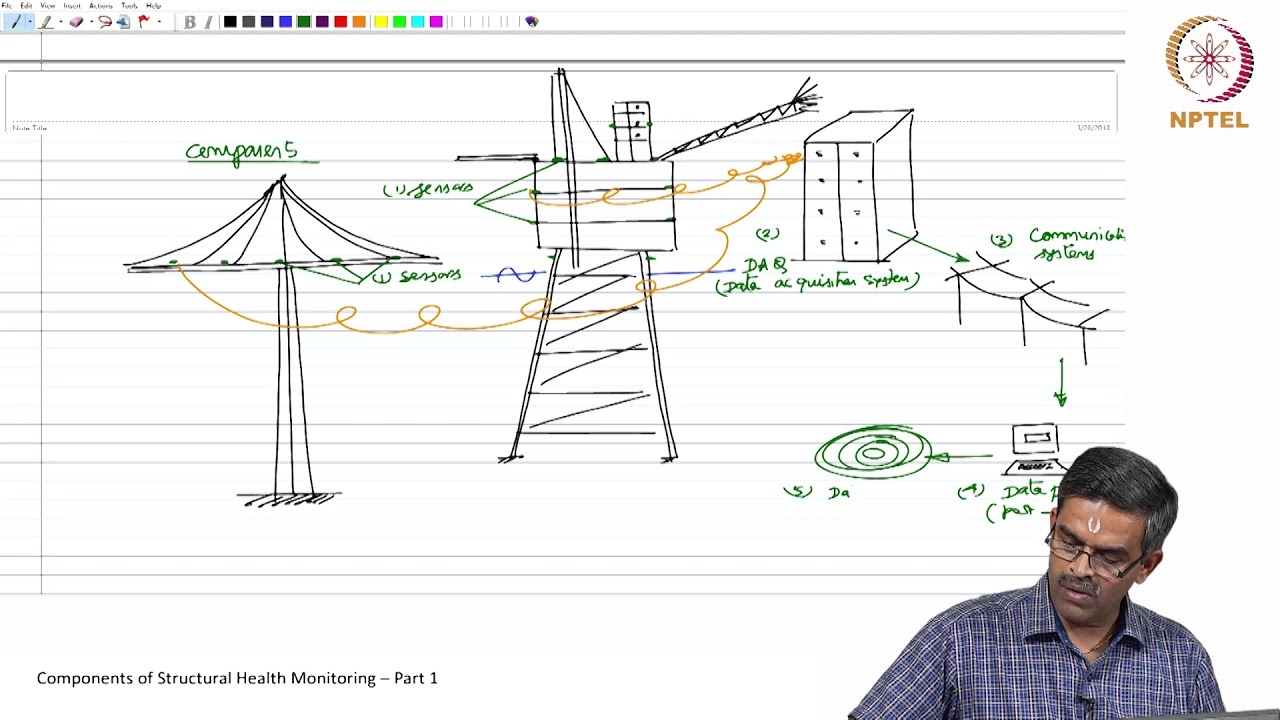

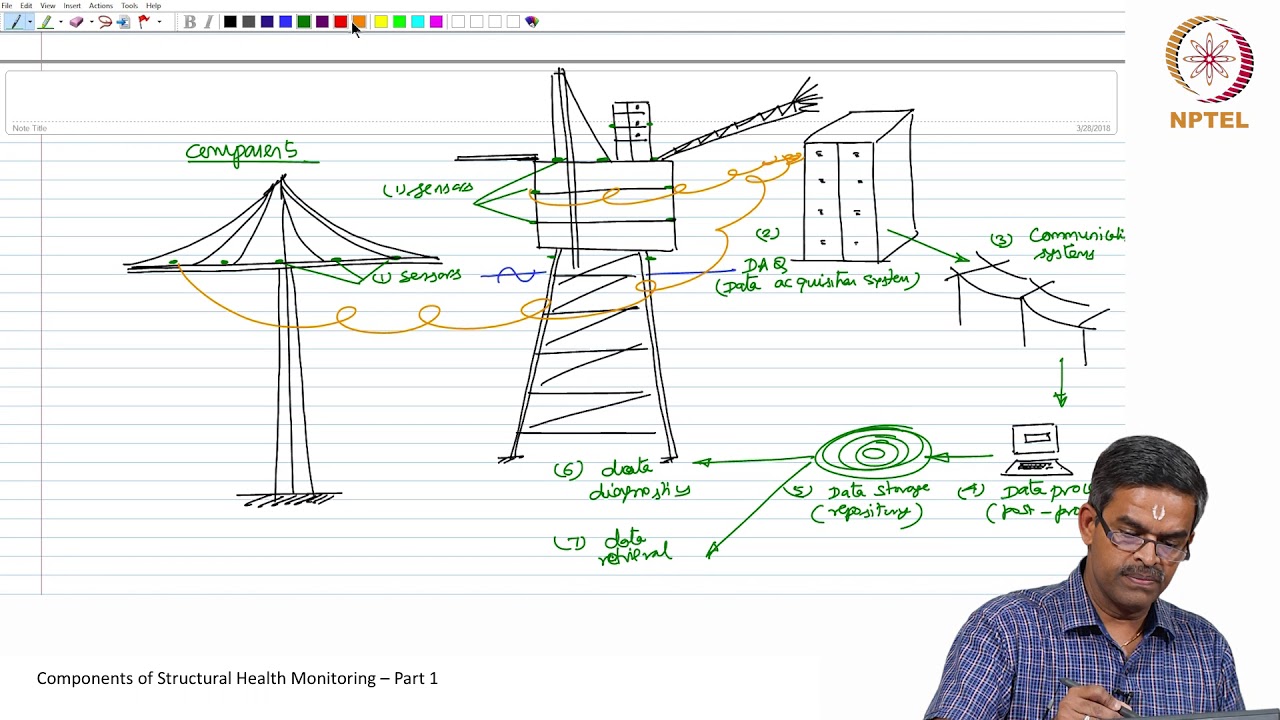

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Signal Processing Techniques
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
17.5.1 Signal Processing
- Fast Fourier Transform (FFT)
- Wavelet Transform
- Filtering techniques
Detailed Explanation
Signal processing techniques are essential for analyzing the data collected from sensors in Structural Health Monitoring (SHM).
- Fast Fourier Transform (FFT): This technique transforms time-domain data into the frequency domain, helping us understand the different frequency components of the signals. It allows us to identify any anomalies associated with structural health.
- Wavelet Transform: Unlike FFT, which analyzes the signal at fixed intervals, wavelet transform can give a time-frequency representation, making it suitable for non-stationary signals where characteristics change over time.
- Filtering techniques: These methods are used to remove noise from the signal, emphasizing the relevant data so that the structural response can be accurately assessed.
Examples & Analogies
Imagine you are listening to a song on the radio, but the sound is muffled by static noise. Filtering techniques can be compared to tuning the radio to eliminate that noise, allowing you to enjoy the clear melody. Similarly, in SHM, filtering helps in obtaining clear, usable data from noisy sensor readings.
Feature Extraction
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
17.5.2 Feature Extraction
- Modal parameters (natural frequency, damping)
- Signal energy and entropy
- Strain and displacement trends
Detailed Explanation
Feature extraction involves identifying and quantifying important characteristics from the processed signal data.
- Modal parameters: These include natural frequency and damping ratio, which inform us about the dynamic behavior of structures. Understanding these parameters helps in detecting changes that may indicate damage.
- Signal energy and entropy: These metrics help in assessing signal complexity and variability over time. A sudden change might signal an emerging structural issue.
- Strain and displacement trends: Monitoring these trends helps engineers identify how a structure is behaving under different loads, indicating any potential failure points.
Examples & Analogies
Think of feature extraction as analyzing a movie to understand its plot, characters, and themes. Just as a viewer looks for key scenes and dialogues, engineers look for significant signals and trends that reveal the health of the structure.
Damage Detection Algorithms
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
17.5.3 Damage Detection Algorithms
- Modal analysis
- Neural networks
- Statistical pattern recognition
Detailed Explanation
Damage detection algorithms analyze the data obtained from SHM systems to identify potential structural issues.
- Modal analysis: This method checks the natural vibration characteristics of a structure. By comparing current data with baseline data, deviations can be detected, indicating damage.
- Neural networks: This machine learning approach mimics human brain functions and can learn complex patterns from input data, making them powerful in identifying damage patterns that traditional methods may miss.
- Statistical pattern recognition: This technique analyzes the data statistics to detect anomalies against defined thresholds, helping to identify unusual responses that indicate damage.
Examples & Analogies
Imagine you are a detective analyzing clues at a crime scene. Just as you use various methods to piece together evidence and determine if a crime occurred, engineers use these algorithms as tools to piece together data and detect if a structural problem is developing.
Key Concepts
-
Signal Processing: Techniques like FFT and Wavelet Transform used to analyze sensor data.
-
Feature Extraction: The process of deriving important characteristics from raw data for damage evaluation.
-
Damage Detection Algorithms: Methods including modal analysis and neural networks that identify structural integrity issues.
Examples & Applications
An SHM system using FFT can detect distinct frequencies when a bridge vibrates under traffic loads, helping identify potential issues.
Using a neural network, researchers could classify damage types based on previously gathered data from structures.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Fourier helps frequencies dance, Wavelets detect where changes prance.
Stories
Imagine a bridge that regularly checks its pulse through signal processing, using FFT for a deeper tone and Wavelet for a closer look.
Memory Tools
To remember detection methods: MDN - Modal analysis, Detection through networks.
Acronyms
MESS
Modal parameters
Energy
Strain
and trends.
Flash Cards
Glossary
- Fast Fourier Transform (FFT)
A mathematical algorithm that transforms a time-domain signal into its frequency-domain representation.
- Wavelet Transform
A tool for analyzing signals at various scales and resolutions, particularly effective for localized feature detection.
- Modal Parameters
Characteristics of a structure's dynamic behavior, such as natural frequencies and damping ratios.
- Neural Networks
A machine learning model designed to recognize patterns and make predictions based on data inputs.
- Statistical Pattern Recognition
A method that employs statistical techniques to classify data based on its distribution characteristics.
