Mechanical Structure of Cobots
Unlock Audio Lesson
Let's begin our discussion on the mechanical structure of cobots. They are typically lightweight and made with 6-7 degrees of freedom or DoF. This allows them to perform various tasks smoothly. Who can tell me why having a lightweight structure is beneficial?
It makes the cobot easier to maneuver and safer for human workers around them.
Exactly! Adding to that, cobots have soft or rounded edges to minimize the risk of injuries. Can anyone recall how flexible joints contribute to their functionality?
Flexible joints help them adapt to different tasks and environments!
Good memory! So to recap, what are the key features of the mechanical structure?
Lightweight, flexible joints, and soft edges!
Sensors and Feedback Systems
Unlock Audio Lesson
Now, let’s talk about the sensors and feedback systems of cobots. They include force-torque sensors, vision systems, and proximity sensors. Can anyone explain the role of force-torque sensors?
They detect contact, right? They help avoid hitting humans.
Exactly! These sensors are vital for ensuring safety. Now, what about vision systems, how do they aid cobots?
They help in recognizing objects and navigating through sites.
Correct! Finally, let’s not forget LiDAR sensors. What do they do?
They detect humans and avoid collisions.
Excellent summary! So, what role do these sensors play collectively?
They enhance the safety and operational effectiveness of cobots.
Control Systems in Cobots
Unlock Audio Lesson
Next, we will explore the control systems of cobots. They rely on a central controller for task execution and trajectory planning. What do you think is the significance of a central controller?
It coordinates all the movements and tasks!
That's right! And it keeps everything in sync. Does anyone know about the safety protocols integrated into these systems?
They follow international standards like ISO 10218-1 and ISO/TS 15066.
Well done! Real-time responses in dynamic environments are also crucial. Why do you think that matters?
Because construction sites can change quickly, and cobots need to adapt.
Exactly! So, to summarize, the control system is vital for both efficiency and safety. What are the key elements we've discussed regarding control systems?
Central controller, safety protocols, and real-time responses!
End Effectors
Unlock Audio Lesson
Lastly, let’s talk about end effectors. These are customized tools like grippers, welders, or drills. Why do you think different tasks require specific end effectors?
Because each task has unique requirements that need tailored tools!
Exactly! Customization allows for versatility. Can anyone name a type of end effector you think is crucial for construction?
Grippers are super important because they handle materials!
Great point! Tool changers give cobots multipurpose functionality. What would be the advantage of that?
It makes them more versatile on the job site!
Exactly! So, in summary, what do end effectors include and why are they important?
They include customized tools, and they are important for task specificity and versatility!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section covers the fundamental components of cobot systems, including their mechanical structure, sensors, control systems, and end effectors, which are essential for functioning effectively in collaborative environments.
Detailed
Architecture and Components of a Cobot System
Collaborative robots, or cobots, represent a significant advancement in the field of robotics, particularly within civil engineering where safety and flexibility are paramount. This section provides an in-depth overview of the architecture and essential components that enable cobots to work effectively alongside human operators.
1. Mechanical Structure
Cobot mechanical structures are typically designed to be lightweight with around 6-7 degrees of freedom (DoF). This flexibility allows cobots to perform a variety of tasks. Key considerations in their design include:
- Soft or rounded edges to ensure safety for human colleagues in shared workspaces.
- Compact actuators that contribute to their lightweight nature, allowing cobots to easily adapt to different construction environments.
- Flexible joints that facilitate a broad range of movements and tasks.
2. Sensors and Feedback Systems
The functionality of cobots is significantly enhanced by their sensors and feedback systems, which include:
- Force-torque sensors: These are critical for detecting contact with humans and preventing injuries.
- Vision systems: Facilitating accurate object recognition and navigation within complex environments.
- Proximity and LiDAR sensors: Used for detecting human presence and ensuring collision avoidance, enhancing the safety of the work environment.
3. Control Systems
Control systems are the brain of cobot operations, comprising:
- A central controller that manages trajectory planning and the execution of tasks.
- Integrated safety protocols that comply with standards like ISO 10218-1 and ISO/TS 15066, ensuring safe interactions with humans.
- Real-time response systems to adapt to dynamic environments effectively.
4. End Effectors
The end effector of a cobot is its

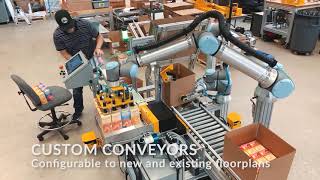

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Mechanical Structure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Lightweight arms with 6-7 degrees of freedom (DoF).
• Use of soft or rounded edges for safety.
• Compact actuators and flexible joints.
Detailed Explanation
The mechanical structure of a collaborative robot (cobot) is designed to be lightweight and flexible, featuring arms that can move in 6 to 7 different directions (degrees of freedom). This flexibility allows cobots to perform a wide range of tasks. The arms are often designed with soft or rounded edges to prevent injury during accidental contact with humans. Additionally, compact actuators and flexible joints make cobots easier to maneuver in tight spaces, enhancing their capability to work alongside human operators effectively.
Examples & Analogies
Consider how a human arm works: it can bend and rotate in many directions. A cobot's arms try to mimic this functionality, making them versatile. For instance, think of an artist painting a canvas. The lightweight, flexible structure allows the artist to reach various angles effortlessly. Similarly, cobots can reach into tight spots on a construction site without risking safety.
Sensors and Feedback Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Force-torque sensors for contact detection.
• Vision systems for object recognition and navigation.
• Proximity and LiDAR sensors for human detection and collision avoidance.
Detailed Explanation
Cobots are equipped with various sensors that allow them to interact safely and intelligently with their environment. Force-torque sensors help the cobot detect when it makes contact with an object, ensuring that it can respond appropriately, such as stopping to prevent damage or injury. Vision systems enable the robot to recognize objects and navigate through complex environments. Additionally, proximity and LiDAR sensors help detect the presence of humans nearby, allowing the robot to avoid collisions and maintain a safe working distance, which is crucial for effective shared spaces.
Examples & Analogies
Imagine a self-driving car that can see its surroundings and stop for pedestrians. Similar technology is used in cobots, making them aware of where people are and helping them to avoid accidents. This ensures that they can work alongside humans without causing danger, just like how a careful soccer player avoids colliding with teammates while running for the ball.
Control Systems
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Central controller for trajectory planning and task execution.
• Integrated safety protocols (e.g., ISO 10218-1 and ISO/TS 15066).
• Real-time response systems for dynamic environments.
Detailed Explanation
The control system of a cobot acts as its 'brain,' managing how it moves and performs tasks. A central controller is responsible for planning the paths (trajectories) the cobot will take when executing tasks. This system incorporates safety protocols to ensure compliant operation within established safety guidelines. For instance, ISO standards outline requirements for safety in robot systems. Moreover, cobots need to be responsive in real-time as their environments can be dynamic, which allows them to adjust their movements based on changes around them, like a person dodging a ball during a game.
Examples & Analogies
Think of a conductor leading an orchestra. The conductor plans how the music will be played and makes real-time adjustments to ensure everything sounds harmonious. Just as the conductor keeps track of each musician, the control system in a cobot ensures that it knows where to go and what to do, even when unexpected things happen around it.
End Effectors
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Custom-designed grippers, welders, drills, or suction cups depending on the task.
• Tool changers for multipurpose functionality.
Detailed Explanation
End effectors are the tools at the end of a cobot's arm that interact directly with the environment. These can be custom-designed for various tasks, such as grippers for picking up items, welders for joining materials, drills for making holes, or suction cups for lifting flat surfaces. Additionally, many cobots come with tool changers, which allow them to swap out one end effector for another, enabling a single robot to perform multiple functions on a job site. This flexibility is essential in construction, where different tasks might require different tools.
Examples & Analogies
Consider a Swiss Army knife, which has multiple tools within one compact device. You can switch from a knife to scissors or a screwdriver based on what you need. Similarly, cobots can adapt by changing their end effectors to suit the task they're performing, whether it’s lifting, cutting, or welding, making them incredibly versatile on construction sites.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Mechanical Structure: Cobots are designed with a lightweight and flexible framework for easier maneuverability.
-
Sensor Systems: Essential for detecting human presence and ensuring safe collaboration in workspaces.
-
Control Systems: Includes a central controller and safety protocols that allow for precise operation.
-
End Effectors: Customized tools that enable cobots to perform various tasks effectively.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A cobot equipped with a gripper can pick and place construction materials accurately.
-
A cobot with a vision system can navigate around obstacles on a construction site.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Cobots are light and often bright, with sensors to keep things right.
📖 Fascinating Stories
-
Imagine a cobot named Charlie who has a soft edge and a flexible arm, designed to help humans without causing any harm!
🧠 Other Memory Gems
-
MSEC - Mechanical structure, Sensors, End effectors, Control systems.
🎯 Super Acronyms
C.S.E.M. - Control System, Sensors, End Effectors, Mechanical structure.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Collaborative Robots (Cobots)
Definition:
Robots designed to work alongside humans safely in a shared workspace.
-
Term: Degrees of Freedom (DoF)
Definition:
The number of independent movements a robot can make.
-
Term: Sensors
Definition:
Devices that detect and respond to physical stimuli, such as force, light, and distance.
-
Term: End Effectors
Definition:
Tools attached to the end of a robot arm that enable the execution of specific tasks.
-
Term: Realtime Response
Definition:
The ability of a system to react to changes in the environment instantaneously.
-
Term: Central Controller
Definition:
The main processing unit responsible for coordinating a robot's movements and functions.
