Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Super-elevation
Unlock Audio Lesson
Today, we're discussing super-elevation. This is crucial for ensuring vehicles can navigate curves safely without skidding. Can anyone tell me what super-elevation means?
Is it about tilting the roadway to help cars turn better?
Exactly! It helps counteract the effect of centrifugal force on the vehicle. We generally represent it by an angle θ. Remember the formula relating speed, radius, and super-elevation!
What happens if the super-elevation is too much?
Good question! If the super-elevation is excessive, it might lead to instability, causing the vehicle to tip over. So, balancing super-elevation is key!
In conclusion, super-elevation is a critical factor in designing safe transitions on roads and railways, allowing vehicles to navigate curves effectively.
Length of Transition Curves
Unlock Audio Lesson
Let's move on to the length of transition curves. Why do you think it's important to determine the right length?
I guess a longer length would make it smoother for vehicles?
Precisely! A longer transition allows vehicles to adapt gradually to the change in curvature. There are several methods to compute this length, such as using the rate of change of super-elevation. Can anyone remember the formula relating these variables?
It's something like L = n * h, right?
Exactly! L is the length of the transition curve, n is the ratio for super-elevation, and h is the height of the super-elevation. It's all about smooth transitions!
In summary, calculating the correct length of transition curves is vital to enhancing the comfort and safety of transportation.
Characteristics of Transition Curves
Unlock Audio Lesson
Let's discuss the characteristics of transition curves. How do you think they fit into the overall road design?
They probably connect straight paths to curves more smoothly?
Absolutely! Transition curves serve as a buffer between straight and circular sections. They require precise calculations for tangent lengths and shifts. What do you think a shift might mean in this context?
Is it the distance you need to move the curve's center?
Right! The shift helps fitting the transition curve within the layout. The relationship between the deflection angle, tangent lengths, and shifts is critical for seamless transitions.
To summarize, understanding the characteristics of transition curves aids in designing roads that facilitate safe, efficient travel.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Transition curves are critical in transportation engineering as they help provide a gradual change in alignment from straight to curved sections. The section explores concepts such as super-elevation, lengths of transition curves, and their characteristics, including formulas for calculating these parameters to enhance safety and comfort.
Detailed
Transition Curves
Overview
This section delves into transition curves necessary for the safe and comfortable navigation of vehicles along roads and railways.
Key Concepts
- Super-elevation: Super-elevation is the banking of the roadway at a curve, designed to counteract lateral acceleration from centrifugal forces. The relationship between weight, centrifugal force, speed, and the radius of the curve is mathematically expressed in terms of super-elevation.
- Length of Transition Curves: Various methods exist to compute the length of transition curves, including empirical methods based on experience or specific design rates of super-elevation. The section provides formulas for calculating the transition curve length based on super-elevation and its application rate, time rate for applying super-elevation, and radial acceleration.
- Characteristics of Transition Curves: This part discusses how transition curves fit into the overall geometric layout of circular curves, focusing on tangent lengths, shifts, and deflection angles. Relationships between various geometrical parameters are explored, helping students understand how to design these curves effectively.
Understanding these principles is essential for transportation engineers tasked with designing safe and efficient roads and railways.

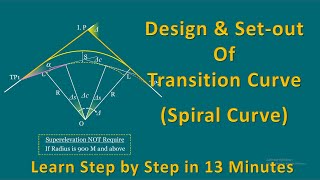

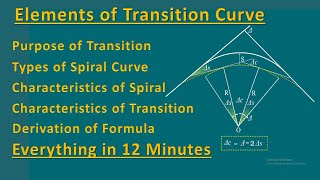

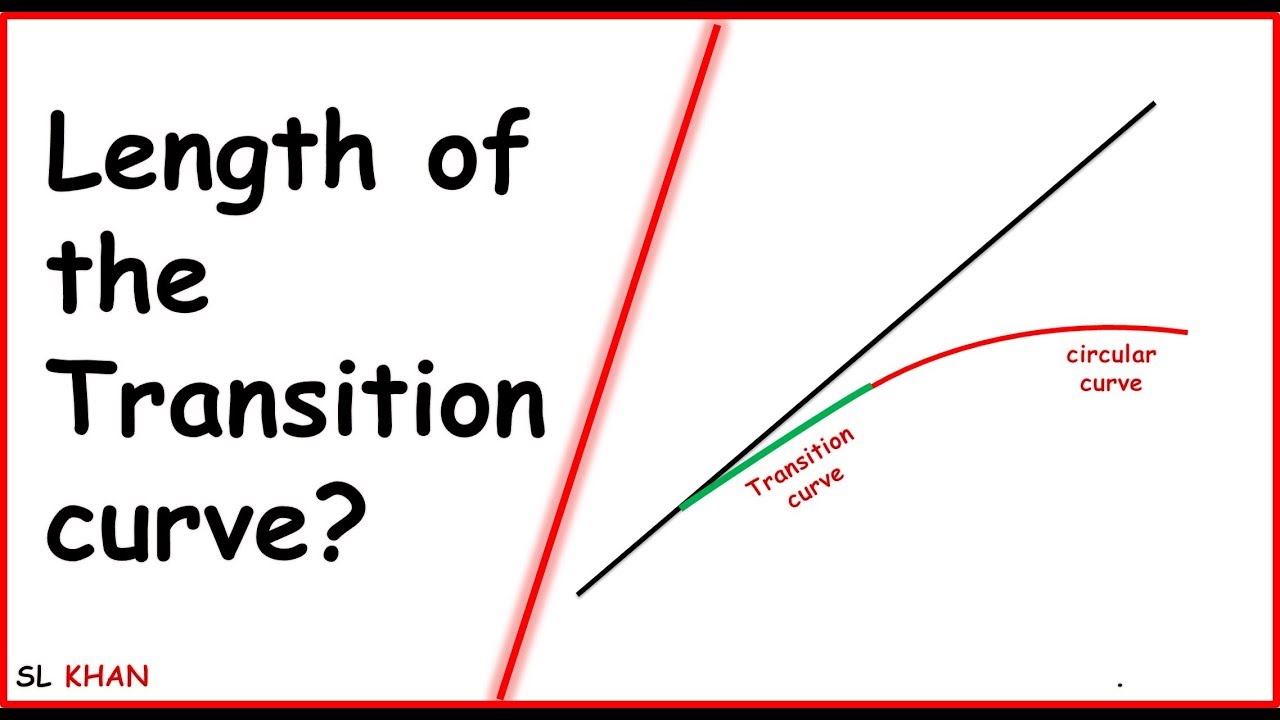

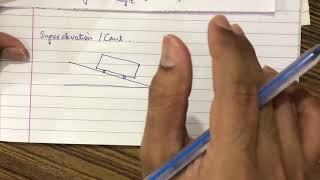

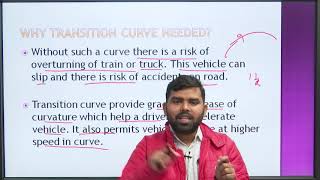

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Transition Curves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The length of the transition curve may be computed from (i) arbitrary gradient, (ii) the time rate, and (iii) rate of change of radial acceleration. It can be determined in the following ways;
1. The length may be already assumed on the basis of experience and judgement as say, 100 m.
2. The length may be such that the super-elevation is applied at a uniform rate of 1 in 300 to 1 in 1200. If h is the amount of super-elevation, then the length of the transition in curve may be from 300h to 1200h.
3. The length of the transition curve may be such that the super-elevation is applied at an arbitrary time rate of ‘a’ cm/sec. The value of ‘a’ usually varies from 2.5 cm to 5 cm.
4. The length of the transition curve may be such that rate of change of radial acceleration does not exceed a certain value, which is generally 30 cm/sec². It would help in smooth moving of the vehicle and the passengers when moving over the curve.
Detailed Explanation
Transition curves are used to create a gradual change from a straight path to a curved path in roads or railways. Calculating the proper length of a transition curve can be done using various methods, including relying on previous experience, applying super-elevation gradually, or controlling the rate at which the vehicle accelerates as it enters the curve. For instance, if you want to ensure vehicles move smoothly without sudden turns, consider setting a transition curve of length 100 meters based on your observations of traffic flow and safety.
Examples & Analogies
Imagine riding a bicycle straight down a path and suddenly turning sharply left without warning. You might fall off because the turn was too abrupt. Instead, if you gradually curved your bike into the turn, you would be able to maintain balance and speed. This gradual process of turning is akin to adding transition curves in road design – they make the path smoother and safer.
Calculating Transition Curve Length
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If L is the length of the transition curve in meters, v is the speed in meters/sec, h is the amount of super-elevation in centimeters, 1 in n is the rate at which super-elevation is provided, a is the time rate, R is the radius of the curve in meters, and C is the rate of change of radial acceleration in meters/sec². then-
L = n h
L = n (bv² / gR)
L = nbv² / gR
Detailed Explanation
To quantify the length of a transition curve for safe road or railway design, several variables come into play, such as the speed of the vehicle (v), the amount of super-elevation (h), and the radius of the curve (R). The derived equations help calculate L, the transition curve's length. This can be determined through specific conditions like how quickly a vehicle should transition into a curved path, where having the correct measurements allows for better handling and safety of the vehicle.
Examples & Analogies
Think about driving on a highway and approaching a curve. If you take the curve too quickly without slowing down or adjusting your steering, you might find yourself losing control. Engineers use these calculations to determine how long to extend the curve so that when vehicles enter it, they can maintain their speed and stability, much like a graceful figure skater transitioning smoothly into their next move.
Characteristics of a Transition Curve
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In Figure 2.18, a circular curve EE' of radius R, and two transition curves T E and E' T at the two ends, have been inserted between the two straights. ... The chainage of beginning (T) of the combined curve = chainage of the intersection point (B) - total tangent length for the combined curve (BT).
Detailed Explanation
A transition curve functions as a gentle connector between two straight segments of road or railway and a circular curve. The transition allows vehicles to adjust their steering and speed gradually, contributing to overall safety and comfort. Additionally, calculating the chainage, which tracks the distances along a path, is critical in designing these curves effectively.
Examples & Analogies
Think of a dance floor where partners move from a straight line into a circular formation. If they don't ease into the movement, they could bump into each other or fall. Transition curves in road design enable vehicles to smoothly transition from a straight path into curves, just as dancers ease into a new formation.
Defining Shift in Curves
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The distance through which the curve is shifted is known as shift (S) of the curve, and is equal to ..., where L is the length of each transition curve and R is the radius of the desired circular curve.
Detailed Explanation
When inserting transition curves into design, there’s often a need to adjust or 'shift' the curve slightly inward from the desired circular arc. This shift is necessary to properly align the transition curves with the straights. By calculating the shift, engineers ensure that the road or rail behaves predictably, creating safer travel through curves.
Examples & Analogies
Consider a car on a racetrack. Drivers align their cars not just to the curve's diameter but also slightly shift their angles for sharper turns. Similarly, the mathematical adjustment in shift ensures that everything aligns perfectly for smooth navigation around curves.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Super-elevation: Super-elevation is the banking of the roadway at a curve, designed to counteract lateral acceleration from centrifugal forces. The relationship between weight, centrifugal force, speed, and the radius of the curve is mathematically expressed in terms of super-elevation.
-
Length of Transition Curves: Various methods exist to compute the length of transition curves, including empirical methods based on experience or specific design rates of super-elevation. The section provides formulas for calculating the transition curve length based on super-elevation and its application rate, time rate for applying super-elevation, and radial acceleration.
-
Characteristics of Transition Curves: This part discusses how transition curves fit into the overall geometric layout of circular curves, focusing on tangent lengths, shifts, and deflection angles. Relationships between various geometrical parameters are explored, helping students understand how to design these curves effectively.
-
Understanding these principles is essential for transportation engineers tasked with designing safe and efficient roads and railways.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example 1: Determining the amount of super-elevation required for a curve based on vehicle speed and curvature.
-
Example 2: Calculating the length of a transition curve using empirical data for super-elevation application rate.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a turn, road tilts and bends, / It keeps cars steady, makes curves friends.
📖 Fascinating Stories
-
Imagine a roller coaster that banks into a curve. The lean helps you stay on the track – that's super-elevation at work!
🧠 Other Memory Gems
-
Remember 'SLC' – Super-elevation balances Lateral Centrifugal force.
🎯 Super Acronyms
Use ‘L.R.V.’ for Transition Curve
- Length
- Radius
- and Vehicle speed.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Superelevation
Definition:
The banking of the roadway at a curve to counteract lateral acceleration from centrifugal forces.
-
Term: Transition Curve
Definition:
A curve that provides a gradual change in alignment from a straight path to a circular path.
-
Term: Centrifugal Force
Definition:
The apparent force experienced by a vehicle moving along a curved path, directed outward from the center of the curvature.
-
Term: Radius of Curvature
Definition:
The radius of the circular path that a vehicle or object follows in motion.
-
Term: Deflection Angle
Definition:
The angle formed between two tangent lines at the point of curve.
