7.12 - POINTS TO PONDER

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Conservation of Angular Momentum

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today, we're going to discuss angular momentum and its role in gravitation. Remember, angular momentum is conserved in systems, which is crucial for understanding orbits.

Student 1
Student 1

Can you explain what you mean by 'conserved'?

Teacher
Teacher

Great question! 'Conserved' means that angular momentum doesn't change unless acted upon by an external force. In gravitational systems, this principle helps explain Kepler's second law.

Student 2
Student 2

What does Kepler's second law state?

Teacher
Teacher

It states that a line segment joining a planet and the Sun sweeps out equal areas during equal times. This happens because of the conservation of angular momentum!

Student 3
Student 3

So, the closer a planet gets to the Sun, it speeds up, right?

Teacher
Teacher

Exactly, Student_3! As it moves closer, it sweeps out area faster. Let's just remember: **

Teacher
Teacher

Now, let\u2019s summarize: Angular momentum is conserved, leading to Kepler\u2019s second law!

Student 4
Student 4

Can we have real-life examples, like satellites?

Teacher
Teacher

Absolutely! Satellites follow similar conservation paths due to angular momentum. Let's move on to mechanical energy...

Teacher
Teacher

Weightlessness is a fascinating topic too, let\u2019s explore that next.

Gravitational Potential Energy

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Next, let's explore gravitational potential energy, or GPE. Can anyone tell me how it\u2019s defined?

Student 3
Student 3

Isn\u2019t it the energy stored due to an object\u2019s position in a gravitational field?

Teacher
Teacher

Exactly! And it's defined with respect to a reference point, often taken as zero at infinity.

Student 2
Student 2

But what about the constants you mentioned?

Teacher
Teacher

Good observation! We can choose any reference point for potential energy, but it's conventional to set it to zero at infinity.

Student 1
Student 1

So, does that mean gravitational energy is always negative?

Teacher
Teacher

Correct! GPE is often negative because it indicates energy is needed to escape the gravitational field. Remember, **GPE = - (G\u00d7m1\u00d7m2)/r**. It helps us calculate work done against gravity.

Student 4
Student 4

Is that the same for all celestial bodies?

Teacher
Teacher

Yes, GPE principles hold universally for celestial interactions. Keep in mind: energy is released during fall but requires work to ascend.

Teacher
Teacher

So to summarize: Gravitational potential energy is defined relative to a reference point, usually set at zero at infinity, and is negatively valued.

Tidal Effects

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let's discuss tidal effects. Why do you think the moon has a greater tidal influence than the sun?

Student 4
Student 4

Is it because it's closer to Earth?

Teacher
Teacher

Exactly! Even though the sun\u2019s gravitational force is larger due to its mass, distance affects the gravitational pull significantly.

Student 2
Student 2

So, the closer an object, the greater the effect?

Teacher
Teacher

Right you are! Tidal effects diminish with distance, reinforcing our understanding of gravitational influence.

Student 3
Student 3

Does this mean tidal patterns change based on the moon's phases too?

Teacher
Teacher

Great connection! Yes, tides are stronger during full and new moons due to alignment with the sun and moon.

Teacher
Teacher

As a recap: The moon exerts a greater tidal influence despite the sun's greater gravitational force due to the difference in distances.

Student 1
Student 1

That\u2019s fascinating! It makes me think about the ocean currents too.

Gravitational Shielding

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Let\u2019s explore gravitational shielding. Can we block gravitational forces like we block electrical forces?

Student 1
Student 1

I don\u2019t think we can, right? Gravity is different.

Teacher
Teacher

Exactly right! Gravitational forces act on mass and cannot be shielded. It\u2019s fundamental to how gravity operates across distances.

Student 4
Student 4

So, being inside a hollow sphere won\u2019t shield us from gravity?

Teacher
Teacher

Correct! That\u2019s a common misconception. Gravitational pull will still be felt because there's nothing to block it.

Student 2
Student 2

Does that mean we always experience some gravitational force?

Teacher
Teacher

Absolutely, until you\u2019re free from all mass, which is practically in outer space. To summarize this session: Gravitational shielding is impossible, as gravitational forces always exert an influence.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

The section discusses key principles related to gravitation, focusing on conservation laws and gravitational potential energy.

Standard

In this section, various critical points regarding gravitational motion, such as the conservation of angular momentum, the forces experienced by objects in different gravitational contexts, and the significance of gravitational potential energy are explored.

Detailed

Points to Ponder in Gravitation\n\nIn the study of gravitation, several fundamental concepts arise that deepen our understanding of how objects interact under gravitational influence. Here are the key points to consider: 1. Conservation Laws\n- Angular Momentum: In gravitational interactions, angular momentum is conserved. This conservation is particularly crucial in understanding planetary motions, where it leads to Kepler\u2019s second law, asserting that a line segment joining a planet and the Sun sweeps out equal areas during equal time intervals.\n- Mechanical Energy: The total mechanical energy of a system involving gravitation is also conserved. However, linear momentum is not conserved in such systems due to external gravitational forces acting on the objects.2. Kepler\u2019s Third Law\nKepler\u2019s Third Law postulates a relationship between the orbital period of a planet and the size of its orbit. In mathematical terms, the square of the orbital period (T) is proportional to the cube of the semi-major axis (R) of its orbit (T\u00b2 \u221d R\u00b3). This constant of proportionality is the same for all planets.3. Weightlessness in Space\nAn astronaut inside a spacecraft orbiting Earth experiences weightlessness not because the gravitational force is non-existent, but because both the astronaut and the spacecraft are in free fall towards Earth. 4. Gravitational Potential Energy (GPE)\nThe gravitational potential energy associated with two masses separated by a distance (r) is defined with respect to a constant which can be zeroed out at infinity. This leads to important implications regarding how energy is transferred within systems under gravitational influence. 5. Gravitational Shielding\nUnlike electrical forces which can be blocked by conductors, gravitational forces do not allow for such shielding. The force remains effective despite being inside a shell of mass.\n\nThese points are fundamental in understanding the dynamics of gravitational systems and reflect the broader principles at play in physics.

Youtube Videos

Gravitation | NCERT Points To Ponder | Physics Class 11th #neetjee #physics
Gravitation | NCERT Points To Ponder | Physics Class 11th #neetjee #physics
Gravitation | NCERT Points To Ponder | Physics Class 11th #neetjee #physics
Gravitation | NCERT Points To Ponder | Physics Class 11th #neetjee #physics
Complete Points to Ponder of NCERT Physics | Class 11 + Class 12 | NEET 2025
Complete Points to Ponder of NCERT Physics | Class 11 + Class 12 | NEET 2025

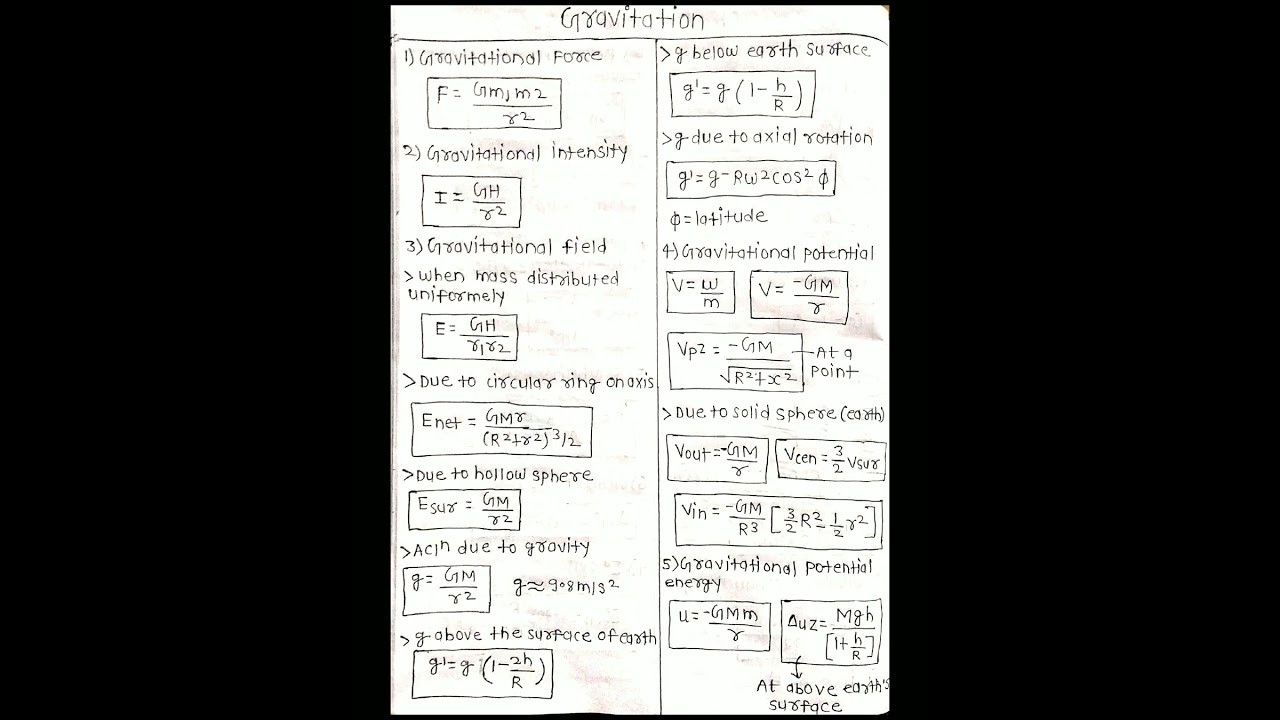

GRAVITATION CLASS 11 PHYSICS FORMULA📝📝
GRAVITATION CLASS 11 PHYSICS FORMULA📝📝
Class 9 Science Chapter 7 | Motion | Motion Under Gravity | Motion Class 9 | Motion Class 9 NCERT
Class 9 Science Chapter 7 | Motion | Motion Under Gravity | Motion Class 9 | Motion Class 9 NCERT
Gravitation class 11 one shot || Short notes revision|| NEET/JEE | NCERT
Gravitation class 11 one shot || Short notes revision|| NEET/JEE | NCERT

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Conserved Quantities in Gravitational Motion

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. In considering motion of an object under the gravitational influence of another object the following quantities are conserved:
    (a) Angular momentum
    (b) Total mechanical energy
    Linear momentum is not conserved.

Detailed Explanation

When an object moves under the influence of gravity from another object, two main quantities remain constant: angular momentum and total mechanical energy. Angular momentum refers to how quickly and in what direction the object is spinning around an axis, whereas total mechanical energy is the sum of both kinetic energy (energy of motion) and potential energy (stored energy due to position). As the object is pulled by gravity, it may speed up (kinetic energy increases) while losing height (potential energy decreases), but the total energy remains constant, assuming no other forces act on it. Importantly, linear momentum, which is the product of mass and velocity, is not conserved in gravitational interactions, especially when external forces come into play.

Examples & Analogies

Imagine spinning a ball on a string. As you pull the string (applying a force), the ball speeds up as it moves closer to you, but if you let go, it flies off in a straight line. In a similar way, an object influenced by gravitational force speeds up as it falls towards the Earth, yet its angular momentum remains constant as long as no external torques act upon it.

Kepler's Second Law and Angular Momentum Conservation

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. Angular momentum conservation leads to Kepler’s second law. However, it is not special to the inverse square law of gravitation. It holds for any central force.

Detailed Explanation

Kepler’s second law, also known as the law of equal areas, states that a line segment joining a planet and the Sun sweeps out equal areas during equal intervals of time. The fact that angular momentum is conserved means that as a planet gets closer to the Sun (in its elliptical orbit), it speeds up, and when it is further away, it slows down, ensuring that the area swept out over time remains constant. This relationship is true not only for planetary motion around the Sun under gravity's influence but also for any central forces acting by a central body. The geometric nature of orbits and the distribution of force can apply beyond just celestial mechanics.

Examples & Analogies

Think of a figure skater spinning with their arms outstretched. As they pull their arms in (like a planet moving closer to the Sun), they spin faster to conserve angular momentum. Likewise, planets speed up when they are near the Sun and slow down when they're farther away, illustrating Kepler's second law in a practical and relatable manner.

Kepler's Third Law and Its Application

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. In Kepler’s third law (see Eq. (7.1) and T^2 = kS^3). The constant kS is the same for all planets in circular orbits. This applies to satellites orbiting the Earth [(Eq. (7.38)].

Detailed Explanation

Kepler’s third law establishes a relationship between the time a planet takes to orbit the Sun (orbital period, T) and the size of its orbit (semi-major axis, S). Specifically, the square of the orbital period of a planet is proportional to the cube of the semi-major axis of its orbit. This relationship is represented mathematically as T^2 being equal to k times S^3, where k is a constant that is the same for all planets orbiting in a circular path around the Sun. This law not only applies to planets but also to artificial satellites orbiting the Earth, linking their period to their distance from the center of the Earth through similar equations.

Examples & Analogies

Consider a race track. If one car is on a longer oval track, it will take significantly more time to complete a lap than another car on a shorter track. Just like that, planets farther from the Sun not only take longer to orbit but the relationship between time and distance remains consistent, highlighting a fundamental aspect of orbital mechanics.

Weightlessness in Space

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. An astronaut experiences weightlessness in a space satellite. This is not because the gravitational force is small at that location in space. It is because both the astronaut and the satellite are in “free fall” towards the Earth.

Detailed Explanation

When an astronaut is inside a space satellite orbiting Earth, they experience weightlessness. This sensation occurs not because gravity is absent—gravity is still very much present in space—but because both the astronaut and the satellite are in free fall towards Earth simultaneously. Essentially, as the satellite travels in its orbit, it is falling towards Earth due to gravity, but because it also has significant horizontal velocity, it moves forward, creating a curved path. This results in a feeling of weightlessness as there are no normal forces acting on the astronaut's body—as if they were in an elevator plummeting down rapidly, where they would also feel weightless.

Examples & Analogies

Imagine being in a drop tower ride at an amusement park. For that brief moment of free fall, you feel weightless because you and the ride are accelerating at the same rate. That's similar to what astronauts feel in a space station, where they are continuously falling towards Earth but also moving forward, resulting in an orbit.

Gravitational Potential Energy and Its Choice

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. The gravitational potential energy associated with two particles separated by a distance r is given by V_G = -G (m_1 m_2)/r + constant. The constant can be given any value. The simplest choice is to take it to be zero. With this choice, V_G = -G (m_1 m_2)/r.

Detailed Explanation

The gravitational potential energy (V_G) between two masses is determined by their masses and the distance between them. The formula indicates that this energy is negative, which reflects the attractive nature of gravitational forces. The gravitational potential energy decreases (becomes more negative) as the two masses are brought closer together. The constant in this formula allows flexibility; we can assign a different zero point for potential energy, such as setting it to zero at infinite separation. This choice simply alters the scale of energy but does not change the physics behind the gravitational interaction.

Examples & Analogies

Think of a hill. When you reach the top, you're at a higher potential energy state compared to the bottom. If you set your reference point to the ground level, then as you climb, you're gaining potential energy. But if you say that you're starting from a point way up high (on a cloud, for instance), then moving down to the hill is actually losing potential energy relative to that cloud height, but your physical situation regarding gravitational forces remains unchanged.

Total Mechanical Energy and Its Implications

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. The total mechanical energy of an object is the sum of its kinetic energy (which is always positive) and the potential energy. Relative to infinity (i.e. if we presume that the potential energy of the object at infinity is zero), the gravitational potential energy of an object is negative. The total energy of a satellite is negative.

Detailed Explanation

Total mechanical energy combines both kinetic energy (due to motion) and potential energy (due to position). In the context of gravitational fields, if we consider the potential energy at a point far away, such as infinity, it is set to zero. As a result, potential energy near massive objects is negative because the object is bound to the mass by gravity. This means that the total energy of orbiting satellites and other similar systems is negative, indicating that they are bound and cannot escape unless energy is added to the system to overcome this gravitational pull.

Examples & Analogies

Consider a ball thrown into the air. As it rises, its kinetic energy decreases while its potential energy increases until it reaches its peak. If we calculate the total energy during its flight, when on the ground, it's zero, and as it rises, it dips below zero due to the gravitational potential energy becoming negative. This is a similar concept to satellites that stay in orbit—locked in a gravitational embrace while retaining a negative total energy.

Common Approximation for Gravitational Potential Energy

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. The commonly encountered expression m g h for the potential energy is actually an approximation to the difference in the gravitational potential energy discussed in the point 6, above.

Detailed Explanation

The expression mgh is a practical approximation for gravitational potential energy near the Earth’s surface where g (acceleration due to gravity) is considered constant. This simplification is valid since it makes calculations easier when heights involved are small compared to the radius of the Earth. However, this linear approximation only holds true for short distances from the surface; as the distance increases significantly, the variations in gravitational force must be considered, and thus the formula becomes more complex than simply mgh.

Examples & Analogies

Living at the base of a mountain, when you walk a flight of stairs, you can calculate your potential energy gain just using height multiplied by your weight. But if you try to calculate your potential energy at the summit of a very tall mountain, you might need a more detailed understanding of how gravitational force changes with altitude instead of just mgh—where factors like Earth's curvature start to matter.

The Nature of Gravitational Forces

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. Although the gravitational force between two particles is central, the force between two finite rigid bodies is not necessarily along the line joining their centre of mass. For a spherically symmetric body however the force on a particle external to the body is as if the mass is concentrated at the centre and this force is therefore central.

Detailed Explanation

Gravitational force is often described as a central force acting along the line connecting the centers of mass of two bodies. However, when dealing with non-spherical objects made up of discrete masses, the gravitational interactions are more complex due to the distribution of mass. For a spherically symmetric body, like a perfect sphere, the gravitational effect can still be treated as if the total mass were concentrated at the center, making the force central. This property greatly simplifies the calculations of gravitational interactions in celestial mechanics.

Examples & Analogies

Think of gravity as a 'beacon' of attraction. When standing on the surface of a perfectly round ball, every point on the sphere is pulling you towards the center uniformly, hence the force feels straight down. However, if the shape is irregular, each point might pull at slightly different angles, complicating the outcome—just like attempting to navigate a hockey puck as it hits the uneven bumps on a frozen pond.

Inside Spherical Shells and Gravitational Influence

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. The gravitational force on a particle inside a spherical shell is zero. However, (unlike a metallic shell which shields electrical forces) the shell does not shield other bodies outside it from exerting gravitational forces on a particle inside. Gravitational shielding is not possible.

Detailed Explanation

Inside a uniform spherical shell, gravitational forces from the mass of the shell cancel out, resulting in no net gravitational force acting on a point within the shell. This means that a particle inside will experience weightlessness due to the lack of gravitational pull. However, this cancellation does not prevent external gravitational bodies from influencing the system, thus showing that gravitational shielding does not occur as it might with electric fields. Every mass attracts every other mass, regardless of barriers.

Examples & Analogies

Imagine being in a gigantic spherical playground dome. Once inside, you could toss a basketball around freely without feeling any gravitational pull pulling it back down to the ground, as if you were weightless. But if someone outside the dome were to throw another ball at multiple angles, that ball would still have influence over what happens inside the dome, demonstrating that even if you’re shielded internally, external forces will still affect everything around.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Conservation of Angular Momentum: Angular momentum is conserved in gravitational systems, leading to predictable motion in orbits.

  • Gravitational Potential Energy: Energy is relative, often defined with zero at infinite separation.

  • Tidal Effects: The moon\u2019s proximity leads to stronger tidal influence compared to the sun\u2019s greater mass.

  • Gravitational Shielding: Gravitational forces cannot be shielded, acting on all mass present.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Example of tidal effects can be seen during full moons, where tides reach higher levels due to the alignment of the Earth, Moon, and Sun.

  • When launching satellites, understanding GPE helps in calculating the energy required to overcome Earth's gravitational pull.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • In space where forces play, gravity pulls objects in sway.

📖 Fascinating Stories

  • Imagine a ball dropped from a tree... It falls with a speed, just like me, the moon pulls tides with ease, while the sun shines bright but can\u2019t budge the seas.

🧠 Other Memory Gems

  • GPE = G(m1m2)/r helps you recall the Gravitational Potential Energy formula.

🎯 Super Acronyms

TAG = Tidal, Angular momentum, GPE to remember key gravitational concepts.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Angular Momentum

    Definition:

    A physical quantity that represents the rotational inertia of an object in motion around a point.

  • Term: Gravitational Potential Energy (GPE)

    Definition:

    The energy an object possesses due to its position in a gravitational field.

  • Term: Tidal Effects

    Definition:

    Changes in sea level caused by the gravitational influence of the moon and sun.

  • Term: Gravitational Shielding

    Definition:

    The concept of blocking gravitational forces, which is not applicable as gravitational forces cannot be shielded.
