Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Reflection at Boundaries
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we'll discuss what happens to waves when they meet boundaries. Can anyone tell me what happens to a wave at a rigid boundary?
Does it just bounce back?
Exactly! When a wave meets a rigid boundary, it reflects back with a phase reversal. This means it inverts when it reflects, which you can think of as a wave 'flipping' over.
What about a softer boundary, like a string attached to a ring?
Good question! At a non-rigid boundary, the reflected wave does not reverse phase. It stays in phase with the incoming wave. This behavior is crucial in understanding wave applications in different media.
Can you show us an example of the mathematics?
Certainly! For an incident wave described by \( y_i(x, t) = a \sin(kx - \omega t) \), the reflection at a rigid boundary is given by \( y_r(x, t) = -a \sin(kx - \omega t) \). What happens to the amplitude at this boundary?
It becomes negative, right?
Exactly! So the phase shift here is crucial in understanding wave behavior. Letβs summarize this key point.
Types of Reflection
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Can anyone recap what we learned about rigid and non-rigid boundaries in wave reflection?
Rigid keeps the wave inverted, while non-rigid keeps it the same?
Perfect! These differences are critical when analyzing waves in physical systems. Why might this matter, for example, in acoustics?
It could affect sound quality depending on how the sound bounces back!
Absolutely! Understanding how waves reflect helps in designing spaces for optimal sound. Can anyone give an example of a real-world application?
Like concert halls or recording studios?
Exactly! Now let's move to stationary waves formed through reflection.
Standing Waves
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's talk about how reflection leads to standing waves. Can anyone define what a standing wave is?
Isn't it when two waves traveling in opposite directions create a fixed pattern?
Exactly! When waves meet this way, nodes and antinodes form. What happens at a node?
There's no movement at a node.
Right, and at antinodes, we see the maximum movement. Can you recall how the distance between these points relates to the wavelength?
The distance between nodes is half the wavelength!
Well done! All this helps us understand vibration modes in various media. Let's finish with a recap of todayβs concepts.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
When a wave meets a boundary, different types of reflection occur depending on the boundary's nature. Rigid boundaries cause phase reversal upon reflection, whereas non-rigid boundaries allow the wave to reflect with minimal phase change. This section elucidates these principles through mathematical descriptions and examples.
Detailed
Reflection of Waves
In this section, we explore the behavior of waves when they encounter boundaries. The fundamental principle governing this behavior is that a wave's characteristics can change upon reflection depending on the type of boundary.

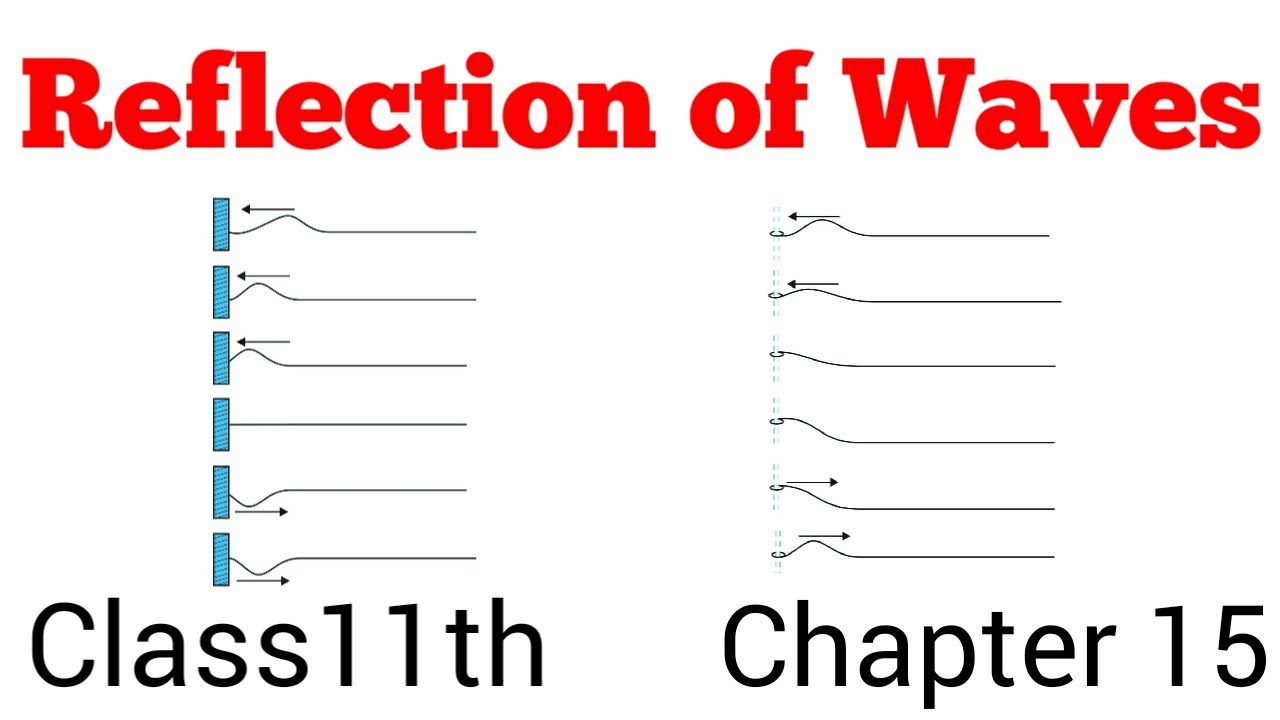

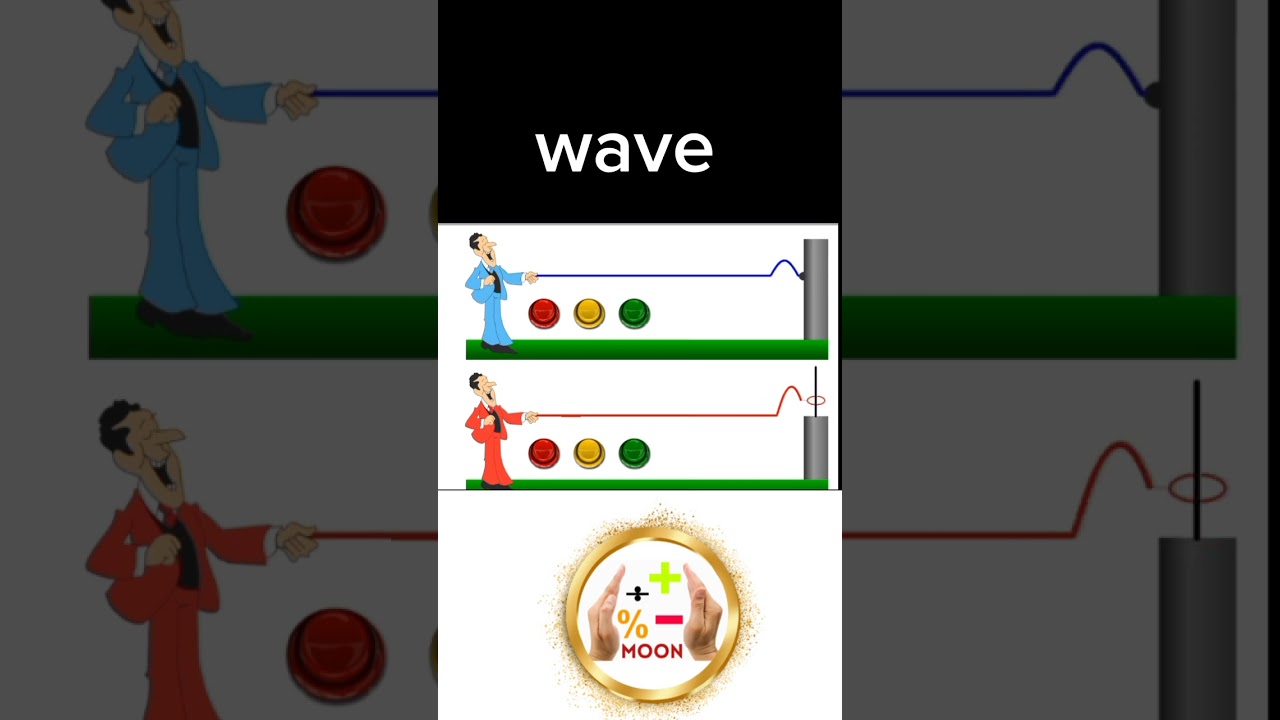

Reflection at Boundaries
When a wave approaches a boundary, if the boundary is rigid, such as a solid wall, the pulse or wave experiences a reflection characterized by a phase reversal of Ο radians (180 degrees). On the other hand, if the boundary is non-rigid, like a string attached to a freely moving ring, the reflected wave retains the same phase as the incident wave.
Mathematical Representation
Mathematically, for an incident wave described as:
$$ y_i(x, t) = a ext{sin}(kx - ext{Ο}t) $$
Reflection at a Rigid Boundary results in:
$$ y_r(x, t) = -a ext{sin}(kx - ext{Ο}t) $$
Reflection at a Non-Rigid Boundary results in:
$$ y_r(x, t) = a ext{sin}(kx - ext{Ο}t) $$
These equations showcase how the amplitude and phase of the reflected wave relate to that of the incident wave, dictating that at a rigid boundary, the maximum displacement becomes negative, indicating a phase change.
Standing Waves and Normal Modes
The section also introduces the concept of standing waves, which arise from the superposition of waves traveling in opposite directions. This phenomenon is observable in systems with two or more boundaries, leading to stationary wave patterns characterized by nodes where displacement is always zero and antinodes where displacement is maximum.
In summary, understanding wave reflection at boundaries is crucial in various applications, including acoustics and structural engineering, and forms a foundational aspect of wave behavior in physics.
Youtube Videos
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Reflection at Boundaries: Waves reflect at boundaries, with characteristics determined by the boundary type.
-
Standing Waves: Formed from superposition of waves traveling in opposite directions, featuring fixed nodes and variable antinodes.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of echo in a canyon illustrates wave reflection in a rigid boundary.
-
Example of a guitar string demonstrates standing waves when plucked.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
At the wall, waves reflect, flip and fall, in the hall, at the open gate, they just wait.
π Fascinating Stories
-
Imagine waves exploring a kingdom of boundaries; at the rigid castle, they flip, but at the soft meadow, they just gently reflect!
π§ Other Memory Gems
-
Rigid Reflection = Reverse Phase (RR = RP)
π― Super Acronyms
WAN
- Waves At Nodes (to remember waves at nodes do not move)
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Reflection
Definition:
The change in direction of waves when they hit a boundary.
-
Term: Standing Waves
Definition:
Waves that remain in a constant position, formed by the superposition of waves traveling in opposite directions.
-
Term: Nodes
Definition:
Points along a standing wave that have no displacement.
-
Term: Antinodes
Definition:
Points of maximum displacement in a standing wave.
-
Term: Phase Reversal
Definition:
A change in phase of a wave, typically by 180 degrees, evident when reflecting off a rigid boundary.
