Applying and Patterning Photoresist
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we'll explore the first step in the GaN HEMT mesa etching process, which is applying and patterning photoresist. Why do we use photoresist in this context?
Is it to create a template for etching?
Exactly! The photoresist acts as a sensitive layer that defines where etching occurs. It's important to control exposure and development conditions to avoid degrading the underlying layers.
What happens if the photoresist is degraded?
Degradation can lead to poor pattern transfers and affect device performance. We have to ensure lower baking temperatures, typically around 90 to 100 degrees Celsius.
Is there a specific technique for alignment?
Yes, precise alignment techniques like using alignment optics are crucial for success in our lithography step.
To summarize, applying and patterning photoresist is fundamental as it sets the blueprint for our subsequent etching processes.
Hard Mask Deposition and Etching
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Next, we deposit the SiOβ hard mask using PECVD. What is the purpose of the hard mask in mesa etching?
Is it to protect the underlying layers during etching?
Correct! The hard mask provides additional material that can withstand etching without degrading. Once deposited, itβs etched using CFβ RIE.
How do we choose the etching gas?
The choice depends on the material's composition. CFβ targets silicon dioxide effectively while ensuring that GaN underneath remains unaffected.
What if the mask erodes during the process?
Mask erosion might lead to inconsistent mesa etching depth, impacting device performance. That's why we have to monitor etching conditions closely.
Letβs recap: depositing a hard mask protects our GaN layers and allows for high-precision etching.
ICP Etching of GaN
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
The most critical phase is the ICP etching of GaN. Can anyone explain why ICP is preferred over other methods?
Because it offers higher ion density and better anisotropy?
Exactly! This helps achieve a well-defined structure without damaging the mesa edges.
What gases do we typically use during this stage?
We often use mixtures of Clβ and BClβ to ensure effective etching of GaN while maintaining selectivity to the hard mask.
How do we ensure the depth is uniform?
Monitoring parameters like RF power and pressure is crucial for achieving uniform etch depth. Always keep these parameters carefully controlled.
To sum up, ICP etching is vital for defining the GaN mesa, facilitating high precision.
Surface Cleaning and Contact Deposition
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
After etching, the next step is to strip the photoresist and clean the surface. Why is this cleaning phase important?
To remove residues that could affect the next processing steps?
Precisely! Using a wet chemical etch helps ensure that any residue from the etching process is eliminated.
What about the deposition of ohmic contacts? How does that fit in?
Good question! After cleaning, we can deposit the ohmic contacts, which are essential for ensuring good electrical contact with the device.
Do we need to anneal them after depositing?
Yes, annealing is crucial to improve the contact quality by optimizing the interface between the ohmic contacts and the GaN.
In conclusion, the final steps of cleaning and contact deposition are critical in preparing the device for operation.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The process flow for GaN HEMT mesa etching involves applying and patterning photoresist, depositing a hard mask, etching the mask and GaN layer, and finally cleaning the surface. Each step is critical in achieving accurate dimension control and preserving the integrity of the material.
Detailed
In the fabrication of GaN HEMT devices, mesa etching is a crucial step. The process begins with the application and patterning of photoresist, which is a sensitive material that must be carefully handled to prevent degradation. Following this, a SiOβ hard mask is deposited through Plasma-Enhanced Chemical Vapor Deposition (PECVD). This hard mask is then etched using CFβ Reactive Ion Etching (RIE) to create a robust etch template. The next phase involves the use of chlorine-based Inductively Coupled Plasma (ICP) etching to accurately define the GaN mesa structure, which is critical for the functionality of HEMT devices. After etching, the photoresist is stripped away, and the surface is cleaned using a wet chemical etch to remove residues and prepare the substrate for further processing. This meticulous process flow is essential to achieve high fidelity and performance in electronic applications.
Youtube Videos

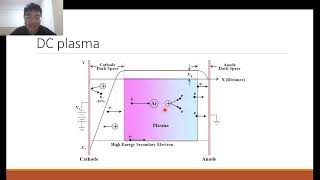

![[Materials Engineering for Semiconductor Devices] Chapter 7: Dry Etch](https://img.youtube.com/vi/LDnoa3Q4EyQ/mqdefault.jpg)
