Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Overview of Serial Testing
Unlock Audio Lesson
Today, we are diving into the concept of serial testing and how it aids in fault detection. Can anyone explain what serial testing is?
Isn't it about applying test vectors one after another to the system?
Exactly! Serial testing involves applying test vectors in sequence, which allows us to verify the internal workings of a circuit efficiently. This leads us to how scan chains fit into this method. Can anyone tell me what a scan chain is?
It's a series of flip-flops connected so we can shift data in and out for testing, right?
Correct! The scan chain structure provides us with access to internal states, which is critical for effective testing. Any thoughts on why this is important in complex digital circuits?
Because we often can't see what's happening inside during normal operation?
That's spot on! It allows us to troubleshoot without disrupting the overall functionality. Great job, everyone! So, who can summarize why observability and controllability are important in this context?
I think observability lets us see faults as they happen, and controllability helps us test different conditions.
Well summarized! Observability allows for real-time monitoring of internal states, while controllability allows us to manipulate inputs effectively. This balance is crucial to improving fault detection.
Types of Faults Detected
Unlock Audio Lesson
Now, let's shift our discussion to the specific types of faults that scan chains can help detect. Can anyone name a fault type that can be identified?
How about stuck-at faults?
Correct! Stuck-at faults occur when a circuit node is fixed at a logic level and doesn't respond to input changes. Can anyone explain why scan chains are effective in finding these?
Because they let us shift test patterns through the circuit to check each node directly.
Exactly! By applying carefully designed test patterns, we can simulate conditions to check for these faults. What about delay faults? How are they detected?
Maybe by ensuring the signals propagate through the circuit within the expected timing?
Yes! Delay faults can often arise from manufacturing defects, and scan chains provide a way to ensure the circuit behaves within its timing parameters. Finally, what about bridging faults?
They happen when two signals are connected incorrectly, right?
Correct! The scan chain helps detect these by identifying unintended interactions during testing. Excellent insights today, everyone!
The Role of Observability and Controllability
Unlock Audio Lesson
Let's delve deeper into obscurities like observability and controllability. Why do you think they are integrated into design for testability?
They help us access internal states that would otherwise be hidden!
Right! Observability means we can see what the circuit is doing, while controllability means we can manipulate inputs. Why is having both beneficial?
Together, they allow us to create more comprehensive tests.
Precisely! They work in tandem to improve fault coverage. Can anyone think of how we might apply these concepts in a real-world scenario, perhaps in an SoC?
In complex SoCs, traditional testing doesn't catch all faults. So, using scan chains would let engineers thoroughly check both combinational and sequential logic.
Spectacular observation! This is especially important given the increasing complexity of digital systems. So, as a takeaway: observability and controllability significantly enable effective testing strategies.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Fault detection in digital circuits is significantly improved by using scan chains during serial testing. This method allows for observing internal states and simulating input conditions to detect various fault types, making it essential for ensuring the reliability of complex digital systems.
Detailed
Fault Detection with Serial Testing
In digital systems, ensuring their functionality and reliability is paramount. This section focuses on how scan chains are utilized within serial testing to detect faults effectively. The main aspects discussed include:
Key Points
- Observability: Scan chains enhance the ability to observe internal states of the circuit through the scan-out process, enabling real-time fault detection.
- Controllability: The precise control over flip-flop inputs allows engineers to simulate various conditions and detect faults like stuck-at faults, transition faults, and delay faults.
- Sequential Logic Testing: Scan chains particularly excel in addressing the challenges posed by testing sequential circuits, ensuring internal conditions are scrutinized in a structured manner.
Overall, the integration of scan chains into serial testing not only improves the fault detection capabilities but also ensures comprehensive testing of both combinational and sequential logic in complex electronic systems.

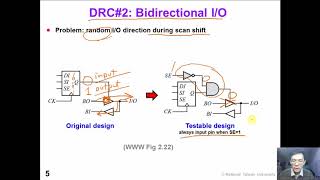

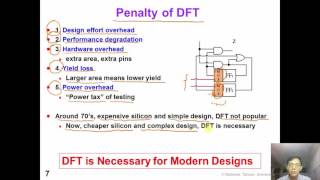

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Observability in Fault Detection
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The primary goal of serial testing is to detect faults that may arise in the internal components of a digital circuit. Using scan chains:
● Observability: Testers can observe the internal states of the circuit through the scan-out process, allowing for real-time detection of faults, even in complex systems where the internal logic might otherwise be inaccessible.
Detailed Explanation
Observability means that testers can see the internal workings of a digital circuit. When using scan chains during testing, parts of the circuit that are usually hidden (like specific logic gates or flip-flops) become visible during the scan-out process. This allows engineers to identify problems immediately, without needing to physically trace through all parts of the circuit which may be deep within complex designs.
Examples & Analogies
Imagine trying to solve a jigsaw puzzle in a dark room. You can only find the missing pieces if you shine a flashlight on specific areas of the puzzle. Observability with scan chains is like having the ability to shine a flashlight inside the puzzle so you can see which pieces fit where without needing to dismantle the entire structure. This helps in identifying how a circuit behaves in real conditions.
Controllability in Testing
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
● Controllability: Scan chains allow for precise control over the inputs to the flip-flops, enabling the simulation of various conditions to detect faults such as stuck-at faults, transition faults, and delay faults.
Detailed Explanation
Controllability refers to the ability to control the inputs of the testing equipment to the flip-flops in a predictable way. This is crucial during testing because it allows engineers to create specific scenarios under which they can check for different types of faults. For example, engineers can simulate scenarios to see if a flip-flop is stuck in one position or if it transitions between states correctly when given certain inputs.
Examples & Analogies
Think of controllability as a computer game controller. When you press buttons in a specific sequence, you can make your character jump or shoot. In the same way, by controlling inputs to flip-flops through scan chains, you are testing how well the digital circuit responds to those inputs, ensuring everything functions as expected.
Testing Sequential Logic
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
● Sequential Logic Testing: Traditional testing methods struggle to test sequential circuits thoroughly. Scan chains overcome this by directly accessing the sequential logic elements, ensuring that internal states are tested in a structured and predictable manner.
Detailed Explanation
Sequential logic circuits, such as those containing flip-flops or registers, have states that change over time based on their inputs and history. Traditional testing methods might not effectively check these states because they rely on observing the outputs. Scan chains simplify this by enabling direct access to these components, ensuring that their functionalities can be tested systematically and reliably.
Examples & Analogies
Consider a train system. If you only look at the final destination (the output), you might miss issues along the way, like a train that stops unexpectedly. Scan chains act like an onboard camera monitoring the train's journey, allowing you to watch every stop and track change, ensuring everything operates smoothly throughout the journey without relying solely on the final arrival.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Fault Detection: The process of identifying faults within a digital circuit.
-
Observability: The capability to observe internal states through mechanisms like scan chains.
-
Controllability: The ability to manipulate circuit states to facilitate testing.
-
Stuck-At Faults: A common type of fault where an output remains constant despite inputs.
-
Delay Faults: Critical issues arising from timing mismatches in signal propagation.
-
Bridging Faults: Faults caused by unintended connections between signal paths.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using a scan chain to detect stuck-at faults by applying specific test vectors to identify where the signal remains constant despite changes.
-
Detecting delay faults by monitoring the circuit response times against expected timings during testing.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Scan chain's the name of the game, catch faults, don't let them tame!
📖 Fascinating Stories
-
Imagine a circuit as a maze. Observability is like a window allowing you to see the paths, while controllability lets you pick which path to explore.
🧠 Other Memory Gems
-
To remember the types of faults, use the acronym 'SDB': Stuck-At, Delay, and Bridging faults.
🎯 Super Acronyms
Use the acronym 'COD' to remember
- Controllability
- Observability
- and Detection are crucial in fault diagnosis.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Scan Chain
Definition:
A sequence of flip-flops connected together to allow for the shifting of data in and out, enabling easier access for testing.
-
Term: Observability
Definition:
The ability to observe internal states of a circuit during testing.
-
Term: Controllability
Definition:
The ability to manipulate the inputs to the flip-flops to test various conditions.
-
Term: StuckAt Faults
Definition:
A type of fault where a node in a circuit is stuck at either a high or low logic value regardless of input.
-
Term: Delay Faults
Definition:
Faults that occur when signals propagate through the circuit slower than expected.
-
Term: Bridging Faults
Definition:
Faults that occur due to unintended connections between two or more signals in a circuit.
