Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Damping Measurement Techniques
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we will talk about how we measure damping in structures. Why do you think it's important to measure damping accurately?
To make sure buildings can withstand earthquakes.
Exactly! One common method is the Logarithmic Decrement Method, which looks at how the amplitude of vibrations decreases over cycles. Who can explain this method to the class?
We measure the difference in amplitude between consecutive cycles, right?
That's right, well done! This method is useful in giving us the damping ratio. Let's remember it as 'Log Decrement' for easier recall.
What about the Half-Power Bandwidth Method?
Great question! This method uses the frequency response curve to determine damping by checking at which frequencies the amplitude drops to half. This can help us understand how structures behave under different conditions.
So, both methods help us quantify the energy dissipation in structures?
Exactly! Now, let’s summarize our key points: We discussed the Logarithmic Decrement Method and the Half-Power Bandwidth Method, both crucial for understanding damping in structural systems.
Challenges in Damping Modeling
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, moving on to the challenges in damping modeling. What can you think of as a challenge in representing damping accurately?
Real damping might be nonlinear and hard to predict?
Spot on! Real-world damping can greatly vary due to factors like material properties and structural interfaces. Because of these complexities, we often use simplified models. Can anyone recall one such model?
Rayleigh Damping?
Correct! Rayleigh damping combines mass and stiffness proportions, and it's given by the equation: `C = αM + βK`. Understanding this is crucial as it aids in numerical simulations.
Is there a reason we simplify damping models?
Absolutely! Simplified models make calculations more manageable but can introduce some inaccuracies. The key is balancing simplicity with the need for realistic representations.
Then how do we know which model to use?
Good question! The choice depends on the specific conditions and required accuracy. Always refer to design codes and past research when making your decision.
Let’s summarize: We discussed the challenges of real-world damping, the use of Rayleigh damping, and the importance of balancing accuracy with simplicity in modeling.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section covers various methods for measuring damping, such as the Logarithmic Decrement Method and the Half-Power Bandwidth Method. It also highlights practical considerations in modeling damping in structures, noting challenges and common techniques like Rayleigh damping to simplify analysis.
Detailed
Measurement and Modeling of Damping
Damping measurement and modeling are crucial aspects in the field of earthquake engineering and structural dynamics. Accurate modeling ensures structures can withstand seismic events effectively. This section elaborates on various experimental methods used to measure damping, including:
Experimental Methods
- Logarithmic Decrement Method: This technique calculates damping by assessing the reduction in amplitude over several cycles of vibration. It is particularly useful for capturing the decay rate of oscillations in vibrating systems.
- Half-Power Bandwidth Method: Utilizes frequency response curves to determine damping. By evaluating the bandwidth of frequencies at which the response amplitude drops to half its peak value, this method provides another means to quantify damping.
Practical Considerations in Modeling
Damping modeling presents several challenges due to the complexity of real-world mechanisms. Moreover, often idealized models are necessary for simplicity in calculations. A commonly used method in numerical simulations is Rayleigh damping, where the damping matrix is defined based on mass and stiffness proportions:
C = αM + βK
Here, C represents the damping matrix, M is the mass matrix, and K is the stiffness matrix, while α and β are coefficients that dictate the proportions allotted to mass and stiffness, respectively.
Accurate damping models are vital for ensuring safe and effective designs in earthquake-resistant structures.

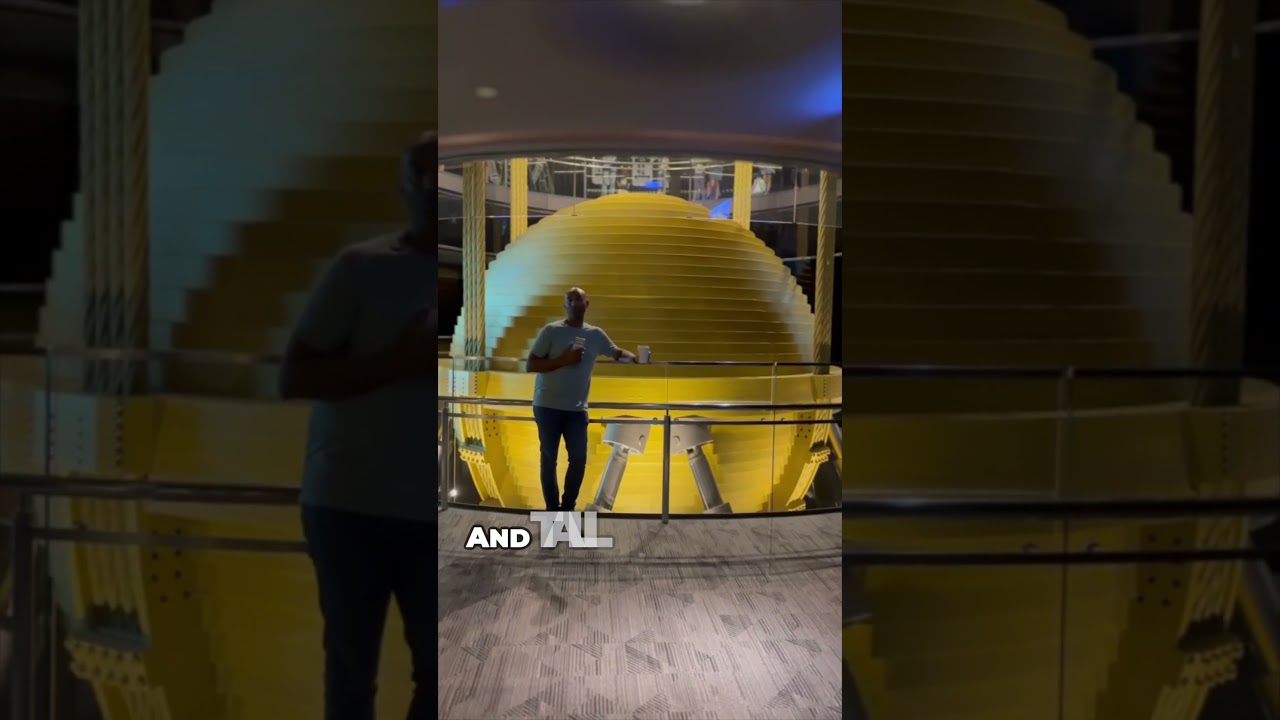

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Experimental Methods for Measuring Damping
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
2.5.1 Experimental Methods
• Logarithmic Decrement Method: Based on decay of amplitude over cycles
• Half-Power Bandwidth Method: Using frequency response curves
Detailed Explanation
To measure damping in structures, engineers use different experimental methods. One is the Logarithmic Decrement Method, which looks at how the amplitude of vibrations decreases over cycles. By taking measurements over time, we can calculate a damping ratio that reflects how quickly the system loses energy. Another method is the Half-Power Bandwidth Method, which uses frequency response curves to identify damping at specific frequencies. Understanding both methods helps engineers quantify damping effectively, leading to better designs.
Examples & Analogies
Imagine a swing at a playground. If you give it a push, it will swing back and forth, but over time the swings will get smaller. If you observe how much smaller the swings get with each cycle, you could use that knowledge to understand how damped the swing is. The Logarithmic Decrement Method is akin to measuring this decay, while the Half-Power Bandwidth Method is like identifying how quickly the swing loses energy based on how fast it stops moving back and forth.
Practical Considerations in Damping Modeling
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
2.5.2 Practical Considerations in Modeling
• Accurate modeling of damping is challenging due to complex mechanisms
• Idealized models (viscous damping) are often used for simplicity
• In numerical simulations, Rayleigh damping (a combination of mass and stiffness proportional damping) is commonly applied:
[C]=α[M]+β[K]
Where:
• [C] = damping matrix
• [M] = mass matrix
• [K] = stiffness matrix
• α,β = Rayleigh coefficients
Detailed Explanation
Modeling damping accurately is important but can be difficult due to the many variables involved. Engineers often simplify these models to make them manageable, with one common approach being viscous damping. In numerical simulations, engineers might use Rayleigh damping, which combines mass and stiffness in a way that can approximate the actual damping behavior of a structure. This is represented by the formula C = αM + βK, where C is the damping matrix, M is the mass matrix, and K is the stiffness matrix. The coefficients α and β help define how these properties relate to the structure's damping.
Examples & Analogies
Think of modeling damping like making a recipe for a cake. If you try to include every possible ingredient and method (like different flour types and baking times), the recipe becomes too complex. Instead, you simplify it to focus on a few key ingredients that will produce a delicious cake. Similarly, engineers simplify damping models to get results they can work with, using Rayleigh damping as a dependable standard recipe for many structures.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Damping Measurement: The techniques and methods used to quantify damping in structures.
-
Logarithmic Decrement: A method of measuring damping based on the decay of oscillations over time.
-
Half-Power Bandwidth: A technique that assesses damping through frequency response analysis.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The Logarithmic Decrement Method can help engineers understand how a building will behave during seismic events by analyzing the vibration decay over time.
-
The Half-Power Bandwidth Method is essential in tuning the response of mechanical systems, such as automotive suspensions, to achieve desired damping characteristics.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When structures sway and shake, Log Decrement helps us awake.
📖 Fascinating Stories
-
Imagine an engineer at work, measuring the sway of a tall tower. Every time it sways, the Logarithmic Decrement measures how it calms down over time, helping the engineer keep the tower safe.
🧠 Other Memory Gems
-
Loud Harmonic Feedback can measure damping—remember LHF!
🎯 Super Acronyms
DAMP
- Damping Assessment Methods for Performance.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Logarithmic Decrement Method
Definition:
A technique used to measure damping by observing the decay of amplitude of vibration over cycles.
-
Term: HalfPower Bandwidth Method
Definition:
A method to determine damping using frequency response curves by identifying the bandwidth at which amplitude decreases to half its maximum.
-
Term: Rayleigh Damping
Definition:
A modeling technique that combines mass proportional and stiffness proportional damping to simplify numerical simulations.
