Structural Design Codes and Damping
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we will discuss how current seismic design codes implement the principles of inertia and damping. Let's start with how base shear is calculated.
What do you mean by base shear, and why is it important?
Great question! Base shear is essentially the total horizontal force that a structure experiences during an earthquake. It's crucial because it helps engineers determine the stability and safety of the structure under seismic loads.
And how does damping factor into this?
Damping helps reduce the vibrations by dissipating energy, contributing to lower base shear calculations. Codes like IS 1893 include response reduction factors that account for this.
So, if a structure has more damping, does that mean it can withstand stronger earthquakes?
Yes, exactly! More effective damping leads to lower displacements and forces on structural components. This is one of the main reasons why engineers emphasize proper damping in their designs.
And are there specific damping levels assumed in these codes?
Typically, a standard damping level of around 5% is used unless otherwise specified. For certain structures, adjustments might be made based on their unique design requirements.
To summarize, design codes use the effective mass and damping to ensure structures remain within safe limits during earthquakes. Remember, base shear plays a crucial role in assessing the overall safety of a structure.
Case Studies and Field Implementations
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's look at some real-world examples of how inertia and damping are applied in engineering.
What are some notable structures using these principles?
One fascinating example is the Taipei 101 building, which uses a 660-ton tuned mass damper placed between certain floors to reduce vibrations.
How does that actually work?
It works by creating an out-of-phase motion that counteracts the vibrations caused by wind and seismic activity, effectively stabilizing the structure.
What about other structures?
The Petronas Towers are another excellent example, utilizing dampers and flexible joints to mitigate seismic energy absorption effectively.
And in newer infrastructures like metro systems?
Yes! New metro systems and flyovers in India incorporate base isolators and viscous dampers, enhancing their post-earthquake resilience significantly.
To recap, these case studies illustrate the practical application of inertia and damping, showing how they significantly enhance a structure's ability to resist seismic events.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore how modern seismic design codes incorporate inertia and damping effects, emphasizing the calculation methods for base shear and response reduction factors. Case studies demonstrate successful applications, showcasing structures that effectively utilize damping mechanisms to enhance earthquake resilience.
Detailed
Practical Application of Inertia and Damping in Earthquake Engineering
In this section, we highlight the practical applications of the concepts of inertia and damping in earthquake engineering. Modern seismic design codes such as IS 1893, ASCE 7, and Eurocode 8 explicitly account for inertia and damping through various calculations and adjustments.
Key Points Covered:
- Structural Design Codes and Damping: These codes calculate design base shear by considering the effective mass and natural period of structures. They employ response reduction factors to acknowledge the effects of inherent damping and ductility in design.
- Case Studies and Field Implementations: Notable examples include:
- Taipei 101: Uses a 660-ton tuned mass damper to significantly reduce vibrations during seismic and wind events.
- Petronas Towers: Integrated dampers and flexible joints to absorb seismic energy efficiently.
- New Indian Infrastructure Initiatives: New metro systems and bridges incorporate base isolators and viscous dampers to bolster resilience against earthquakes.
Through analyzing these areas, we can clearly see how inertia and damping are not just theoretical concepts but are critical components in designing safe, earthquake-resistant structures.
Youtube Videos

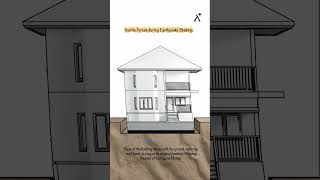

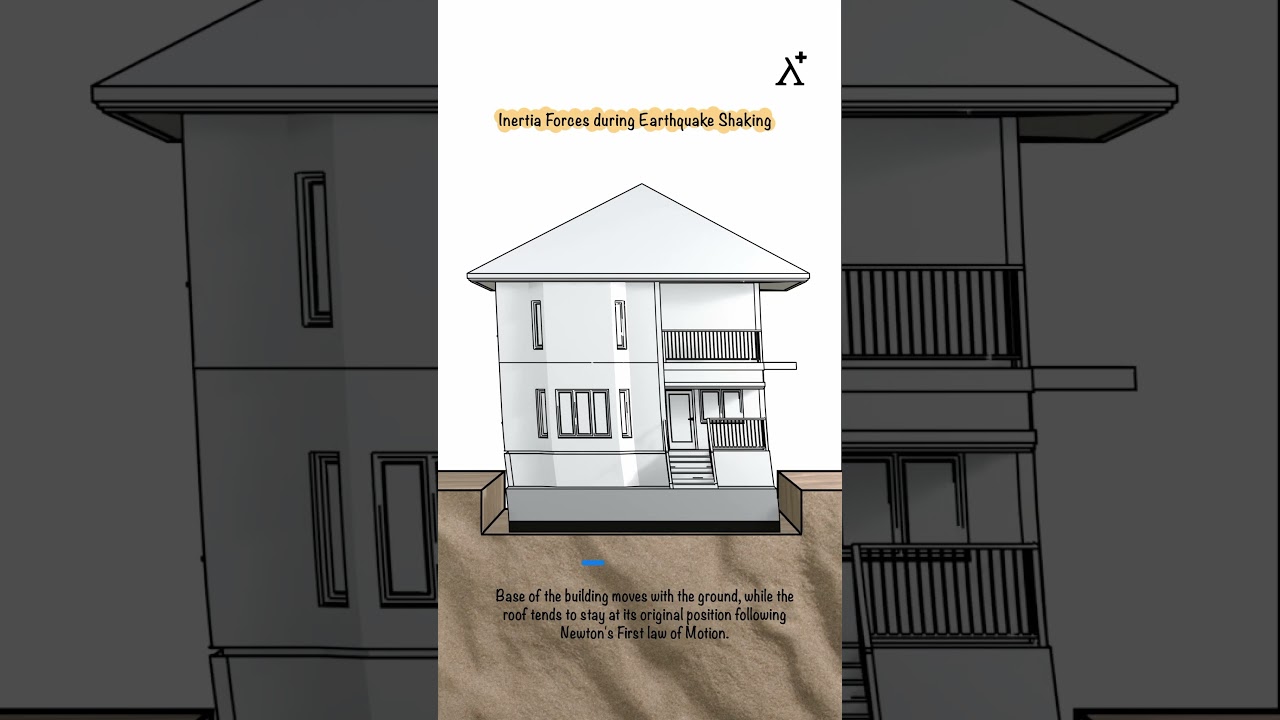

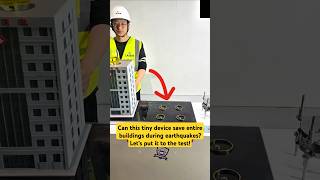

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Structural Design Codes and Damping
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Modern seismic design codes (e.g., IS 1893, ASCE 7, Eurocode 8) integrate the effects of inertia and damping explicitly. Key points include:
• Design Base Shear is calculated considering effective mass and natural period of the structure.
• Response Reduction Factors (R) in IS 1893 partially account for inherent damping and ductility.
• Damping Modification Factors are used to adjust spectral accelerations for different damping levels (typically 5% is assumed standard).
Detailed Explanation
Seismic design codes are regulations that guide how to design buildings to withstand earthquakes. These codes recognize that both inertia (the mass of the structure) and damping (how energy is dissipated) significantly affect a building's performance during an earthquake.
- Design Base Shear: This is a calculation used to determine the forces that a building might experience during an earthquake. It considers the mass of the structure and how it can move.
- Response Reduction Factors (R): These factors account for how much a structure can safely deform or bend without failing, incorporating the effects of damping and material strength.
- Damping Modification Factors: These are adjustments made to account for different damping levels in buildings; traditionally, 5% damping is considered as a standard level for calculations. This helps ensure that a structure can effectively manage the energies during seismic events.
Examples & Analogies
Imagine you are riding a bicycle on a bumpy road. If you are heavy (high mass), you might feel every bump more intensely, just like a heavy building will feel more force during an earthquake. If you have good tires that absorb the bumps well (high damping), then your ride will be smoother and safer. Similarly, buildings with proper damping features will 'ride out' an earthquake better.
Case Studies and Field Implementations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• Taipei 101 (Taiwan): Uses a 660-ton tuned mass damper suspended between floors 87 and 91, drastically reducing vibrations during seismic and wind events.
• Petronas Towers (Malaysia): Include dampers and flexible joints to absorb seismic energy.
• New Indian Infrastructure: Metro systems, flyovers, and bridges are increasingly designed with base isolators and viscous dampers to improve post-earthquake resilience.
Detailed Explanation
Several prominent buildings around the world showcase how inertia and damping are applied in real-life engineering.
- Taipei 101: This skyscraper features a large mass damper that moves in the opposite direction to the building's sway during an earthquake or strong winds. This counter movement stabilizes the structure and significantly reduces vibrations.
- Petronas Towers: These towers use flexible joints and damping systems to manage the energy imparted by seismic waves. This allows the towers to adapt to movements rather than resisting them outright.
- New Indian Infrastructure Projects: Recent constructions like metro systems and bridges are being designed with advanced techniques like base isolators (which allow the building to move separately from ground motion) and dampers to absorb and dissipate seismic energy, improving resilience after an earthquake.
Examples & Analogies
Think of a tall tree in a storm. If it were rigid, strong winds might break it. However, if the tree is flexible and has a strong root system (like a building with dampers and proper supports), it can sway with the wind without breaking. Similarly, the buildings with advanced damping systems are designed to sway and absorb the forces of an earthquake rather than resist them completely.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Seismic Design Codes: Frameworks that ensure structures can withstand earthquakes.
-
Damping Mechanisms: Various techniques built into structures to dissipate energy and enhance stability during seismic events.
-
Effective Mass: The mass that significantly contributes to the inertia during seismic activity.
-
Tuned Mass Damper: A specialized device that reduces vibrations in tall buildings.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Taipei 101 effectively uses a tuned mass damper between its floors to counteract vibrations from seismic and wind forces.
-
The Petronas Towers employ flexible joints and dampers to absorb seismic energy, enhancing structural integrity during earthquakes.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To keep a structure upright, we use base shear, / With damping damp and steady, 'round it stays clear.
📖 Fascinating Stories
-
Imagine a tall building swaying in the wind. A giant pendulum inside, like a sea anchor, keeps it steady, absorbing vibrations, ensuring the structure's safety.
🧠 Other Memory Gems
-
Remember the acronym 'DR.T': Damping, Response reduction, and Tuning. These are key to keeping structures safe from the shaking.
🎯 Super Acronyms
TMB
- Tuning
- Mass
- Base shear. This acronym can help remember critical components that improve earthquake resilience.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Base Shear
Definition:
The total horizontal force that a structure experiences during seismic activity.
-
Term: Response Reduction Factor (R)
Definition:
A factor used in design codes to account for inherent damping and ductility in structures.
-
Term: Damping
Definition:
The mechanism through which energy is dissipated in a vibrating system.
-
Term: Tuned Mass Damper (TMD)
Definition:
A device installed in structures to reduce vibrations by creating motion that is out-of-phase with the structure’s movements.
