Design Codes and Load Combinations
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're going to discuss the importance of design codes in structural engineering. Can anyone tell me what a design code is?
Is it a set of guidelines for building structures?
Exactly! Design codes ensure safety and performance standards. In seismic design, they incorporate both static and dynamic loads. For example, codes like IS 1893 include dynamic load combinations like dead loads, live loads, and seismic loads. Why do you think that combination is important?
Because earthquakes can create unexpected forces on a structure.
Correct! And to address these forces, engineers use a Response Reduction Factor. What does that factor consider?
It accounts for energy dissipation during seismic events.
Nice! So, structures are often designed for a reduced base shear to reflect ductility. In essence, understanding these factors can lead to safer designs.
To recap, we learned how design codes guide engineers in incorporating dynamic loads into design and how the Response Reduction Factor helps in reducing design forces. What might happen if we didn't consider these in design?
The buildings could fail during an earthquake!
Importance of Natural Frequency and Mode Shapes
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s shift our focus to the natural frequency of structures. What do you think natural frequency represents?
It's how often a structure vibrates in response to load.
Correct! If the frequency of ground shaking matches the structure's natural frequency, what can occur?
Resonance, which could lead to larger oscillations and potential failure.
Absolutely! To help assess this, engineers use mode shapes. What do you think mode shapes tell us?
They show how different parts of the structure vibrate.
Exactly! Tall buildings might respond differently to dynamic loads because of various mode shapes they possess. To summarize, understanding natural frequencies and mode shapes aids engineers in predicting a structure's behavior under dynamic loads, especially in seismic conditions.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section outlines the importance of considering both static and dynamic loads in structural design, emphasizing the role of design codes, natural frequency, and load combinations in ensuring structural integrity, especially under seismic conditions.
Detailed
Practical Implications in Structural Design
Understanding the nature of static and dynamic loads directly impacts how structures are analyzed, designed, and constructed. Key components of this understanding include:
Design Codes and Load Combinations
Design codes such as IS 1893 (Part 1): 2016, ASCE 7, or Eurocode 8 emphasize the critical need to account for dynamic loads in seismic design. The following points are key:
- Load Combinations: These typically include dead load + live load + seismic load (dynamic). This ensures that structures are resilient against unexpected dynamic forces, particularly from phenomena like earthquakes.
- Response Reduction Factor (R): This factor accounts for energy dissipation due to inelastic behavior during seismic events, allowing for reduced design forces.
- Reduced Design Base Shear: Rather than designing structures for the full dynamic force, engineers consider a lower base shear to account for ductility and overstrength of materials.
Importance of Natural Frequency and Mode Shapes
Each structure possesses natural frequencies, which are critical in understanding its response to dynamic loads:
- Resonance: If the frequency of ground shaking coincides with a structure’s natural frequency, resonance can occur, potentially leading to large amplitude oscillations, which can be detrimental to structural integrity.
- Mode Shapes: In modal analysis, mode shapes help understand how different parts of a structure will vibrate. Tall buildings may exhibit higher modes that significantly contribute to their response to dynamic loads.
This section focuses on how these factors guide structural engineers in their design practices, enhancing safety and performance against dynamic loading scenarios.

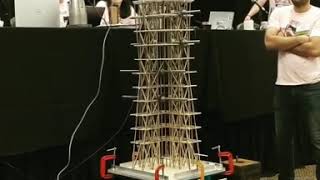

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Design Codes and Load Combinations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Design codes such as IS 1893 (Part 1): 2016, ASCE 7, or Eurocode 8 emphasize the importance of accounting for dynamic loads in seismic design.
Key points:
• Load combinations include dead load + live load + seismic load (dynamic).
• A Response Reduction Factor (R) is used to consider energy dissipation due to inelastic behavior.
• Structures are not designed for the full dynamic force but rather a reduced design base shear accounting for ductility and overstrength.
Detailed Explanation
Design codes like IS 1893, ASCE 7, and Eurocode 8 provide guidelines for engineers to ensure structures can withstand dynamic loads, especially in seismic areas. These codes dictate how different loads should be combined when designing a structure. For example, when calculating the total load on a building, structural engineers must consider not only the weight of the building itself (dead load) and the weight of the items inside it (live load) but also the forces resulting from seismic activities.
To adjust for the unpredictable nature of earthquakes, engineers use a Response Reduction Factor (R), which accounts for the energy that can be dissipated through the building's flexibility and strength during shaking. Essentially, instead of designing structures to withstand the maximum possible force from an earthquake, they are designed to withstand a reduced force that reflects the building's ability to handle these forces safely.
Examples & Analogies
Imagine building a bridge that needs to support not only the weight of the vehicles that will drive over it but also the movements caused by wind or an earthquake. If the engineers only considered the vehicles' weight, they might overlook significant risks. Just like a musician adjusts the volume of sound to achieve a harmonic balance, engineers adjust the design to achieve structural harmony under various loads.
Importance of Natural Frequency and Mode Shapes
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Every structure has one or more natural frequencies. If the frequency of ground shaking matches a structure's natural frequency, resonance occurs, leading to large amplitude oscillations.
• Mode shapes are used in modal analysis to understand how different parts of a structure vibrate.
• Tall buildings may have higher modes contributing significantly to response.
Detailed Explanation
Natural frequency refers to the frequency at which a structure tends to vibrate when disturbed. Every structure has a natural frequency, and if an external force, such as an earthquake, shakes the ground at this frequency, it can amplify the vibrations due to a phenomenon called resonance. This is a critical consideration in design, as structures could sway more than anticipated and sustain damage or even collapse if the resonant frequency aligns with the shaking frequency.
Additionally, mode shapes describe how different parts of a structure move during these vibrations. To accurately predict how a tall building will behave in an earthquake, engineers perform a modal analysis, which identifies these modes of vibration and helps design the structure to manage them effectively.
Examples & Analogies
Think of pushing a child on a swing. If you push at just the right moment—when the swing's natural rhythm or frequency is at its peak—you can make the swing go higher than if you push randomly. Similarly, if the earth shakes at the natural frequency of a building, that building may sway dangerously.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Design Codes: Guidelines ensuring safety and performance in structural engineering.
-
Load Combinations: The integration of different loads (static and dynamic) for structural analysis.
-
Response Reduction Factor (R): An adjustment factor for seismic design to account for inelastic behavior.
-
Natural Frequency: A critical parameter that affects how structures respond to dynamic forces.
-
Mode Shapes: Patterns that describe how various sections of a structure vibrate.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Design codes like ASCE 7 outline required load combinations, including seismic considerations.
-
Buildings with a natural frequency close to the frequency of seismic waves may experience resonance, significantly affecting their stability.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To ensure our structures are bright, consider dynamic loads and do it right!
📖 Fascinating Stories
-
Imagine a tall building standing firm during an earthquake. It knows its natural frequency, swaying safely, a dance of energy and design.
🧠 Other Memory Gems
-
Remember DR. M for design codes - D for Design, R for Reduction (Factor), and M for Mode Shapes.
🎯 Super Acronyms
RANL - Remember
- Always Note Load combinations!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Design Codes
Definition:
Regulations that provide guidelines for the design and construction of structures ensuring safety and performance.
-
Term: Load Combinations
Definition:
The systematic approach to determining the combined effect of different loads acting on a structure.
-
Term: Response Reduction Factor (R)
Definition:
A factor that accounts for energy dissipation during inelastic behavior in seismic analysis.
-
Term: Natural Frequency
Definition:
The frequency at which a structure naturally vibrates, critical in assessing its dynamic response.
-
Term: Mode Shapes
Definition:
Patterns of vibration that indicate how different parts of a structure move during dynamic loading.
