Deformation Patterns Under Static Loading
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's begin by discussing deformation patterns under static loading. When a constant load is applied to a structure, the deformation is proportionate to this load. What do you think would happen if we increased the load gradually?
The deformation would increase proportionally with the load, right?
Exactly! This is one of the key characteristics of static loads. Now, can anyone tell me what types of deformation can occur?
There could be bending or axial deformation depending on the loading conditions.
Well said! It's important to remember that static deformation is predictable and can be effectively analyzed. Now, let's compare this with dynamic loading.
Deformation Patterns Under Dynamic Loading
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
When we talk about dynamic loading, things become more complex. Dynamic loads vary with time, and they can cause oscillations or vibrations in the structure. What do you think happens when a structure experiences these fluctuations?
I think it would lead to unpredictable stress responses and potentially amplified deformations.
Absolutely! This amplification can occur due to resonance, where the structure's natural frequency matches the frequency of the dynamic load. Can anyone explain what dynamic amplification factors are?
The dynamic amplification factor measures how much the dynamic response exceeds the static response!
Great job! This understanding is crucial for engineers in ensuring safe designs, especially in seismic areas.
Stress Distribution Differences
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s now focus on how stress distribution varies under static vs dynamic loading. Under static loading, stress is consistent unless the loading configuration changes. What does this mean for a structure?
It means that engineers can easily predict how stresses will behave in static conditions.
Exactly! However, under dynamic loading, stress can vary significantly with time. What challenges does this present in analysis and design?
Engineers might encounter unexpected stress spikes during dynamic events, which can lead to failure if not designed for.
Precisely! It highlights the necessity of incorporating dynamic analysis techniques in certain structural designs.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section outlines how static and dynamic loads affect structural behavior differently. It details deformation patterns, stress distributions, and the dynamic amplification factor. Understanding these differences is crucial for proper analysis and design in structural engineering, particularly in earthquake engineering.
Detailed
Structural Response Under Static vs. Dynamic Loading
In this section, we explore the contrasting responses of structures under static and dynamic loading conditions. The response of structures to these loads is critical in the field of structural engineering, especially in the context of earthquake engineering.
Deformation Patterns
- Static Loading: The deformation of a structure under static loading is directly proportional to the applied load. This typically involves bending or axial deformation, depending on the nature of the load. The response is predictable and can be calculated using straightforward static analysis methods.
- Dynamic Loading: In contrast, dynamic loading involves time-varying forces that influence deformation, leading to potential oscillations or vibrations in the structure. Moreover, dynamic effects can cause amplification of deformation patterns due to resonance, making the structural response less predictable and more complex compared to static loading.
Stress Distribution
- Static Loading: Under static conditions, the stress distribution within the structure remains constant, subject to changes only when the load configuration changes.
- Dynamic Loading: Conversely, with dynamic loading, stress distributions vary over time. Even lower loads can cause stress spikes due to dynamic amplification factors, which occur when the frequency of dynamic forces matches the natural frequency of the structure.
Understanding these differences is essential for engineers as they design structures that can withstand various loading scenarios, particularly in regions prone to dynamic events, such as earthquakes.
Youtube Videos

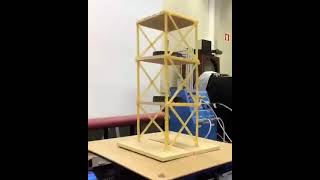

![Lecture 1 Dynamic Loads, Earthquake & Plate Tectonics [Structural Mechanics]](https://img.youtube.com/vi/iAwbw_nKero/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Deformation Patterns
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Static Loading: Deformation is proportional to applied load. Typically involves bending or axial deformation depending on load type.
- Dynamic Loading: Deformation is influenced by time-varying forces, may involve oscillations or vibrations, and may be amplified due to resonance.
Detailed Explanation
This chunk explains how structures respond differently to static and dynamic loads. Under static loading, the deformation of a structure is directly related to the amount of load applied to it; for instance, if you push down on a beam in a steady manner, it bends a certain amount based on how much force you apply. This bending is predictable and depends solely on the load. In contrast, dynamic loading refers to forces that change over time, such as during an earthquake. Here, the structure may not only bend but also shake or vibrate, which can lead to greater deformations due to these rapid changes in force. This response can sometimes cause excessive deformation if the structure resonates, or vibrates intensely, at certain frequencies.
Examples & Analogies
Think of a swing at a playground. If you push a swing gently (similar to static loading), it moves smoothly and predictably. However, if a gust of wind starts swinging it violently back and forth (similar to dynamic loading), the swing can move in unpredictable ways, and even if you're not pushing it, it can sway a lot more due to the wind's influence. This is similar to how structures behave under different types of loads.
Stress Distribution
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Static Loading: Stress distribution remains constant unless the loading configuration changes.
- Dynamic Loading: Stress varies with time; dynamic amplification can cause stress spikes even under low loads.
Detailed Explanation
In this chunk, we see how the distribution of stress on a structure also varies based on the type of loading. For static loads, the stress across different parts of the structure remains consistent as long as the load is steady and doesn’t change. For example, if you put a heavy book on a table, the stress on the table’s surface will be even and predictable. However, under dynamic loading conditions—like those experienced during earthquakes—stress can fluctuate. Even if the load is considered 'low', the dynamic effects can cause sudden increases in stress (stress spikes), which can be damaging to the structure. This unpredictability is one reason why structures must be designed to withstand unexpected forces.
Examples & Analogies
Imagine a tightrope walker. If the walker is standing still (static loading), the tension on the rope is constant and evenly distributed along its length. If the walker starts to sway and move (dynamic loading), the tension fluctuates and can cause stress at different points on the rope, potentially leading to failure if the stress becomes too high at any given point. This is similar to how buildings handle loads under dynamic conditions.
Dynamic Amplification Factor (DAF)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Dynamic effects can be understood through the Dynamic Amplification Factor (DAF) which is defined as:
DAF = Maximum dynamic displacement / Static displacement
- DAF > 1 indicates that the structure experiences amplified motion under dynamic excitation.
- Resonance occurs when the frequency of excitation matches the natural frequency of the structure, leading to very high DAF.
Detailed Explanation
This chunk introduces the Dynamic Amplification Factor (DAF), a crucial concept in understanding how structures react to dynamic loads. The DAF quantifies how much more a structure might move under dynamic conditions compared to static conditions. If the DAF is greater than one, it shows that the structure is experiencing greater movement than would be expected just from the static load alone, which might be due to vibrations or oscillations. Resonance, a significant concern in structural engineering, happens when the frequency of the external forces matches the frequency at which the structure naturally wants to vibrate. This can create large oscillations, leading to potential failure of the structure.
Examples & Analogies
Think of pushing someone on a swing at precisely the right moment. If you push just as they reach the peak of their swing (matching the swing's natural frequency), they go higher and higher—this is similar to resonance. If a building were to 'resonate' during an earthquake, the vibrations could become amplified, potentially leading to very large movements (high DAF), much like how the swing moves higher with each push.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Deformation Patterns: Different responses to static and dynamic loads; static response is predictable while dynamic can lead to oscillations.
-
Stress Distribution: Static stress is constant while dynamic stress varies and can spike during dynamic events.
-
Dynamic Amplification Factor: Represents how dynamic response exceeds static response, crucial for structural design.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a building under static load from furniture, bending occurs without vibrations, while during an earthquake, the building may oscillate vigorously.
-
Stress on a bridge remains constant until a vehicle passes, but during a dynamic loading from an earthquake, stress can fluctuate rapidly, leading to possible failure.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Static loads stay flat and true, dynamic forces shake right through.
📖 Fascinating Stories
-
Imagine two bridges: one sturdy and still, under a load, just bends 'til it's filled. The other one sways under quakes and shocks, dancing and moving like a box of blocks.
🧠 Other Memory Gems
-
Remember: 'Dancing Forces' for Dynamic loading, and 'Stable Structures' for Static loading.
🎯 Super Acronyms
D.A.F for Dynamic Amplification Factor, to recall the amplification of movement.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Static Loading
Definition:
Forces applied slowly to a structure until they reach full magnitude and then remain constant or change gradually over time.
-
Term: Dynamic Loading
Definition:
Forces that vary with time and may involve inertia and damping effects, leading to complex structural responses.
-
Term: Dynamic Amplification Factor (DAF)
Definition:
A measure of the maximum dynamic displacement compared to static displacement, indicating amplification of motion.
-
Term: Resonance
Definition:
A phenomenon that occurs when the frequency of dynamic excitation matches a structure's natural frequency, leading to increased amplitude.
