Introduction to Damping Modification Factors
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will learn about Damping Modification Factors, or DMF. Can anyone tell me why we need to modify the damping in seismic design?
To make sure our buildings can handle earthquakes better?
Exactly! DMF adjusts the spectral response of a structure based on its damping levels compared to a standard damping level of 5%.
How does this adjustment actually work?
Great question! The DMF acts as a multiplier. If damping is higher than 5%, the spectral response is reduced. Let's say S is the spectral acceleration at different damping levels. We use the formula S = η(ξ) · S₅%.
So η(ξ) is the damping modification factor?
Yes! The value of η decreases with increasing damping, which is beneficial for design. Let's remember this as a key point!
Empirical Formulas for DMF
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's move on to how different codes define the DMF. For example, Eurocode 8 provides an empirical formula for calculating η. Can someone guess what it looks like?
Does it involve the damping ratios?
Yes! The formula is η(ξ) = √(10 / (5 + ξ)). This indicates that as the damping increases, the spectral demand decreases.
How does that impact the forces on the structure?
Excellent inquiry! A lower spectral demand due to higher damping translates into reduced base shear and essential design forces.
So, if I have a building with high damping, I can design it for lower forces?
Exactly! This is a critical principle for engineers to understand.
Code-Based Recommendations
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let's look at code recommendations. Based on damping ratios, the spectral demand can change significantly. Who remembers the reference values?
I think 5% is the standard, but what happens when it’s lower or higher?
"Correct! For lower damping, like 2%, the factor can be over 1, leading to increased demand. Here's a breakdown:
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section discusses Damping Modification Factors (DMF), which are critical for seismic design. DMF is a multiplier used to adjust the spectral acceleration response according to the damping ratio of a structure, allowing for more accurate seismic analysis and design.
Detailed
Damping Modification Factors (DMF)
Damping Modification Factors (DMF) play a crucial role in the seismic design of structures by allowing adjustments to the response spectra based on different damping levels. The DMF serves as a multiplier that either reduces or increases the spectral response dependent upon whether the actual damping exceeds or falls short of the nominal value of 5%.
3.7.1 Concept and Definition
The DMF is defined as:
- S₅%: Spectral acceleration for 5% damping
- η: Damping modification factor
- Sₓ: Spectral acceleration for different damping levels (ξ)
This relationship can be expressed mathematically as:
S = η(ξ) · S₅%
This equation indicates that as damping levels change, the spectral demands on the structure also change, impacting design considerations significantly.
3.7.2 Empirical Formulas
Different design codes provide varying formulations for DMF. For instance, Eurocode 8 suggests that:
η(ξ) = √(10 / (5 + ξ))
This formula illustrates that increased damping leads to a lower spectral demand which can result in reduced base shear and design forces.
3.7.3 Code-Based Recommendations
Reduction in Spectral Demand as a Function of Damping Ratio
| Damping Ratio (%) | η (Eurocode 8) | Demand (%) |
|---|---|---|
| 2 | 1.29 | -29% Increase |
| 5 (Standard) | 1.00 | Reference |
| 10 | 0.77 | 23% Reduction |
| 20 | 0.58 | 42% Reduction |
| 30 | 0.50 | 50% Reduction |

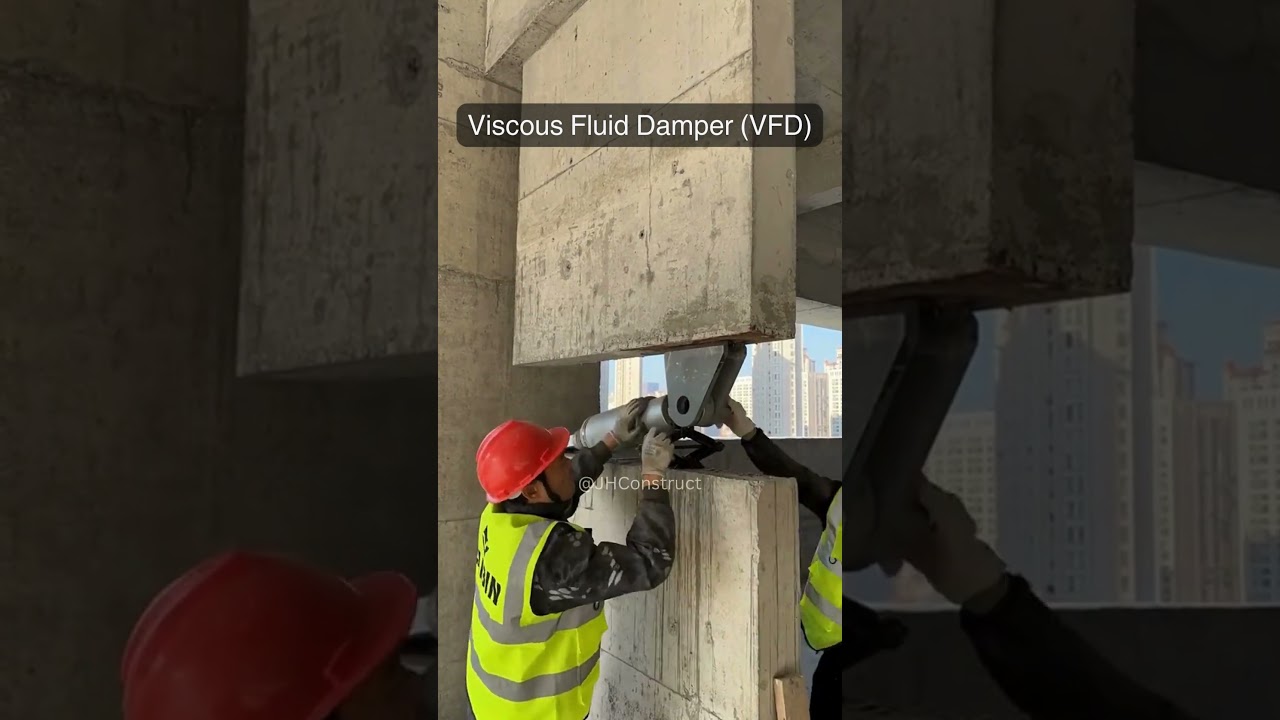

This adjustment is vital for structures utilizing base isolators or other energy-dissipating devices, allowing them to legally and practically reduce the forces they must withstand during seismic events.
Youtube Videos
![[BCT2025 Webinar] Long Period Ground Motion in Earthquake – its Impacts, Measures and Effects 1](https://img.youtube.com/vi/0lGZlFHEbS4/mqdefault.jpg)
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Damping Modification Factors (DMF)
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
When designing structures for seismic resistance, design codes allow adjustments in the response spectra based on actual or assumed damping levels. These adjustments are implemented using Damping Modification Factors (DMF), which correct the spectral accelerations to account for damping values other than the standard 5%.
Detailed Explanation
Damping Modification Factors (DMF) are used when engineers calculate how buildings respond to earthquakes. For seismic safety, building codes permit these adjustments in the responses of structures according to the actual damping present. Standard designs typically assume a damping level of 5%. The DMF helps tailor the response spectra to match the actual damping conditions, making the designs more accurate and effective against seismic forces.
Examples & Analogies
Think of the DMF like adjusting the volume on a radio. You usually set it at a mid-level (5% damping). However, if you realize that the room absorbs sound better (higher damping), you can lower the volume (apply a DMF) because you don’t need as much sound energy to fill the room, just like you don’t need as much seismic force to make a building safe under actual damping conditions.
Concept and Definition of DMF
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
3.7.1 Concept and Definition
The DMF is a multiplier applied to reduce (or increase) the spectral response when damping is higher (or lower) than the reference value.
Let:
- S be the spectral acceleration for 5% damping
- η be the damping modification factor
- S be the spectral acceleration for a different damping ξ
Then,
S = η(ξ) ⋅ S5%.
Detailed Explanation
The DMF is essentially a multiplier that either reduces or increases the calculated spectral response depending on the actual damping level. If the damping level in the structure is higher than the assumed 5%, the DMF will reduce the spectral response, meaning the structure can withstand less energy. Conversely, if the damping is lower, the DMF will increase the response, indicating that the structure is more vulnerable and needs to be designed to handle higher forces. The formula illustrates how these relationships work.
Examples & Analogies
Imagine you're baking cookies. If the recipe calls for sugar (5% damping) but you decide to add less sugar (lower damping), the cookies will be less sweet (higher spectral response). If you add more sugar (higher damping), the cookies become sweeter (lower spectral response needed). Just like adjusting ingredients for flavor, DMF adjusts structural response according to the damping properties.
Empirical Formulas for DMF
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
3.7.2 Empirical Formulas
Different codes use different expressions. For example, Eurocode 8 suggests:
√ 10
η(ξ)=
5+ξ
Where ξ is the damping percentage. This shows that increasing damping leads to a lower spectral demand, which directly affects the base shear, inter-story drifts, and design forces.
Detailed Explanation
The empirical formula provided by Eurocode 8 is a way to calculate the DMF based on the percentage of damping being used. As you increase damping, you can see that it reduces the spectral demand. This means that in a structure, with higher damping, there will be reduced forces acting on components like base shear and inter-story drifts. Lower spectral demand is good because it lessens the overall forces that a building must resist during an earthquake.
Examples & Analogies
Think of it like using a bungee cord while jumping. If the cord is more elastic (higher damping), you will experience a softer landing (lower forces on your body) due to the cord absorbing more energy. However, if it's less elastic, the landing will be harsher (higher forces). The same principle applies in structures; higher damping helps reduce the shocks received by various building parts.
Code-Based Recommendations for DMF
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
3.7.3 Code-Based Recommendations
Reduction in Spectral
Damping Ratio (%) η (Eurocode 8) Demand (%)
2 1.29 -29% Increase
5 (Standard) 1.00 Reference
10 0.77 23% Reduction
20 0.58 42% Reduction
30 0.50 50% Reduction
This has significant implications for structures with base isolators or damping devices, which can legally and practically reduce design forces.
Detailed Explanation
The table provided compares damping ratios and their respective DMFs according to Eurocode 8. For example, if the damping ratio is reduced from the standard 5% to 2%, the DMF increases the spectral demand by 29%. As damping increases to 30%, the DMF reduces the spectral demand by 50%. This highlights how adjustments in damping can significantly impact various design considerations, particularly for structures that use base isolators or damping devices, making them easier to design because the forces they must resist can be lower.
Examples & Analogies
Consider managing weights in a gym. If you're accustomed to lifting 100 lbs (5% damping), reducing the effort (lowering the damping) means you might need to lift slightly heavier weights to achieve the same challenge (increase in demand). However, if you get better at lifting (increase damping), you can handle much more weight with the same amount of effort, making training relativity easier (lower demand).
Key Concepts
-
Damping Modification Factor: A crucial aspect for adjusting seismic response in structures based on actual damping.
-
Empirical Formulas: Different codes utilize distinct formulas to calculate DMF, impacting structural design.
-
Code-Based Recommendations: Guidelines established by engineering codes to inform on optimal design practices.
Examples & Applications
Consider a building with a damping ratio of 10%. Using Eurocode 8, the DMF would calculate to a reduction factor, allowing engineers to design for lower expected forces.
If a bridge is designed with a lower damping ratio of 2%, the DMF indicates an increase in seismic demands.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In seismic design, we seek to find, a factor that keeps our buildings aligned.
Stories
Imagine an engineer named Dani who adds dampers to buildings to keep them dancey during quakes.
Memory Tools
DMF: Damping Makes Forces lighter.
Acronyms
DAMP
Damping Adjustment Modifies Performance.
Flash Cards
Glossary
- Damping Modification Factor (DMF)
A multiplier used to adjust the spectral response of structures based on actual damping levels differing from the standard 5%.
- Spectral Acceleration
The measure of the maximum acceleration experienced by a structure during seismic activity, typically expressed as a function of damping.
- Damping Ratio (ξ)
A dimensionless measure of the damping in a system, indicating how damped the oscillations are at steady state.
