Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Damping Ratio
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we'll explore the concept of damping ratio, which helps us understand how different systems respond to dynamic forces. Can anyone tell me what you think a damping ratio might signify?
Is it how much a system like a building shakes during an earthquake?
Exactly! The damping ratio quantifies the damping effects in a system, indicating whether it’s undamped, underdamped, critically damped, or overdamped. Let’s define these terms.
What does each state mean?
"Great question!
So, higher damping helps structures stabilize faster during an earthquake?
Precisely! It reduces vibration amplitude which is vital in earthquake engineering. Remember this with the acronym UUC for Undamped, Underdamped, Critically damped.
That's easy to remember!
Understanding Logarithmic Decrement
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let’s move to logarithmic decrement, which helps us estimate the damping ratio using vibration amplitude. Can anyone explain what logarithmic decrement refers to?
Is it about how quickly the vibrations fade away?
Yes! Logarithmic decrement helps us quantify the decay in amplitude over time, given by the formula: δ = ln(x₀/xₙ). What does this formula mean?
So x₀ is the starting amplitude, and xₙ is after some cycles?
Exactly! This tells us how much the amplitude decreases. Why do you think this is relevant in engineering?
It helps to calculate how fast a structure can return to normal after shaking.
Right! And we relate it to the damping ratio using: ξ = δ / √(4π² + δ²). This helps adapt designs according to real-world performance.
So we can design safer buildings knowing how they react during earthquakes!
Applications and Typical Values
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Finally, let's review typical damping ratios and their importance. Who can share what we might expect for materials like steel or concrete?
For steel, is it around 1–2%?
Correct! What about concrete?
Concrete usually is 4–7%!
Yes, and for masonry?
I think it’s 7–10%.
Exactly! Knowing these values is crucial when it comes to ensuring structures can withstand dynamic forces.
So these numbers guide engineers in design?
Yes! Engineers use them to predict how buildings will behave during events like earthquakes. Remember these ranges as we refer to them often in the industry.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section discusses the damping ratio as a key metric for assessing damping in systems, categorizing systems as undamped, underdamped, critically damped, or overdamped. It also introduces the logarithmic decrement as a method to estimate the damping ratio from free vibration response, providing mathematical relations and typical values relevant in civil engineering.
Detailed
Damping Ratio (ξ)
The damping ratio is a dimensionless quantity that characterizes the damping present in a dynamic system. Different states of the system are defined based on the value of the damping ratio:
- ξ = 0: Undamped system - there is no energy dissipation.
- ξ < 1: Underdamped - the system oscillates with decreasing amplitude.
- ξ = 1: Critically damped - the system returns to equilibrium as quickly as possible without oscillating.
- ξ > 1: Overdamped - the system returns to equilibrium without oscillating but more slowly than in the critically damped case.
Typical values of damping ratios used in civil engineering are:
- Steel: 1–2%
- Concrete: 4–7%
- Masonry: 7–10%
Logarithmic Decrement (δ)
Logarithmic decrement is a method for estimating the damping ratio from the amplitude of free vibrations over time. It is defined mathematically as:
$$
δ = \ln\left(\frac{x_0}{x_n}\right)
$$
where:
- x₀: Initial amplitude
- x_n: Amplitude after n cycles
The logarithmic decrement is related to the damping ratio by the formula:
$$
ξ = \frac{δ}{\sqrt{4π^2 + δ^2}}
$$
Both the damping ratio and logarithmic decrement are essential for evaluating the performance and design of structures under dynamic loading, particularly in earthquake engineering.

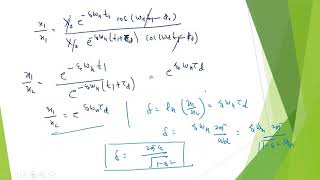

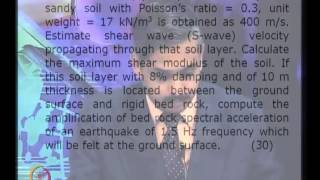

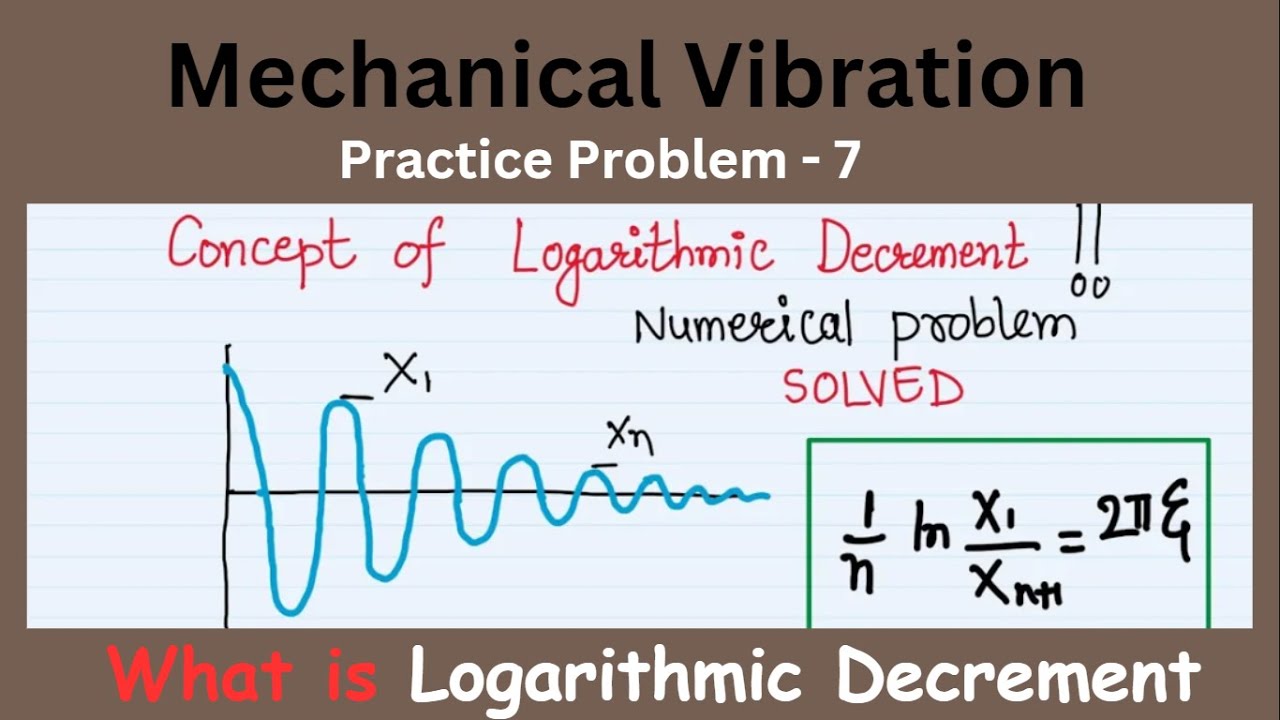

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Damping Ratio (ξ)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
It is a dimensionless measure of damping in a system:
- ξ=0: Undamped system
- ξ<1: Underdamped
- ξ=1: Critically damped
- ξ>1: Overdamped
Typical values in civil engineering:
- Steel: 1–2%
- Concrete: 4–7%
- Masonry: 7–10%
Detailed Explanation
The damping ratio (ξ) quantifies how oscillations in a system decay over time. It is dimensionless, meaning it does not have units, which makes it easier to compare across different systems. Specifically:
- When ξ = 0, the system is undamped, meaning it does not lose energy and keeps oscillating indefinitely.
- When ξ < 1, we have an underdamped system, which means that while it oscillates, the amplitude gradually decreases over time, characteristic of most real-world structures.
- ξ = 1 indicates critical damping, where the system returns to rest as fast as possible without oscillating.
- ξ > 1 defines an overdamped system that returns to rest slowly, without oscillation.
Typical damping ratios for materials such as steel, concrete, and masonry help engineers understand how much energy these materials dissipate during vibratory motion.
Examples & Analogies
Imagine pushing a child on a swing. If you push and then let it go, the swing will continue swinging back and forth until it stops—this is similar to an undamped system. If you add a small resistance, like a gentle wind, the swing will still swing but gradually come to a halt—much like an underdamped system. On the other hand, if you put a heavy weight on the swing, it’ll take longer to stop moving completely, but it won’t swing back and forth much after you push it, illustrating an overdamped system.
Logarithmic Decrement (δ)
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Used to estimate damping ratio from free vibration response:
δ =
[ln(x₀/xₙ)]/n
Where:
- x₀ = initial amplitude
- xₙ = amplitude after n cycles
Related to damping ratio as:
ξ = δ / √(4π² + δ²)
Detailed Explanation
Logarithmic decrement (δ) is a method to calculate the damping ratio (ξ) from measured vibrations in a system during free oscillation. Essentially, it compares the amplitudes of vibrations over specific cycles:
- x₀ represents the initial amplitude of the oscillation, while xₙ indicates the amplitude after 'n' complete cycles.
- Calculating δ involves taking the natural logarithm of the ratio of the initial amplitude to the amplitude after n cycles, and then dividing that by n. This gives a sense of how quickly the oscillations are dying out.
- Finally, δ is related to the damping ratio using a formula that shows how all these factors relate to one another, allowing engineers to effectively estimate how damped a system is based on vibration measurements.
Examples & Analogies
Think of dropping a ball on a hard surface. The first bounce is the highest (x₀). With each successive bounce, the ball loses energy and bounces lower until it eventually stops (xₙ). If you observed how much lower each bounce gets, you could use that information to determine how damped the ball's motion is—using logarithmic decrement is much like taking measurements of the bounces and using them to quantify the energy lost after each impact.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Damping Ratio: A key metric to assess the damping characteristics of systems in response to dynamic forces.
-
Logarithmic Decrement: A method used to measure the reduction in amplitude of vibrations, helping estimate the damping ratio.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of using damping ratios in seismic design for buildings to ensure safety.
-
Application of logarithmic decrement in measuring vibration decay in a bridge after a load event.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When the damping ratio is zero, the motion never slows, but with damping, it glows!
📖 Fascinating Stories
-
Imagine a swing that, when pushed, keeps swinging back and forth until it stops, representing an underdamped system. Now picture a door that gently returns to place without a swing – that's critically damped!
🧠 Other Memory Gems
-
UUC: Undamped, Underdamped, Critically damped.
🎯 Super Acronyms
RUD
- Remember Underdamped's Decrease in motion as vibrations settle down.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Damping Ratio (ξ)
Definition:
A dimensionless measure of damping in a system, categorizing performance as undamped, underdamped, critically damped, or overdamped.
-
Term: Logarithmic Decrement (δ)
Definition:
A method for estimating the damping ratio based on the amplitude of free vibrations over time.
