3.8 - Energy Dissipation Devices in Structures
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Energy Dissipation Devices
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will be exploring energy dissipation devices in structures. Can anyone tell me why we need these devices?
To reduce the vibrations during an earthquake?
Exactly! Energy dissipation devices help absorb seismic energy and protect structural elements from damage. Let’s start with the types of devices. Who would like to list them?
I think there are passive ones, right?
And active ones too!
Correct! We have passive energy dissipaters like viscous fluid dampers and tuned mass dampers, as well as active systems that adjust in real-time. Let's dive deeper into these devices.
Passive Energy Dissipaters
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s take a closer look at passive energy dissipaters. What are some examples?
Viscous fluid dampers and friction dampers?
Yes! Viscous fluid dampers use fluid to dissipate energy while friction dampers rely on surface contact. Can someone explain how friction dampers work?
They use the principle of sliding surfaces to convert motion into heat, right?
Correct! This energy loss due to friction helps limit the vibrations experienced by the structure. Great job!
Active and Semi-Active Dampers
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss active and semi-active dampers. What do you think differentiates them from passive systems?
They can change dynamically during an earthquake?
Exactly! Active systems use sensors to apply counter-forces in real-time, while semi-active dampers adjust their properties while in motion. Why might a building choose to use these systems?
For higher performance, especially in tall buildings?
Absolutely! They enhance the structure's ability to respond to changing conditions.
Importance of Energy Dissipation Devices
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
In closing, why do you think energy dissipation devices are critical in modern seismic design?
They protect the building and its occupants from earthquake damage.
And they also help reduce the cost of repairs after an earthquake!
Great points! They are essential for improving safety, performance, and resilience of the structures during seismic events.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Energy dissipation devices play a crucial role in enhancing the performance of structures subjected to seismic forces. The section outlines passive, active, and semi-active damping strategies, focusing on how these systems work to absorb seismic energy and reduce the load on primary structural elements.
Detailed
Overview
In the context of earthquake engineering, energy dissipation devices are critical for reducing the demand on structural elements during seismic events. This section is divided into two main categories: passive and active/semi-active energy dissipation devices.
Passive Energy Dissipaters
- Viscous Fluid Dampers: These dampers consist of cylinders filled with viscous fluid through which energy is dissipated by the resistance to fluid flow.
- Friction Dampers: These devices use sliding surfaces to convert kinetic energy into heat through friction, effectively dissipating energy during motion.
- Metallic Yield Dampers: Yielding elements that undergo plastic deformation under seismic loads allow for energy absorption, helping to prevent excessive forces on the structure.
- Tuned Mass Dampers (TMDs): A mass-spring-damper system tuned to the structure’s natural frequency is employed to counteract vibrations and oscillations caused by seismic activities.
Active and Semi-Active Dampers
- Active Control Systems: Utilize real-time data from sensors and actuators to apply counter-forces geared towards minimizing structural movement.
- Semi-Active Dampers: These devices adapt their stiffness or damping characteristics dynamically during motion, such as with magnetorheological or electro-rheological dampers, providing enhanced control over energy dissipation.
Significance
The use of both passive and active/semi-active systems is essential for high-performance structures, addressing dynamic challenges posed by earthquakes while significantly improving structural resilience.

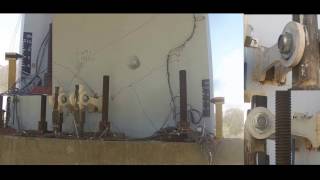

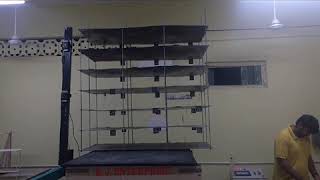

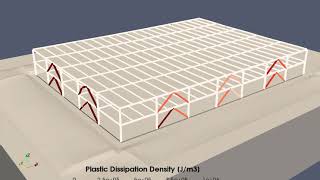

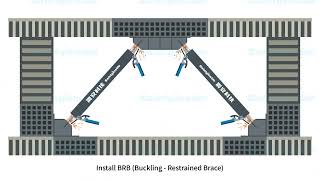

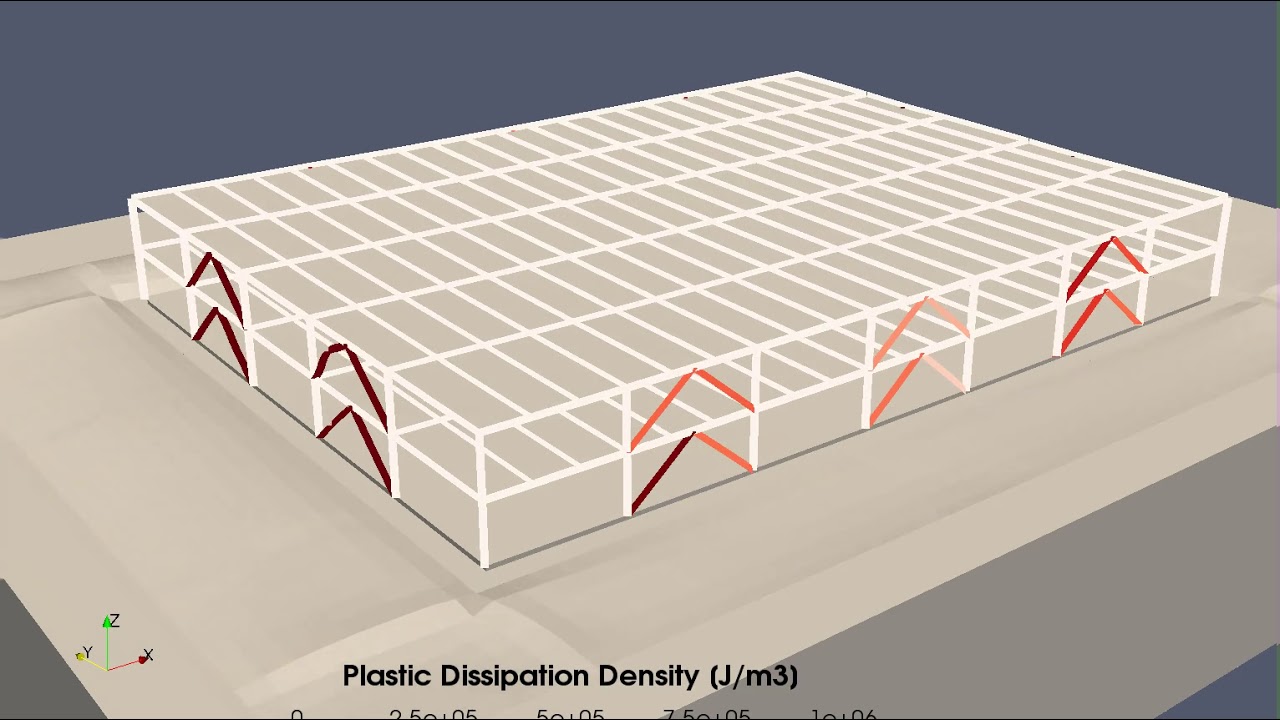

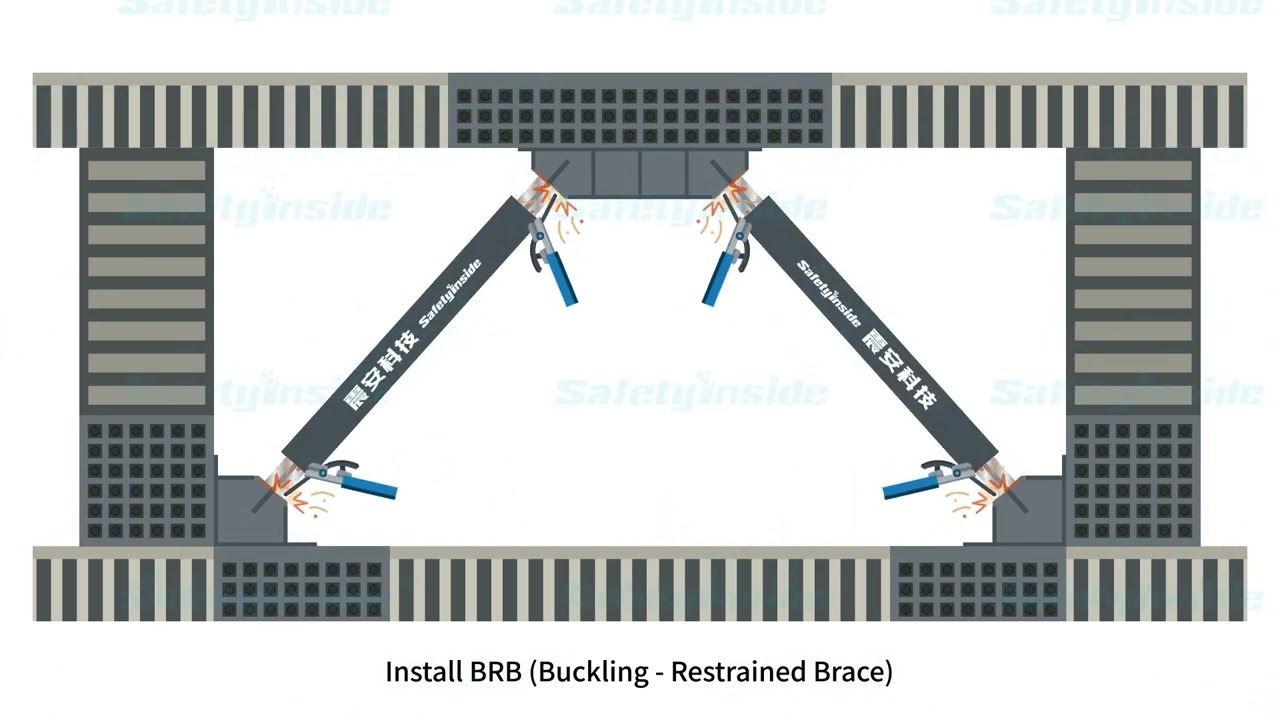

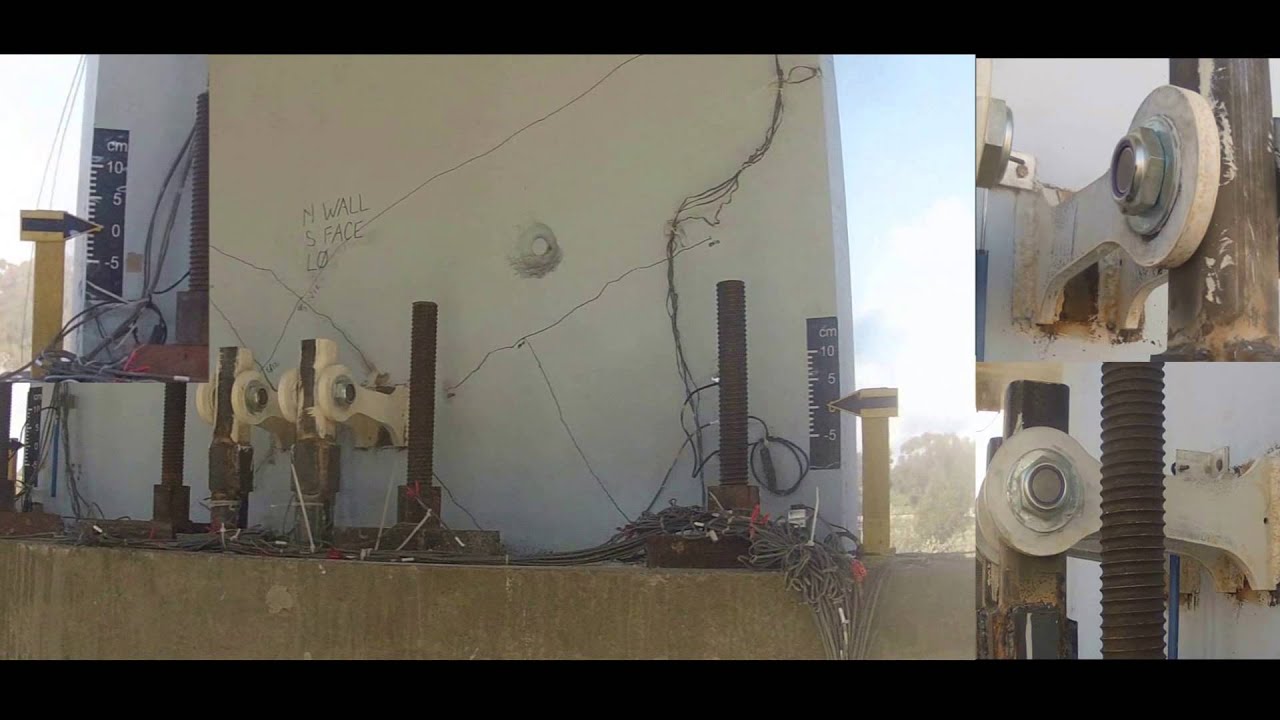

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Energy Dissipation Systems
Chapter 1 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Modern seismic design incorporates passive, active, and semi-active damping systems to absorb seismic energy and reduce the demand on primary structural elements.
Detailed Explanation
This chunk introduces the context of energy dissipation in structural engineering. It highlights that as buildings are subjected to forces like earthquakes, the need for systems that absorb those forces is critical. Seismic design leverages three categories of damping systems: passive, active, and semi-active. Passive systems operate without external power and are primarily reliant on their mechanical properties. Active systems use sensors and actuators to respond in real-time, while semi-active systems adjust their properties based on changing conditions.
Examples & Analogies
Think of a car's shock absorbers as a form of passive damping. They work continuously to absorb the jolts from road bumps without needing external power. In contrast, an active system could be like a self-adjusting suspension that adapts to the terrain in real time, ensuring a smoother ride.
Passive Energy Dissipaters
Chapter 2 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
These work without external power input and include:
- Viscous Fluid Dampers: Cylinders filled with viscous fluid; dissipate energy via flow resistance.
- Friction Dampers: Dissipate energy via sliding friction between surfaces.
- Metallic Yield Dampers: Elements that yield under seismic loads to dissipate energy through plastic deformation.
- Tuned Mass Dampers (TMDs): A mass-spring-damper system tuned to the structure’s natural frequency to counteract oscillations.
Detailed Explanation
This chunk details the types of passive energy dissipaters. Viscous fluid dampers work by allowing fluids to flow through small openings, resisting motion and thus dissipating energy. Friction dampers utilize the resistance generated between sliding surfaces to reduce movement. Metallic yield dampers are structural elements that deform plastically during high-stress events, effectively absorbing energy. Finally, Tuned Mass Dampers are carefully designed systems that counteract a building's vibrations by moving in opposition to the vibrations, similar to a counterweight.
Examples & Analogies
Imagine trying to keep a boat stable on choppy waters. A friction damper is like using your body weight to maintain balance while a viscous damper is like adjusting your grip on the boat’s edge to absorb the motions of the waves.
Active and Semi-Active Dampers
Chapter 3 of 3
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Active Control Systems: Use sensors and actuators to apply counter-forces in real time.
- Semi-Active Dampers: Adjust stiffness or damping properties during motion (e.g., Magnetorheological and Electro-Rheological dampers). These are generally used in high-performance or mission-critical buildings and require continuous power and control logic.
Detailed Explanation
This chunk explains the advanced damping systems—active and semi-active dampers. Active control systems require continuous power to adjust and counteract forces dynamically. They utilize real-time data from sensors to apply forces when needed. Semi-active dampers, on the other hand, can change their characteristics in response to the environmental conditions, allowing them to manage building motion more adaptively than passive systems, without the full reliance on continuous power.
Examples & Analogies
Consider a smart thermostat system in your home. An active system adjusts the heating or cooling based on the temperature readings it receives, just like an active damper would adapt in real time to the building’s movement during an earthquake. A semi-active system is akin to a thermostat that can change itself based on whether it's too hot or cold outside, managing energy more efficiently.
Key Concepts
-
Passive Energy Dissipaters: Systems that require no external power to operate, such as viscous fluid dampers.
-
Active Dampers: Systems that adapt dynamically to external forces using real-time data.
-
Tuned Mass Dampers: Devices specifically designed to counteract vibrations by tuning to a structure's natural frequency.
Examples & Applications
Viscous fluid dampers are commonly used in skyscrapers to help mitigate wind-induced vibrations.
Tuned mass dampers can be seen in iconic buildings such as the Taipei 101, designed to reduce sway during earthquakes.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Dampers that flow like a river, will make the shaking quiver.
Stories
Imagine a tall building during an earthquake, with dampers inside that act like a safety net, catching and absorbing the shakes and sways, ensuring the occupants inside remain safe.
Memory Tools
P.A.T.S: Passive, Active, Tuned Mass Dampers - just remember PATS for different types of dampers!
Acronyms
D.A.M.P
Dissipative Active Mechanisms in Physics - D.A.M.P. helps to recall the dynamics of dampers.
Flash Cards
Glossary
- Energy Dissipation Device
A mechanism designed to absorb and dissipate energy, particularly during seismic events, to protect structures.
- Passive Energy Dissipater
A device that operates without external power input, relying on inherent mechanical properties to dissipate energy.
- Active Damper
A system that uses sensors and actuators to apply forces dynamically to counteract vibrations.
- SemiActive Damper
A device that adjusts its properties based on real-time feedback to control vibrations.
- Tuned Mass Damper
A mass-spring-damper system designed to mitigate oscillations by being tuned to the structure's natural frequency.
