Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Soil Type
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we are going to explore how the type of soil at a site can influence the site response spectrum. Can anyone tell me how different soil types might affect seismic waves?
Maybe soft soils could amplify low-frequency waves because they are less dense?
Great point, Student_1! Soft soils do amplify low-frequency waves more than harder soils, making them crucial in our seismic response considerations. Remember, we can use the acronym 'SALS' to remember what types of soils can amplify seismic waves: 'Soft', 'Amplifies', 'Low-frequencies', 'Seismic'.
What are the implications for buildings in those areas?
Excellent question! Buildings on soft soils may experience greater lateral movements, requiring specific design considerations to ensure their stability during earthquakes.
Depth to Bedrock
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let's discuss the depth to bedrock. Why do you think the depth at which bedrock is located matters in seismic design?
I think deeper bedrock would mean more amplification because the seismic waves have to travel farther.
Exactly right, Student_3! Greater depth can lead to increased amplification. It's important to remember the phrase 'Deep is Amplified' as a simple memory aid.
Does that mean shallow bedrock is better for stability?
Yes, typically, but it depends on the soil conditions above it. Let's remember: shallow bedrock can lead to more predictable responses.
Shear Wave Velocity
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Earlier, we touched on shear wave velocity. How do you think it influences site response?
If shear wave velocity is high, then there's less movement, right?
Exactly! Higher shear wave velocity generally means stiffer soil, which can reduce amplification of wave motion. A useful mnemonic is 'SHAVE off Movement' to remind us that higher shear wave velocity reduces motion.
So, if the soil is soft, the waves move slower?
Correct, Student_2! A lower shear wave velocity indicates softer soil, which increases potential for greater wave amplification and structural movement. Understanding this helps inform our design practices.
Water Table Level
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Next, let’s examine the influence of the water table level. Can anyone share insights into how the water table could affect seismic behavior?
If it's high, then there could be liquefaction, right?
Spot on! A higher water table can lead to increased liquefaction risk. We can remember it with the phrase 'High Water, High Risk'.
What are the effects of liquefaction on structures?
Liquefaction can lead to loss of bearing capacity resulting in significant structural damage. It’s important for engineers to evaluate water tables when considering site responses.
Topography
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Lastly, let's discuss topography. How do landforms like ridges and valleys affect seismic waves?
Could they amplify waves or maybe reduce them depending on their shape?
Yes, Student_1! Topography can either amplify or attenuate waves. A simple mnemonic is 'Form Matters' to remember how every landform impacts wave behavior.
Are there certain designs we need to consider in hill areas?
Absolutely! Structures on hills might require special design features to withstand potential wave amplification. Let’s summarize our discussion today.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, several crucial factors influencing the site response spectrum are analyzed. Key elements such as soil type, the depth to bedrock, shear wave velocity, water table level, and topography play significant roles in determining how seismic waves interact with the ground and consequently impact structural responses during earthquakes.
Detailed
Factors Influencing Site Response Spectrum
Understanding the site response spectrum is vital for effective earthquake engineering. Several factors significantly influence this spectrum, affecting how structures respond to seismic actions. Here's an in-depth exploration of these factors:
- Soil Type: Different soil types exhibit varying amplification of seismic waves, particularly at low frequencies. Soft soils, for instance, have a higher potential to amplify low-frequency seismic waves, which can lead to greater structural motion during earthquakes.
- Depth to Bedrock: The depth at which bedrock is found affects the amplification of seismic waves. Generally, greater depths result in increased wave amplification. This is crucial when assessing both the seismic hazard and the expected performance of structures.
- Shear Wave Velocity: This parameter controls the stiffness and damping ratios of soil, indicating how quickly seismic waves travel through the ground. Higher shear wave velocities suggest stiffer soil, which typically demonstrates lower wave amplification.
- Water Table Level: The elevation of the water table impacts effective stress within soils and can influence liquefaction potential. If the water table is high, it may contribute to the mobilization of liquefied soils during an earthquake, affecting structural stability.
- Topography: The physical shape of the land, such as ridges and valleys, can either amplify or attenuate seismic waves. The local topography plays a critical role in how seismic energy propagates through the ground and reaches structures.
In conclusion, understanding these factors is essential for engineers to create accurate site-specific response spectra that can lead to more reliable and economic structural designs.

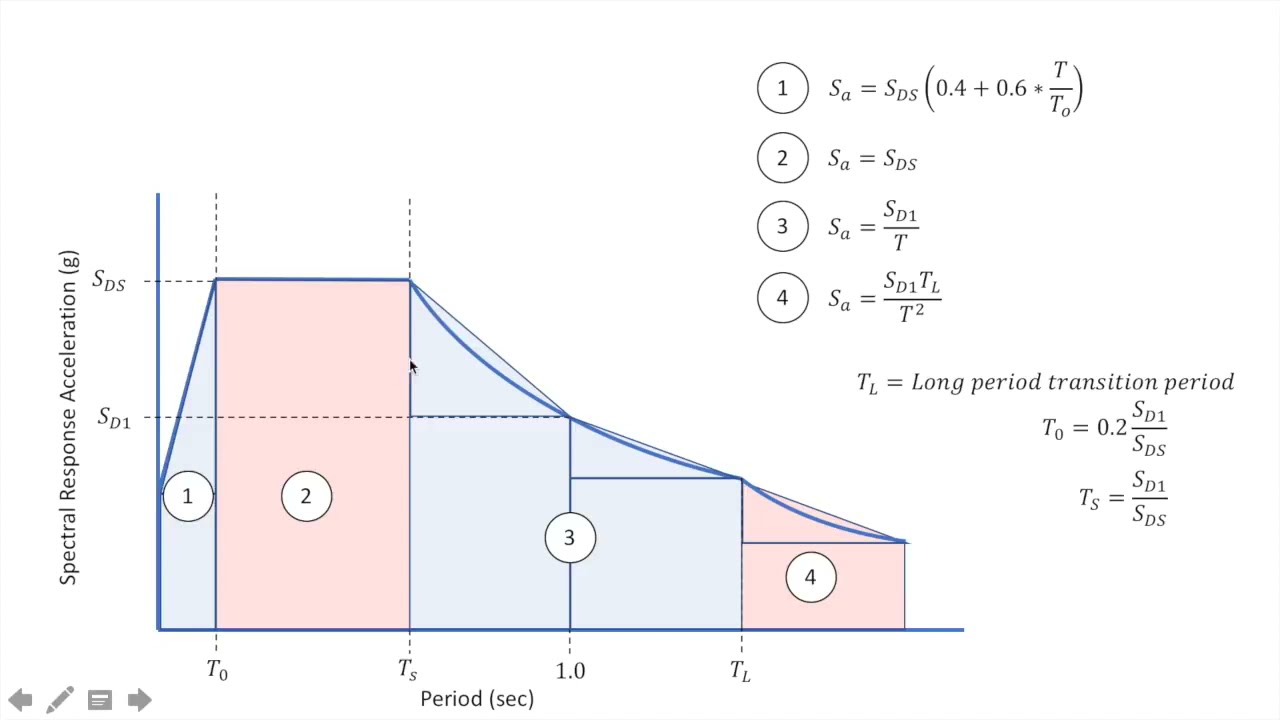

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Soil Type
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Soft soils amplify low-frequency waves.
Detailed Explanation
Different types of soil influence how seismic waves travel through them. Soft soils, in particular, can increase the intensity of low-frequency seismic waves. This means that when an earthquake occurs, soft soils can cause buildings to sway more than they would if they were located on firmer ground. It's important for engineers to consider this when designing structures, especially in areas where the soil is predominantly soft.
Examples & Analogies
Think of soft soil like a sponge: when you press down on it, it compresses easily, which can lead to greater movement in the structures built on it. Just as a sponge squeezes out water when pressed, soft soil can amplify the seismic waves, potentially leading to more severe effects during an earthquake.
Depth to Bedrock
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Greater depth leads to increased amplification.
Detailed Explanation
The distance between the ground surface and the bedrock is crucial in determining how much seismic waves will be amplified. If the bedrock is deep underground, seismic waves have to travel through more layers of soil before reaching the surface. This can lead to greater amplification of the waves, which can cause more severe shaking and movement at the surface, impacting buildings and infrastructure.
Examples & Analogies
Imagine throwing a stone into a pool of water. If the water is shallow, the ripples created are smaller and less intense. However, if you throw that same stone into a deep lake, the ripples travel farther and can become more chaotic. Similarly, when seismic waves pass through deeper soil, their impact on the surface can be significantly greater.
Shear Wave Velocity
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Controls stiffness and damping.
Detailed Explanation
Shear wave velocity is a measure of how quickly seismic waves move through the soil. It influences the soil's stiffness and its ability to absorb energy (damping). Higher shear wave velocities usually indicate stiffer soils that don’t amplify seismic waves as much, while lower velocities suggest softer soils that can lead to greater amplifications and motion during an earthquake.
Examples & Analogies
Consider two types of musical instruments – a violin and a drum. The violin strings vibrate quickly, producing high-pitched sounds, akin to stiffer soils with high shear wave velocities that don’t amplify vibrations as much. The drum, on the other hand, resonates with lower pitches, similar to softer soils that can vibrate more and amplify seismic waves.
Water Table Level
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Affects effective stress and liquefaction potential.
Detailed Explanation
The level of the water table impacts the effective stress within the soil and can influence the soil's behavior during seismic events. When the water table is high, the soil may become saturated, which can lead to liquefaction – a phenomenon where the ground loses its strength and behaves like a liquid during shaking. This poses serious risks to structures built on such soils.
Examples & Analogies
Think of a balloon filled with water. When you squeeze it, the water moves and the balloon can change shape easily. If the ground is saturated with water during an earthquake, it can similarly lose its stability, making it difficult for buildings to stay upright, just like the balloon may not hold its shape under pressure.
Topography
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Ridges and valleys can amplify or attenuate waves.
Detailed Explanation
The physical features of the land, such as hills and valleys, play a significant role in how seismic waves propagate. Ridges can cause waves to be focused and amplified, while valleys may reflect waves and lead to less shaking. Understanding the topography is critical in evaluating how a specific location will respond during an earthquake.
Examples & Analogies
Imagine sound waves traveling through different terrains. In a concert hall, the design of the space can enhance sound quality, making music more intense. Similarly, if an earthquake’s seismic waves travel over hills, they can be amplified (ridges) or diminished (valleys), affecting the intensity felt by structures situated in these various topographical features.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Soil Type: Different types of soil can amplify or attenuate seismic waves, especially soft soils.
-
Depth to Bedrock: The greater the depth to bedrock, the increased potential for wave amplification.
-
Shear Wave Velocity: This determines the stiffness of the soil affecting the response to seismic waves.
-
Water Table Level: Affects liquefaction potential and effective stress in soils.
-
Topography: The land's physical features can influence how seismic waves propagate.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An area with soft soil and a high water table is likely to experience significant liquefaction during an earthquake, risking structural stability.
-
A building constructed on a slope may have different seismic response characteristics compared to a flat site due to wave amplification effects from the ridge.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
If soils are soft, waves shall soar, amplify low-frequencies, that's their core.
📖 Fascinating Stories
-
Imagine two buildings: One on soft soil, one on hard. When an earthquake strikes, the soft-soil building shakes a lot more, as it amplifies the seismic waves.
🧠 Other Memory Gems
-
Remember 'SHAVE' for Shear wave velocity's Higher is Always Valuable for engineering!
🎯 Super Acronyms
TOP-WS for factors
- 'Topography'
- 'Overlay'
- 'Pressure of water'
- 'Wave characteristics'
- 'Soil type'.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Soil Type
Definition:
Classification that indicates how different soils influence the amplification of seismic waves.
-
Term: Depth to Bedrock
Definition:
The distance from the ground surface to the underlying bedrock, affecting seismic wave amplification.
-
Term: Shear Wave Velocity
Definition:
The rate at which shear waves travel through soil, impacting site stiffness and damping.
-
Term: Water Table Level
Definition:
The depth at which groundwater saturates soil, influencing effective stress and liquefaction potential.
-
Term: Topography
Definition:
The physical shape and features of land which can amplify or attenuate seismic waves.
