Importance of Ground Motion Selection
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're discussing ground motion selection. Can anyone tell me why it's essential to select the right ground motions?
Is it because different ground motions can cause different amounts of stress on a structure?
Exactly! Different seismic motions can greatly affect how a structure responds. We want our chosen motions to represent the actual risks associated with the site. Now, what are some factors we consider when selecting these ground motions?
We look at factors like magnitude range and the type of fault mechanism!
Very good! So remember this acronym: MRS—Magnitude, Rupture mechanism, Source-to-site distance. This will help you recall what's important during selection.
How do we ensure that the ground motion we select is representative?
Great question! By selecting events that closely match our target design earthquake in those specific factors, we can enhance accuracy in our analyses.
In summary, the selection of ground motions is critical to accurately assess potential structural responses during seismic events.
Scaling Methods for Ground Motions
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now that we understand how to select ground motions, let’s discuss how we scale them to ensure they fit our design spectrum. What are some methods we use for this?
We can use amplitude scaling to match the Peak Ground Acceleration.
Correct! That's one method. But there's more. Can anyone name another scaling method?
Spectral matching aligns the ground motion with a target response spectrum, right?
Exactly! Spectral matching is crucial for capturing the dynamics across specified periods. Remember the acronym ASMS—Amplitude Scaling, Matching Spectrum. Plus, duration matching adjusts the time of strong shaking to local hazards. Can you all see how these methods collectively ensure better safety?
Yes! It's like customizing the ground motion for the structure and site.
That's right! The objective is to ensure the motion is as realistic as possible. To wrap up, remember that effective scaling allows for accurate assessments and improved safety in design.
Code Requirements for Ground Motion Selection and Scaling
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s look into the code requirements for selecting and scaling ground motions. Why do we need to follow these codes?
Following codes helps ensure that our designs are safe and consistent with standards.
Exactly! IS 1893, ASCE 7, and Eurocode provide important guidelines on how many motions we need and the scaling criteria involved. Can anyone tell me why it's critical to adhere to these specifications?
Adhering to specifications helps avoid underestimations in our designs. We want to ensure that we're accounting for the most realistic situations.
Perfect! This notion of minimizing conservatism while maintaining safety is vital. By adhering to these codes, we create a practical yet robust design that can handle real-world seismic demands.
In summary, code requirements provide the necessary framework to guide our methodologies in ground motion selection and scaling, ensuring our structures are safe and reliable.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, we take a close look at the essential criteria for selecting and scaling ground motions in earthquake engineering, focusing on methods such as amplitude scaling, spectral matching, and the requirements set forth by codes including IS 1893. By aligning these ground motions with target design spectra, engineers can enhance the accuracy of structural analysis for seismic events.
Detailed
The selection and scaling of ground motions are pivotal in earthquake engineering, particularly for dynamic analysis and nonlinear time-history analysis of structures. Proper selection ensures that the ground motions closely reflect the seismic conditions anticipated at a site. Key criteria include matching the magnitude range, source mechanism, site-to-source distance, and site conditions (such as rock or soil characteristics). The scaling methods discussed include amplitude scaling, which aligns the ground motion with the Peak Ground Acceleration (PGA), spectral matching to fit a target response spectrum across a specified period range, and duration matching that adjusts the length of shaking periods to reflect local hazards. Furthermore, important code requirements are highlighted, focusing on guides provided by IS 1893, ASCE 7, and Eurocode regarding the number of ground motions, scaling criteria, and acceptable deviations from the target response spectrum. Successfully implementing these strategies enhances the reliability of seismic designs and ensures structural integrity during seismic events.

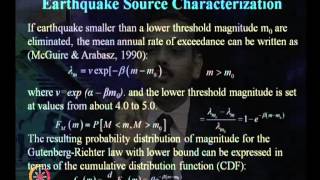

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Importance of Selection and Scaling
Chapter 1 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Proper selection and scaling of ground motions is vital to ensure compatibility with the target design spectrum, particularly for dynamic analysis or nonlinear time-history analysis of structures.
Detailed Explanation
In earthquake engineering, it's crucial to select and scale ground motions correctly. This ensures that the ground motions used for analysis correctly reflect the expected seismic activity for a specific site, which is essential for designing safe structures. Compatibility with the target design spectrum means that the engineer can accurately assess how a structure will behave under earthquake conditions, allowing them to make informed design decisions. This is especially important when using advanced analysis methods like dynamic analysis or nonlinear time-history analysis, which require precise motion characteristics to predict structural response accurately.
Examples & Analogies
Imagine you're preparing for a sports game. If you know the other team plays a specific strategy, you would practice against that style to prepare effectively. Similarly, selecting and scaling ground motions to match expected seismic activity helps engineers prepare buildings for actual earthquake conditions they might face.
Selection Criteria
Chapter 2 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Selection Criteria
- Earthquakes with similar:
- Magnitude range
- Source mechanism (strike-slip, thrust, etc.)
- Site-to-source distance
- Site conditions (rock, soil)
Detailed Explanation
When selecting ground motions, various criteria must be considered to ensure that the selected records accurately reflect the conditions anticipated at the site. These include:
1. Magnitude Range: The selected earthquake records should have a similar magnitude to the anticipated earthquake at the site. This criterion helps ensure that the intensity of shaking matches expectations.
2. Source Mechanism: Understanding the type of fault movement that causes earthquakes helps in selecting records corresponding to similar mechanisms (like strike-slip or thrust) since they influence how seismic waves propagate.
3. Site-to-Source Distance: The distance from the seismic source (like a fault) to the site affects the shaking intensity. Records should be chosen that reflect similar distances.
4. Site Conditions: Differences in soil and rock types can significantly affect how ground motions are transmitted to structures, hence the need for matching site conditions.
Examples & Analogies
Think of selecting ingredients while cooking. If you’re making a dish that requires ripe tomatoes, you wouldn’t choose overripe or underripe ones. In the same way, engineers must choose the right criteria that match the seismic conditions to ensure the building reacts appropriately to ground motions.
Scaling Methods
Chapter 3 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Scaling Methods

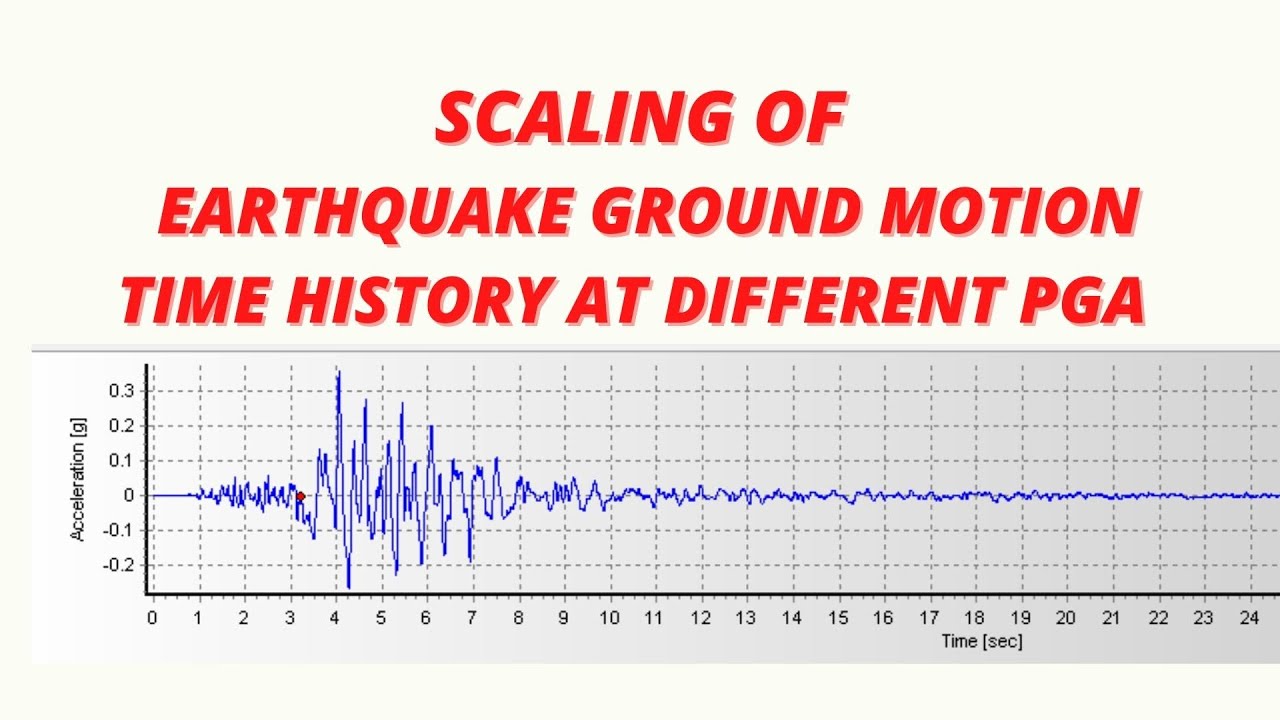

- Amplitude Scaling: Scale ground motion to match Peak Ground Acceleration (PGA).

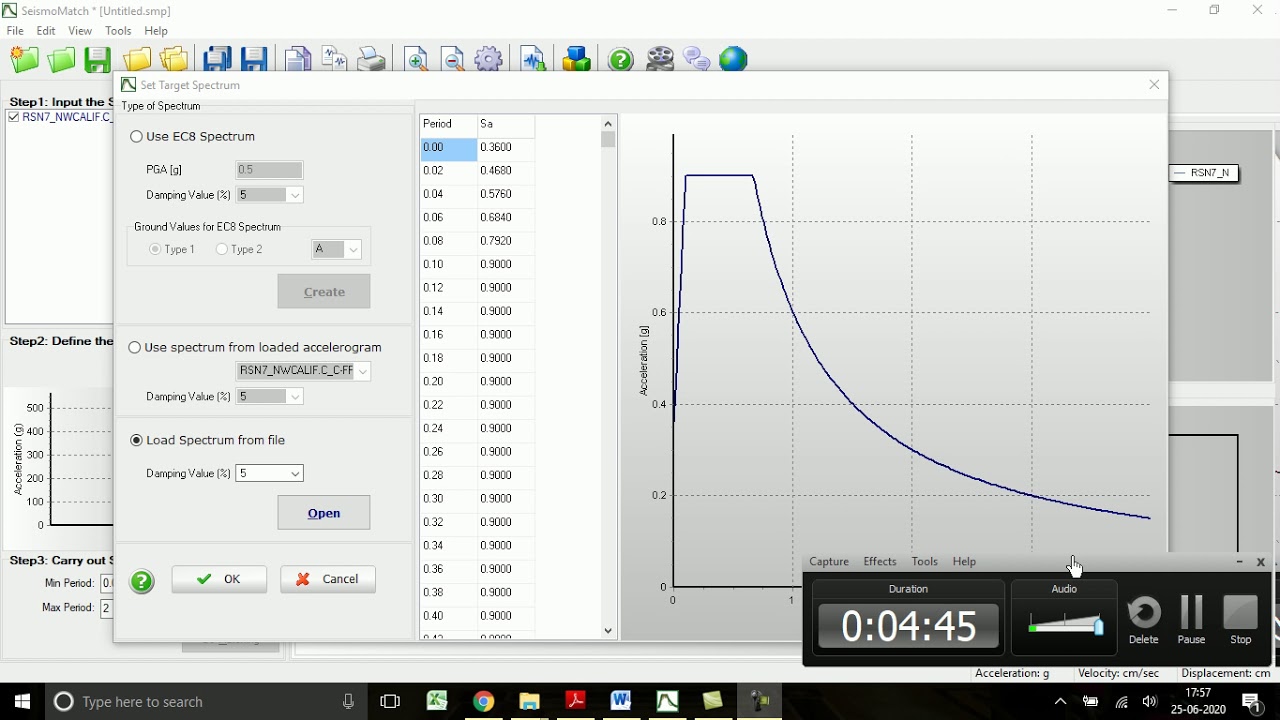

- Spectral Matching: Scale to match a target response spectrum over a specified period range.
- Duration Matching: Scale to match the duration of strong shaking to local site hazard.
Detailed Explanation
Once ground motions are selected, they often need to be scaled to align with the expected seismic activity at the site. This scaling process usually follows these methods:
1. Amplitude Scaling: This method adjusts the overall strength of the ground motion so that the maximum acceleration (PGA) matches the anticipated values, ensuring that the peak shaking is comparable.
2. Spectral Matching: Here, the ground motion is adjusted to match a specific target response spectrum across certain periods, which allows the engineer to focus on critical structural responses during earthquakes.
3. Duration Matching: In this method, the duration of the shaking is tailored to reflect the expected local conditions, ensuring that the analysis considers how long a structure might experience significant shaking during an earthquake.
Examples & Analogies
Imagine tuning a musical instrument. Just like each string needs to be adjusted to hit the right note, ground motions need to be scaled to ensure they align with expected seismic behavior, ensuring that the structure can respond correctly during an earthquake.
Code Requirements
Chapter 4 of 4
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Code Requirements

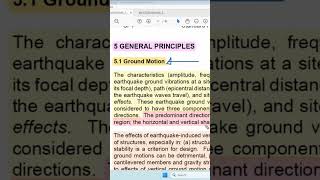

- IS 1893, ASCE 7, and Eurocode specify the number of motions, scaling criteria, and acceptable deviation from the target response spectrum.
Detailed Explanation
There are codes and standards that guide engineers on how to select and scale ground motions to ensure safety and reliability. For instance:
- IS 1893 (Indian Code): Provides guidelines on the selection and scaling of ground motions specific to India’s seismic zones.
- ASCE 7 (American Society of Civil Engineers): Outlines procedures for seismic analysis, including requirements for ground motion selection and scaling.
- Eurocode: Similar to the other codes, it offers guidelines tailored for European contexts. These codes define the minimum number of motions that need to be tested, criteria for scaling them correctly, and acceptable levels of deviation from the expected response spectrum to ensure safety and performance of structures.
Examples & Analogies
Following a recipe for a dish is akin to adhering to engineering codes. Just as a recipe offers specific quantities and cooking times to create a tasty dish, code requirements provide essential guidelines to ensure structures respond appropriately during seismic events.
Key Concepts
-
Ground Motion Selection: The process of choosing seismic records that accurately reflect the expected seismic behavior of a site.
-
Scaling Methods: Techniques such as amplitude scaling and spectral matching that ensure the selected ground motions are compatible with design spectra.
-
Code Compliance: The necessity to follow existing building codes and guidelines during the selection and scaling process.
Examples & Applications
An engineer selects ground motion records from a regional earthquake database that has a similar magnitude and fault mechanism to the proposed site.
Scaling ground motion to fit an established response spectrum helps ensure that the structure can sustain expected seismic loads effectively.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Select and scale with care, avoid risks laid bare.
Stories
Imagine an engineer on a mission to create a building that withstands earthquakes. They carefully select and scale the motions that represent potential seismic actions, ensuring every shake is accounted for in their design.
Memory Tools
Remember the acronym ASMS for scaling: A for Amplitude Scaling, S for Spectral Matching, M for Matching periods, S for Site Conditions.
Acronyms
Use MRS for remembering Key Factors in Selection
for Magnitude
for Rupture mechanism
for Source-to-site distance.
Flash Cards
Glossary
- Ground Motion
The motion of the ground as a result of seismic activity.
- Peak Ground Acceleration (PGA)
The maximum acceleration experienced by the ground during an earthquake.
- Spectral Matching
A scaling method that adjusts ground motion records to match a target response spectrum.
- Amplitude Scaling
A method of scaling that adjusts the entire ground motion record to match PGA.
- Duration Matching
A scaling method that adjusts ground motion records to reflect the duration of strong shaking.
