Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Monitored Natural Recovery

Unlock Audio Lesson

0:00
Teacher
Teacher

Let's begin our discussion with monitored natural recovery, or MNR. This method relies on natural processes to degrade contaminants over time. What do you think happens if we don't intervene?

Student 1
Student 1

If we leave it alone, it might naturally get better as things break down?

Teacher
Teacher

Exactly! It's about allowing nature to take its course, but we need to monitor it regularly to ensure it’s safe. Can anyone tell me what 'natural attenuation' means in this context?

Student 2
Student 2

It means that nature will help clean up the contamination slowly without human help?

Teacher
Teacher

Right! But remember, not all chemicals are easily degraded. Some are specially designed to resist breakdown, known as refractory chemicals. Why do you think industries may prefer MNR?

Student 3
Student 3

Because it’s cheaper than actively cleaning it up?

Teacher
Teacher

Correct! It’s cost-effective since it requires minimal intervention. However, we must use models to predict whether it's safe to leave it be and identify the responsible parties for contamination. Can anyone summarize the process of MNR for me?

Student 4
Student 4

We monitor the water quality downstream and use transport models to predict emissions from the sediment.

Teacher
Teacher

Great summary! Remember, monitoring is key in ensuring no new contamination occurs due to disturbances.

In-Situ Capping

Unlock Audio Lesson

0:00
Teacher
Teacher

Let’s move on to in-situ capping. Who can explain what this method involves?

Student 1
Student 1

It's when you put a clean layer on top of the contaminated sediment, right?

Teacher
Teacher

Exactly! This layering not only protects surface waters but also adds resistance to the movement of contaminants. What kind of materials do you think are used for capping?

Student 2
Student 2

Maybe sand or something with organic materials that can help absorb the contaminants?

Teacher
Teacher

Yes! Clean sand can act as a barrier without absorbing much, while organic materials can help with adsorption. Do you think there are any downsides to capping?

Student 3
Student 3

It could block sunlight or change the environment for organisms living beneath?

Teacher
Teacher

Good observation! Capping can alter the biogeochemistry, which may harm existing life. Now, how does the structure of this method impact the local ecosystem?

Student 4
Student 4

It could create more anaerobic conditions for marine life.

Teacher
Teacher

Exactly, and that might lead to unexpected consequences. We must evaluate all factors before deciding on this method.

Dredging Techniques

Unlock Audio Lesson

0:00
Teacher
Teacher

Now let’s discuss dredging. What do you understand by this remediation method?

Student 1
Student 1

It’s when you remove sediment directly from the water?

Teacher
Teacher

Exactly! Dredging is a direct action but can cause significant turbidity. What types of dredging are we aware of?

Student 2
Student 2

Mechanical and hydraulic dredging?

Teacher
Teacher

Correct! Mechanical dredging is effective but can generate a lot of clouding. Why might that be a problem?

Student 3
Student 3

Because it can spread contaminants back into the water?

Teacher
Teacher

Exactly! We need to manage those risks. Can anyone explain how hydraulic dredging differs?

Student 4
Student 4

It drills into the sediment more gently and makes a slurry instead of just scooping it up.

Teacher
Teacher

Great summary! While hydraulic dredging creates less disturbance, handling the contaminated slurry afterward can be challenging. This highlights the importance of choosing the right remediation technique.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section presents different remediation options for contaminated sediments in coastal regions, primarily discussing monitored natural recovery, in-situ capping, and dredging.

Standard

The section elaborates on various remediation strategies for managing contaminated sediments found in coastal areas. It explores monitored natural recovery relying on natural processes, in-situ capping to prevent further contamination, and dredging as a more invasive yet direct approach to remove pollutants. Each approach includes its benefits, challenges, and implications on the environment and water quality.

Detailed

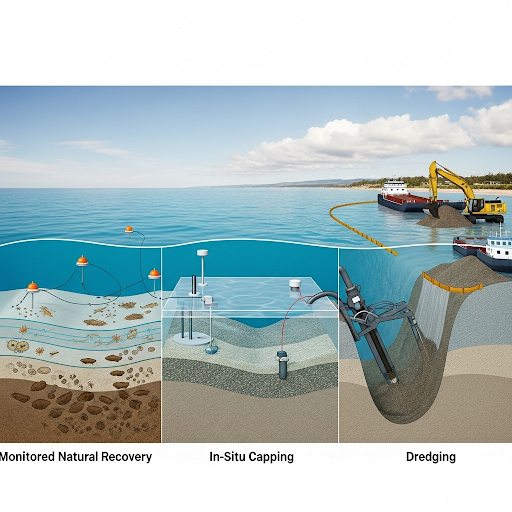

Options for Remediation

This section discusses three main options for remediation of contaminated sediments in coastal areas: monitored natural recovery, in-situ capping, and dredging. These methods are essential for managing contamination that occurs due to various coastal activities, especially shipping, and industries.

Monitored Natural Recovery (MNR)

Monitored natural recovery is a passive remediation strategy that relies on natural processes to reduce contaminants in sediments. It involves using transport models to predict emission levels from sediments and assessing water quality downstream. If the water quality is maintained below safe levels, no active intervention is taken. This method assumes the contaminants will naturally degrade over time through processes like biodegradation, although some synthetic chemicals, known as refractory chemicals, are resistant to degradation. Industries responsible for contamination can be identified through analytical chemistry techniques that target specific chemical signatures.

Key Points of MNR:

  • Cost-effective: It requires minimal active intervention.
  • Natural Attenuation: Relies on the assumption that contaminants will break down over time.
  • Regular Monitoring: Essential to ensure sediment disturbance does not cause further contamination.

In-Situ Capping

In-situ capping is another remediation approach where a clean layer of material is placed over contaminated sediments. This method serves to prevent chemical exposure to aquatic life and delays the mobility of contaminants through additional mass transfer resistance. However, it can impact the biological life beneath the cap and alter the local ecosystem by making it more anaerobic.

Key Points of In-Situ Capping:

  • Layering Technique: Clean materials can be sand or organic-rich sediment.
  • Resistance to Contaminants: It delays the breakthrough of chemicals and contaminants to the water above.
  • Ecosystem Impact: Changes the local biogeochemical processes, potentially harming local organisms.

Dredging

Dredging is an active method where contaminated sediments are mechanically removed from the environment. While effective in cleaning, it can cause significant turbidity and resuspension of contaminants back into the water. Two dredging techniques are common: mechanical dredging, which removes solids effectively but generates turbidity, and hydraulic dredging, which creates a slurry of sediments that need to be managed afterward.

Key Points of Dredging:

  • Direct Removal: Effective for clearance of hazardous materials.
  • Environmental Risks: Associated with high turbidity levels that can contaminate surrounding waters.
  • Management of Dredged Material: Requires further processing to ensure contamination does not persist in the environment.
    Understanding these remediation options is crucial for environmental protection and maintaining water quality in coastal regions.

Youtube Videos

#13 Remediation & Liability : Case Study | Ecology and Environment
#13 Remediation & Liability : Case Study | Ecology and Environment
Introduction video_ Environmental Quality Monitoring & Analysis
Introduction video_ Environmental Quality Monitoring & Analysis
#5 Air Quality Parameters | Sustainability | Environmental Quality Monitoring & Analysis
#5 Air Quality Parameters | Sustainability | Environmental Quality Monitoring & Analysis
#11 Introduction to Environmental Monitoring & Sampling | Environmental Quality Monitoring &Analysis
#11 Introduction to Environmental Monitoring & Sampling | Environmental Quality Monitoring &Analysis
#12 Environmental Sampling | Environmental Quality Monitoring & Analysis
#12 Environmental Sampling | Environmental Quality Monitoring & Analysis
#6 PM - Particulate Matter | Environmental Quality Monitoring & Analysis
#6 PM - Particulate Matter | Environmental Quality Monitoring & Analysis
#1 Introduction | Environmental Quality Monitoring & Analysis
#1 Introduction | Environmental Quality Monitoring & Analysis
#13 Environmental Analysis | Quality Control | Part 1 | Environmental Quality Monitoring & Analysis
#13 Environmental Analysis | Quality Control | Part 1 | Environmental Quality Monitoring & Analysis
#4 Water Quality Parameters | Environmental Quality Monitoring & Analysis
#4 Water Quality Parameters | Environmental Quality Monitoring & Analysis
#28 Monitoring Methods for Airbourne PM | Part 1 | Environmental Quality Monitoring & Analysis
#28 Monitoring Methods for Airbourne PM | Part 1 | Environmental Quality Monitoring & Analysis

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Contaminated Sediments

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

There are a lot of contaminated sediments and sediments are if it is contaminated, it has to be managed because these are also commercial locations as there is a lot of traffic, shipping traffic is there and then you cannot let it be there because if shipping happens, then it is going to re-suspend.

Detailed Explanation

This chunk explains how contaminated sediments must be managed, particularly in areas where commercial activities like shipping take place. If these sediments are not properly handled, they can become re-suspended in the water due to the movement of ships, which spreads chemical contaminants to other areas.

Examples & Analogies

Imagine a busy harbor where boats are constantly moving. If the bottom of the harbor is dirty and contaminated with chemicals, the action of the boats can stir up this dirty water, making it spread to clean areas nearby just like stirring up mud in a puddle would cloud the water.

Monitored Natural Recovery

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

One is called as monitored natural recovery. What it means is that this is simply based on the idea of you figuring out using a transport model, how much emission is going to occur from the sediment naturally without doing anything.

Detailed Explanation

Monitored natural recovery is a remediation approach where we rely on natural processes to reduce contamination over time. By using models to predict emissions and water quality, we can decide whether it's necessary to intervene. If the water quality downstream from the sediments doesn’t show significant harm, we might choose not to take action and trust that nature can gradually fix itself.

Examples & Analogies

Think of a garden that has been neglected. If we monitor it over time, we might notice that some plants naturally start to come back. If they flourish and the garden looks healthier, we might decide not to intervene and let nature take its course instead of immediately digging up and replanting.

Factors Affecting Monitored Natural Recovery

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

If you determine that the downstream water quality is not bad, you do not do anything, you leave it and the hope is this term here is called natural attenuation because what this assumes is that there is going to be biodegradation naturally, slow biodegradation.

Detailed Explanation

The effectiveness of monitored natural recovery hinges on the idea of natural attenuation, which is the slow process of biodegradation. This means microorganisms in the sediment can gradually break down contaminants, improving water quality over time without human intervention.

Examples & Analogies

Like how a compost pile eventually breaks down food scraps over time without any direct action, we hope that the natural processes in contaminated sediments will similarly break down harmful substances gradually.

Limitations of Natural Recovery

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

There are human-made chemicals which are specifically designed to be nonbiodegradable, they are called as refractory chemicals, and in this case, biodegradation will be very slow.

Detailed Explanation

While natural recovery is effective for some organic materials, certain pollutants, known as refractory chemicals, are intentionally designed not to decompose. This limitation means that for these chemicals, we cannot rely solely on natural processes since they will persist in the environment much longer.

Examples & Analogies

Think of plastic water bottles that are left in nature. Unlike food scraps that break down and disappear, these bottles can stay in the environment for hundreds of years, making it clear that not all materials decompose naturally and quickly.

Using Chemical Markers for Responsibility

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

How do you know which industry is responsible for it, for that we use a mix of analytical chemistry, we use what is called as markers, we use markers. Markers are chemical signatures.

Detailed Explanation

To identify the source of contamination, scientists use chemical markers or specific signatures found in pollutants that are unique to certain industries. This investigative technique allows regulators to pinpoint responsibility for pollution, directing them toward specific companies or groups for cleanup obligations.

Examples & Analogies

It's similar to how forensic scientists can identify the owner of a specific piece of evidence at a crime scene. Just like fingerprints are unique to an individual, some chemicals can be traced back to specific sources, helping authorities understand who is responsible for contamination.

In-Situ Capping

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The other option that they have is what is called in-situ capping. This is you put a clean material on top of existing.

Detailed Explanation

In-situ capping involves covering contaminated sediments with clean materials, like soil or sediment, to prevent chemicals from entering the water column. This method increases resistance to chemical movement and can provide a temporary solution while natural processes work to clean the sediments.

Examples & Analogies

Imagine putting a clean tablecloth over a messy table. The tablecloth hides the mess while you work on cleaning it up, much like the cap keeps contaminants contained while they slowly degrade.

Limitations and Considerations of Capping

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

One of the arguments against capping is either it destroys the essential biological life there.

Detailed Explanation

While capping can be effective, it may have negative side effects, such as disrupting the natural habitat and biological processes in the sediment. This might lead to changes in life beneath the cap, creating uncertain consequences for the ecosystem.

Examples & Analogies

Think of building a parking lot over a garden. While the garden is covered up and less messy, you also kill the plants and organisms that lived there, which may cause unforeseen problems like pest outbreaks later.

Dredging as a Third Option

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The last method is called dredging. This is dredging, you have seen this a lot here.

Detailed Explanation

Dredging involves removing contaminated sediments from their location and is often considered for land reclamation or deeper water access. However, this process can cause significant disruptions, such as resuspending contaminants back into the water column.

Examples & Analogies

Picture trying to clean a muddy riverbed by scooping out the mud with a shovel. While it removes some of the mess, it can make the entire area muddy and dirty again, spreading contamination even further instead of resolving it.

Environmental Impact of Dredging

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

When you are dredging, chemicals can release into the water okay and we discussed this.

Detailed Explanation

Dredging can lead to the release of harmful chemicals that were previously buried in the sediment. This can cause new contamination of the water where the dredging occurs, which is a significant environmental concern.

Examples & Analogies

Think of cleaning out a dirty attic. If you pull out old boxes filled with dust and dirt, you may stir up allergens and pollutants that were settled. This can make the air in your home worse instead of better, just as dredging can release harmful substances back into the water.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Monitored Natural Recovery: A strategy utilizing natural processes and requiring regular monitoring to remediate contaminated sites.

  • In-Situ Capping: A method involving covering contaminated sediment with a clean layer of material to prevent further exposure.

  • Dredging: An active technique for removing sediment, which can cause resuspension of contaminants.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • Monitored Natural Recovery can be seen in areas where natural processes sufficiently reduce contaminant levels, allowing for regulatory agencies to determine that no further action is required.

  • Dredging is employed in many coastal cities to maintain navigational channels but must be managed carefully to minimize environmental impact.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Dredging pulls sediment, it stirs up a mess, but capping keeps clean, let's all do our best.

📖 Fascinating Stories

  • Once upon a time, there was a coastal town where polluted waters made the fish sad. They learned that nature helps in cleaning when left to be, but also knew to put caps over the grime for the fish to be free!

🧠 Other Memory Gems

  • Remember 'M-C-D': Monitoring (M) for natural recovery, Capping (C) for barriers, Dredging (D) for direct action.

🎯 Super Acronyms

MC-D helps you remember

  • MNR for Monitoring
  • C: for Capping
  • D: for Dredging.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Monitored Natural Recovery (MNR)

    Definition:

    A remediation strategy that relies on natural processes to reduce contaminants in sediments, involving regular monitoring of sediment and water quality.

  • Term: Natural Attenuation

    Definition:

    The natural process by which microorganisms break down contaminants over time, reducing their concentration.

  • Term: InSitu Capping

    Definition:

    A remediation method where a clean layer of material is placed over contaminated sediments to prevent exposure and slow the movement of contaminants.

  • Term: Refractory Chemicals

    Definition:

    Synthetic chemicals designed to resist biodegradation, making them persistent in the environment.

  • Term: Dredging

    Definition:

    An active method of removing contaminated sediments from water bodies, employing mechanical or hydraulic methods.
