5. Overall Flux Expression

So this is again the thing that we discussed in last class. When this kind of thing happens, moisture content in the soil is changing as a result emission will change. The partition constant is changing, this is changing. This experiment is done in the lab where it shows that there is a chemical called dibenzofuran and this is experimental data. When the mud is dry and this is the model, the blue line is the model that shows, and then at some point we dry the surface by sending in dry air.

In this section, the impact of soil moisture content on emissions is discussed. When moisture levels in soil change, the flux or rate of exchange of chemicals also varies. This relationship is illustrated through an experiment involving dibenzofuran, where the drying of soil due to dry air influences the overall emission rates. As the surface dries, we see a model representation showing how emissions shift back and forth based on moisture.

Think of a sponge: when it's wet, it holds onto liquid; as it dries (loses moisture), it releases the liquid more easily. Similarly, in our scenario, as the soil dries, it begins to release chemicals into the air more readily.

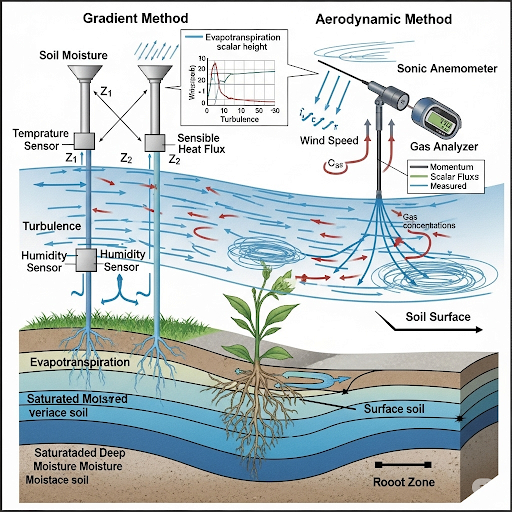

When you have a surface and you have to measure the flux and it is difficult for you or it is unreliable for you to enclose a surface, you need to still measure the flux and we do it by what is called as a gradient technique or a micrometeorological technique. I am just going to talk a little bit about it, aerodynamic technique. It is also called as a gradient technique.

Measuring flux can be challenging, especially when enclosing a surface isn't feasible. In such cases, we employ micrometeorological techniques, specifically the gradient technique. This method involves measuring the concentration difference of air components at different heights to infer the flux. Essentially, by understanding how the concentration changes with height, we can estimate how much of a substance is moving away from the surface.

Imagine you're standing outside on a windy day, with a strong scent of flowers carried in the air. As you move farther away from the flowers, the scent dissipates. By noting how quickly the scent fades at different distances, we are effectively using a gradient technique to understand how the scent (in this case, a chemical in the air) disperses.

What we are taking advantage of here is that we would like to see if there is a vertical component of the fluid that is going in the upward direction, Yes, this is convective mass transfer right. This is convective mass transfer and therefore we are trying to take advantage of the convective mass transfer component in the z direction to see what is the concentration difference and we will also see if we can somehow measure the net flux based on that concentration difference at a given location.

The concept of convective mass transfer is crucial in understanding how substances move vertically in the air. When we analyze the concentration differences, we are particularly interested in the upward movement of air (a phenomenon known as convective mass transfer). This upward flow carries substances with it, and by measuring how these concentrations change, we can calculate the net flux of materials into the atmosphere.

Think of steam rising from a boiling kettle. As the steam rises, it carries heat and water vapor into the air. The upward flow of steam represents convective mass transfer, where the concentration of steam decreases as it moves away from the source, allowing us to understand how heat and moisture disperse in the surrounding air.

So this is the essence of the reason why we do this, the equation called Thornwaite-Holzman equation. This is also the basis for the estimation of dispersion parameters in air mode. Because that is also based on same thing, it is vertical structure of air, turbulence in the air, and therefore how does material move in the y direction and z direction as a result of this kind of convective behavior.

The Thornwaite-Holzman equation helps estimate dispersion parameters in the air. It relies heavily on understanding the vertical structure of the atmosphere and how turbulence affects material movement in both horizontal (y) and vertical (z) directions. These interactions are crucial for accurate assessments of how emissions disperse in the environment, especially in turbulent conditions.

Consider a busy kitchen when cooking. The steam rising from a pot doesn't just ascend in a straight line; it gets swirled around by the heat and movement of air, causing it to disperse in different areas of the kitchen. This analogy highlights how turbulence can change the path and concentration of materials being moved through the air.

The idea is that if you make velocity measurements at two heights z1 and z2, they will likely follow this expression, yeah. If it follows this expression, then the quantities v star can be calculated from that okay. So v star is the friction velocity which you can obtain by the velocity gradient in a given location.

When measuring velocity at two different heights, we can derive important parameters such as friction velocity (v star) from the gradient of those velocities. The relationship observed helps us understand how fast air or substances are moving above various surfaces, providing data necessary to quantify emissions accurately.

Think of a race car speeding down a strip. By measuring how quickly it travels at two different checkpoints, we can calculate its average speed over that stretch. This is similar to measuring air velocity at different heights to understand overall movement and flux in the atmosphere.

When you have thermal forces, you bring into this question. There is something called as a Monin-Obukhov length scale. This comes up there also, you can read, there is one page set of things I have put in your, if you are interested you can read it.

Thermal forces affect how materials are transferred in the atmosphere. The Monin-Obukhov length scale is a key concept in understanding these effects. It describes the height at which the forces from thermal buoyancy (hot air rising) and shear stress (wind) are balanced, influencing turbulence and flux measurements in a given area.

Imagine a hot air balloon. As the air inside heats up, it becomes lighter and starts to rise. This movement of light, warm air affects surrounding cooler air and creates turbulence. The Monin-Obukhov length scale helps us understand how this thermal buoyancy interacts with wind forces, similar to how the balloon rises against the atmospheric conditions.

So based on this, we define a bunch of other things. So we add a correction factor called as B, which is now dependent on the stability as well and this when we have a bunch of equations where we calculate B for different values of, in the equation previous slide, this number is dependent on z by Lm, z is any height.

In deriving the final expression for calculating flux, a correction factor (B) is included to account for environmental stability. This correction considers variations in flux that can occur at different heights and conditions, ensuring a more accurate representation of material transfer in the atmosphere.

Think of measuring rain. If you only used one measurement line, you might miss variations in how heavily it's raining in different parts of your yard. By adding a factor that adjusts based on the conditions, you create a more accurate overall picture of rainfall, just like the correction factor enhances flux calculations in varying environments.

--
