4. Discussion on Mass Transfer Rates

So this material is coming to the interface by diffusion and it is getting carried away in this region where the convective mass transfer coefficient is in this region, this is all diffusion here okay...

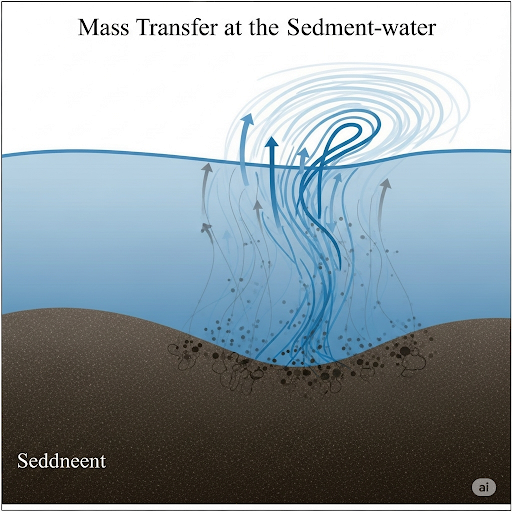

This chunk introduces how mass transfer takes place between sediments and the surrounding water. Material diffuses to the interface where the water meets the sediment. Once at the interface, convective mass transfer can carry that material away quickly. If diffusion (movement of particles from high to low concentration) is slow, it limits how fast the material can reach the interface. So, the overall rate of transfer is determined by the slower of the two processes - diffusion or convection.

Think of it like a crowd trying to exit a building during a fire drill. If people are rushing to the exit (convection), they can leave quickly as long as there is a steady stream of people obediently moving towards the exits (diffusion). However, if someone is moving slowly (like diffusion), it can bottleneck the exit, causing waiting and delays.

So, typically we will see that the convection is much faster than the diffusion, we expect that, therefore most of the cases irrespective of what the system is, it is diffusion controlled...

This chunk emphasizes that in many real-life situations, diffusion is the slower process compared to convection, making it the controlling factor in mass transfer. In scenarios where a substance is being carried away from a surface, it's often how quickly it can diffuse to the surface that determines how fast it can escape into the water. The overall transfer rate then is dependent on how quickly the material can diffuse to that surface, as compared to how quickly it can be carried away by convection.

Imagine you have a pot of boiling water. The heat (convection) moves rapidly, but if you place a spoonful of sugar (diffusion) in the pot, it takes time for the sugar to dissolve and spread throughout the water. Even though the boiling water is moving vigorously, the sugar's ability to move and dissolve is slower, thus controlling how sweet the water becomes.

This boundary condition also is our interface mass transfer that at the interface we said overall mass transfer coefficient...

Boundary conditions dictate how we analyze the mass transfer processes. The text discusses two conditions: the first is diffusion across the sediment interface and the second is convection of the background concentration. These represent physical limitations that impact how effectively materials can transfer, emphasizing that the effectiveness of mass transfer is dictated by the weaker link in this chain—be it the diffusion through the sediment or the convection into the water.

Think about a sponge in a bowl of water. At the surface of the water, the sponge can't absorb any more if it's full of water already (convection). Similarly, if water is just trickling in slowly (diffusion), even if the sponge is dry, it takes time for it to soak up the water. In both cases, the rate at which the sponge gets water depends on which process (saturation or absorption) is slower.

So, as time increases what we expect to see is the flux of nA2 as function of time decreases...

This piece outlines that as time progresses, the flux—or the rate at which contaminants escape sediment into water—will decline. Initially, there's a high concentration of contaminants available at the sediment surface that can easily diffuse into the water. However, as materials leave, the concentration drops, leading to a lower flux as time goes on. This illustrates how depletion at the sediment surface significantly impacts the overall mass transfer rate.

Consider someone pouring granulated sugar into a cup of coffee. At first, when there’s a lot of sugar, it dissolves quickly, making the coffee sweet (high flux). Over time, as the sugar gets used up, the sweetness diminishes (decreased flux), and eventually, as not much sugar remains, it will dissolve very slowly.

To understand this better, we use a different boundary condition at the surface...

In this chunk, different assumptions are made to simplify the mathematical modeling of mass transfer. By changing the boundary condition to represent an instant removal of contaminants at the interface rather than a gradual transfer, the model can still provide valid results while solving the complexities involved. This simplification can be very useful in practical applications where calculations need to be quick and efficient.

Think of this as a teacher adjusting classroom rules. If students are allowed to leave as soon as they finish an exercise (immediate removal), instead of completing all the tasks and then gradually exiting, it simplifies the management of the class and leads to a quicker process of ensuring everyone has completed their work.

--
