Constant Head Permeability Test
Unlock Audio Lesson
Today, we are discussing the constant head permeameter, used to measure the permeability of coarse-grained soils. What do you think is the reason we use this method specifically for coarse soils?
I think it's because coarse soils allow water to flow through them more easily.
Exactly! The constant flow rate is measurable with good precision. Can anyone tell me what parameters are measured during this process?
We measure the total head drop (h) and the length of the soil sample (L)!
Correct! The permeability (k) is calculated based on these measurements. Remember, for constant head tests, we want to maintain a steady flow. A mnemonic to remember this is 'Steady Soils, Simple Science'—it highlights that steady conditions enable straightforward measurements and calculations.
What if the soil is fine-grained instead?
Great question! For fine-grained soils, we would use the falling head method, which we will discuss in our next session.
Falling Head Permeability Test
Unlock Audio Lesson
Now that we've covered the constant head method, let's talk about the falling head permeameter. Who can explain how this method works?
In this method, the water in a standpipe starts at a certain level and then drops over time, right?
Exactly! We measure the heads at two different times, t1 and t2, which allows us to determine how flow changes as the head decreases. The hydraulic gradient changes with time, which is vital for calculating permeability.
So, how do we actually calculate k from this?
You set up the equations based on inflow and outflow through the sample and equate them. A little trick to remember this is 'Flow Follows Heights,' emphasizing that flow dynamics depend on head pressure changes.
Can this method be used for all types of soil?
Not really! Each method has its specific soil types it's best suited for—coarse soils for constant head and fine soils for falling head. Understanding these distinctions is key!
Seepage and Darcy's Law
Unlock Audio Lesson
Next, we will discuss seepage in soils and how it relates to Darcy's law. What do you think seepage means in this context?
It likely refers to how water moves through the soil layers.
Exactly! It includes evaluating how water flows into and out of a rectangular soil element. The net flow will lead us to establish the continuity equation.
So how do we use Darcy's law here?
Darcy’s law states that the flow rate through a porous medium is proportional to the hydraulic gradient. Combining this with the continuity equation, we derive the flow equations crucial for managing seepage in soils. By maintaining the dual balance, we can generate the Laplace equation. Remember, 'Darcy Dictates Depths'—it highlights the foundational relationship between water flow and soil behavior.
Why do we care about isotropic materials in this context?
Great insight! For isotropic materials, permeability is uniform in all directions, simplifying calculations. We aspire to understand how these conditions change in real-world applications!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore two primary methods of measuring soil permeability: the constant head permeameter, suitable for coarse-grained soils, and the falling head permeameter, which applies to fine-grained soils. We also discuss the principles of seepage in soils and the underlying equations derived from Darcy's law, guiding our understanding of fluid flow through porous materials.
Detailed
Laboratory Measurement of Permeability
This section centers on the laboratory determination of soil permeability, a crucial parameter in geotechnical engineering. The permeability of soil determines its ability to transmit water, impacting many civil engineering applications. We discuss two primary methods of measuring permeability: the constant head and falling head methods.
Constant Head Flow
The constant head permeameter is primarily utilized for coarse-grained soils. In this method, water flows through a soil sample, and a steady total head drop (h) is measured across a specified length (L). This setup allows for precision in measuring the flow rate, essential for determining the soil's permeability (k).
Falling Head Flow
In contrast, the falling head permeameter is recommended for fine-grained soils, where flow rates can be less consistent. Here, the total head (h) in a standpipe with a given area (a) gradually decreases over time, and measurements of heads at different time intervals allow for the calculation of flow.
Seepage in Soils
The section also delves into the concept of seepage within soils. We analyze a rectangular soil element exposed to planar flow and describe the net flow of water into and out of the element, leading us to the continuity equation. When this equation is combined with Darcy's law, we derive fundamental equations governing two-dimensional and three-dimensional steady water flow in soil, encapsulated in the Laplace equation. These equations form the basis for understanding flow dynamics in soil mechanics.

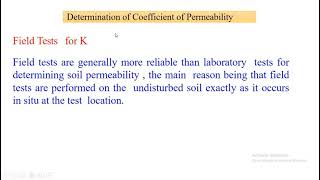

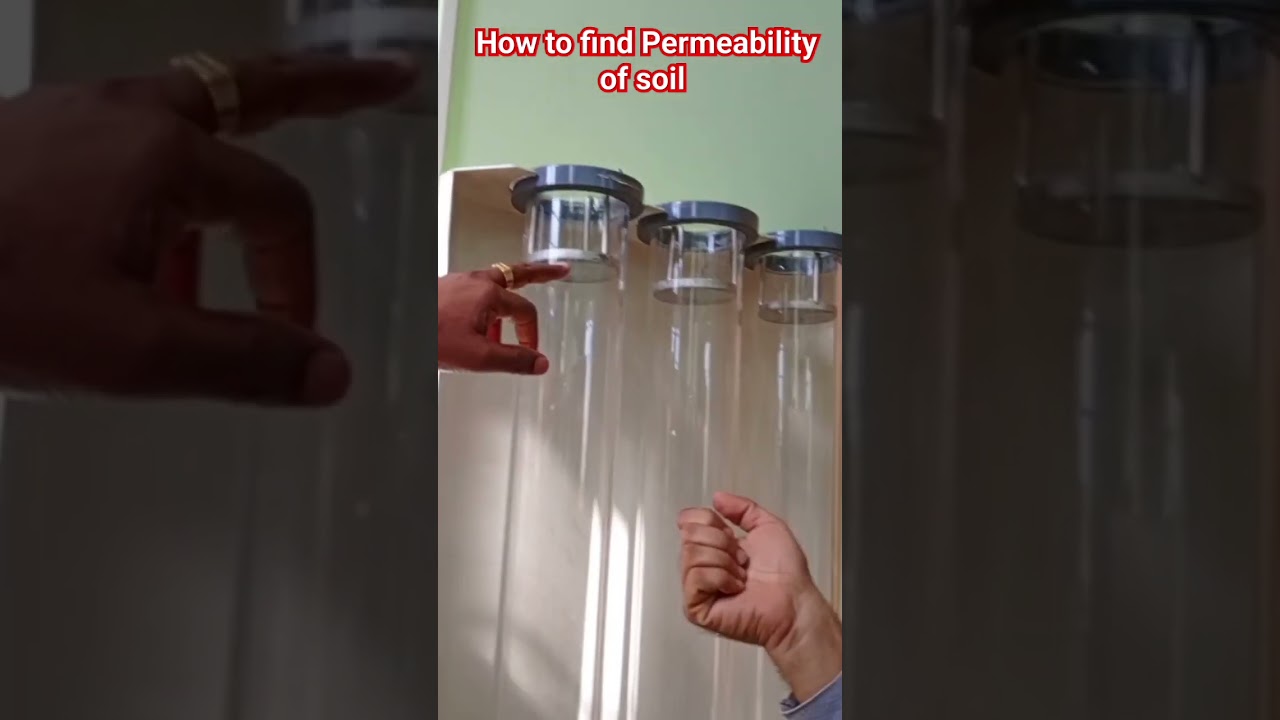

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Constant Head Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

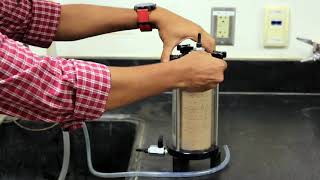

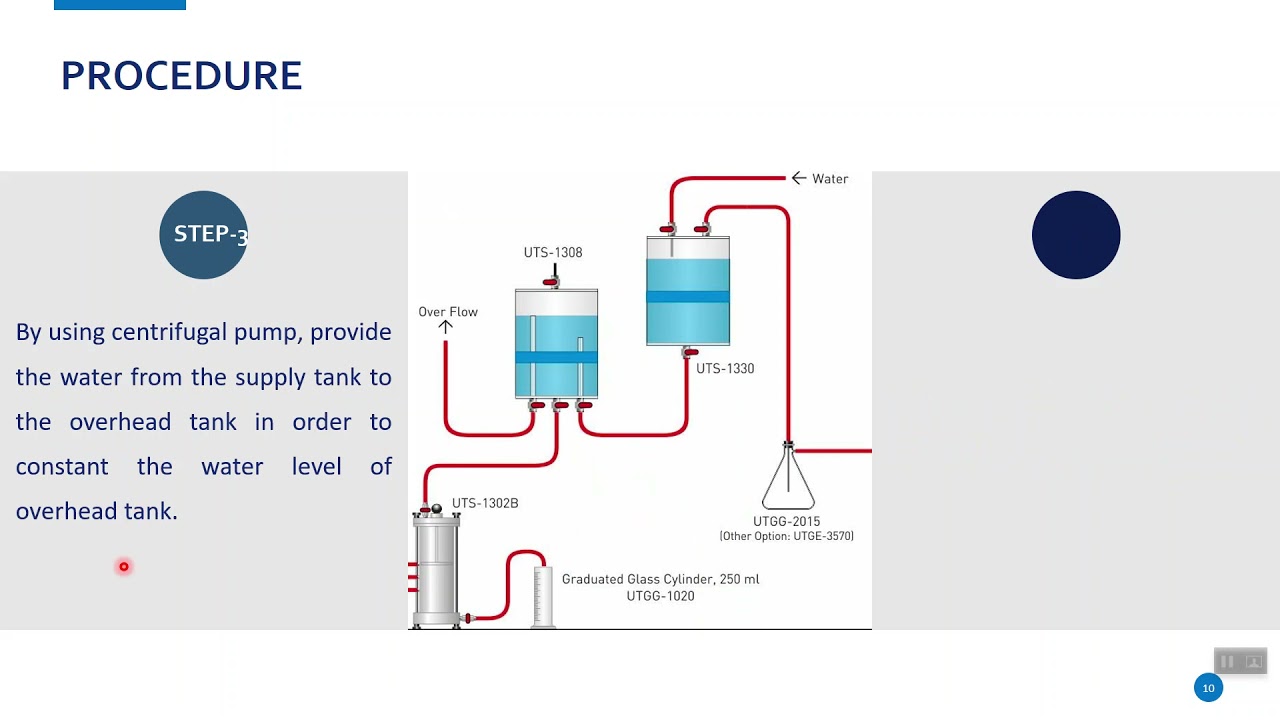

Constant head permeameter is recommended for coarse-grained soils only since for such soils, flow rate is measurable with adequate precision. As water flows through a sample of cross-section area A, steady total head drop h is measured across length L. Permeability k is obtained from:
Detailed Explanation
In this chunk, we discuss the constant head flow method used for measuring permeability in coarse-grained soils like sand. A constant head permeameter maintains a steady water level above the soil sample, allowing for accurate measurement of how much water flows through it over time. The total head drop (h) is the difference in water level across the sample, and the length (L) is the length of the soil sample being tested. The permeability, denoted as 'k', is a calculated value that helps us understand how fast water can flow through the soil.
Examples & Analogies
Think of a sponge soaking in a bucket of water. If the sponge is large and has big holes (coarse-grained soils), it will quickly soak up water. Similarly, the constant head permeameter measures how fast water passes through the soil sample, which is analogous to how quickly the sponge absorbs water.
Falling Head Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Falling head permeameter is recommended for fine-grained soils. Total head h in standpipe of area a is allowed to fall. Hydraulic gradient varies with time. Heads h and h are measured at times t and t. At any time t, flow through the soil sample of cross-sectional area A is Under Revision.
Detailed Explanation
Falling head flow method is utilized primarily for fine-grained soils like silts and clays. In this method, water level in a standpipe is allowed to drop, creating a hydraulic gradient that changes over time. The heads at two different time points are measured, giving us data on how fast the water is flowing through the soil sample's cross-sectional area. This method is particularly useful for soils that retain water longer due to their fine-grained texture.
Examples & Analogies
Imagine pouring water into a very fine filter coffee cone. Initially, the water level might be high, but as it slowly drips through, the height reduces. This change in water level over time helps us understand how well the fine material is allowing water to pass through.
Seepage in Soils
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A rectangular soil element is shown with dimensions dx and dz in the plane, and thickness dy perpendicular to this plane. Consider planar flow into the rectangular soil element.
Detailed Explanation
This chunk introduces a conceptual model to study how water seeps through soil at a more detailed level. We imagine a rectangular section of soil and analyze how water flows into and out of this section in two dimensions (x and z directions). By dividing the flow into smaller components, we can better understand the dynamics of seepage and how various forces interact to create flow.
Examples & Analogies
Picture a sponge again, but this time think of cutting it into smaller pieces. By studying how water moves into and out of each piece separately, you could understand the overall flow through the sponge better—similar to how engineers analyze seepage in soil.
Continuity Equation and Darcy's Law
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For a two-dimensional steady flow of pore water, any imbalance in flows into and out of an element in the z-direction must be compensated by a corresponding opposite imbalance in the x-direction. Combining the above, and dividing by dx.dy.dz, the continuity equation is expressed as Under Revision.
Detailed Explanation
The continuity equation is a fundamental principle in fluid dynamics that states that the amount of fluid flowing into a system must equal the amount flowing out, assuming the fluid is incompressible. In the context of soil, it means that if more water enters through one side of a soil element than leaves through the other, there must be a flow adjustment in the opposite direction to maintain balance. This equation becomes crucial when combined with Darcy's law to analyze flow behavior in soil.
Examples & Analogies
Think of a water balloon. If you’re adding more water (flow in) than the balloon can hold (flow out), eventually it will burst. Similarly, in soil, any unbalanced flow needs to be accounted for to avoid miscalculating how water moves through.
Laplace Equation for Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When the continuity equation is combined with Darcy's law, the equation for flow is expressed as: For an isotropic material in which the permeability is the same in all directions (i.e., k = k), the flow equation is This is the Laplace equation governing two-dimensional steady state flow.
Detailed Explanation
The Laplace equation emerges from the combination of the continuity equation and Darcy's law, describing flow through soil under steady-state conditions. For isotropic materials, which have the same permeability in all directions, the equation simplifies our understanding of flow dynamics. This mathematical relationship allows us to predict how water will move through various types of soils efficiently.
Examples & Analogies
Consider a flat trampoline surface. If you stand in the center, the way that the trampoline bends around you is uniform in every direction, similar to how isotropic materials allow water to flow uniformly—leading to the predictable behavior predicted by the Laplace equation.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Constant Head Method: A method for measuring soil permeability using a steady water head.
-
Falling Head Method: A technique for measuring soil permeability where the water level drops over time.
-
Darcy's Law: An equation relating fluid flow rate through porous media to hydraulic gradient.
-
Continuity Equation: Describes the balance of inflows and outflows in a control volume.
-
Laplace Equation: Governs the steady-state flow of fluids in soils.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a constant head test with a coarse soil, if water flows steadily at a rate of 2 liters per minute, the permeability can be calculated given the head and length of the soil sample.
-
In a falling head test with a fine soil, if the head drops from 1 meter to 0.5 meters in 10 minutes, the permeability can be derived from the rate of head change over time.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In soils coarse, heads up high, water flows like clouds in the sky.
📖 Fascinating Stories
-
Imagine a water drop at the top of a hill, falling smoothly down without a spill; it finds its way through sand and soil, measuring how fast in its watery toil.
🧠 Other Memory Gems
-
Remember 'H-F-L': Head-Falling level for the Falling head test, and 'C-F-S' for Constant in the Constant head test.
🎯 Super Acronyms
Use 'DCP' for 'Darcy's, Continuity, Permeability'—the three pillars of flow in soil!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Permeability
Definition:
The ability of soil to transmit water, often measured in laboratory tests to assess soil behavior.
-
Term: Hydraulic Gradient
Definition:
The change in total hydraulic head per unit distance in the direction of flow.
-
Term: Constant Head Method
Definition:
A method to measure permeability where a constant water level is maintained during the test.
-
Term: Falling Head Method
Definition:
A method to measure permeability where the water level falls over time, suitable for fine-grained soils.
-
Term: Darcy's Law
Definition:
A fundamental equation describing the flow of fluid through a porous medium.
-
Term: Continuity Equation
Definition:
An equation that relates the inflow and outflow rates of fluid within a defined volume.
-
Term: Laplace Equation
Definition:
An equation governing steady-state flow of fluids in soils, derived from Darcy's law.
