Voids Ratio and Effective Stress Basics
Unlock Audio Lesson
Today, we're going to discuss how the compressibility of fine-grained soils is intricately tied to the voids ratio and effective stress. Can anyone tell me what we mean by 'voids ratio'?
Isn't it the ratio of the volume of voids to the volume of solids in the soil?
Exactly! It's crucial for understanding how much space is available in the soil structure for water and air. Now, what about effective stress?
I think it's the stress that contributes to soil strength and stability, right?
That's correct! Effective stress is what impacts the soil's ability to support loads. Let’s connect these concepts with the compression behavior in soils.
Compression Paths in Soil
Unlock Audio Lesson
Among the key observations we note when reviewing our consolidation curves is the distinction between the virgin compression line and the recompression path. What happens when we load the soil beyond point C?
The curve merges into a different portion, as if the soil hadn’t been unloaded.
Well said! This indicates that initial unloading does not fully revert soil to its original state. What do we call the recovery that happens due to unloading and subsequent reloading?
That would be the elastic recovery, right?
Exactly! While there's an elastic rebound, the soil also retains some permanent strain. Let's remember both aspects of this behavior.
Effects of Loading and Unloading
Unlock Audio Lesson
In our discussions about loading and unloading, we noted the development of a hysteresis loop between expansion and reloading curves. Why do you think this phenomenon occurs?
I think it shows the soil has irreversible changes after each cycle.
That's right! This irreversible structural change contributes to the soil's behavior over time. Can anyone explain the implication of this for construction?
It means that once we have applied pressure, we might not be able to fully restore the initial soil conditions, which can affect the integrity of structures.
Wonderful insight! Understanding this helps engineers design foundations more effectively!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section discusses how the compressibility of fine-grained soils is illustrated through a comparison of voids ratio and effective stress, emphasizing the importance of consolidation paths, virgin compression lines, and the effects of loading and unloading on soil deformation.
Detailed
In this section, we explore how fine-grained soils exhibit compressibility, primarily expressed through the relationship between voids ratio and effective stress. A laboratory example involving a 60mm diameter and 20mm height soil sample illustrates this relationship, where the sample undergoes one-dimensional consolidation under varying pressure increments. The void ratio is recorded at steady states between each pressure step. The resulting plots convey distinct paths: at low effective stresses, minor compression occurs, while this shifts to significant compression along the virgin compression line (also known as the normal consolidation line) at higher stresses. The behavior observed includes distinct curves for recompression, transformation to permanent strain, elastic recovery, and hysteresis between loading and unloading cycles, underscoring the irreversible structural changes in the soil.

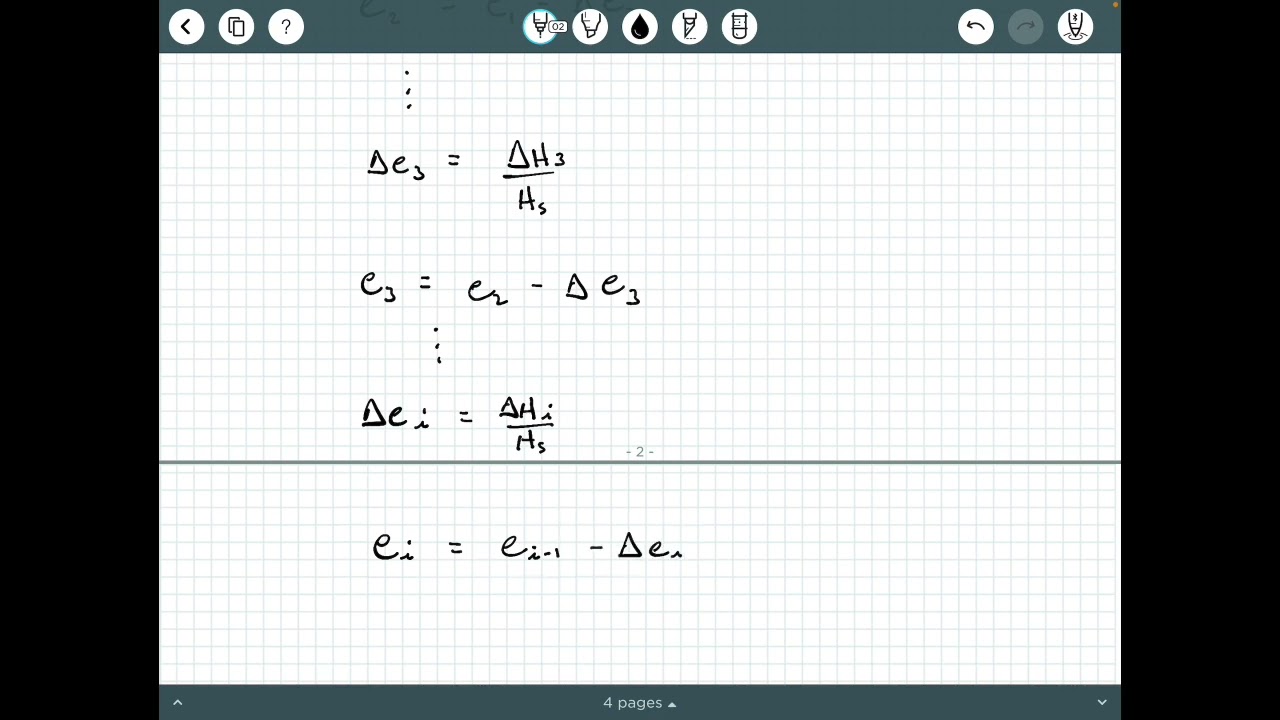

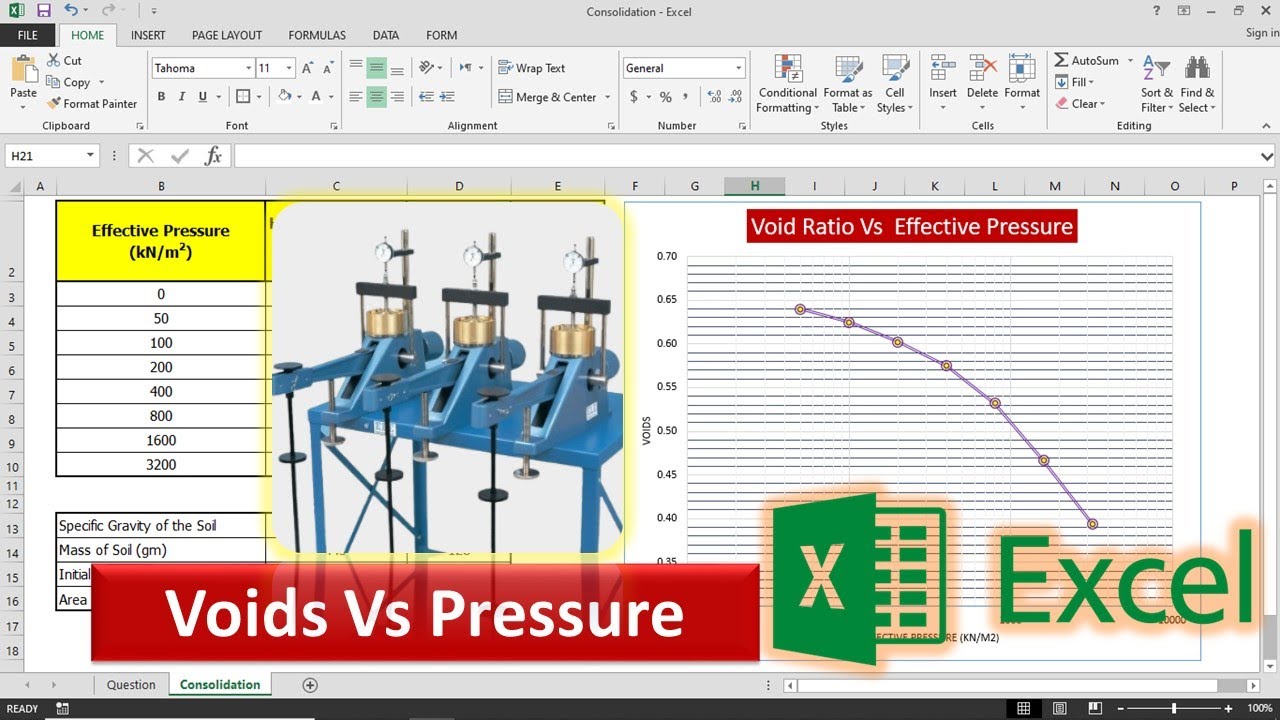

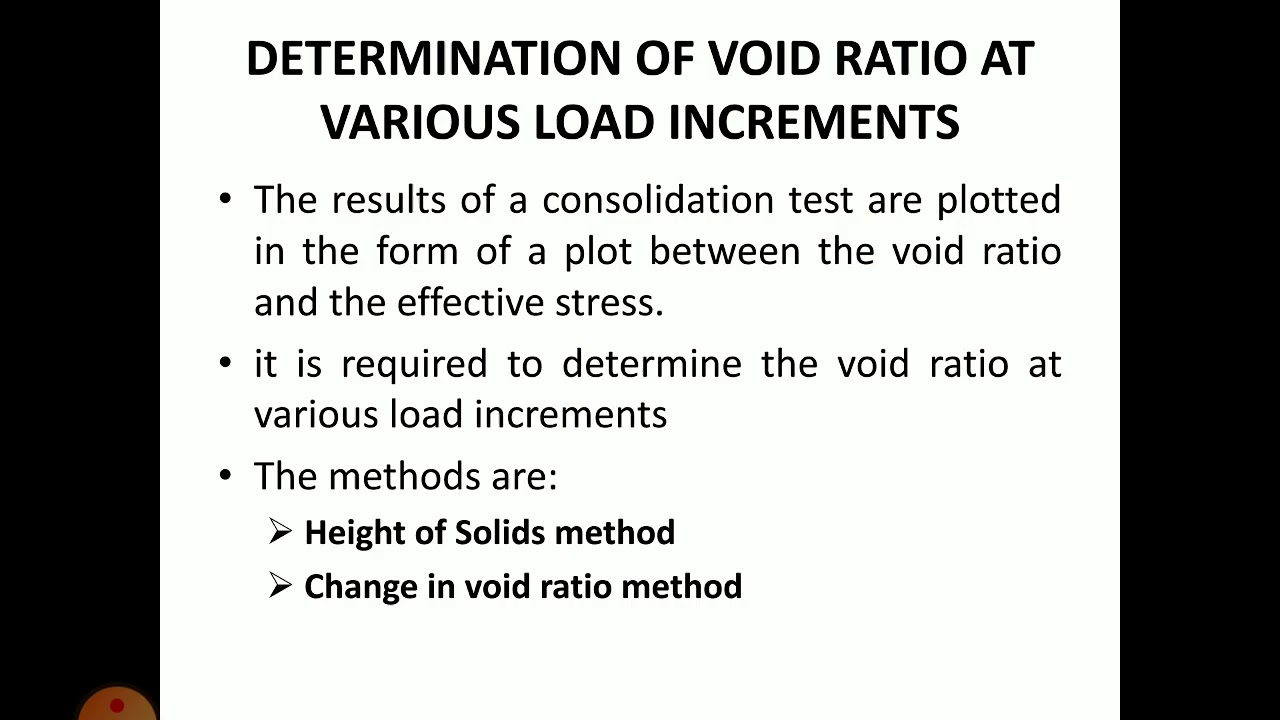

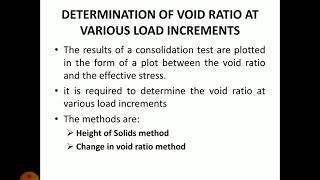

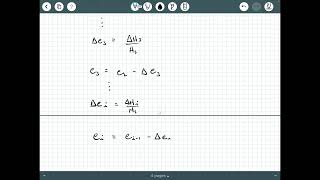

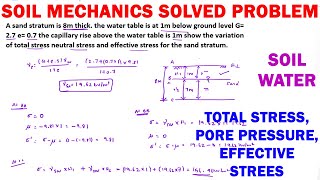

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Voids Ratio and Effective Stress
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The compressibility of fine grained soils can be described in terms of voids ratio versus effective stress.
Detailed Explanation
The relationship between voids ratio and effective stress is crucial in understanding how fine-grained soils behave under load. The voids ratio measures the volume of voids or empty spaces in soil compared to the volume of solids. Effective stress, on the other hand, refers to the stress that contributes to soil strength and stability, factoring out pore water pressure. Together, these concepts help us analyze soil compression and consolidation behavior in engineering applications.
Examples & Analogies
You can think of voids ratio like a sponge. If it's full of water (high void ratio), it's softer and can be compressed easily (low effective stress). When you squeeze the sponge (increasing effective stress), the water is expelled, making it firmer (lower voids ratio), hence it can support more weight.
Laboratory Experiment for Soil Analysis
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A laboratory soil specimen of dia 60mm and height 20mm is extracted from the undisturbed soil sample obtained from the field. This sample is subjected to 1D consolidation in the lab under various pressure increments. Each pressure increment is maintained for 24 hrs and equilibrium void ratio is recorded before the application of the next pressure increment.
Detailed Explanation
In the laboratory, a cylindrical soil sample was collected and subjected to a process called one-dimensional (1D) consolidation. This means the soil was pressed down under a series of increasing pressures over several days. After each pressure was applied for a set amount of time (24 hours), the voids ratio of the soil was measured again to see how the soil reacted to the stress. This experiment helps in gathering data about how soil compresses over time under load.
Examples & Analogies
Imagine pressing a pack of sugar cubes. When you apply weight on top, the cubes start to settle and compress. After you keep the weight for a while and then check, you notice the cubes are denser. The same principle applies to the soil - the longer it is under pressure, the more it compresses.
Graphical Representation of Soil Behavior
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Then a plot of void ratio versus effective stress is made as shown in above figure.
Detailed Explanation
Once the data from the experiment is collected, the information is represented graphically by plotting the voids ratio against effective stress. This visual representation helps in understanding the relationship between these two parameters. The behavior of the soil can be observed more clearly, showing how it compresses or expands under varying levels of stress.
Examples & Analogies
Think of a graph like a seesaw. Depending on how much weight you put on one end (effective stress), the other end (voids ratio) will either go up or down. The graph illustrates how they balance each other out.
Compression Paths of Soil Sample
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When the sample is recompressed from point D it follows DE and beyond C it merges along BCF and it compresses as it moves along BCF.
Detailed Explanation
In the experiment, the soil sample displays different compression behaviors depending on the stress levels it has experienced. When reloading the soil, it follows a specific path (DE) and then merges into another path (BCF) which shows its compressive behavior at higher stress levels. This merging indicates that the soil's behavior changes at different stresses, emphasizing the concept of soil memory in how it responds to loading.
Examples & Analogies
Consider a rubber band. If you stretch it gently (low stress), it returns to its original shape (recompression path). If you stretch it too much (high stress), it might not return completely - just like the soil’s behavior on different paths after stress is applied.
Initial Stages of Compression
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
During the initial stages (at low effective stress) the sample follows recompression path (portion AB) and undergoes less compression.
Detailed Explanation
In the initial phases of loading the soil, the effective stress is low, and the soil does not compress significantly. During this phase (path AB), it tends to follow a path of recompression where the change in voids ratio is relatively small. This behavior indicates that the soil is still capable of adjusting without significant deformation.
Examples & Analogies
It’s like filling a balloon with a little air. Initially, it stretches only slightly without much effort. However, once you keep adding more air (increasing effective stress), it starts to bulge more significantly, similar to how soil behaves under higher stress.
Virgin Compression Line
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Beyond this is the virgin compression line (portion BC) also called the normal compression line and the sample undergoes large compression.
Detailed Explanation
Once the soil reaches a threshold stress level, it enters the virgin compression phase (path BC). In this phase, the soil experiences significant compression. Here, the relationship between voids ratio and effective stress becomes more pronounced, indicating that the soil structure has changed and is now denser under the applied load.
Examples & Analogies
Imagine a wet sponge. When you first press it gently, it only compresses slightly (initial stages). But if you press it hard (moving to the virgin compression line), the sponge compresses more significantly, squeezing out the water and reducing its volume drastically.
Unloading and Expansion Curve
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
From ‘C’ when the sample is unloaded, sample expands and traces path CD (expansion curve unloading).
Detailed Explanation
When the stress is removed from point C, the soil sample begins to expand again, tracing the path labeled as CD. This expansion shows that even after the load is removed, there is still some recovery of the voids ratio, although it may not return completely to the original state. This is critical to understanding how soil behaves when loads are taken off.
Examples & Analogies
Think of a sponge again. If you press it down and then let go, it doesn't revert back to its original shape instantly. Instead, it slowly expands back – similar to what happens with soil during unloading.
Permanent Strain and Elastic Recovery
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Sample undergoes Permanent strain due to irreversible soil structure and there is a small elastic recovery.
Detailed Explanation
As the soil is loaded and then unloaded, it experiences what is known as permanent strain, which means some deformation remains even after the load is removed. This permanent change is attributed to the way soil particles rearrange during loading. However, there is also an elastic recovery component, which is the ability of the soil to bounce back slightly when unloaded.
Examples & Analogies
This is like clay. If you shape it into a ball and then squish it, it won't return perfectly to a ball shape (permanent strain). But if you let it sit and it slowly dries out, it might regain some of its original shape (elastic recovery).
Reloading Behavior of Soil
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When the sample is reloaded - reloading curve lies above the rebound curve and makes a hysteresis loop between expansion and reloading curves.
Detailed Explanation
When the soil is reloaded after some unloading, it does not follow the same path back to its original condition but instead takes a higher path, indicating that it behaves differently upon reloading. This results in a hysteresis loop, showcasing the difference between expansion and compression paths, which is important in understanding the resilience of soil.
Examples & Analogies
Consider a rubber band again. If you stretch it and then relax it, and finally stretch it again, it won’t go back to its original stretch midway, indicating how the material has changed after each cycle (hysteresis).
Less Compression Upon Reloading
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The reloaded soils show less compression.
Detailed Explanation
As previously outlined, soils display less compression when reloaded as compared to initial loading due to the changes in soil structure from the previous loads. This phenomenon demonstrates the cumulative effects of stress on soil mechanics and shows that soils can become more resilient with repeated loading.
Examples & Analogies
Imagine you have repeatedly squished a sponge. After a point, every time you squish it, the sponge doesn’t respond as much compared to the first few times – it has adapted to the force applied.
Behavior Beyond Critical Point
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Loading beyond ‘C’ makes the curve merge smoothly into portion EF as if the soil is not unloaded.
Detailed Explanation
When loading progresses beyond the critical point indicated by 'C', the stress and void ratio relationship shifts again, and the curve merges into a new phase (EF). This suggests that once the soil has been loaded beyond the unloading point, it behaves as if the previous unload did not significantly affect its resilience, indicating the capability of soils to be effective in bearing loads, even after prior cycles of stress.
Examples & Analogies
Similar to pushing a swing. After a swing goes back and forth, if you push it again from a further point, it might seem as if it’s consistently responding to your pushes without registering earlier movements – that’s the merging of load behaviors.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Voids Ratio: Indicates the amount of empty space in soil compared to solid particles.
-
Effective Stress: Represents the actual stress that influences soil's capacity to bear loads.
-
Virgin Compression Line: The line that indicates the soil's behavior under the initial loading.
-
Recompression Path: Reflects the soil's behavior after unloading and reloading.
-
Permanent Strain: The deformation that remains in soil after the load is removed.
-
Elastic Recovery: The recoverable deformation after load release.
-
Hysteresis Loop: Demonstrates energy loss in soil behavior during loading and unloading cycles.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example 1: When a soil sample is subjected to increasing loads, the relationship can be plotted to show how the voids ratio decreases as effective stress increases.
-
Example 2: In construction, understanding the hysteresis loop provides insight on potential settlement behavior of foundation soils under cyclic loads.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In soil we find many ways, / Voids and stresses play all days, / Compression lines show us the path, / With loads and strains in nature's math.
📖 Fascinating Stories
-
Imagine a sponge in water. When the sponge is pressed, water drains out representing effective stress. When released, it expands a little but not entirely back to its original shape, just like how soil behaves under loads.
🧠 Other Memory Gems
-
Remember 'V.E.E.P.': Voids Ratio, Effective Stress, Permanent Strain. Each part shows how soil reacts under pressure!
🎯 Super Acronyms
Use 'SEV' for Soil Elasticity and Void changes
- Stress to Elastic effects in Voids.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Voids Ratio
Definition:
The ratio of the volume of voids in a soil sample to the volume of solids.
-
Term: Effective Stress
Definition:
The stress that contributes to the strength and stability of soil, equal to total stress minus pore water pressure.
-
Term: Virgin Compression Line
Definition:
Also known as the normal consolidation line, it is the path along which soil compresses under loading for the first time.
-
Term: Recompression Path
Definition:
The path followed by soil in the stress-strain curve when it is reloaded after being unloaded.
-
Term: Permanent Strain
Definition:
The irrecoverable deformation that occurs in soil when it is subjected to stress.
-
Term: Elastic Recovery
Definition:
The portion of deformation that is recoverable after unloading.
-
Term: Hysteresis Loop
Definition:
The loop formed between loading and unloading paths on a consolidation curve, indicating energy loss and irreversible deformation.
