Understanding Coefficient of Consolidation (Cv)
Unlock Audio Lesson
Good morning, everyone! Today we are diving into the determination of the coefficient of consolidation, abbreviated as Cv. Can anyone explain what they understand by this term?
I think Cv is related to how fast soil settles under load.
Exactly, Cv is crucial for predicting settlement rates in soils. It helps engineers assess how long a soil will take to consolidate when a load is applied. Can anyone tell me the methods we can use to determine Cv from laboratory data?
There are three graphical methods, right? The logarithm time method is one of them.
You're spot on! We will focus on the Logarithm of Time method today.
Logarithm of Time Method
Unlock Audio Lesson
Let’s break down the Logarithm of Time method step by step. First, we start by plotting the dial gauge readings against time on a logarithmic scale. Why do you think we use a log scale?
Is it to make the curves easier to analyze?
Exactly! The logarithmic scale allows us to linearize the relation between time and consolidation. Next, we choose two points on our curve—let's label them P and Q—where Q has a time that is four times that of P. Does anyone know why we choose such points?
To establish a clear relationship for calculation?
Right again! This helps us define the points more accurately. After that, we will find the difference in dial readings, which leads us to point R. Let's remember to track our changes as we move forward!
Plotting and Analyzing the Curves
Unlock Audio Lesson
Once we have point R, we draw a horizontal line to determine the initial and final consolidation levels, which is essential for our calculations. What does the line represent?
The initial consolidation at 0% and final at 100%?
Exactly! This visualizes our starting and ending points. Finally, we project the primary and secondary consolidation curves, looking for their intersection point T. What can you deduce from this point?
That’s where we find the total consolidation, which is important for calculating Cv!
Spot on! The entire process helps us understand soil behavior under loads and ultimately assists in construction design.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The coefficient of consolidation (Cv) can be determined using three graphical methods: the Logarithm of time method, the Square root of time method, and the Hyperbola method. The Log-time curve fitting method is emphasized, detailing the steps involved in plotting the data and extracting meaningful values related to consolidation.
Detailed
Detailed Summary
This section focuses on the determination of the coefficient of consolidation (Cv), an essential parameter in geotechnical engineering that quantifies the rate of settlement of soil due to consolidation under loading. Three graphical methods are introduced:
- Logarithm of Time Method: This method involves plotting the dial readings of compression against a logarithmic time scale. It utilizes the relationship between theoretical and experimental data to estimate Cv.
- Square Root of Time Method: Another graphical technique that applies the square root of time on the x-axis to derive Cv from experimental data. (Details from the original chapter are not provided in this sections; therefore, no further elaboration is done here.)
- Hyperbola Method: Describes how to analyze the curvature of the consolidation data for the coefficient of consolidation, explaining its mathematical basis and application.
The section mainly elaborates on the Log-time curve fitting method, which includes the following key steps:
- Plotting data: The first step involves creating a log scale plot of dial readings against time.
- Selecting points: Two points (P and Q) are chosen such that the time at Q is four times that at P.
- Calculating differences: The difference in dial readings at these points is marked to locate point R.
- Establishing consolidation levels: A horizontal line is drawn to define the initial (0% consolidation) and final readings (100% consolidation).
- Projecting curves: The primary and secondary consolidation curves are projected to find their intersection, which is critical for determining Cv.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Coefficient of Consolidation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The coefficient of three graphical procedures are used
1. Logarithm of time method
2. Square root of time method
3. Hyperbola method
Detailed Explanation
The coefficient of consolidation (Cv) is a crucial value in geotechnical engineering that describes how quickly soil consolidates under pressure. Three graphical methods are commonly used to determine Cv: the logarithm of time method, the square root of time method, and the hyperbola method. Each method has its own approach and formulas that help engineers analyze soil behavior.
Examples & Analogies
Think of Cv like the speed at which a sponge absorbs water. Depending on the type and consistency of the sponge, it will soak up water at different rates. Similarly, soil types will consolidate at different rates based on their properties, which is what these methods help us determine.
Log-Time Curve Fitting Method - Overview
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The basis for this method is the theoretical (Uz) versus log Tv curve and experimental dial gauge reading and log t curves are similar.
Detailed Explanation
The Log-Time Curve Fitting Method is based on the correlation between theoretical and experimental data. Specifically, it compares the theoretical relation of consolidation versus log time (Tv) with the actual measurements obtained through dial gauge readings over time. This similarity is used to predict how the soil will continue to consolidate based on current observations.
Examples & Analogies
Imagine reading a clock where the smaller the unit of time, the more precise observations you can make. In soil consolidation, as time progresses, we can measure how much the soil compresses (like ticking seconds on a clock) which helps us predict future behavior.

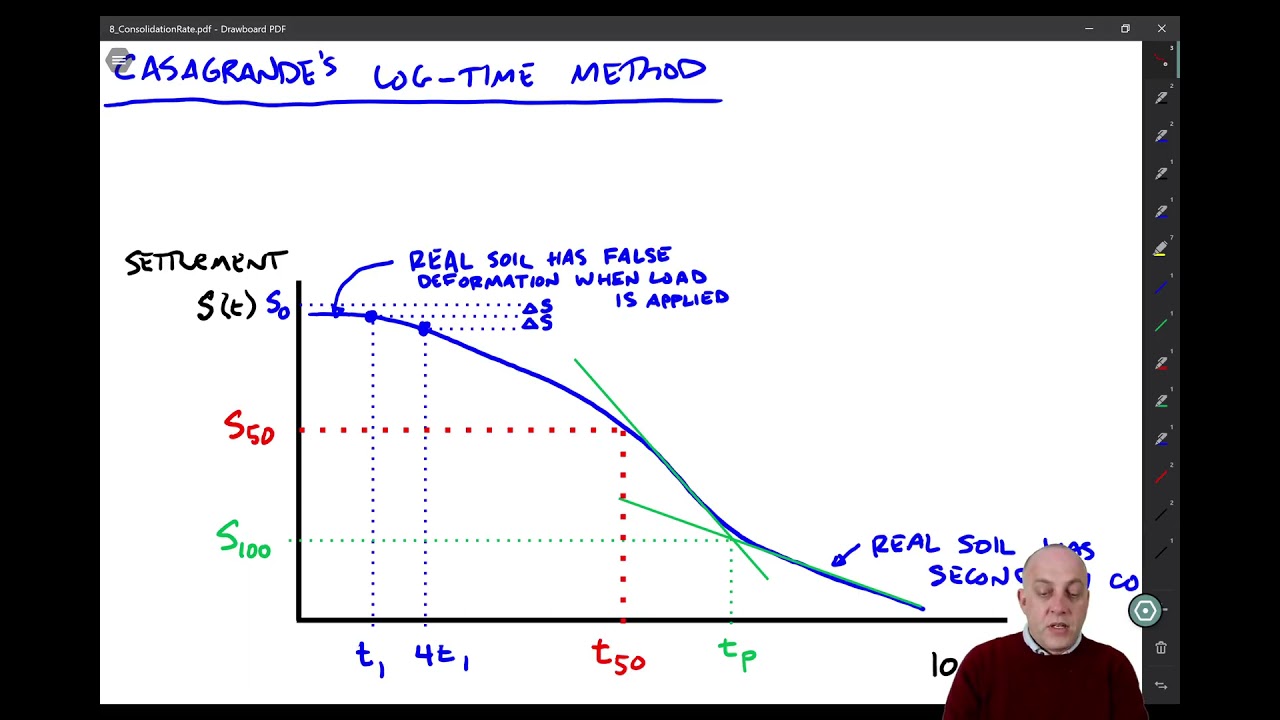

Steps for Log-Time Curve Fitting Method
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Steps
1. Plot the dial reading of compression for a given pressure increment versus time to log scale
2. Plot two points P and Q on the upper portion of the consolidation curve (say compression line) corresponding to time t1 and t2 such that t2=4t1
3. Let x be the difference in dial reading between P and Q. locate R at a vertical distance x above point P
4. Draw a horizontal line RS the dial reading corresponding to this line is d0 which corresponds with 0% consolidation.
Detailed Explanation
The first step involves plotting the measurements obtained from the dial gauge against time on a logarithmic scale to analyze the compression behavior. In the second step, you select two points on this plot that are spaced in time, establishing a relationship between them where one time is four times the other. The difference in dial readings between these two points is used to determine another point (R) which corresponds to a specific consolidation state (0% in this case).
Examples & Analogies
Think of this process as measuring how much water a sponge has absorbed when you dip it into water for different lengths of time. If you measure after 1 second and then 4 seconds, you can analyze the difference in how much the sponge soaked up, allowing you to forecast how much it could hold at longer intervals.
Finding Points on the Consolidation Curve
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Project the straight line portion of primary and secondary consolidation to intersect at point T. The dial reading corresponding to T is d100 and this corresponds to 100% consolidation.
Detailed Explanation
In this final step, you extend the lines representing primary and secondary consolidation on your plot until they meet at point T. The dial reading at this intersection point corresponds to 100% consolidation, indicating that the soil has fully settled under the given load. This value is crucial for understanding the full behavior of the soil under pressure.
Examples & Analogies
Imagine a sponge that has stopped absorbing water. The point you reach when it can’t hold any more water is like reaching 100% consolidation – it’s fully settled and can take no more pressure without changing its state.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Coefficient of Consolidation (Cv): Quantifies the rate at which sediments consolidate under load.
-
Logarithm of Time Method: A method for plotting consolidation data using a log time axis.
-
Selected Points P and Q: Critical points on the consolidation curve for analysis.
-
Primary vs Secondary Consolidation: Distinct phases of soil response under load.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example 1: Using the Logarithm of Time Method, a dial gauge shows a reading increase over time indicating how the soil consolidates.
-
Example 2: Selecting points P and Q where P is at 10 minutes and Q is at 40 minutes demonstrates a specific calculation for Cv.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To find Cv and understand, Plot with logs and make a stand!
📖 Fascinating Stories
-
Imagine a soil layer beneath a structure, it gradually 'wakes up' and settles as loads are applied over time - Cv helps us understand this process.
🧠 Other Memory Gems
-
Remember P and Q: Point P is prime, Q is four times! Helps to memorize our key points!
🎯 Super Acronyms
Cv - Consolidation Velocity
- How fast the soil settles when you apply that load!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Coefficient of Consolidation (Cv)
Definition:
A parameter that quantifies the rate at which soils consolidate under applied loads.
-
Term: Graphical Procedure
Definition:
A method of analyzing data visually using graphs to derive important variables.
-
Term: Logarithmic Scale
Definition:
A nonlinear scale used to plot data where each unit increase corresponds to a multiplication of the previous value.
-
Term: Dial Gauge
Definition:
An instrument used to measure changes in soil compression and settlement.
-
Term: Primary Consolidation
Definition:
The initial phase of soil volume change due to expulsion of pore water under load.
-
Term: Secondary Consolidation
Definition:
The phase of volume change that occurs after primary consolidation due to ongoing deformation in soil structure.
