1.7.3 - Angle of Repose
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding the Angle of Repose
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we are discussing the Angle of Repose. Can anyone explain what this angle signifies in terms of soil behavior?
Isn't it the maximum angle at which soil can stay without sliding?
Correct! It defines the steepest slope without failure due to shear strength. Remember, it's influenced by factors like particle size.
What happens if the angle exceeds that?
Good question! If the angle exceeds the Angle of Repose, the soil will start to slide due to inadequate shear strength. We can think of it as a tipping point.
To help remember, think 'Rope' for 'Repose'—the angle is the 'Rope' that holds the soil in place!
Factors Influencing the Angle of Repose
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s dive deeper into what influences the Angle of Repose. Can anyone name some factors?
Isn't particle size one of them?
Exactly! Larger particles tend to allow for steeper angles. What else?
Particle shape could also matter, right?
That’s correct! Angular particles can create more interlocking, leading to a higher angle. So we have both size and shape influencing our angle.
To recap, think ‘SSS’—Size, Shape, Shear strength as key influencers of the Angle of Repose.
Importance of the Angle of Repose in Engineering
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss the significance of the Angle of Repose in engineering. Why do we care about this angle?
It helps us design safer slopes, right?
Yes! It guides us in construction and in evaluating slope stability. Knowing this angle helps engineers prevent landslides and failures.
What about retaining walls?
Great point! The Angle of Repose informs the design of retaining structures as well, ensuring they can withstand lateral earth pressures.
So remember, ‘Secure your Slope’—the Angle of Repose helps secure the stability of structures built on it!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The Angle of Repose is crucial in understanding shear strength in soils. It is influenced by variables such as particle size and shape, describing the maximum angle at which soil can remain stable while resting on a slope. Recognizing the factors affecting this angle helps engineers in various applications like slope stability and earth-retaining structures.
Detailed
Angle of Repose is the maximum angle at which a material remains stable under the influence of gravity without sliding. Understanding this concept is critical for engineers as it relates to the shear strength of soils. The angle can vary based on factors such as particle size, particle shape, and overall shear strength. Larger particles tend to produce a larger angle of repose, while angular shapes can also increase stability. This section discusses why comprehending the angle of repose is essential for analyzing soil stability, particularly in applications such as bearing capacity and slope stability.

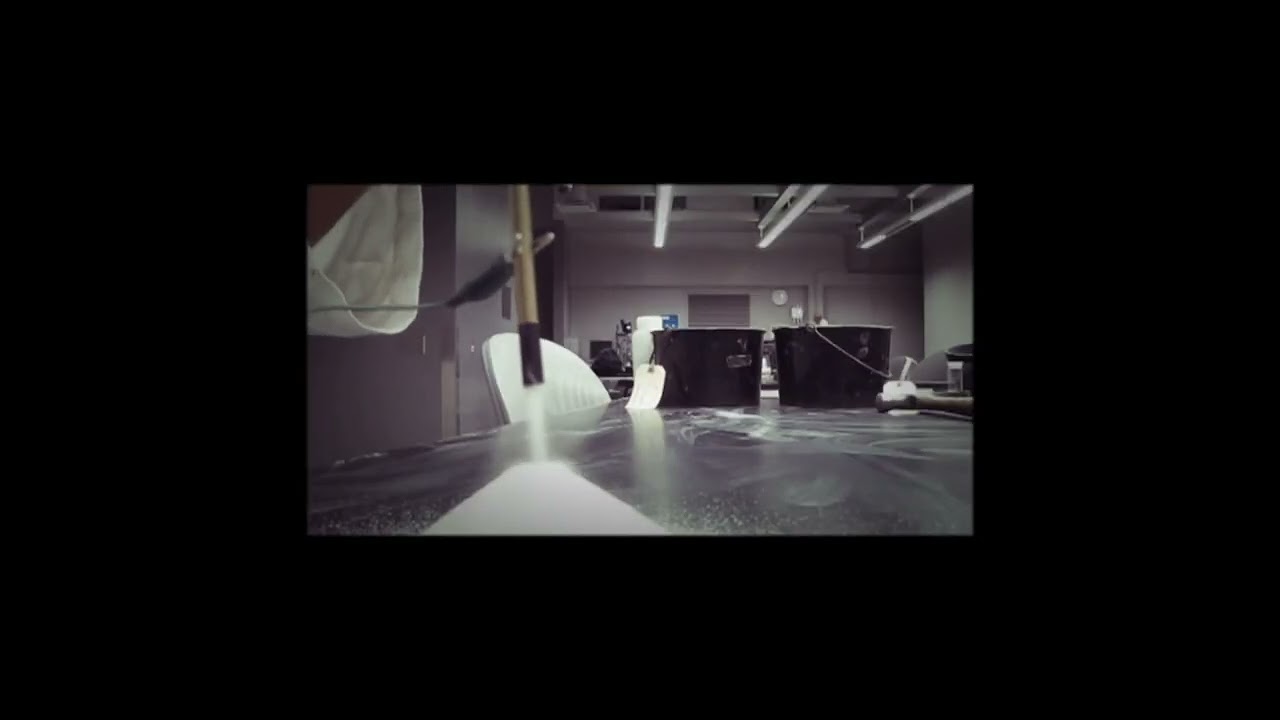

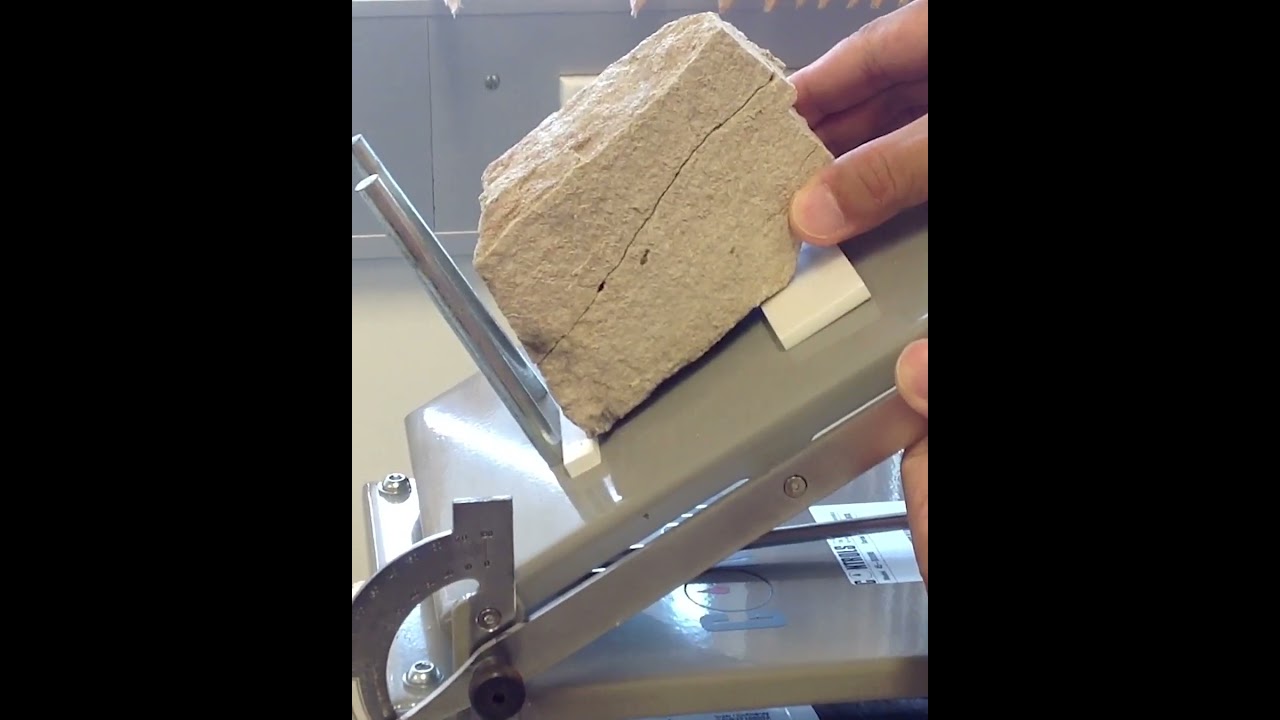

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Factors Determining Angle of Repose
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Angle of Repose determined by:
- Particle size (higher for large particles)
- Particle shape (higher for angular shapes)
- Shear strength (higher for higher shear strength)
Detailed Explanation
The Angle of Repose is the steepest angle at which a sloped surface formed of a particular material is stable. Several factors determine this angle:
1. Particle Size: Larger particles tend to have a higher angle of repose. This is because larger particles can create a more stable stack compared to smaller particles, which are more prone to sliding.
2. Particle Shape: Angular particles can create a steeper slope compared to rounded particles. Angular shapes can interlock better, offering more resistance against sliding. Round particles, on the other hand, lack this interlocking capability, leading to lower stability and a gentler slope.
3. Shear Strength: The inherent shear strength of a material affects its angle of repose. Higher shear strength means the material can withstand greater stress before sliding occurs, allowing for a steeper angle.
Examples & Analogies
Imagine a pile of sand. If you use pebbles (larger particles), the pile can be steeper compared to a pile of fine, powdery sand. If you look at the sand, you will notice that the grains are smooth and rounded. This makes it hard for them to stay in place compared to jagged rocks that can lock into each other, maintaining a steep edge without slipping.
Application of Angle of Repose
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Understanding the angle of repose is crucial for various engineering applications, including the design of
- Slopes for embankments
- Rock and soil stability evaluation
- Storage of granular materials
Detailed Explanation
The Angle of Repose is essential in engineering because it helps determine how steep a slope can be before it becomes unstable:
1. Design of Slopes for Embankments: Engineers use the angle of repose to design safe slopes for road embankments or earth dams, ensuring that the slope doesn't exceed the angle at which the material can stay stable.
2. Rock and Soil Stability Evaluation: Understanding the angle helps in evaluating the potential for landslides or failures in natural terrains, thus assisting in preventative measures.
3. Storage of Granular Materials: When storing materials like gravel or grains, knowing the angle of repose helps in deciding how high the pile can be without collapsing.
Examples & Analogies
Think about a sandcastle at the beach. If you build it with coarse sand (high angle of repose), you can make it taller without it falling over, whereas, with fine, wet sand (lower angle of repose), it may not stand as steeply and might collapse more easily.
Key Concepts
-
Angle of Repose: The maximum stability angle for soil without sliding.
-
Shear Strength: The effectiveness of soil to resist sliding.
-
Cohesion: Bonding forces between soil particles.
-
Internal Friction: Resistance due to particle interlocking.
Examples & Applications
For example, sandy soils often have a lower Angle of Repose compared to gravel due to particle size.
A slope with an Angle of Repose of 30 degrees indicates that the soil can maintain this angle without sliding.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
For soil to stay, it must obey, the angle good, where it should play.
Stories
Imagine a pile of sand trying to balance on a slope; the point it starts to slide is the Angle of Repose.
Memory Tools
Remember 'SPS' for the factors of stability: Size, Particles, and Shear.
Acronyms
SASS for factors
Size
Angle
Shape
Shear strength.
Flash Cards
Glossary
- Angle of Repose
The steepest angle at which a sloped surface formed of a particular material remains stable.
- Shear Strength
The capacity of a material to resist internal and external forces which slide past each other.
- Cohesion
A measure of the forces that cement particles of soils.
- Internal Friction
The frictional resistance and interlocking between soil particles, contributing to shear strength.
