1.2 - Shear Strength
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Shear Strength
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we are diving into the concept of shear strength in soil. Can anyone tell me why understanding shear strength is essential for engineers?
Isn't it to prevent structures from collapsing due to soil failure?
Exactly! Shear strength is vital because if the soil fails, the whole structure can collapse. Now, let’s define shear strength. It's the capacity of a material to resist internal and external forces that cause sliding. Can anyone summarize that in simpler terms?
It’s like how strong the soil is to keep things on top of it from sliding off!
Great analogy! Remember this concept as it applies to various engineering projects.
Components of Shear Strength
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's explore the two sources of shear strength. Who can name them?
Cohesion and frictional resistance, right?
Correct! Cohesion is stress-independent and comes from forces binding the particles together, while frictional resistance is stress-dependent and arises from how the particles interact. Can someone give an example of how cohesion works?
Like when clay particles stick together due to electrostatic attraction.
Exactly! That’s a perfect example of cohesion in clay. Now, what about frictional resistance?
It depends on how tightly the particles fit together and their shape, right?
Yes! The interlocking particles and their angles contribute to this resistance. Excellent participation, everyone!
Effects of Stress on Soil
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, let’s talk about the types of stresses in soil - normal stress and shear stress. Who can define them?
Normal stress is the force acting perpendicular to the surface, while shear stress acts parallel, making it slide.
Absolutely correct! The interaction of these stresses is crucial for understanding soil stability. Can anyone think of a situation where shear stress becomes critical?
When a building is built on a slope, right? The shear stress can lead to failure.
Great example! It's vital to assess shear strength to avoid such failures in practice.
Applications of Shear Strength in Engineering
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s wrap up by looking at some applications of shear strength in engineering. Can anyone list situations where knowing shear strength is critical?
Slope stability analysis?
And the design of retaining walls.
Exactly! Applications are vast, from bearing capacities to understanding lateral earth pressures on structures. It's crucial for maintaining safety in any geotechnical project.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Understanding shear strength is essential for geotechnical engineers as it influences soil failure, bearing capacity, slope stability, and the performance of earth-retaining structures. Shear strength is derived from cohesion and frictional resistance between soil particles.
Detailed
Shear Strength of Soil
Shear strength is a fundamental concept in geotechnical engineering, describing a soil's capacity to withstand internal and external forces that cause sliding among its particles. It is critical in the analysis and design of structures to ensure their stability and safety.
Key Points Covered:
- Necessity of Studying Shear Strength: Soil typically fails through shearing along internal surfaces, making it essential to understand its shear strength to prevent structural failures. Engineers rely on shear strength to analyze various stability problems, including bearing capacity, slope stability, and earth pressures.
- Definition of Shear Strength: Defined as the ability of a material (in this case, soil) to resist sliding forces, shear strength is essential for the safety of structures relying on soil for support.
- Components of Shear Strength: Shear strength in soils arises from cohesion and internal friction.
- Cohesion: This is the component of strength independent of stress, stemming from forces that bind particles together, such as cementation and electrostatic attractions in clay.
- Frictional Resistance: This stress-dependent component is influenced by the interlocking and friction between particles, characterized by the internal friction angle.
- Stresses: The role of stress in soil mechanics involves both normal stress (which affects volume) and shear stress (which leads to deformation and potential sliding failure). Understanding how these stresses interact is vital for assessing the soil's overall stability and behavior under loads.

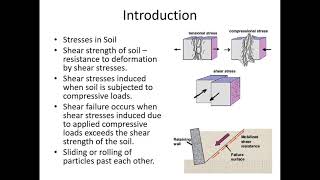

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Necessity of Studying Shear Strength of Soils
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Soil failure usually occurs in the form of “shearing” along internal surfaces within the soil.
Detailed Explanation
Soil is a material that can fail when it is subjected to certain stresses. The ugliest form of this failure is when the soil breaks apart along internal surfaces, which is referred to as 'shearing.' Understanding how and why this happens is crucial because it helps engineers to predict when soil might fail and how they can design structures to prevent this from occurring.
Examples & Analogies
Imagine building a sandcastle at the beach. If the sand is too dry and the tide comes in, the castle might collapse. This is somewhat similar to how soil can fail under weight or stress. If we understand how the sand (soil) behaves in these conditions, we can build better sandcastles (structures).
Definition of Shear Strength
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Thus shear strength is "The capacity of a material to resist the internal and external forces which slide past each other."
Detailed Explanation
Shear strength is defined as the ability of a material — in this case, soil — to withstand forces that are trying to make its particles slide against one another. This definition helps us understand why some soils can support heavy structures better than others; the stronger the soil’s shear strength, the more load it can carry without failing.
Examples & Analogies
Think of how you can push two books stacked on top of each other. If they are sitting on a smooth table, they might slide easily. But if they are on a rough surface, it takes more force to slide them. The rough surface gives the books a higher shear strength against sliding.
Significance of Shear Strength
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
- Engineers must understand the nature of shearing resistance in order to analyze soil stability problems such as:
- Bearing capacity
- Slope stability
- Lateral earth pressure on earth-retaining structure.
Detailed Explanation
Understanding shear strength is vital for engineers as it impacts several aspects of civil engineering — particularly when it comes to analyzing how well soil can hold up structures or withstand various environmental conditions. For example, determining 'bearing capacity' helps engineers know how much weight a foundation can support, while analyzing 'slope stability' helps prevent landslides.
Examples & Analogies
Imagine a book on a shelf: if the shelf is weak and the book is heavy, it could collapse. Engineers need to figure out how strong the shelf (the soil) is so they can safely support the book (the structure) without fear of it falling.
Components of Shear Strength of Soils
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Soil derives its shear strength from two sources:
– Cohesion between particles (stress independent component)
– Frictional resistance and interlocking between particles (stress dependent component).
Detailed Explanation
Shear strength of soil comes from two primary components: cohesion and friction. Cohesion refers to the forces that hold particles together, such as chemical bonds. Friction depends on how those particles interact and can change with stress — more pressure can increase friction. Together, these two components dictate how strong or weak a soil is under shear stress.
Examples & Analogies
Imagine two friends holding hands (cohesion), preventing one from sliding away from the other. If more friends (pressure) join in a circle and push (friction), everyone holds tighter. The more cohesive forces and friction there are, the stronger the group stays together against sliding apart.
Internal Friction
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Internal Friction angle (φ) is the measure of the shear strength of soils due to friction.
Detailed Explanation
The internal friction angle (φ) is an important concept that describes how much friction helps a soil resist shearing. This angle helps engineers quantify how different soil types will behave under load. The larger the angle, the greater the resistance to sliding, indicating that the soil has better shear strength.
Examples & Analogies
Think of a pile of sand. If you try to push a handful of sand down a steep slope, the angle at which you can push it before it slides down relates to the internal friction angle. A higher angle means more resistance; in other words, the sand holds together better.
Stresses in Soil
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Gravity generates stresses (force per unit area) in the ground at different points. Stress on a plane at a given point is viewed in terms of two components:
- Normal stress (σ) : acts normal to the plane and tends to compress soil grains towards each other (volume change)
- Shear stress (τ): acts tangential to the plane and tends to slide grains relative to each other (distortion and ultimately sliding failure).
Detailed Explanation
Stresses within the soil are caused by the force of gravity acting on it, leading to two types of stress: normal stress and shear stress. Normal stress pushes soil grains together, potentially causing them to compact, while shear stress works to make them slide past one another. This understanding helps engineers predict how soil will behave under various loads.
Examples & Analogies
Imagine pressing down on a soft sponge (normal stress) and then trying to push it sideways (shear stress). The way that sponge reacts gives insight into how soils behave under construction loads, where they may compact in one way while also potentially sliding in another.
Key Concepts
-
Shear Strength: The capacity of soil to resist sliding forces.
-
Cohesion: The internal binding forces within the soil unaffected by stress.
-
Frictional Resistance: The strength arising from friction and interlocking between soil particles.
-
Normal Stress: The compressive force acting perpendicular to a surface in soil.
-
Shear Stress: The tangential force leading to sliding among soil particles.
Examples & Applications
One example of shear strength is how sandy soil can lose stability when saturated with water, decreasing its cohesion.
When constructing a retaining wall, engineers need to calculate the lateral earth pressure based on the shear strength of the soil to ensure stability.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Shear strength stays, helps structures play; no soil slide, keep it beside!
Stories
Imagine a hilltop castle; if the soil weakens with rain, the castle slides down the hill. The stronger the soil's shear strength, the safer the castle stays.
Memory Tools
C-F: Cohesion = binding forces, Friction = sliding forces.
Acronyms
SFC
Shear
Friction
Cohesion are the three keys to strong soil.
Flash Cards
Glossary
- Shear Strength
The ability of a soil to resist forces that cause particles to slide past each other.
- Cohesion
The force that binds soil particles together, independent of stress.
- Internal Friction
The measure of shear strength contributed by friction between soil particles.
- Angle of Repose
The steepest angle of descent of a pile of loose material without sliding.
- Normal Stress
The stress component acting perpendicular to a given surface.
- Shear Stress
The stress component acting parallel to a given surface, leading to sliding.
