Understanding Shear Strength
Unlock Audio Lesson
Today, we're going to explore shear strength in soils. Can anyone tell me why this concept is important for engineers?
Is it because it affects how stable a structure is?
Exactly! Shear strength helps us determine whether the ground underneath is strong enough to support structures. It's all about how soil responds under pressure.
What exactly do we mean by shear failure?
Great question! Shear failure happens when the internal forces in the soil become too great, causing soil particles to slide past each other. Think of it like a deck of cards sliding when pushed at an angle.
So, if there's a lot of shearing, does that mean a structure could fall?
Yes! If the shear strength isn't sufficient, the structure above may collapse.
What contributes to a soil's shear strength?
Great segue! Shear strength comes from two sources: cohesion, which is the internal attraction between soil particles, and frictional resistance, which occurs when particles slide against each other.
Let's remember this with the acronym C-F: C for Cohesion and F for Friction. Can anyone give examples of these?
I think cohesion could be like clay sticking together.
That's right! And friction can be like how rough soil surfaces grip against each other. Great job!
In summary, shear strength is crucial for deciding soil stability, and it's influenced by both cohesion and friction.
Factors Affecting Shear Strength
Unlock Audio Lesson
Now that we understand the basic principles, let's delve into the factors that affect shear strength. Can anyone name a couple?
Particle size and shape?
Correct! Larger and angular particles tend to have higher shear strength. Why do you think that is?
Maybe because they interlock better?
Precisely! Interlocking creates additional resistance. Now, there's also the concept of the angle of repose—who can tell me what that is?
Isn't that the steepest angle at which a material can rest without sliding?
Exactly! The angle of repose is higher for larger, rougher particles. It helps us predict how steep a slope can be before failure.
So, basically, the stronger the material, the steeper the slope?
Yes, you're connecting the dots! To summarize, particle size, shape, and angle of repose all affect shear strength and slope stability.
Applications of Shear Strength in Engineering
Unlock Audio Lesson
Let’s now discuss how we apply our knowledge of shear strength in engineering. Can anyone think of practical applications?
Like determining how much weight a building can have?
Exactly! This is regarding bearing capacity—understanding how much load soil can hold without failing. Any other scenarios come to mind?
What about slope stability? I have seen landslide prevention structures.
You're spot on! Engineers use shear strength data to construct stable slopes and to design walls that retain earth. Remember what we learned about lateral earth pressure?
That’s like designing retaining walls to prevent soil from pushing through them?
Correct! All these applications highlight the practical significance of shear strength in our designs. Let's remember the acronym BSL (Bearing capacity, Slope stability, Lateral pressure) for future reference.
To sum up, shear strength plays a significant role in various geotechnical analyses and engineering designs to ensure safety.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The shear strength of soil is vital in geotechnical engineering, as it helps evaluate stability issues such as bearing capacity, slope stability, and lateral earth pressures on structures. It is determined by both cohesion and friction between soil particles, and understanding it is essential for ensuring the safety of built structures.
Detailed
Significance of Shear Strength
The shear strength of soil is a critical property affecting the safety and stability of geotechnical structures. Shear failure typically occurs when internal forces cause soil particles to slide past each other. Engineers must analyze shear strength to ensure stability in various scenarios, including bearing capacity, slope stability, and lateral earth pressure on retaining walls. The shear strength of soil can be defined as "the capacity of a material to resist internal and external forces that slide past each other."
Importance in Geotechnical Engineering
The strength of a soil is a key factor in preventing structural collapse; if the soil fails due to inadequate shear strength, the structures built on it are at risk. Understanding shear strength allows engineers to effectively analyze potential failure points in soil, leading to safer and more effective design solutions. The shear strength has two main components: cohesion (the forces holding soil particles together) and frictional resistance (the sliding resistance between particles under stress). Furthermore, factors influencing shear strength include particle size, shape, and the angle of repose, which collectively inform engineers on safety margins and potential risks in their projects.

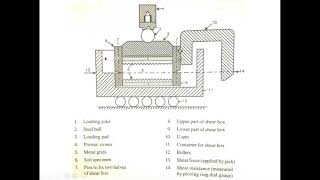

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Shearing Resistance
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Engineers must understand the nature of shearing resistance in order to analyze soil stability problems such as;
- Bearing capacity
- Slope stability
- Lateral earth pressure on earth-retaining structure
Detailed Explanation
This chunk emphasizes the importance of understanding shearing resistance for engineers. Shearing resistance is crucial in evaluating the stability of soil, which in turn affects the stability of structures built on or within the soil, such as buildings and roads. The three main areas where shearing resistance is significant include:
1. Bearing Capacity: This is the ability of soil to support the loads applied by structures. A misunderstanding here can lead to structural failure.
2. Slope Stability: This refers to the ability of a slope to remain stable under various forces, including gravity and external loads. Landslides can occur when slopes lose shear strength.
3. Lateral Earth Pressure: This is the pressure exerted by soil on retaining walls. It is important for ensuring that these structures do not collapse due to the weight of the soil behind them.
Examples & Analogies
Imagine building a sandcastle at the beach. If the wet sand has good compactness, it can hold the shape well. But if water seeps in and the sand becomes too loose, the castle could collapse. Similarly, engineers must ensure that the ground beneath buildings has enough shear strength to support them and withstand other pressures.
Shear Strength of Soil
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Thus shear strength is
"The capacity of a soil to resist the internal and external forces which slide past each other"
Detailed Explanation
Shear strength refers to the ability of soil to withstand forces that can cause its particles to slide against each other. This definition reflects the key role of shear strength in maintaining stability. When external forces like heavy rainfall or load from buildings are applied, the soil must have sufficient shear strength to prevent failure — that is, the internal structure of the soil must remain intact under those forces.
Examples & Analogies
Think of shear strength like the grip on a slippery floor. If you are wearing shoes with great grip, you can walk without slipping. But if you are wearing slippery socks, you’ll slide easily. Just like the shoes give you grip, soil needs shear strength to hold together under force; otherwise, it will fail and 'slide' like you would on a slippery surface.
Components of Shear Strength
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Soil derives its shear strength from two sources:
– Cohesion between particles (stress independent component)
• Cementation between sand grains
• Electrostatic attraction between clay particles
– Frictional resistance and interlocking between particles (stress dependent component)
Detailed Explanation
Shear strength in soil comes from two main components:
1. Cohesion: This refers to the attraction between soil particles that holds them together, independent of the stress acting on them. Factors like cementation or electrostatic forces are pivotal here. For example, clay can bond because of these attractive forces, helping it maintain shape and structure.
2. Frictional Resistance: This is dependent on the stress applied to the soil and is due to how particles interact when compressed. When pressured together, the friction between particles becomes significant, making it harder for them to slide past one another.
So checking both elements is necessary to understand a soil's overall shear strength.
Examples & Analogies
Imagine a pile of wooden blocks. If you push down on the pile, the blocks might stick together because of friction and the uneven surfaces (frictional resistance), but if they are held by glue (cohesion), they won’t easily slide around when you apply pressure. This illustrates how both cohesion and friction affect how stable they are under stress.
Effects of Particle Characteristics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Cohesion (C), is a measure of the forces that cement particles of soils.
Internal Friction angle (f), is the measure of the shear strength of soils due to friction.
Detailed Explanation
Here we explore two crucial parameters:
1. Cohesion (C): This quantifies how well soil particles stick together. Higher cohesion means more stability, as particles are less likely to move apart under stress.
2. Internal Friction Angle (f): This provides insight into how particles resist sliding due to friction when stress is applied. It is represented in degrees and tells us how much force is needed before particles start to slide past each other. Both characteristics play a vital role in determining the overall strength of the soil.
Examples & Analogies
Consider a group of kids holding hands in a circle. If all are strongly holding hands (high cohesion), they won’t easily let go and fall apart. If one tries to push against them, they also need to resist that push with body friction (internal friction angle). Thus, the combination of holding hands tightly and their ability to push against each other keeps the group stable, similar to how cohesion and internal friction work in soil.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Shear Strength: The capacity of a material to resist sliding forces.
-
Cohesion: Forces that cement soil particles together, crucial for strength.
-
Frictional Resistance: The force that opposes the sliding motion between soil particles.
-
Angle of Repose: Critical for predicting soil stability on slopes.
-
Normal Stress: Acts to compress soil and affect its stability.
-
Shear Stress: Causes soil particles to slide past each other.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A retaining wall relies on the shear strength of backfill soil to remain stable and prevent collapse.
-
When a hillside becomes saturated with water, the reduction in shear strength can lead to landslides.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Shear strength keeps structures tight, / Without it, they fall out of sight.
📖 Fascinating Stories
-
Imagine a pile of sand at the beach. As you build it higher, it has to resist its own weight and the pressure of the wind. If the grains stick together—thanks to cohesion— and fit tightly, it stands tall. But if too much water seeps in, it crumbles. This is the struggle of shear strength in action!
🧠 Other Memory Gems
-
Use C-F for remembering shear strength facts: C for Cohesion, F for Friction.
🎯 Super Acronyms
B-S-L for Bearing capacity, Slope stability, and Lateral earth pressure.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Shear Strength
Definition:
The capacity of a material to resist internal and external forces which slide past each other.
-
Term: Cohesion
Definition:
The measure of the forces that cement particles of soil together.
-
Term: Frictional Resistance
Definition:
The resistance to sliding that occurs between soil particles.
-
Term: Angle of Repose
Definition:
The steepest angle at which a material can rest without sliding.
-
Term: Internal Friction Angle
Definition:
A measure of the shear strength of soils due to friction.
-
Term: Normal Stress
Definition:
Stress that acts normal to the plane and tends to compress soil grains.
-
Term: Shear Stress
Definition:
Stress that acts tangential to the plane and tends to slide grains relative to each other.
