Shear Failure under Foundation Load - 1.4 | 10. Shear Strength Of Soil | Geotechnical Engineering - Vol 2
K12 Students

Academics

AI-Powered learning for Grades 8–12, aligned with major Indian and international curricula.

Professionals

Professional Courses

Industry-relevant training in Business, Technology, and Design to help professionals and graduates upskill for real-world careers.

Games

Interactive Games

Fun, engaging games to boost memory, math fluency, typing speed, and English skills—perfect for learners of all ages.

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Introduction to Shear Strength

Unlock Audio Lesson

0:00
Teacher
Teacher

Today, we're going to explore shear strength in soils. Can anyone tell me how they think shear strength is defined?

Student 1
Student 1

Is it about how strong the soil is when it's loaded?

Teacher
Teacher

Good point! Shear strength is actually defined as the capacity of a material to resist internal and external forces sliding past each other. It's crucial for preventing structural failures.

Student 2
Student 2

What happens if the shear strength fails?

Teacher
Teacher

If the shear strength fails, any structure above can potentially collapse. This highlights why it's vital to understand shear strength in engineering.

Student 3
Student 3

So, it's linked directly to the safety of structures?

Teacher
Teacher

Exactly! The stability of any geotechnical structure depends heavily on the soil's shear strength.

Student 4
Student 4

How do we measure it?

Teacher
Teacher

Great question! Let's delve deeper into how we measure shear strength in soils during our next session.

Components of Shear Strength

Unlock Audio Lesson

0:00
Teacher
Teacher

Previously, we introduced shear strength. Now, let's discuss its components: cohesion and internal friction. Does anyone remember what cohesion means?

Student 1
Student 1

Isn't it about how particles stick together?

Teacher
Teacher

Exactly! Cohesion measures the forces that bind soil particles together. In contrast, internal friction relates to the particle interactions under stress. What affects this friction?

Student 2
Student 2

Maybe the shape of the particles?

Teacher
Teacher

Correct! Both particle size and shape influence friction. Larger and angular particles can interlock more effectively.

Student 4
Student 4

How does this affect construction?

Teacher
Teacher

Understanding these components helps engineers predict how soils will behave under load, ensuring safer designs.

Shear Failure Mechanism

Unlock Audio Lesson

0:00
Teacher
Teacher

Now, let's talk about shear failure under foundation load. What do you think happens when a heavy structure is placed on soil?

Student 3
Student 3

The soil gets compressed?

Teacher
Teacher

Yes, but it also experiences shear stress trying to slide particles past one another. If this stress exceeds certain limits, failure occurs.

Student 1
Student 1

Are normal and shear stresses involved in this?

Teacher
Teacher

Absolutely! Normal stress compresses soil grains, while shear stress leads to sliding failure. Both stresses are vital for understanding soil behavior under load.

Student 2
Student 2

What can be done to prevent shear failure?

Teacher
Teacher

Engineers can adjust the design by improving soil properties or changing the foundation type. Let’s summarize today's points.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

The section discusses the concept of shear strength in soils and its significance in geotechnical engineering, particularly concerning shear failure under foundation loads.

Standard

This section highlights the importance of shear strength in assessing soil stability, emphasizing its role in preventing structural failure. It explains how soil derives its shear strength from cohesion and friction, and identifies the conditions leading to shear failure under foundation loads.

Detailed

Shear Failure under Foundation Load

Overview

Understanding shear failure is crucial for geotechnical engineers, as soil failure occurs predominantly due to shearing along internal surfaces. This section introduces shear strength—defined as the capacity of soil to resist forces that attempt to slide soil particles past one another.

Shear Strength Analysis

  • Shear Strength Measurement: The shear strength of soil is a measure of its resistance to deformation and a key determinant of structural stability. If the soil's shear strength fails, structures built on it may also fail.
  • Components of Shear Strength: Soil shear strength derives from two main components: cohesion (stress-independent) which includes factors like cementation and electrostatic attraction between particles, and frictional resistance (stress-dependent) arising from particle interlocking.
  • Significance in Engineering: A thorough grasp of shear strength aids in analyzing various stability issues including bearing capacity, slope stability, and lateral earth pressures on retaining structures.

Factors Contributing to Shear Failure

When foundation loads are applied, shear stress increases until it reaches a critical point, leading to failure. Understanding this mechanism helps in ensuring the safety and integrity of constructions.

Youtube Videos

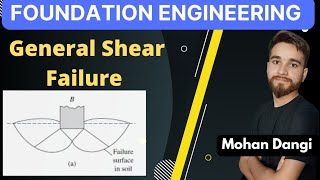

Foundation Engineering | Modes of shear failure | General shear failure | #foundationengineering
Foundation Engineering | Modes of shear failure | General shear failure | #foundationengineering

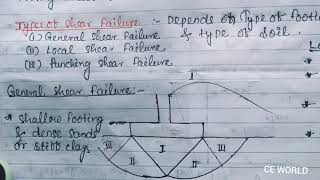

Shear failure of soil/foundation engineering (2)/revision/#bpsc#opsc#appsc
Shear failure of soil/foundation engineering (2)/revision/#bpsc#opsc#appsc

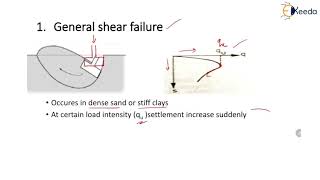

Types of Shear Failure - Bearing Capacity of Shallow Foundations - Geotechnical Engineering - II
Types of Shear Failure - Bearing Capacity of Shallow Foundations - Geotechnical Engineering - II

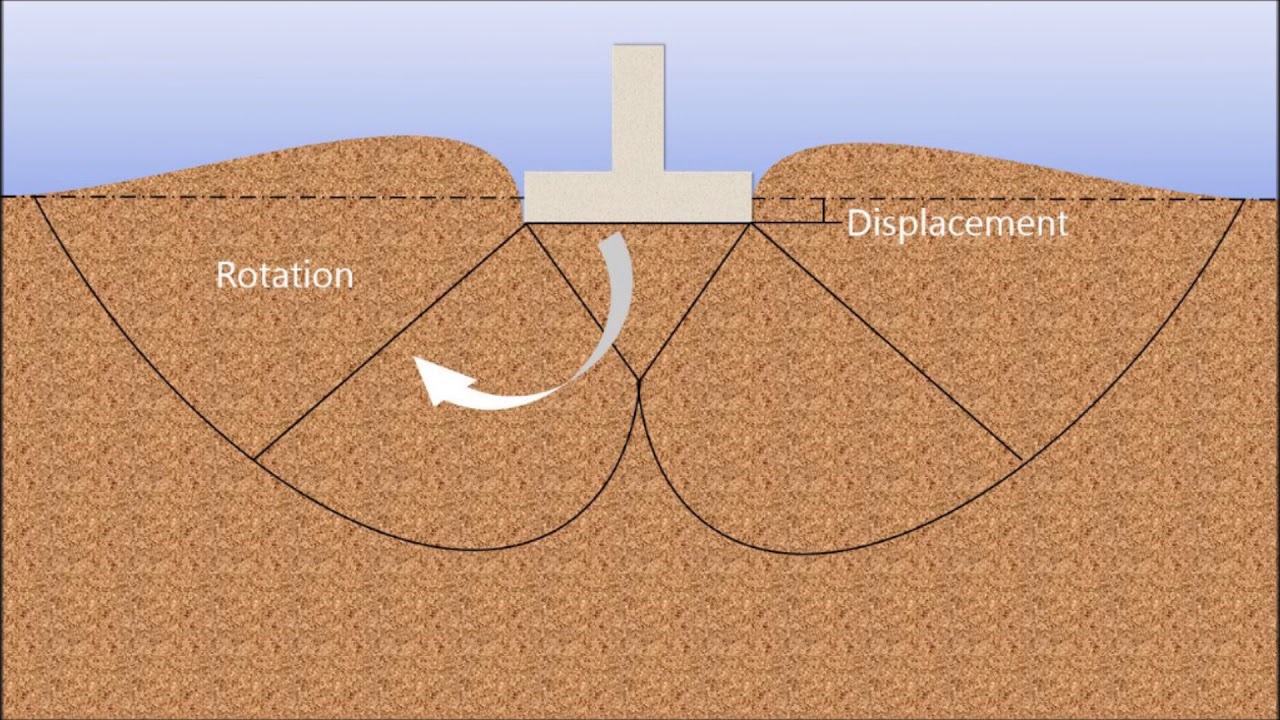

American Society of Civil Engineers' GeoVideo
American Society of Civil Engineers' GeoVideo
11.3 Type of Shear Failures | Foundation Engineering | GATE | ESE | Vishal Bhatt
11.3 Type of Shear Failures | Foundation Engineering | GATE | ESE | Vishal Bhatt
Principal Modes of Soil Failure | General, Punching, Local Shear Failure | Geotechnical Engineering
Principal Modes of Soil Failure | General, Punching, Local Shear Failure | Geotechnical Engineering
General, Punching and Local Shear Failure I Geotechnical Engineering
General, Punching and Local Shear Failure I Geotechnical Engineering

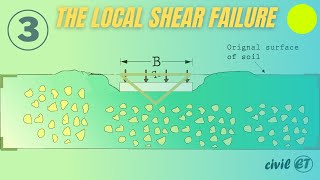

What is the local shear failure in the foundation ?
What is the local shear failure in the foundation ?
Modes of Shear Failure - Bearing Capacity - Foundation Engineering GATE
Modes of Shear Failure - Bearing Capacity - Foundation Engineering GATE

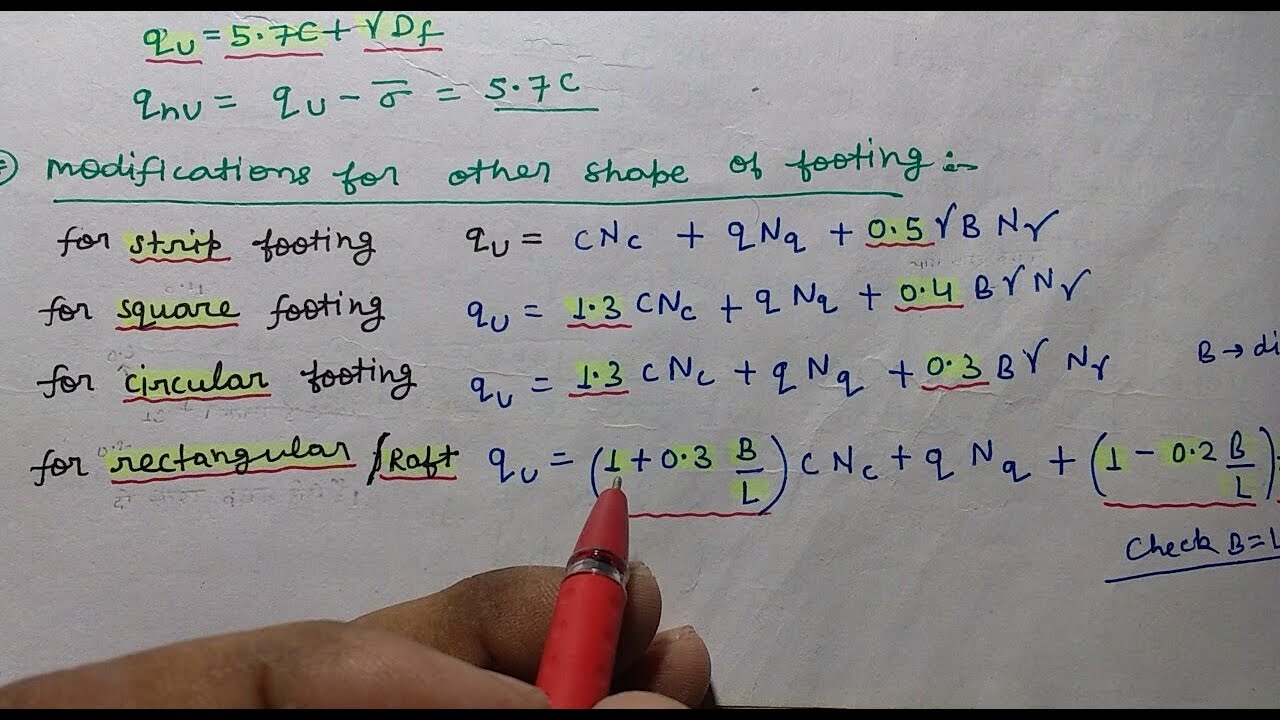

Terzaghi's Bearing Capacity Theory In Hindi🔥
Terzaghi's Bearing Capacity Theory In Hindi🔥

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Understanding Shear Strength of Soil

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

At failure, shear stress along the failure surface reaches the shear strength of soil.
Thus shear strength of soil is "The capacity of a soil to resist the internal and external forces which slide past each other."

Detailed Explanation

Shear strength is crucial to understanding how soil behaves under stress. At the point of failure, the amount of stress that the soil can withstand (shear stress) matches its shear strength. This means that when the applied forces on the soil exceed its ability to resist sliding, failure occurs. The definition of shear strength indicates its role in preventing failure - it's the soil's ability to keep particles from sliding past one another.

Examples & Analogies

Think of a stack of books on a table. If you push sideways on the top book gently, it might stay in place. However, if you push too hard, the top book will slide off the stack. The point at which the book slides is similar to the shear strength of soil; the table (ground) can only hold so much before it gives way.

Components of Shear Strength

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Soil derives its shear strength from two sources:
– Cohesion between particles (stress independent component)
• Cementation between sand grains
• Electrostatic attraction between clay particles
– Frictional resistance and interlocking between particles (stress dependent component)

Detailed Explanation

Shear strength arises from two primary components. The first is cohesion, which is due to the forces that bind soil particles together, such as cementation and electrostatic attraction. This means that some soil naturally sticks together without external forces. The second component is friction, which depends on the physical interaction and interlocking of particles; this is influenced by the stress acting on the soil. When soil particles are pushed together with more force, they create more friction, increasing strength.

Examples & Analogies

Imagine a pile of sand on a beach. If you gently try to slide your hand through, it flows easily due to low cohesion. However, if you wet the sand, the particles stick together more, showing increased cohesion. The way grains interact and lock together in the presence of more force mirrors how shearing occurs in soils.

Cohesion and Internal Friction

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Cohesion (C) is a measure of the forces that cement particles of soils.
Internal Friction (f) is the measure of the shear strength of soils due to friction.

Detailed Explanation

Cohesion is a key factor contributing to the strength of soil, providing resistance to slipping due to internal forces amongst soil particles. Internal friction, on the other hand, is the resistance that soil offers against sliding due to frictional forces when external load is applied. Together, these factors determine how stable soil is under various loads and conditions.

Examples & Analogies

Consider two friends trying to move a sofa together. If they push against it and it remains stable, that illustrates friction. If one friend holds onto the arm of the sofa while the other pushes, the arm's grip (cohesion) prevents sliding. This scenario presents how cohesion and internal friction work together to provide stability.

Stresses in Soil

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Gravity generates stresses (force per unit area) in the ground at different points. Stress on a plane at a given point is viewed in terms of two components:
Normal stress (σ) : acts normal to the plane and tends to compress soil grains towards each other (volume change)
Shear stress (τ): acts tangential to the plane and tends to slide grains relative to each other (distortion and ultimately sliding failure).

Detailed Explanation

Stress is a critical aspect of soil mechanics, comprising two main types. Normal stress compresses soil and affects its volume, while shear stress tries to slide soil particles past each other. The balance of these stresses determines soil stability and can lead to failure if shear stress exceeds shear strength.

Examples & Analogies

Picture a loaded bookshelf. The vertical weight of the books creates pressure on the shelves (normal stress), while if someone pulls on the front of the shelf, that action causes the shelves to slide (shear stress). Understanding these forces helps us ensure that the bookshelf remains stable and does not collapse.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Shear Strength: The ability of soil to resist sliding under applied stress.

  • Cohesion: The force that binds soil particles together.

  • Internal Friction: Resistance to shearing from particle interlocking.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • If a heavy building is constructed on clayey soil, the cohesion and friction between particles help prevent sliding failure under the weight.

  • In a landslide, a significant increase in shear stress can lead to shear failure of the slope.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Shear strength keeps the soil together, under loads, in every weather.

📖 Fascinating Stories

  • Once a building stood tall on weak clay, the ground said, 'Hold on, I can't stay!' It slid down the slope, causing dismay, a lesson learned on shear strength's way.

🧠 Other Memory Gems

  • C-FISH for cohesion, friction, interlocking, shear strength, to help you remember what holds soil together!

🎯 Super Acronyms

S-FISS for Shear Failure Investigation under Structural Loads.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Shear Strength

    Definition:

    The capacity of a material to resist internal and external forces that cause sliding along internal surfaces.

  • Term: Cohesion

    Definition:

    The measure of the forces that bind soil particles together.

  • Term: Internal Friction

    Definition:

    The shear strength of soils due to friction among particles under stress.
